Edwards Wire Rope  |  SKU: TB05X4.5EEHDG

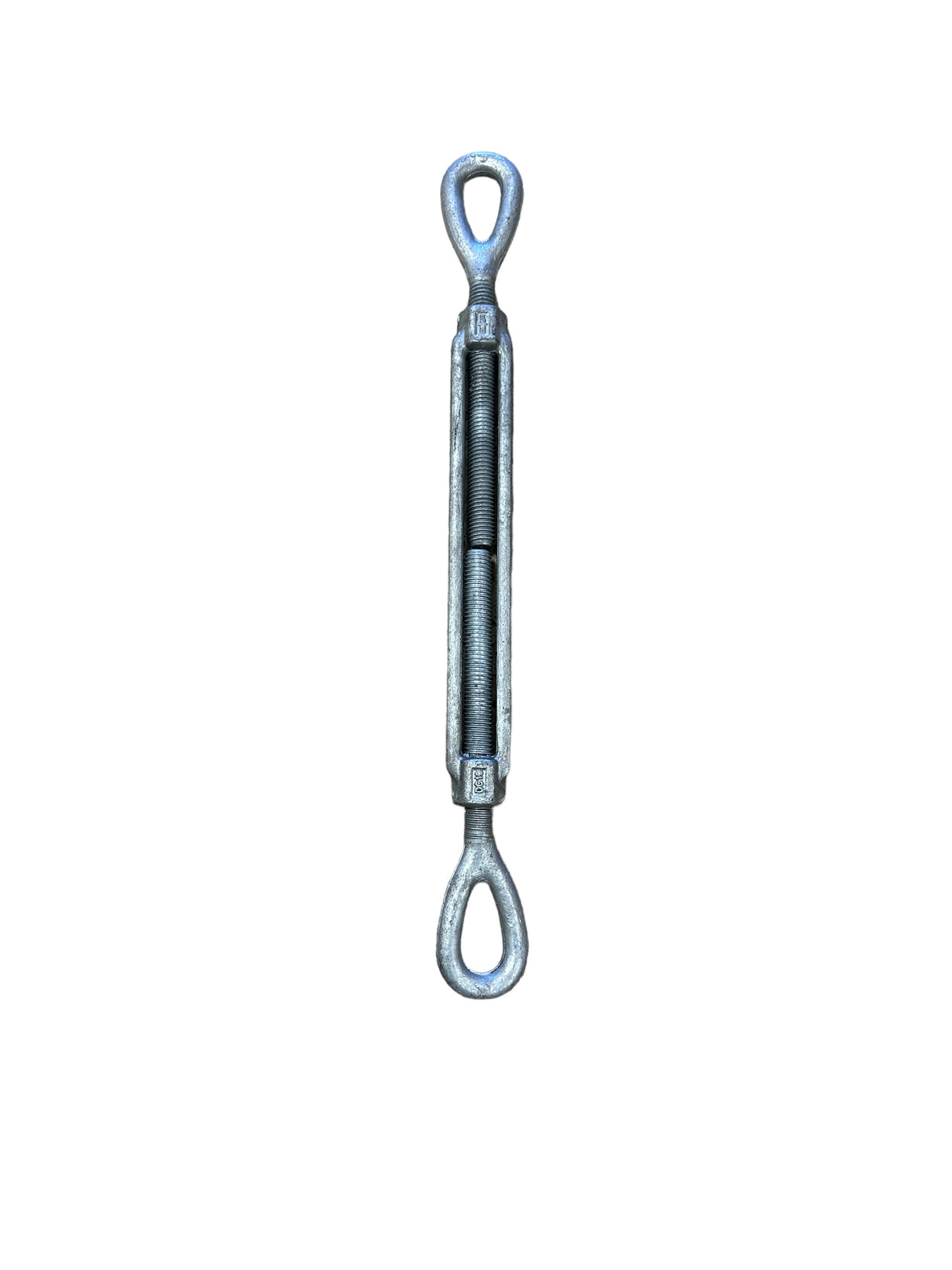

Eye & Eye Turnbuckles Hot Dipped Galvanized

$7.86

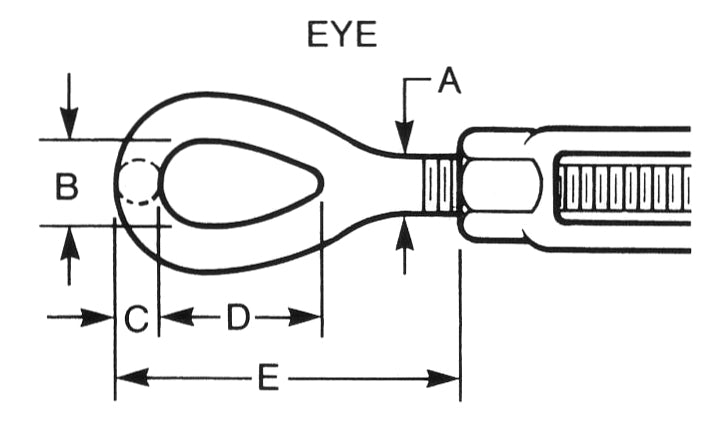

Dimensions In Inches
A B C D E
1/4" 0.34 0.22 0.78 1.78
5/16" 0.44 0.28 0.94 2.19
3/8" 0.53 0.34 1.13 2.56
1/2" 0.72 0.44 1.44 3.22
5/8" 0.88 0.5 1.75 3.88
3/4" 1 0.63 2.13 4.69
7/8" 1.25 0.75 2.38 5.25
1" 1.44 0.88 3 6.38
1 1/4" 1.81 1.13 3.56 7.75



Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.

According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.

**Sizes up to 2 3/4 in diameter and 24" in length**

Eye & Eye Turnbuckles Hot Dipped Galvanized
Edwards Wire Rope

Eye & Eye Turnbuckles Hot Dipped Galvanized

From $6.24
Dimensions In Inches
A B C D E
1/4" 0.34 0.22 0.78 1.78
5/16" 0.44 0.28 0.94 2.19
3/8" 0.53 0.34 1.13 2.56
1/2" 0.72 0.44 1.44 3.22
5/8" 0.88 0.5 1.75 3.88
3/4" 1 0.63 2.13 4.69
7/8" 1.25 0.75 2.38 5.25
1" 1.44 0.88 3 6.38
1 1/4" 1.81 1.13 3.56 7.75



Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.

According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.

**Sizes up to 2 3/4 in diameter and 24" in length**

Size & Length

  • 5/16"x4 1/2"
  • 1/4"x4"
  • 3/8"x6"
  • 1/2"x6"
  • 1/2"x9"
  • 1/2"x12"
  • 5/8"x6"
  • 5/8"x9"
  • 5/8"x12"
  • 3/4"x6"
  • 3/4"x9"
  • 3/4"x12"
  • 3/4"x18"
  • 7/8"x12"
  • 7/8"x18"
  • 1"x12"
  • 1"x18"
  • 1"x24"
  • 1 1 /4"x12"
  • 1 1/4"x18"
  • 1 1/4"x24"
