Edwards Wire Rope  |  SKU: TB04X4JJHDG

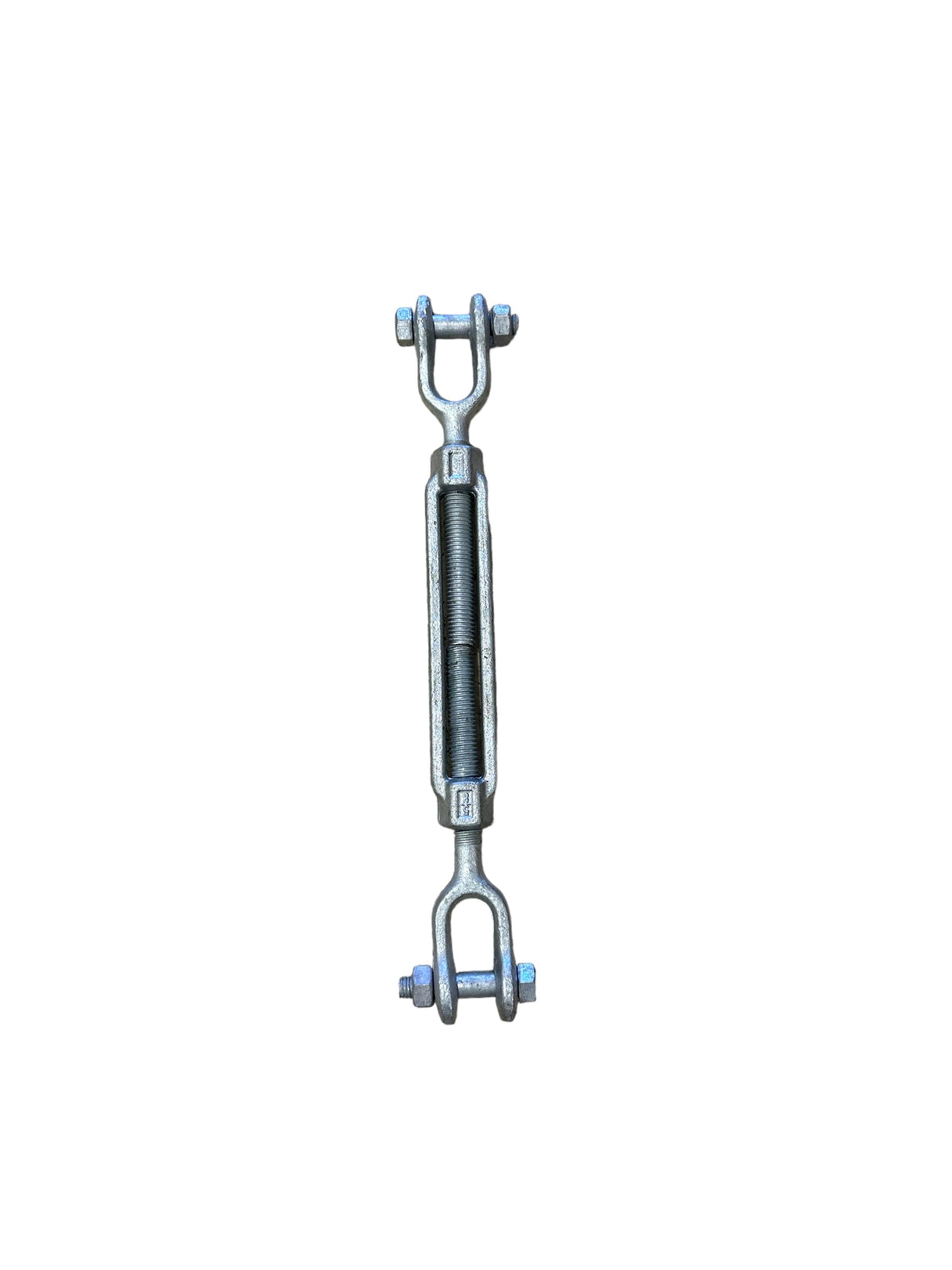

Jaw & Jaw Turnbuckles Hot Dipped Galvanized

$5.25

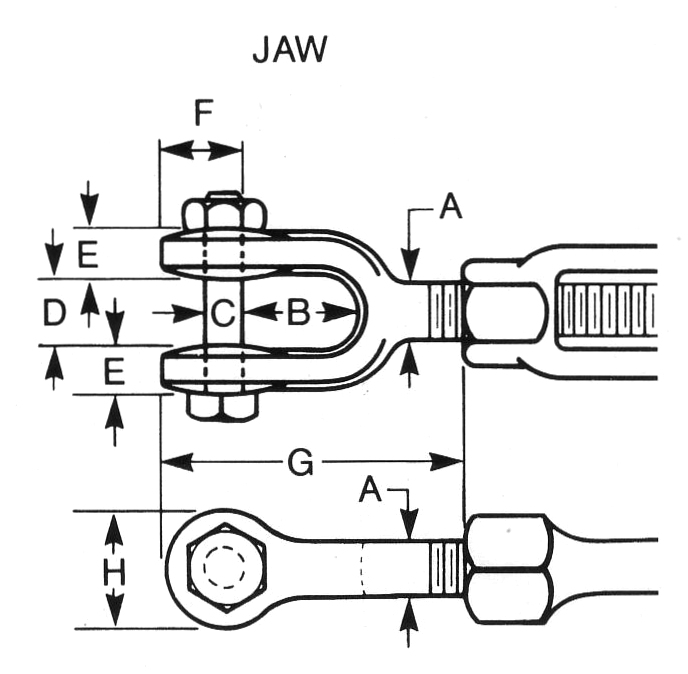

Dimensions In Inches
A B C D E F G H
1/4" 0.63 0.25 0.41 0.28 0.5 1.63 0.63
5/16" 0.88 0.25 0.47 0.28 0.5 2 0.69
3/8" 0.88 0.31 0.5 0.31 0.59 2.19 0.81
1/2" 1.06 0.38 0.63 0.41 0.75 2.75 1
5/8" 1.31 0.5 0.75 0.5 1.03 3.5 1.31
3/4" 1.5 0.63 0.94 0.56 1.28 4.13 1.63
7/8" 1.75 0.75 1.13 0.69 1.47 4.84 1.88
1" 2.06 0.88 1.19 0.78 1.66 5.53 2.13
1 1/4" 2.81 1.13 1.75 1 2.09 7.19 2.63



Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.

According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.

**Sizes up to 2 3/4 in diameter and 24" in length**

Jaw & Jaw Turnbuckles Hot Dipped Galvanized
Edwards Wire Rope

Jaw & Jaw Turnbuckles Hot Dipped Galvanized

From $5.25
Dimensions In Inches
A B C D E F G H
1/4" 0.63 0.25 0.41 0.28 0.5 1.63 0.63
5/16" 0.88 0.25 0.47 0.28 0.5 2 0.69
3/8" 0.88 0.31 0.5 0.31 0.59 2.19 0.81
1/2" 1.06 0.38 0.63 0.41 0.75 2.75 1
5/8" 1.31 0.5 0.75 0.5 1.03 3.5 1.31
3/4" 1.5 0.63 0.94 0.56 1.28 4.13 1.63
7/8" 1.75 0.75 1.13 0.69 1.47 4.84 1.88
1" 2.06 0.88 1.19 0.78 1.66 5.53 2.13
1 1/4" 2.81 1.13 1.75 1 2.09 7.19 2.63



Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.

According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.

**Sizes up to 2 3/4 in diameter and 24" in length**

Size & Length

  • 1/4"x4"
  • 5/16"x4 1/2"
  • 3/8"x6"
  • 1/2"x6"
  • 1/2"x9"
  • 1/2"x12"
  • 5/8"x6"
  • 5/8"x9"
  • 5/8"x12"
  • 3/4"x6"
  • 3/4"x9"
  • 3/4"x12"
  • 3/4"x18"
  • 7/8"x12"
  • 7/8"x18"
  • 1"x12"
  • 1"x18"
  • 1"x24"
  • 1 1/4"x12"
  • 1 1/4"x18"
  • 1 1/4"x24"
