Edwards Wire Rope | SKU:
TB06X6STUB

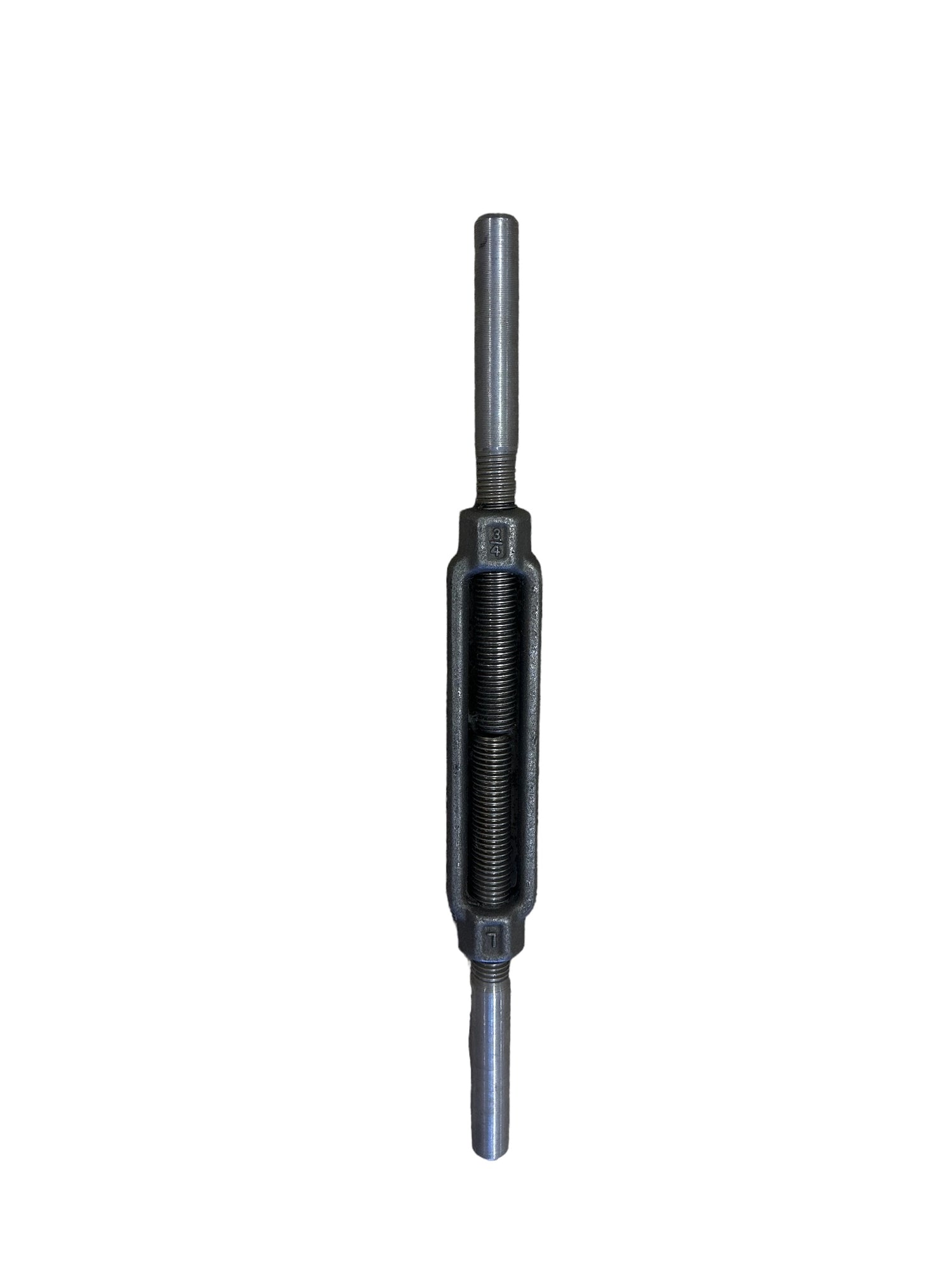

Stub End Turnbuckles Self Colored
$4.57
Unit price
/
Unavailable
Stub End Turnbuckles Self Colored - 3/8"x6" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Stub End Turnbuckles Self Colored
From
$4.57
Unit price
/
Unavailable

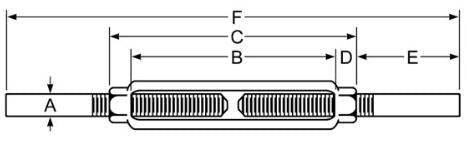

| Size | Working | Approx. | Approx. | Dimensions in Inches | |||
| Diameter (A) | Load | Weight each | Weight each | ||||
| x | Limit in | Body Only | Stub End in | ||||
| Take-up (B) | Pounds | in Pounds | Pounds | C | D | E | F* |
| 3/8"x6" | 1,200 | 0.3 | 0.7 | 7.13 | 0.56 | 4.44 | 16 |
| 1/2"x6" | 2,200 | 0.6 | 1.4 | 7.5 | 0.75 | 4.25 | 16 |
| 1/2"x9" | 2,200 | 0.8 | 1.7 | 10.5 | 0.75 | 4.25 | 19 |
| 1/2"x12" | 2,200 | 1 | 1.8 | 13.5 | 0.75 | 4.25 | 22 |
| 5/8"x6" | 3,500 | 1 | 2 | 7.88 | 0.94 | 4.06 | 16 |
| 5/8"x9" | 3,500 | 1.2 | 2.5 | 10.88 | 0.94 | 4.06 | 19 |
| 5/8"x12" | 3,500 | 1.4 | 3.1 | 13.88 | 0.94 | 4.06 | 22 |
| 3/4"x6" | 5,200 | 1.2 | 3.3 | 8.25 | 1.13 | 4.38 | 17 |
| 3/4"x9" | 5,200 | 1.6 | 4 | 11.25 | 1.13 | 4.38 | 20 |
| 3/4"x12" | 5,200 | 2.1 | 4.8 | 14.25 | 1.13 | 4.38 | 23 |
| 3/4"x18" | 5,200 | 3.2 | 5.8 | 20.25 | 1.13 | 4.38 | 29 |
| 7/8"x6" | 7,200 | 1.8 | 4.5 | 8.63 | 1.31 | 4.69 | 18 |
| 7/8"x12" | 7,200 | 2.7 | 6.4 | 14.63 | 1.31 | 4.69 | 24 |
| 7/8"x18" | 7,200 | 3.8 | - | 20.63 | 1.31 | - | - |
| 1"x6" | 10,000 | 2.5 | 6.3 | 9 | 1.5 | 5 | 19 |
| 1"x12" | 10,000 | 4.2 | 8.9 | 15 | 1.5 | 5 | 25 |
Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.
According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.
**Sizes up to 2 3/4 in diameter and 24" in length**
