Edwards Wire Rope  |  SKU: CL02DFI

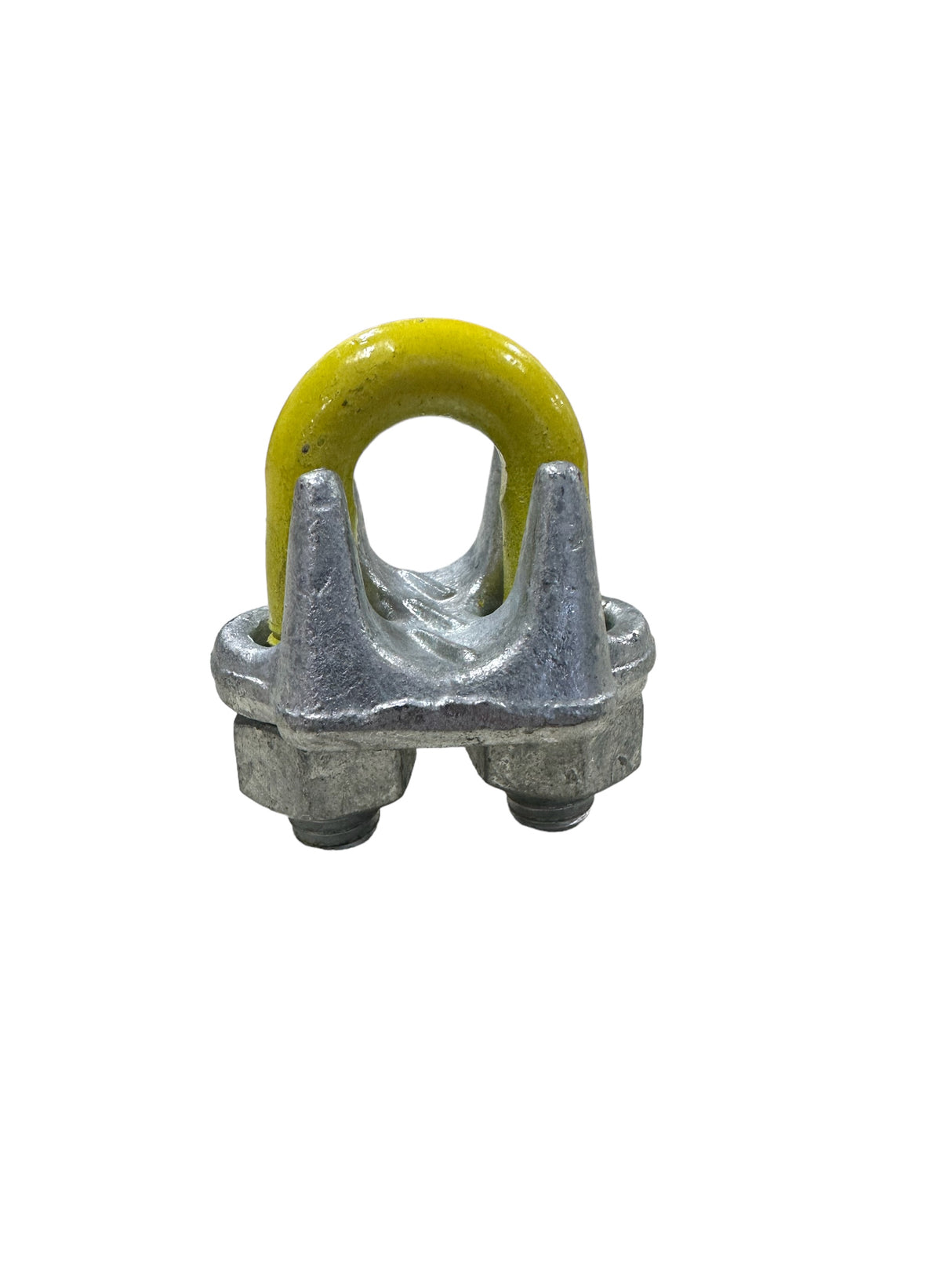

Forge Wire Rope Clip Galvanized

$1.21
Size Min. Torque in Feet Amount of Approx. Dimensions in Inches
Number of Clips lbs.* Wire Rope Wt. Each
Reqd.   to Turn Back in Pounds A B C D E F G
1/8"** 2 4.5 3.1/4" 0.05 0.19 0.75 0.44 0.44 0.38 0.81 0.94
3/16"** 2 7.5 3.3/4" 0.1 0.25 0.94 0.56 0.56 0.5 0.94 1.19
1/4" 2 15 4.3/4" 0.18 0.31 1.06 0.56 0.75 0.63 1.19 1.5
5/16" 2 30 5.1/4" 0.31 0.38 1.44 0.75 0.88 0.75 1.31 1.69
3/8" 2 45 6.1/2" 0.46 0.44 1.5 0.75 1 0.88 1.56 1.94
7/16" 3 65 7" 0.73 0.5 1.88 1 1.19 1 1.81 2.31
1/2" 3 65 11.1/2" 0.73 0.5 1.88 1 1.19 1.06 1.81 2.31
9/16" 3 95 12" 0.96 0.56 2.38 1.25 1.31 1.13 2.06 2.5
5/8" 3 95 12" 1 0.56 2.38 1.25 1.31 1.25 2.06 2.5
3/4" 4 130 18" 1.5 0.63 2.75 1.38 1.5 1.38 2.31 2.75
7/8" 4 225 19" 2.44 0.75 3.19 1.44 1.81 1.69 2.63 3.31
1" 5 225 26" 2.7 0.75 3.63 1.75 1.88 1.75 2.63 3.47
1.1/8" 6 225 34" 3.1 0.74 4 2 2 1.88 2.81 3.56
1.1/4" 7 360 44" 4.6 0.88 4.38 2.25 2.31 2.06 3.25 4.06
1.3/8" 7 360 44" 5.2 0.88 4.63 2.31 2.38 2.25 3.44 4.25
1.1/2" 8 360 54" 5.9 0.88 4.94 2.38 2.63 2.5 3.5 4.38





When using U-bolt clips, extreme care must be exercised to make certain that they are attached correctly. The correct way to attach U-bolts is shown above; the "U" section is in contact with the rope's "dead end" and is clear of the thimble. The "live end", carrying the load, is gripped by the saddle of the clip.

REMEMBER: "Never saddle a dead horse."

Forge Wire Rope Clip Galvanized
Edwards Wire Rope

Forge Wire Rope Clip Galvanized

From $1.21
Size Min. Torque in Feet Amount of Approx. Dimensions in Inches
Number of Clips lbs.* Wire Rope Wt. Each
Reqd.   to Turn Back in Pounds A B C D E F G
1/8"** 2 4.5 3.1/4" 0.05 0.19 0.75 0.44 0.44 0.38 0.81 0.94
3/16"** 2 7.5 3.3/4" 0.1 0.25 0.94 0.56 0.56 0.5 0.94 1.19
1/4" 2 15 4.3/4" 0.18 0.31 1.06 0.56 0.75 0.63 1.19 1.5
5/16" 2 30 5.1/4" 0.31 0.38 1.44 0.75 0.88 0.75 1.31 1.69
3/8" 2 45 6.1/2" 0.46 0.44 1.5 0.75 1 0.88 1.56 1.94
7/16" 3 65 7" 0.73 0.5 1.88 1 1.19 1 1.81 2.31
1/2" 3 65 11.1/2" 0.73 0.5 1.88 1 1.19 1.06 1.81 2.31
9/16" 3 95 12" 0.96 0.56 2.38 1.25 1.31 1.13 2.06 2.5
5/8" 3 95 12" 1 0.56 2.38 1.25 1.31 1.25 2.06 2.5
3/4" 4 130 18" 1.5 0.63 2.75 1.38 1.5 1.38 2.31 2.75
7/8" 4 225 19" 2.44 0.75 3.19 1.44 1.81 1.69 2.63 3.31
1" 5 225 26" 2.7 0.75 3.63 1.75 1.88 1.75 2.63 3.47
1.1/8" 6 225 34" 3.1 0.74 4 2 2 1.88 2.81 3.56
1.1/4" 7 360 44" 4.6 0.88 4.38 2.25 2.31 2.06 3.25 4.06
1.3/8" 7 360 44" 5.2 0.88 4.63 2.31 2.38 2.25 3.44 4.25
1.1/2" 8 360 54" 5.9 0.88 4.94 2.38 2.63 2.5 3.5 4.38





When using U-bolt clips, extreme care must be exercised to make certain that they are attached correctly. The correct way to attach U-bolts is shown above; the "U" section is in contact with the rope's "dead end" and is clear of the thimble. The "live end", carrying the load, is gripped by the saddle of the clip.

REMEMBER: "Never saddle a dead horse."
