Edwards Wire Rope  |  SKU: SO05SPCSI

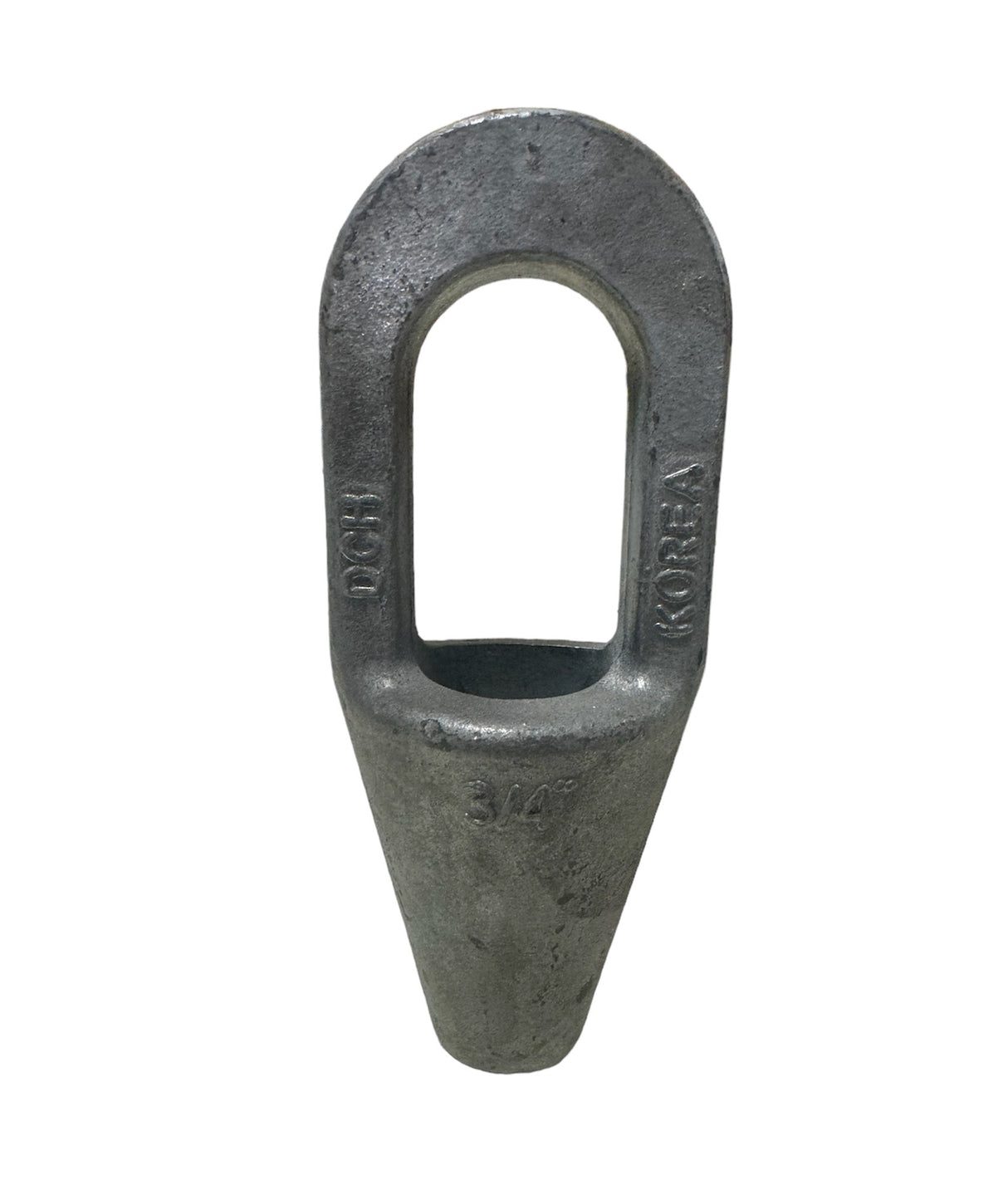

Closed Spelter Socket

$34.83

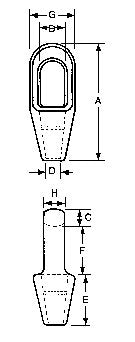

Size Dimensions in Inches Weight
Each in
A B C D E F G H Pounds
5/16"-3/8" 4.88 0.94 0.63 0.5 2.25 2 1.69 0.69 1.1
7/16"-1/2" 5.44 1.13 0.69 0.56 2.5 2.25 2 0.88 1.5
9/16"-5/8" 6.31 1.38 0.81 0.69 3 2.5 2.63 1 3
3/4" 7.56 1.63 1.06 0.81 3.5 3 3 1.25 4.5
7/8" 8.75 1.88 1.25 0.94 4 3.5 3.63 1.5 7
1" 9.88 2.25 1.38 1.13 4.5 4 4.13 1.75 11
1.1/8" 11 2.5 1.5 1.25 5 4.5 4.5 2 16
1.1/4"-1.3/8" 12.13 2.75 1.63 1.5 5.5 5 5 2.25 22
1.1/2" 13.94 3.13 1.94 1.63 6 6 5.38 2.5 28



Efficiency of spelter socket terminations: 100% of the catalog breaking strength of wire rope. These drawings illustrate one groove used on sockets 1/2" and smaller. Sizes 9/16"-1.1/2" have two grooves. Sizes 1.3/4" and larger have three grooves.

****Sizes up to 3 Inches Available****

Closed Spelter Socket
Edwards Wire Rope

Closed Spelter Socket

From $34.83
Size Dimensions in Inches Weight
Each in
A B C D E F G H Pounds
5/16"-3/8" 4.88 0.94 0.63 0.5 2.25 2 1.69 0.69 1.1
7/16"-1/2" 5.44 1.13 0.69 0.56 2.5 2.25 2 0.88 1.5
9/16"-5/8" 6.31 1.38 0.81 0.69 3 2.5 2.63 1 3
3/4" 7.56 1.63 1.06 0.81 3.5 3 3 1.25 4.5
7/8" 8.75 1.88 1.25 0.94 4 3.5 3.63 1.5 7
1" 9.88 2.25 1.38 1.13 4.5 4 4.13 1.75 11
1.1/8" 11 2.5 1.5 1.25 5 4.5 4.5 2 16
1.1/4"-1.3/8" 12.13 2.75 1.63 1.5 5.5 5 5 2.25 22
1.1/2" 13.94 3.13 1.94 1.63 6 6 5.38 2.5 28



Efficiency of spelter socket terminations: 100% of the catalog breaking strength of wire rope. These drawings illustrate one groove used on sockets 1/2" and smaller. Sizes 9/16"-1.1/2" have two grooves. Sizes 1.3/4" and larger have three grooves.

****Sizes up to 3 Inches Available****
