Edwards Wire Rope  |  SKU: CL02DFSS

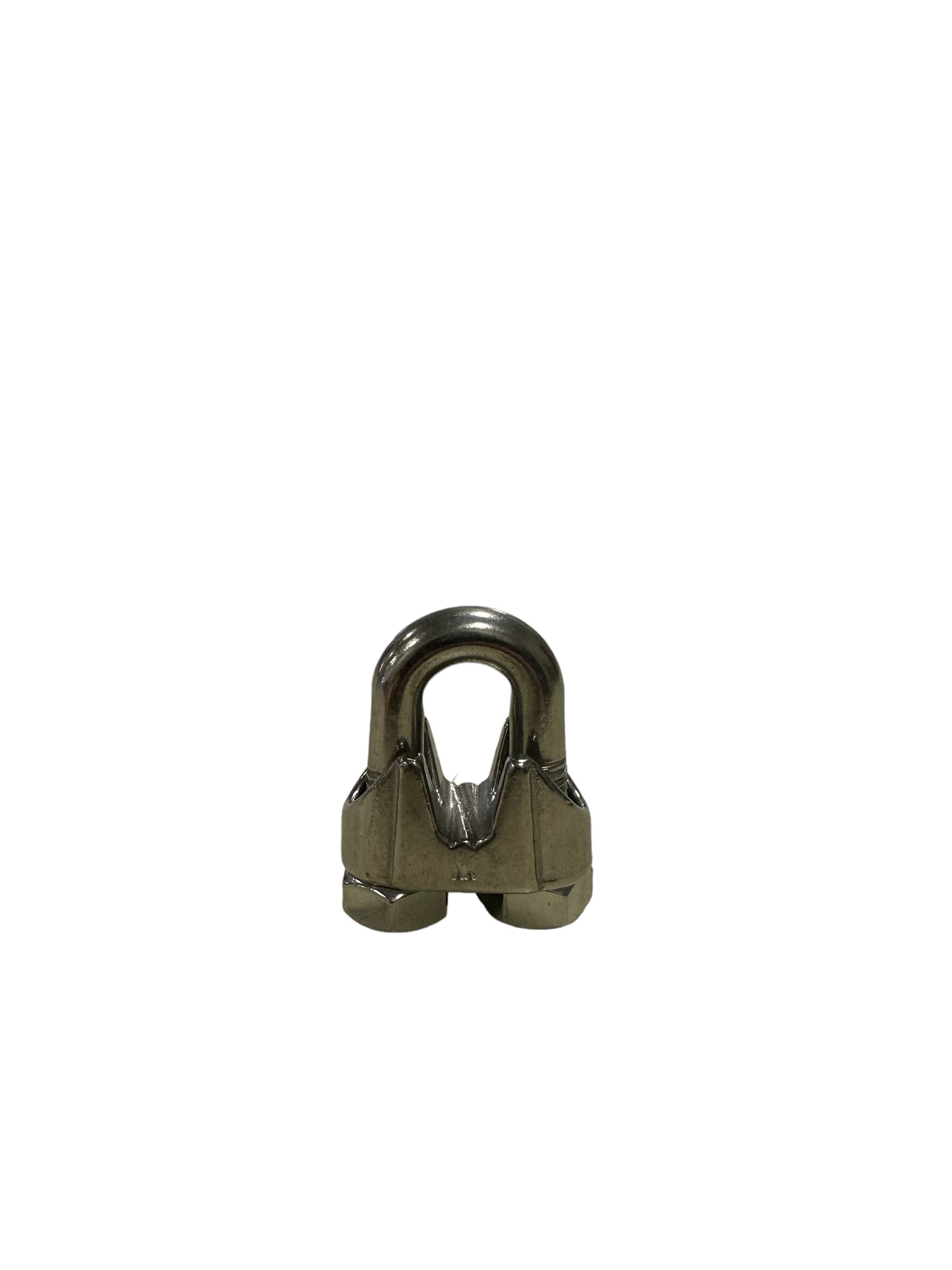

Drop Forge Wire Rope Clip Stainless 316

$12.06


Size Min. Torque in Feet Amount of Approx. Dimensions in Inches
Number of Clips lbs.* Wire Rope Wt. Each
Reqd.   to Turn Back in Pounds A B C D E F G
1/8" 2 4.5 3.1/4" 0.05 0.19 0.75 0.44 0.44 0.38 0.81 0.94
3/16" 2 7.5 3.3/4" 0.1 0.25 0.94 0.56 0.56 0.5 0.94 1.19
1/4" 2 15 4.3/4" 0.18 0.31 1.06 0.56 0.75 0.63 1.19 1.5
5/16" 2 30 5.1/4" 0.31 0.38 1.44 0.75 0.88 0.75 1.31 1.69
3/8" 2 45 6.1/2" 0.46 0.44 1.5 0.75 1 0.88 1.56 1.94
1/2" 3 65 11.1/2" 0.73 0.5 1.88 1 1.19 1.06 1.81 2.31
5/8" 3 95 12" 1 0.56 2.38 1.25 1.31 1.25 2.06 2.5
3/4" 4 130 18" 1.5 0.63 2.75 1.38 1.5 1.38 2.31 2.75
7/8" 4 225 19" 2.44 0.75 3.19 1.44 1.81 1.69 2.63 3.31
1" 5 225 26" 2.7 0.75 3.63 1.75 1.88 1.75 2.63 3.47



When using U-bolt clips, extreme care must be exercised to make certain that they are attached correctly. The correct way to attach U-bolts is shown above; the "U" section is in contact with the rope's "dead end" and is clear of the thimble. The "live end", carrying the load, is gripped by the saddle of the clip.

REMEMBER: "Never saddle a dead horse."

Drop Forge Wire Rope Clip Stainless 316
Edwards Wire Rope

Drop Forge Wire Rope Clip Stainless 316

From $12.06
Size Min. Torque in Feet Amount of Approx. Dimensions in Inches
Number of Clips lbs.* Wire Rope Wt. Each
Reqd.   to Turn Back in Pounds A B C D E F G
1/8" 2 4.5 3.1/4" 0.05 0.19 0.75 0.44 0.44 0.38 0.81 0.94
3/16" 2 7.5 3.3/4" 0.1 0.25 0.94 0.56 0.56 0.5 0.94 1.19
1/4" 2 15 4.3/4" 0.18 0.31 1.06 0.56 0.75 0.63 1.19 1.5
5/16" 2 30 5.1/4" 0.31 0.38 1.44 0.75 0.88 0.75 1.31 1.69
3/8" 2 45 6.1/2" 0.46 0.44 1.5 0.75 1 0.88 1.56 1.94
1/2" 3 65 11.1/2" 0.73 0.5 1.88 1 1.19 1.06 1.81 2.31
5/8" 3 95 12" 1 0.56 2.38 1.25 1.31 1.25 2.06 2.5
3/4" 4 130 18" 1.5 0.63 2.75 1.38 1.5 1.38 2.31 2.75
7/8" 4 225 19" 2.44 0.75 3.19 1.44 1.81 1.69 2.63 3.31
1" 5 225 26" 2.7 0.75 3.63 1.75 1.88 1.75 2.63 3.47



When using U-bolt clips, extreme care must be exercised to make certain that they are attached correctly. The correct way to attach U-bolts is shown above; the "U" section is in contact with the rope's "dead end" and is clear of the thimble. The "live end", carrying the load, is gripped by the saddle of the clip.

REMEMBER: "Never saddle a dead horse."
