Clevis & Clevis Pressure Compensated Swivel – Model SSP-67

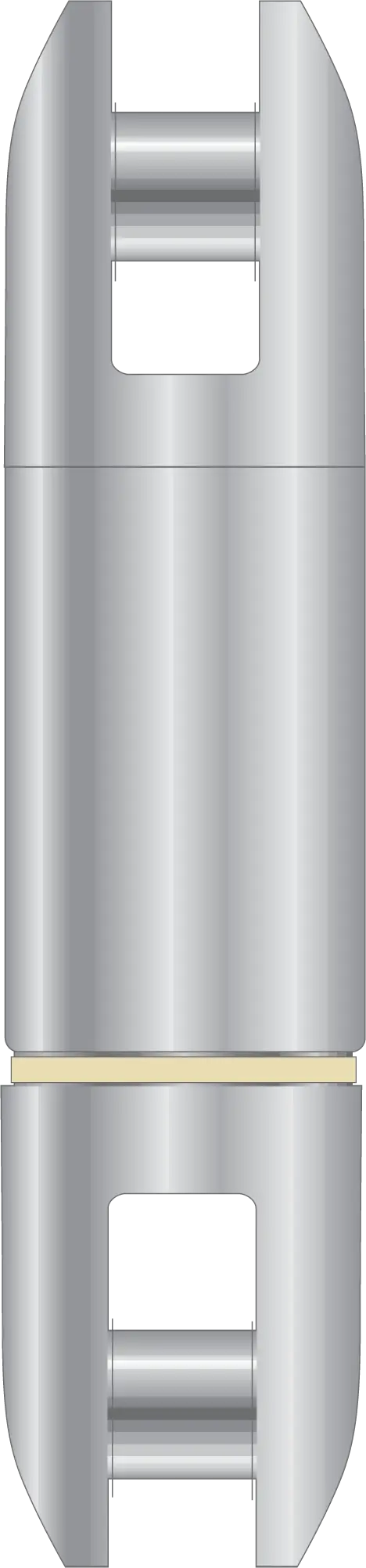

Electroline's Model SSP-67 industrial swivel is designed for sub-surface marine applications and features two clevis (fork/jaw) fittings with included pins.
Constructed from stainless steel, the oil-filled housing is sealed and pressure compensated to prevent water entry.
Angular contact bearings support higher rotational speeds and longer rope lengths.
Tapered ends are designed to prevent snags on other equipment or cables.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Available Products
| Part No. | e WLL 5:1 (Pounds) | WLL 3:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | Overall Length | ||
|---|---|---|---|---|---|---|---|---|
| D | F | I | ||||||
| SSP-6725 | 3,000 | 5,000 | 1-1/4" | 3/8" | 19/32" | 11/16" | 7/16" | 5" |
| SSP-6737 | 4,800 | 8,000 | 1-1/2" | 7/16" | 19/32" | 13/16" | 9/16" | 5-5/8" |
| SSP-6750 | 6,900 | 11,500 | 1-7/8" | 5/8" | 3/4" | 15/16" | 13/16" | 7-3/4" |
| SSP-6762 | 11,100 | 18,500 | 2-7/16" | 7/8" | 1" | 1-9/16" | 1-1/8" | 11-3/8" |
| SSP-6775 | 18,900 | 31,500 | 3-1/4" | 1-1/8" | 1-9/16" | 2-1/8" | 1-1/4" | 13-7/16" |
| SSP-6787 | 20,000 | 33,333 | 3-5/8" | 1-1/2" | 1-3/4" | 3-1/2" | 1-3/4" | 17-1/2" |
| SSP-6799 | 30,000 | 50,000 | 3-5/8" | 1-1/2" | 1-3/4" | 3-1/2" | 1-3/4" | 18-7/8" |
