Clevis & Clevis Roller Bearing Swivel – Model 37

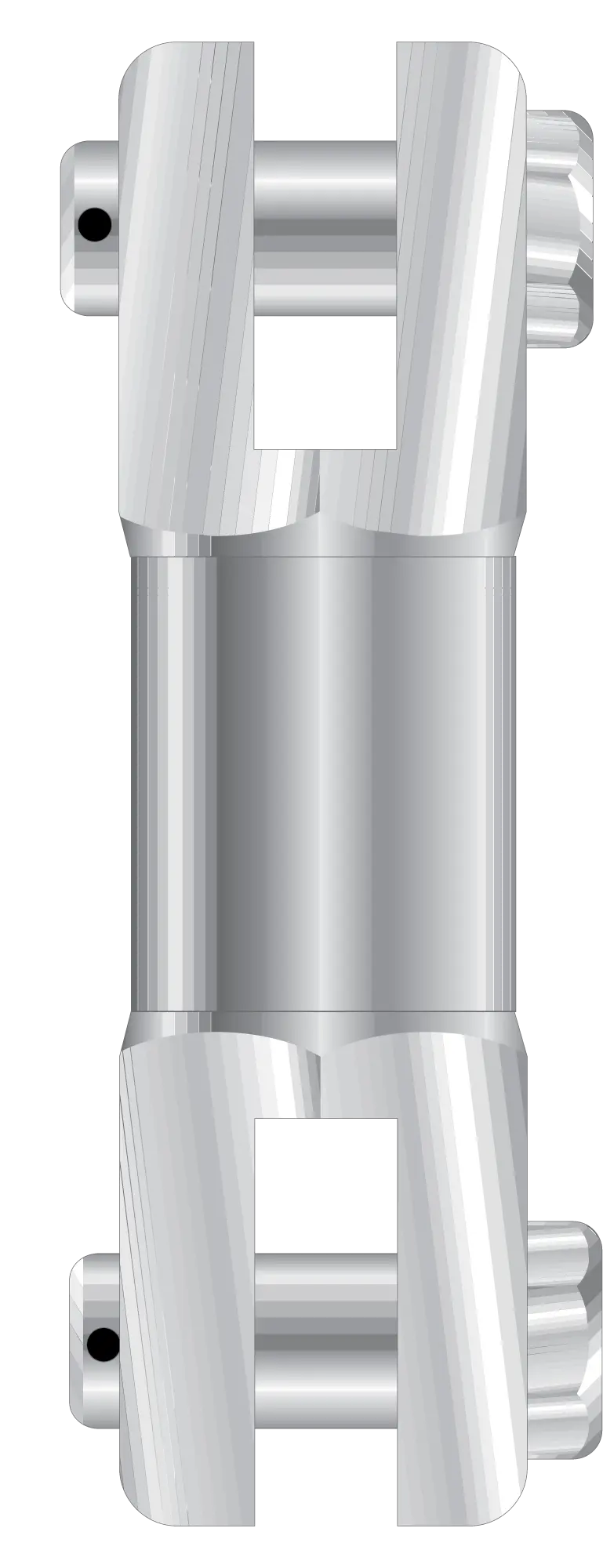

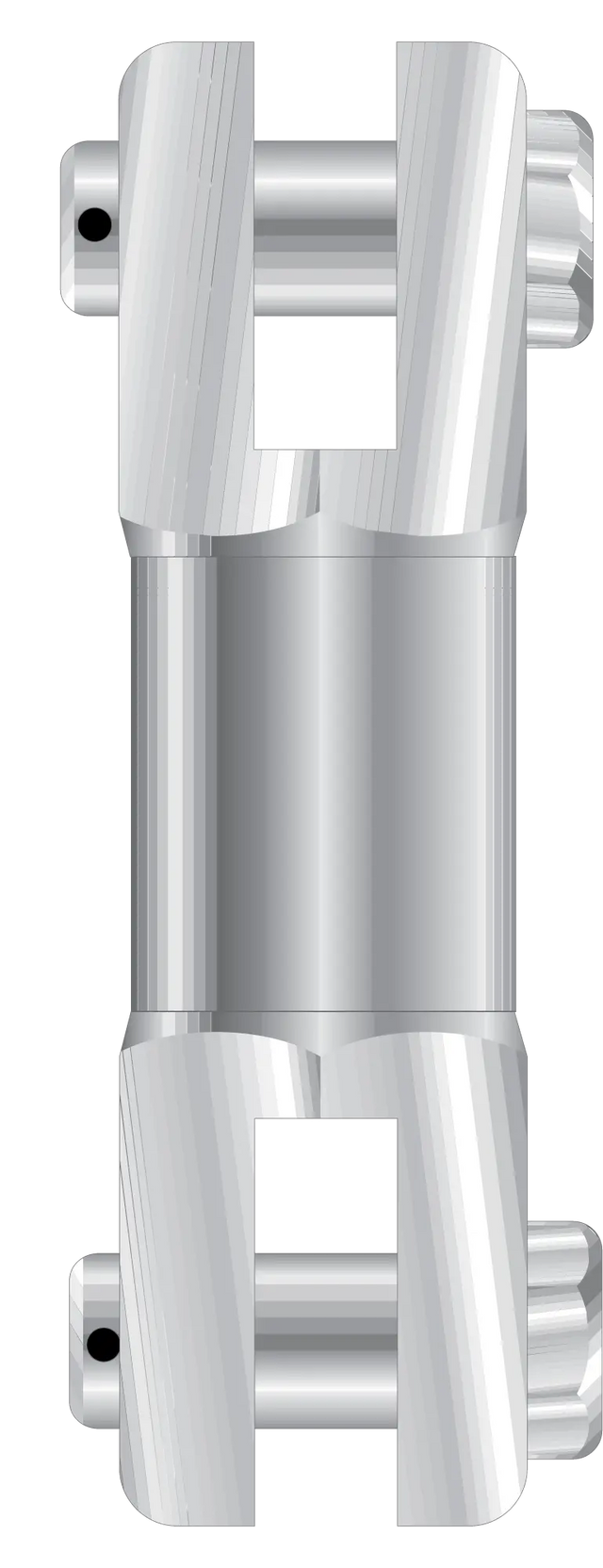

Electroline's Model 37 double-clevis industrial swivel creates a high- resistance connection using two fork/jaw fittings with two included pins.
Utilizing a single roller bearing, this economical swivel enables smooth, higher-torque rotation for the shorter rope lengths used in lifting equipment and similar applications.
Made from alloy steel and zinc-plated for corrosion resistance.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Available Products
| Part No. | WLL 3:1 (Pounds) | WLL 5:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | L | Overall Length | ||
|---|---|---|---|---|---|---|---|---|---|
| D | F | I | |||||||
| 3712 | 1,666 | 1,000 | 7/8" | 1/4" | 1/4" | 1/2" | 7/16" | -" | 3-9/16" |
| 3718 | 2,066 | 1,240 | 1" | 5/16" | 5/16" | 5/8" | 1/2" | -" | 4" |
| 3725 | 2,500 | 1,500 | 1-1/8" | 3/8" | 3/8" | 3/4" | 9/16" | -" | 4-1/2" |
| 3731 | 5,000 | 3,000 | 1-7/8" | 3/4" | 13/16" | 1-3/8" | 1" | 2" | 8-3/8" |
| 3737 | 6,666 | 4,000 | 1-7/8" | 3/4" | 13/16" | 1-3/8" | 1" | 2" | 8-9/16" |
| 3743 | 10,000 | 6,000 | 2-3/8" | 3/4" | 1" | 1-3/8" | 1-1/8" | 2-1/4" | 10-1/8" |
| 3750 | 10,000 | 6,000 | 2-3/8" | 3/4" | 1" | 1-3/8" | 1-1/8" | 2-1/4" | 10-1/8" |
| 3756 | 16,666 | 10,000 | 3-1/4" | 1" | 1-1/8" | 1-3/4" | 1-1/4" | 3" | 12-1/8" |
| 3762 | 16,666 | 10,000 | 3-1/4" | 1" | 1-1/8" | 1-3/4" | 1-1/4" | 3" | 12-1/2" |
| 3775 | 28,333 | 17,000 | 3-5/8" | 1-1/8" | 1-9/16" | 2-1/8" | 1-1/2" | 3-1/4" | 14" |
| 3787 | 33,333 | 20,000 | 3-3/4" | 1-1/4" | 1-3/4" | 3-1/8" | 1-7/8" | 3-1/2" | 17-1/8" |
| 3799 | 50,000 | 30,000 | 4-1/8" | 1-3/8" | 1-3/4" | 3-1/8" | 1-7/8" | 4" | 18-1/16" |
