Clevis & Eye Sealed Swivel – Model SS-68

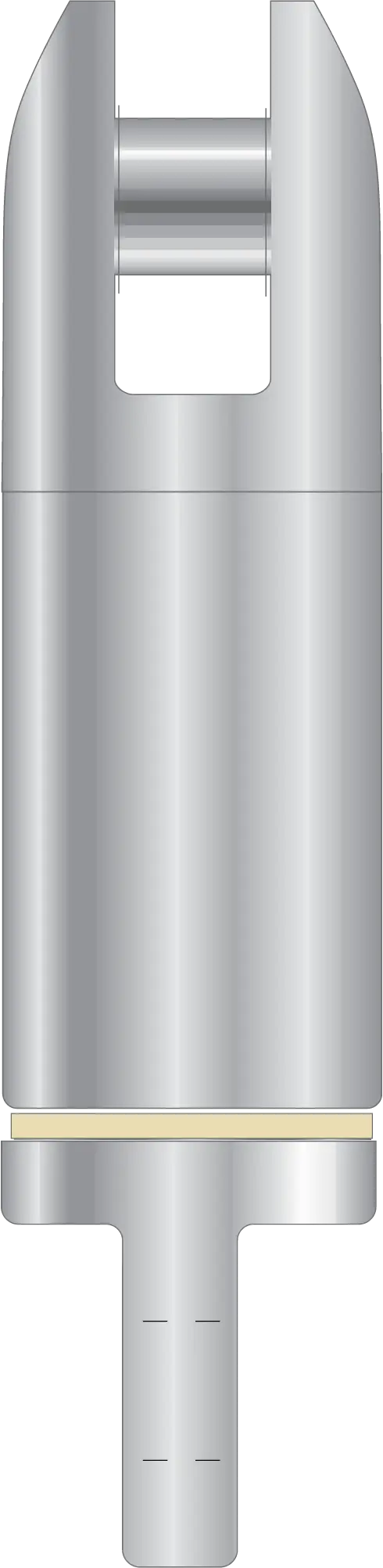

Electroline's Model SS-68 industrial swivel is designed for ocean surface (above water) applications.
It features a clevis (fork/jaw) fitting with a pin and an eye-end fitting.
Constructed from stainless steel, the swivel has a grease- filled housing that is sealed to prevent water entry.
The angular contact bearings provide higher-speed, low-torque rotation for longer rope lengths.
The tapered ends are designed to prevent snags on other equipment or cables.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Note: Model SS-68 is a reversed design of the Model SS-65 Clevis/Eye Swivel.
Available Products
| Part No. | e WLL 3:1 (Pounds) | ts WLL 5:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | J - Hole Dia. | K | Overall Length | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | E | F | H | I | ||||||||
| SS-6825 | 5,000 | 3,000 | 1-1/4" | 3/8" | 19/32" | 5/16" | 11/16" | 1/2" | 7/16" | 3/8" | 7/16" | 5" |
| SS-6837 | 8,000 | 4,800 | 1-1/2" | 7/16" | 19/32" | 1/2" | 13/16" | 23/32" | 9/16" | 5/8" | 5/8" | 5-7/8" |
| SS-6850 | 11,500 | 6,900 | 1-7/8" | 5/8" | 3/4" | 3/4" | 15/16" | 15/16" | 13/16" | 7/8" | 15/16" | 7-1/2" |
| SS-6862 | 18,500 | 11,100 | 2-7/16" | 7/8" | 1" | 1" | 1-9/16" | 1-5/16" | 1-1/8" | 1-1/4" | 1-3/16" | 11" |
