Swivel Hook Socket Fitting (Non-Roller Bearing)

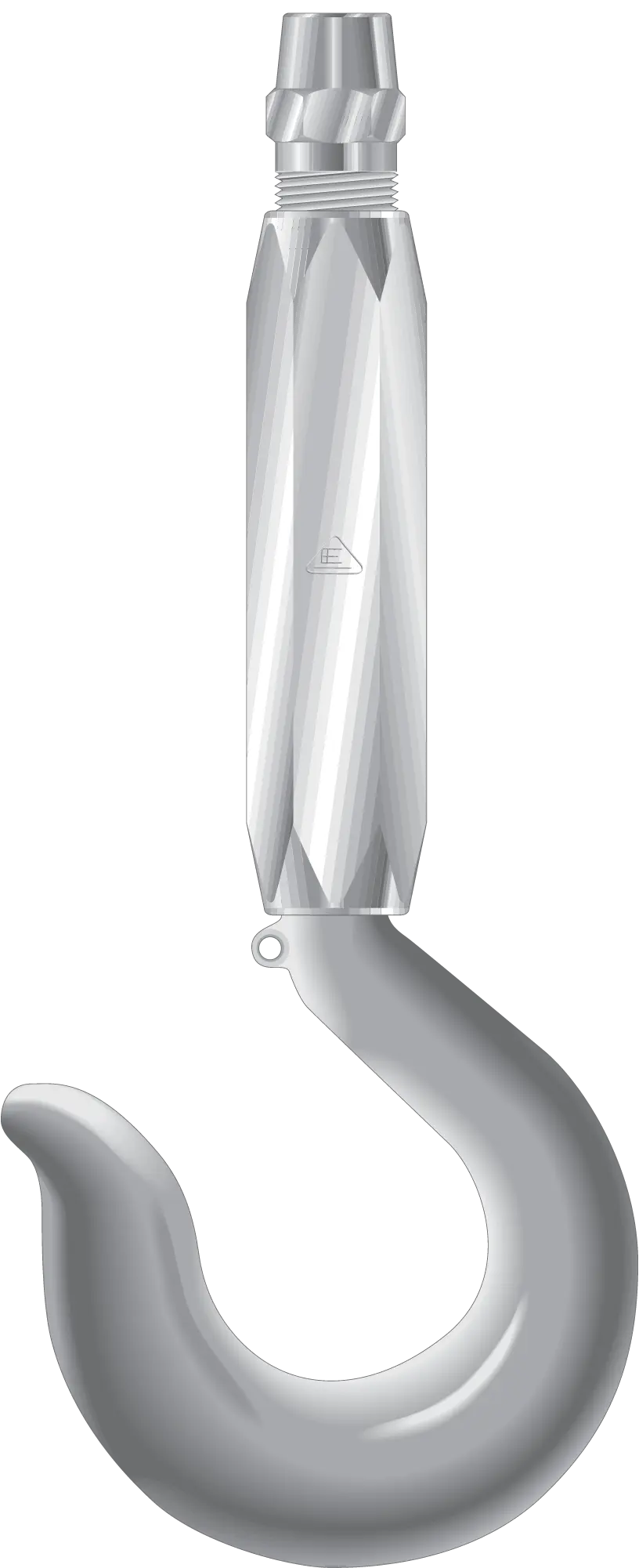

Electroline swagless swivel hook fitting features a non-roller bearing swivel that allows the hook to be easily positioned when attaching.
The swageless rope termination enables the hook to be quickly installed in the field without special tools or processes.
For both wire and synthetic rope from 3/16 to 1 inch in size.
Fitting strength exceeds the rated breaking strength of most ropes.
Available in both zinc-plated and self-colored steel.
Available Products
| Rope Size (In.) | Part No. | Dimensions (In.) | Breaking Strength (lbs.) | ||||
|---|---|---|---|---|---|---|---|
| Self-Colored Steel | Zinc Plated Steel | A | C | D | E | ||
| 3/16 | Y-2518-N | Y-2518-V | 6-19/32" | 3/4" | 2-7/8" | 1" | 3,340 |
| 1/4 | Y-2525-N | Y-2525-V | 7-7/16" | 15/16" | 3-3/16" | 1-1/16" | 5,880 |
| 5/16 | Y-2531-N | Y-2531-V | 8-1/4" | 15/16" | 3-5/8" | 1-1/8" | 9,160 |
| 3/8 | Y-2537-N | Y-2537-V | 9-5/16" | 1-1/8" | 4-3/32" | 1-1/4" | 13,120 |
| 7/16 | Y-2543-N | Y-2543-V | 10-5/8" | 1-1/4" | 4-3/32" | 1-1/4" | 17,780 |
| 1/2 | Y-2550-N | Y-2550-V | 11-13/16" | 1-7/16" | 4-15/16" | 1-1/2" | 23,000 |
| 9/16 | Y-2556-N | Y-2556-V | 13-11/16" | 1-9/16" | 6-1/2" | 1-7/8" | 29,000 |
| 5/8 | Y-2562-N | Y-2562-V | 14-3/4" | 1-3/4" | 6-1/2" | 1-7/8" | 35,800 |
| 3/4 | Y-2575-N | Y-2575-V | 17-1/4" | 2" | 7-9/16" | 2-1/4" | 51,200 |
| 7/8 | Y-2587-N | Y-2587-V | 19-7/16" | 2-1/8" | 8-11/16" | 2-1/2" | 69,200 |
| 1 | Y-2599-N | Y-2599-V | 21-15/16" | 2-1/2" | 11" | 3-3/8" | 89,800 |
