Caldwell | SKU:
Caldwell-FL-50

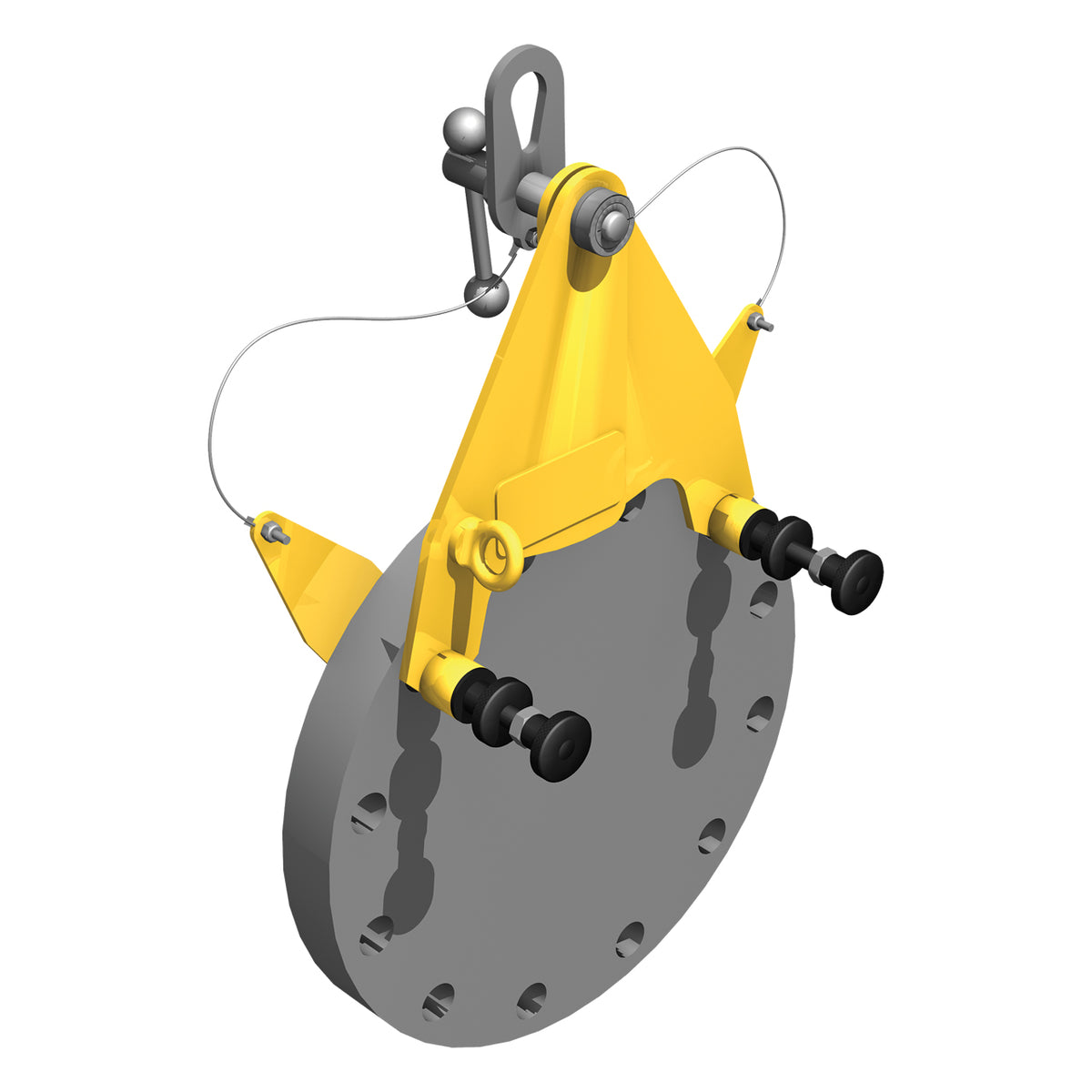

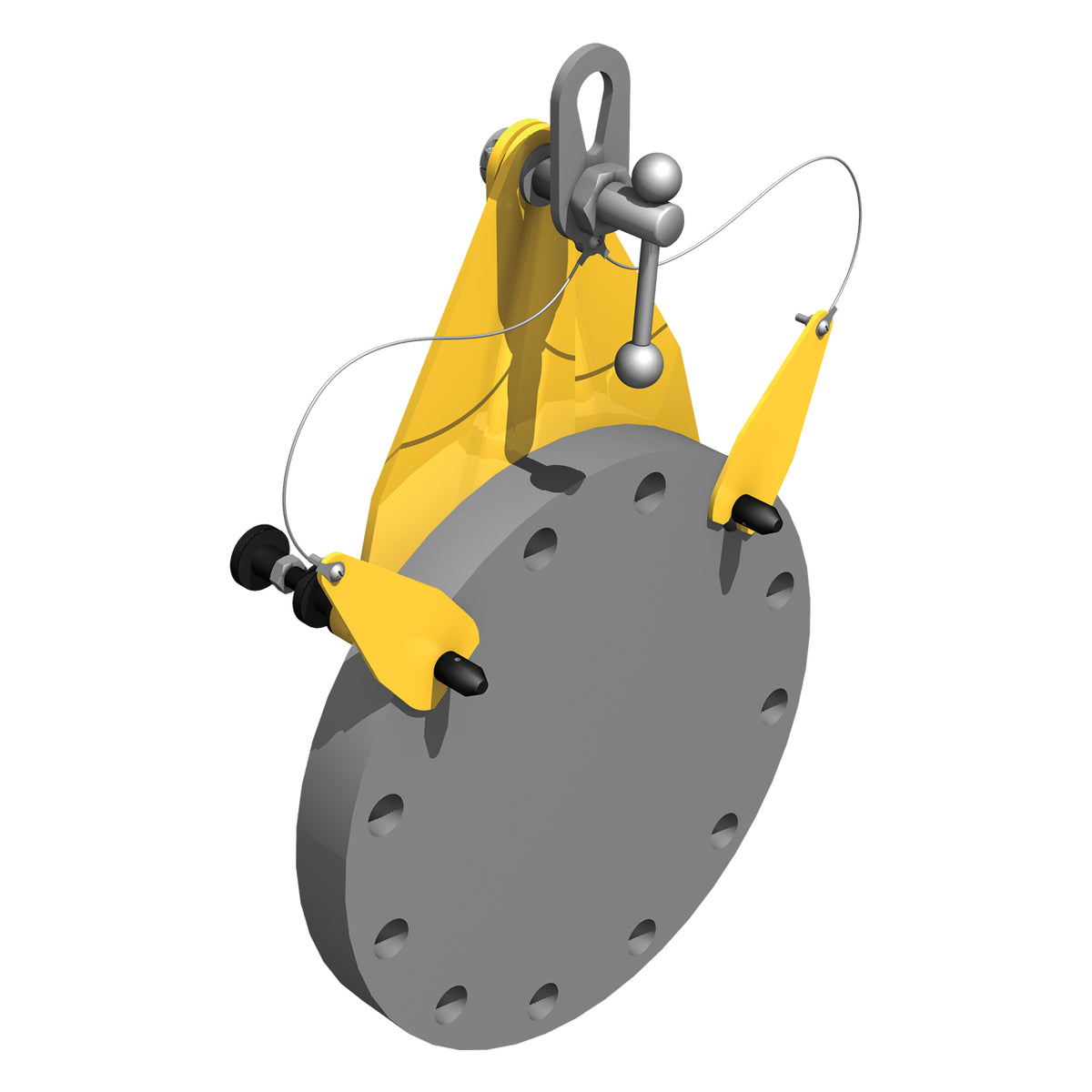

Caldwell Flange Lifter
$2,623.00
Precio unitario
/
Agotado
Caldwell Flange Lifter - 50 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Flange Lifter
Desde
$2,623.00
Precio unitario
/
Agotado
Choose from 10 styles, five English and five Metric configurations. Don’t see what you need? No worries! We can custom design a unti that’s right for you.
Features
- Five models available to upend and lift any flange per ASME B16.5
- Each model can handle a wide range of flanges
- Can be used to handle blind flanges and flanges being welded to pipe
- Robust design allows the user to upend the flange when necessary
- The lifting eye is easily adjustable which allows the user to “plumb” the flange
- Custom designs are available

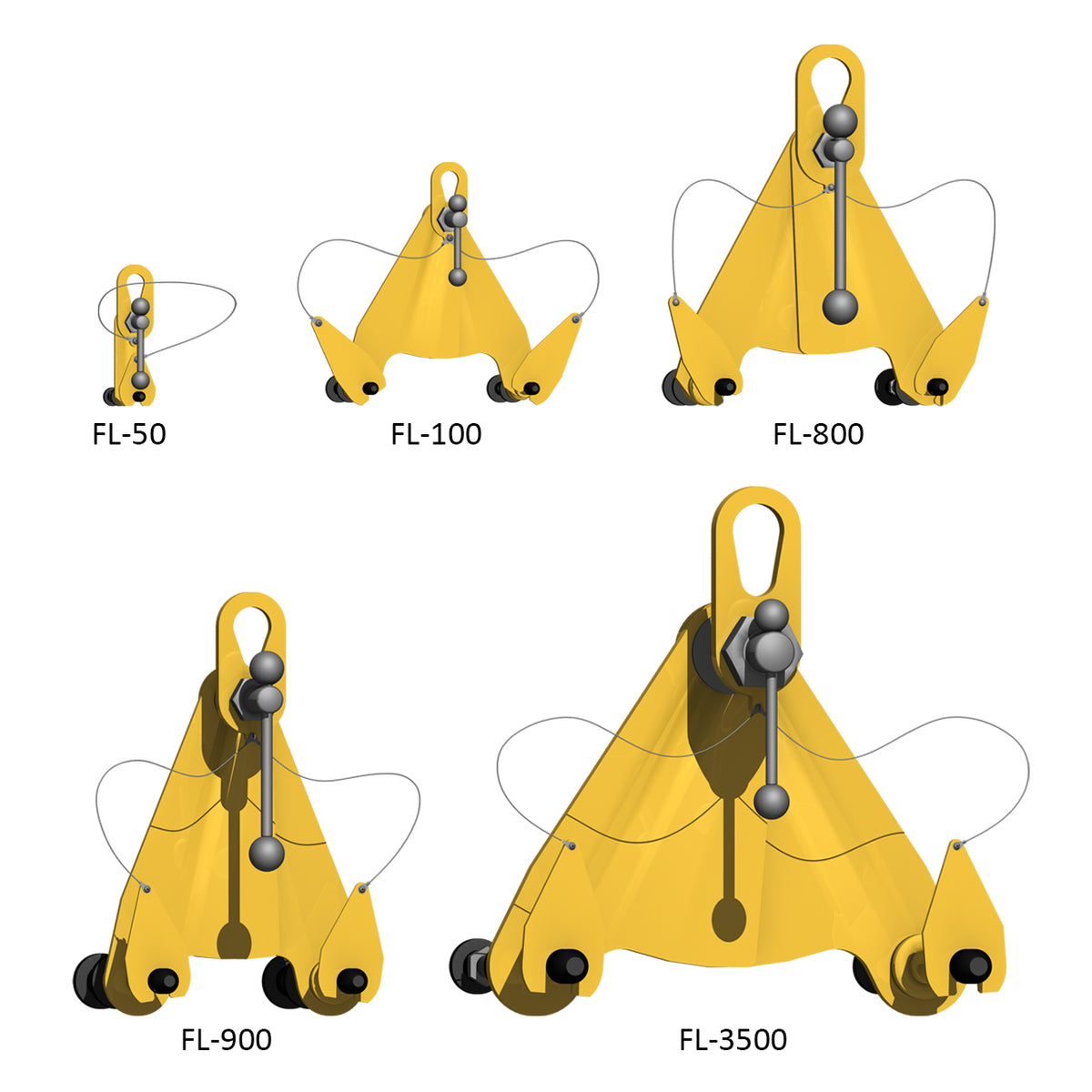

Available Models
| Part No. | Rated Capacity | Capacity pounds | Maximum Flange Diameter | Maximum Hole Size | Minimum Flange Diameter | Minimum Hole Size | Maximum Flange Thickness | Minimum Flange Thickness | A | B | C | CG Adjust Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FL-50 | 50 | 50 | 8 | 1.25 | 3.5 | 0.63 | 1.75 | 0.44 | 0.5 | 1 | 1.75 | 1.38 |
| FL-100 | 100 | 100 | 16 | 1 | 6.5 | 0.75 | 1.63 | 0.88 | 0.5 | 1 | 1.75 | 1.38 |
| FL-3500 | 3500 | 3500 | 46 | 3.63 | 19 | 2 | 8 | 4.88 | 0.94 | 3 | 5 | 5 |
