Edwards Wire Rope  |  SKU: LK12MLSUBI

Masterlink Sub-Assembly Grade 100

$47.28

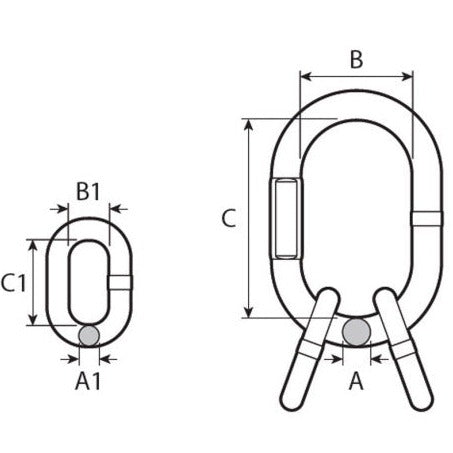

Size A C B A1 B1 C1 Lbs Each Working Load Limit
3/4" 0.748 5.315 2.953 0.591

1.5

2.36
4.3 11,200
7/8" 0.906 6.299 3.543 0.669 1.34
2.76
6.9 15,200
1" 1.063 7.087 3.937 0.787 1.57
3.35
10.9 22,900
1-1/4" 1.299 7.874 4.331 1.063 1.97
4.53
21.0

39,700

1-1/2" 1.496 10.827 5.906 1.299 2.56
5.51
37.5 61,100
2" 1.969 13.780 9.843 1.496 2.76
5.91 71.9 91,600
2-1/4" 2.205 13.780 9.843 1.772 2.95
6.69
106.1 110,800



Caution: Never exceed the Working Load Limit
