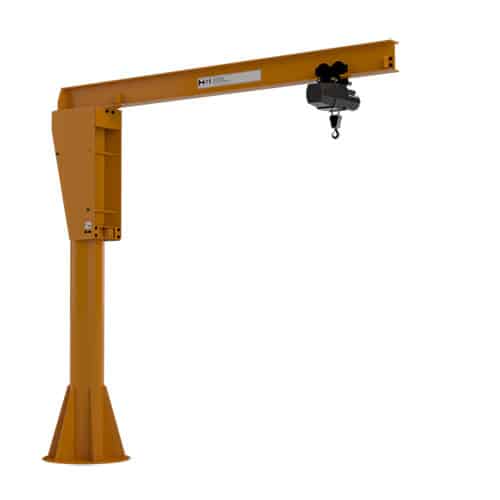

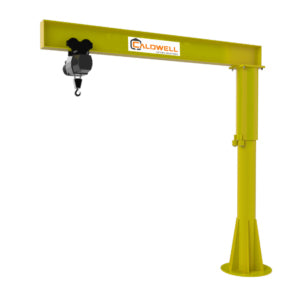

Caldwell Foundationless Jib Crane Kit

$12,536.00
Request a Quote

Product Features

  • Choose ½- or 1-ton capacity
  • Heights under boom up to 16 ft.
  • Spans up to 16 ft.
  • Faster installation, no special footings required -- Place this 360° swinging jib on existing reinforced concrete that’s at least 6”D
  • Less downtime -- Get production up and running quickly, affordably, and safely
  • All designs meet AISC standards as they pertain to jibs and overhead cranes

Product Options

  • Tight Wire Kit
  • Rotation Stops
  • Electrical Collectors
  • Parking Device
  • Hoist & Trolley Packages
  • Epoxy Anchoring Systems

Product Applications

  • Workstations and work cells
  • Assembly lines
  • Pick-and-place applications
  • Customizable for outdoor, food-grade, spark-proof requirements
It is recommended that Foundationless Jib Cranes be mounted on reinforced concrete with a minimum depth of 6”, avoiding any gaps, cracks, or expansion joints within a given area. Size of area to be determined by qualified engineer. Anchor bolts must have a 4-_/_” minimum embedment. It is not The Caldwell Group’s responsibility to verify the suitability of a floor or structure to which our product is mounted. Prior to mounting, it is required that the customer/end user seek advice from a qualified engineer.

Features

  • Choose ½- or 1-ton capacity
  • Heights under boom up to 16 ft.
  • Spans up to 16 ft.
  • Faster installation, no special footings required -- Place this 360° swinging jib on existing reinforced concrete that’s at least 6”D
  • Less downtime -- Get production up and running quickly, affordably, and safely
  • All designs meet AISC standards as they pertain to jibs and overhead cranes

Available Models

Part No. Capacity Jib Arm Length Span Height Under Boom Mast Diameter Flange Width FT Temp Weight
A360F-1-10/10 1 10 10 10.75 5.75 1051
A360F-1-10/12 1 12 10 12 5.75 1310
A360F-1-10/14 1 14 10 14 6.5 1783
A360F-1-10/16 1 16 10 14 7 2104
A360F-1-10/8 1 8 10 10.75 5.25 954
A360F-1-12/10 1 10 12 10.75 5.75 1131
A360F-1-12/12 1 12 12 14 5.75 1725
A360F-1-12/14 1 14 12 14 6.5 1893
A360F-1-12/16 1 16 12 14 7 2214
A360F-1-12/8 1 8 12 10.75 5.25 1034
A360F-1-14/10 1 10 14 12 5.75 1393
A360F-1-14/12 1 12 14 14 5.75 1833
A360F-1-14/14 1 14 14 14 7 2234
A360F-1-14/16 1 16 14 16 7 2853
A360F-1-14/8 1 8 14 12 5.75 1341
A360F-1-16/10 1 10 16 12 5.75 1717
A360F-1-16/12 1 12 16 14 6.5 2003
A360F-1-16/14 1 14 16 14 7 2344
A360F-1-16/16 1 16 16 16 7 2978
A360F-1-16/8 1 8 16 12 5.75 1665
A360F-1-8/10 1 10 8 10.75 5.75 971
A360F-1-8/12 1 12 8 12 5.75 1210
A360F-1-8/14 1 14 8 14 6.5 1723
A360F-1-8/16 1 16 8 14 7 1995
A360F-1-8/8 1 8 8 10.75 5.25 874
A360F-1/2-10/10 0.5 10 10 8.63 5.25 735
A360F-1/2-10/12 0.5 12 10 10.75 5.25 999
A360F-1/2-10/14 0.5 14 10 10.75 5.75 1155
A360F-1/2-10/16 0.5 16 10 10.75 6.5 1275
A360F-1/2-10/18 0.5 18 10 12 6.5 1525
A360F-1/2-10/20 0.5 20 10 14 6.5 1795
A360F-1/2-10/8 0.5 8 10 8.63 5.25 699
A360F-1/2-12/10 0.5 10 12 8.63 5.25 795
A360F-1/2-12/12 0.5 12 12 10.75 5.25 1079
A360F-1/2-12/14 0.5 14 12 10.75 5.75 1235
A360F-1/2-12/16 0.5 16 12 10.75 6.5 1355
A360F-1/2-12/18 0.5 18 12 14 6.5 1845
A360F-1/2-12/20 0.5 20 12 14 7 2220
A360F-1/2-12/8 0.5 8 12 8.63 5.25 759
A360F-1/2-14/10 0.5 10 14 8.63 5.25 855
A360F-1/2-14/12 0.5 12 14 10.75 5.25 1159
A360F-1/2-14/14 0.5 14 14 10.75 5.75 1315
A360F-1/2-14/16 0.5 16 14 10.75 6.5 1435
A360F-1/2-14/18 0.5 18 14 14 7 2240
A360F-1/2-14/20 0.5 20 14 14 7 2330
A360F-1/2-14/8 0.5 8 14 8.63 5.25 819
A360F-1/2-16/10 0.5 10 16 8.63 5.25 905
A360F-1/2-16/12 0.5 12 16 10.75 5.25 1219
A360F-1/2-16/14 0.5 14 16 10.75 5.75 1390
A360F-1/2-16/16 0.5 16 16 10.75 6.5 1515
A360F-1/2-16/18 0.5 18 16 14 7 2350
A360F-1/2-16/8 0.5 8 16 8.63 5.25 869
A360F-1/2-8/10 0.5 10 8 8.63 5.25 675
A360F-1/2-8/12 0.5 12 8 10.75 5.25 919
A360F-1/2-8/14 0.5 14 8 10.75 5.75 1075
A360F-1/2-8/16 0.5 16 8 10.75 6.5 1195
A360F-1/2-8/18 0.5 18 8 12 6.5 1437
A360F-1/2-8/20 0.5 20 8 14 6.5 1685
A360F-1/2-8/8 0.5 8 8 8.63 5.25 639
