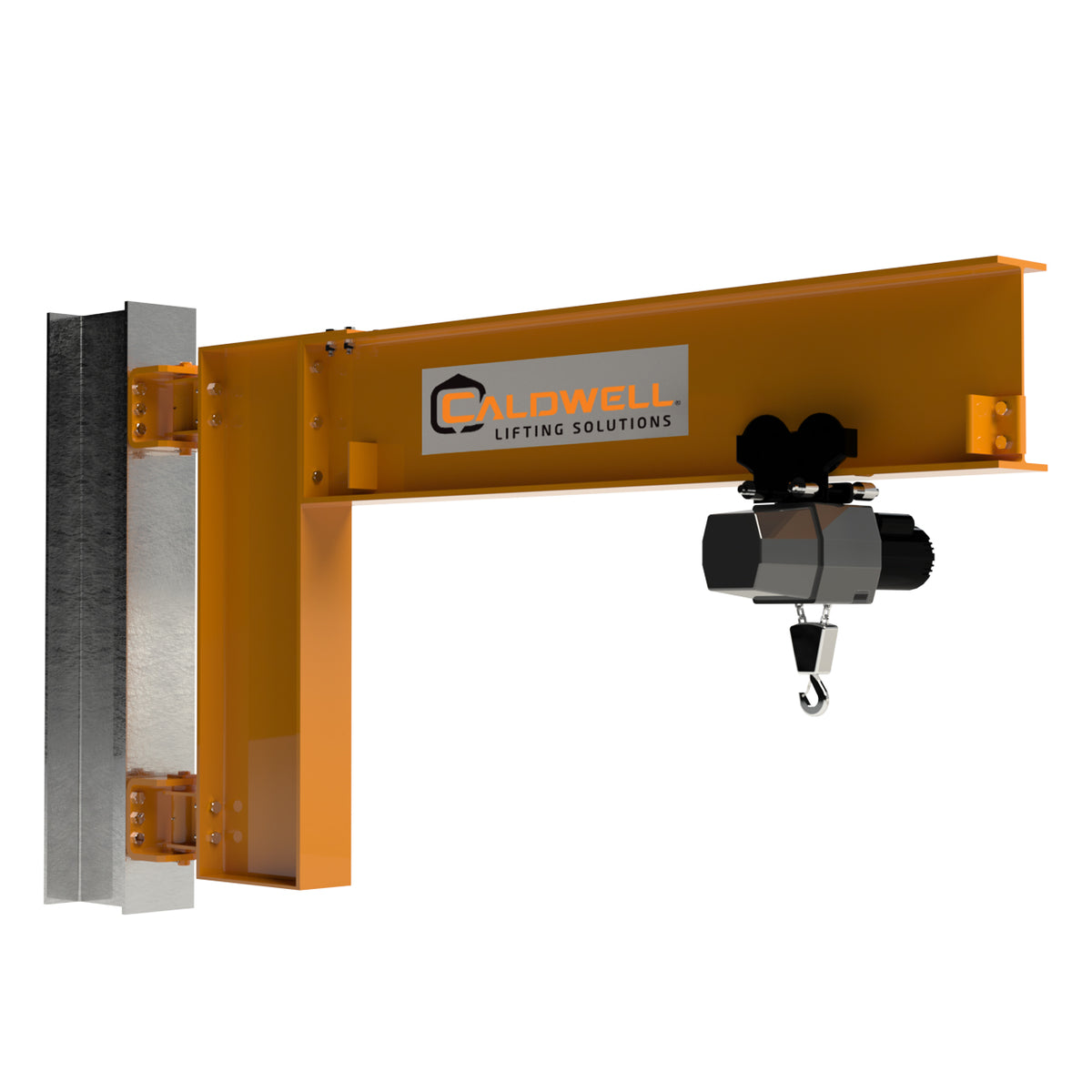

Caldwell Full Cantilever

$2,938.00
Request a Quote

This crane puts the economy back into this column mounted unit. This inexpensive jib crane provides a fast and easy to install solution to a localized material handling problem. Our unique design follows the same engineering criteria as all of our quality products and is ideal for applications where headroom is limited. Easy to install fittings simply bolt to the column and beam. This “friction free” 180° rotating crane can also be pushed out of the way when not in use.

Features

  • Fittings are heavy duty steel weldments, jig welded to insure proper bearing alignment.
  • Axles are Grade 8 bolts with lock washers and nuts. Lubricated bronze shoulder bushings are used.
  • American Standard Wide Flange beams, selected to properly handle all forces and loads imposed upon it.
  • End stops provide a positive and permanent hoist / trolley stop allowing for the maximum in trolley travel.

Available Models

Part No. Capacity Span Length from Mount Plates to Front Vertical Beam Flange Width Boom Height Fitting Number L Temp Weight Max Tongue Weight
E180-1/4-8 0.25 96 16 4 6.25 EF-1 4 265 1295
E180-1/4-10 0.25 120 16 4 6.25 EF-1 4 290 1685
E180-1/4-12 0.25 144 16 4 6.25 EF-1 4 315 2095
E180-1/4-14 0.25 168 16 4 6.25 EF-1 4 340 2515
E180-1/4-16 0.25 192 16 5.25 8.25 EF-1 4 415 2955
E180-1/4-18 0.25 216 16 5.25 8.25 EF-1 4 495 3610
E180-1/4-20 0.25 240 19 5.75 10.375 EF-1 4 850 4410
E180-1/2-8 0.5 96 16 5.25 8.25 EF-1 4 310 2430
E180-1/2-10 0.5 120 16 5.25 8.25 EF-1 4 340 3080
E180-1/2-12 0.5 144 16 5.25 8.25 EF-1 4 370 3730
E180-1/2-14 0.5 168 16 5.25 8.25 EF-1 4 445 4750
E180-1/2-16 0.5 192 19 5.75 10.375 EF-1 4 740 5750
E180-1/2-18 0.5 216 19 5.75 10.375 EF-1 4 790 6610
E180-1/2-20 0.5 240 19 6.5 12.5 EF-1 6 1080 5350
E180-1-8 1 96 16 5.25 8.25 EF-1 4 335 4745
E180-1-10 1 120 19 5.75 10.375 EF-1 5 645 5000
E180-1-12 1 144 19 5.75 10.375 EF-1 5 695 6040
E180-1-14 1 168 19 5.75 10.375 EF-1 5 745 7080
E180-1-16 1 192 19 6.5 12.5 EF-1 6 950 7330
E180-1-18 1 216 19 7 16.125 EF-1 6 1165 8645
E180-1-20 1 240 19 7 16.125 EF-1 6 1250 9515
E180-2-8 2 96 21 6.5 12.5 EF-2 4 585 9455
E180-2-10 2 120 21 6.5 12.5 EF-2 4 650 12210
E180-2-12 2 144 21 6.5 12.5 EF-2 4 715 15000
E180-2-14 2 168 23 7 16.125 EF-2 5 1065 14500
E180-2-16 2 192 23 7.5 18.125 EF-2 6 1375 14255
E180-2-18 2 216 23 7.5 18.125 EF-2 6 1485 16300
E180-2-20 2 240 23 6.5 21 EF-2 6.5 1870 17300
E180-3-8 3 96 22.5 7 16.125 EF-3 4 775 14105
E180-3-10 3 120 22.5 7 16.125 EF-3 4 865 18210
E180-3-12 3 144 22.5 7 16.125 EF-3 6 1075 14925
E180-3-14 3 168 22.5 7 16.125 EF-3 6 1165 17720
E180-3-16 3 192 30.5 7.5 18.125 EF-3 6.5 1680 19210
E180-3-18 3 216 30.5 6.5 21 EF-3 7.5 2060 19205
E180-3-20 3 240 30.5 9 24.5 EF-3 9.5 2680 17400
E180-5-8 5 96 30.5 7.5 18.125 EF-3 6.5 1240 14400
E180-5-10 5 120 30.5 7.5 18.125 EF-3 6.5 1350 18550
E180-5-12 5 144 30.5 7.5 18.125 EF-3 6.5 1460 22730
E180-5-14 5 168 30.5 6.5 21 EF-3 7.5 1800 23500
E180-5-16 5 192 30.5 9 24.5 EF-3 9.5 2360 21720
Caldwell Full Cantilever
Caldwell

Caldwell Full Cantilever

From $2,938.00

This crane puts the economy back into this column mounted unit. This inexpensive jib crane provides a fast and easy to install solution to a localized material handling problem. Our unique design follows the same engineering criteria as all of our quality products and is ideal for applications where headroom is limited. Easy to install fittings simply bolt to the column and beam. This “friction free” 180° rotating crane can also be pushed out of the way when not in use.

Features

Available Models

Part No. Capacity Span Length from Mount Plates to Front Vertical Beam Flange Width Boom Height Fitting Number L Temp Weight Max Tongue Weight
E180-1/4-8 0.25 96 16 4 6.25 EF-1 4 265 1295
E180-1/4-10 0.25 120 16 4 6.25 EF-1 4 290 1685
E180-1/4-12 0.25 144 16 4 6.25 EF-1 4 315 2095
E180-1/4-14 0.25 168 16 4 6.25 EF-1 4 340 2515
E180-1/4-16 0.25 192 16 5.25 8.25 EF-1 4 415 2955
E180-1/4-18 0.25 216 16 5.25 8.25 EF-1 4 495 3610
E180-1/4-20 0.25 240 19 5.75 10.375 EF-1 4 850 4410
E180-1/2-8 0.5 96 16 5.25 8.25 EF-1 4 310 2430
E180-1/2-10 0.5 120 16 5.25 8.25 EF-1 4 340 3080
E180-1/2-12 0.5 144 16 5.25 8.25 EF-1 4 370 3730
E180-1/2-14 0.5 168 16 5.25 8.25 EF-1 4 445 4750
E180-1/2-16 0.5 192 19 5.75 10.375 EF-1 4 740 5750
E180-1/2-18 0.5 216 19 5.75 10.375 EF-1 4 790 6610
E180-1/2-20 0.5 240 19 6.5 12.5 EF-1 6 1080 5350
E180-1-8 1 96 16 5.25 8.25 EF-1 4 335 4745
E180-1-10 1 120 19 5.75 10.375 EF-1 5 645 5000
E180-1-12 1 144 19 5.75 10.375 EF-1 5 695 6040
E180-1-14 1 168 19 5.75 10.375 EF-1 5 745 7080
E180-1-16 1 192 19 6.5 12.5 EF-1 6 950 7330
E180-1-18 1 216 19 7 16.125 EF-1 6 1165 8645
E180-1-20 1 240 19 7 16.125 EF-1 6 1250 9515
E180-2-8 2 96 21 6.5 12.5 EF-2 4 585 9455
E180-2-10 2 120 21 6.5 12.5 EF-2 4 650 12210
E180-2-12 2 144 21 6.5 12.5 EF-2 4 715 15000
E180-2-14 2 168 23 7 16.125 EF-2 5 1065 14500
E180-2-16 2 192 23 7.5 18.125 EF-2 6 1375 14255
E180-2-18 2 216 23 7.5 18.125 EF-2 6 1485 16300
E180-2-20 2 240 23 6.5 21 EF-2 6.5 1870 17300
E180-3-8 3 96 22.5 7 16.125 EF-3 4 775 14105
E180-3-10 3 120 22.5 7 16.125 EF-3 4 865 18210
E180-3-12 3 144 22.5 7 16.125 EF-3 6 1075 14925
E180-3-14 3 168 22.5 7 16.125 EF-3 6 1165 17720
E180-3-16 3 192 30.5 7.5 18.125 EF-3 6.5 1680 19210
E180-3-18 3 216 30.5 6.5 21 EF-3 7.5 2060 19205
E180-3-20 3 240 30.5 9 24.5 EF-3 9.5 2680 17400
E180-5-8 5 96 30.5 7.5 18.125 EF-3 6.5 1240 14400
E180-5-10 5 120 30.5 7.5 18.125 EF-3 6.5 1350 18550
E180-5-12 5 144 30.5 7.5 18.125 EF-3 6.5 1460 22730
E180-5-14 5 168 30.5 6.5 21 EF-3 7.5 1800 23500
E180-5-16 5 192 30.5 9 24.5 EF-3 9.5 2360 21720
