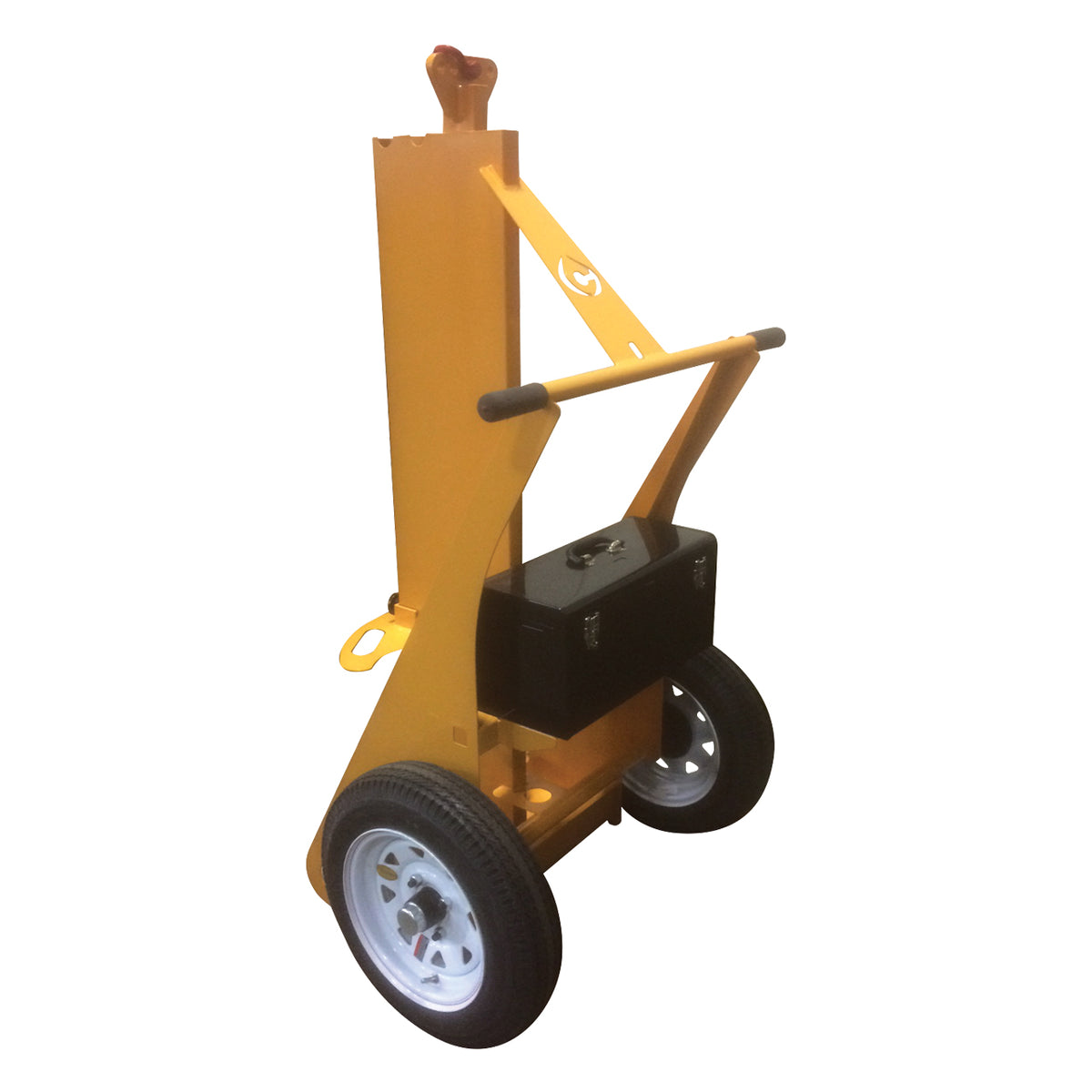

Caldwell Torch Cylinder Cart, Wheeled

Torch Cylinder Cart

Features

• Designed to lift and transport (2) gas cylinders, tools and supplies
• Capacity: 1,000 lbs
• Cart designed to hold up to (1) 9” and (1) 12” cylinder held in place with cylinder clamps
• Two cylinder clamps are provided - please specify the combination of sizes needed at the time of order
• Cylinders separated by steel firewall
• Includes (2) 12” pneumatic tires
• Includes shackle lug for overhead lifting with multiple shackle positions to level load
• Removable tool box
• Wide push handle with grips
• Estimated weight: 215 lbs
• Meets ASME B30.20 BTH-1 standards; design category “B”, service class “0” and OSHA 1910.253
