Clevis & Hook Angular Contact Bearing Swivel – Model 62

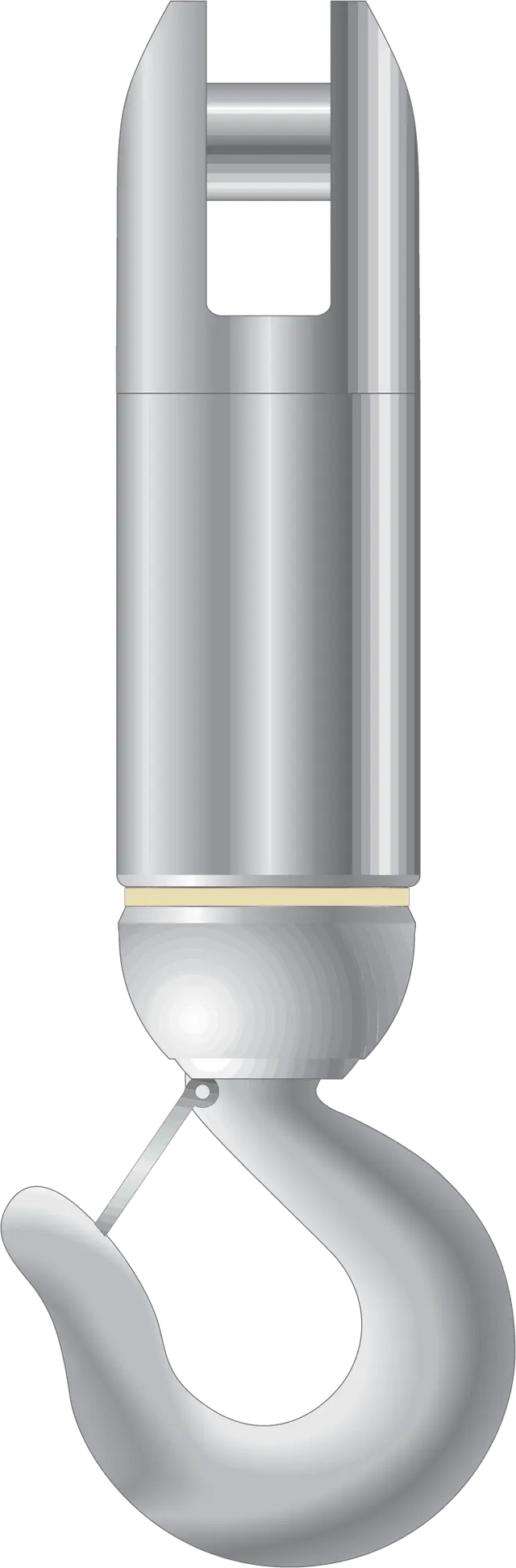

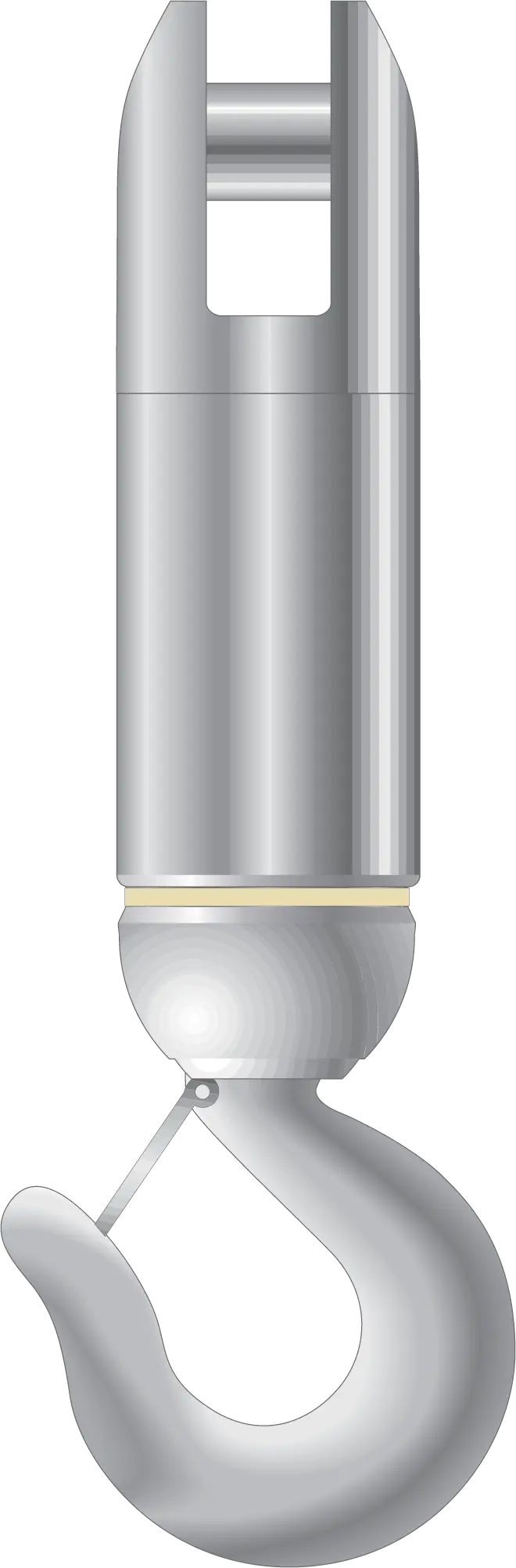

Electroline's Model 62 industrial swivel features a clevis (fork/jaw) fitting and a hook.
Utilizing permanently lubricated angular contact bearings, the swivel provides higher-speed, low-torque rotation for longer rope lengths used in multiple applications.
The tapered design helps prevent snagging on other equipment or cables.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Built with high-strength alloy steel and zinc-plated for corrosion resistance.
Available Products
| Part No. | WLL 3:1 (Pounds) | WLL 5:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | Length to Inside of Hook | |||
|---|---|---|---|---|---|---|---|---|---|
| D | F | G | I | ||||||
| 6212 | 2,300 | 1,380 | 7/8" | 7/8" | 5/16" | 15/32" | 7/8" | 3/8" | 5-3/8" |
| 6225 | 5,000 | 3,000 | 1-1/4" | 1" | 19/32" | 11/16" | 31/32" | 7/16" | 7-1/8" |
| 6237 | 8,000 | 4,800 | 1-1/2" | 1-1/8" | 19/32" | 13/16" | 1" | 9/16" | 7-13/16" |
| 6250 | 11,500 | 6,900 | 1-7/8" | 1-1/2" | 3/4" | 15/16" | 1-11/32" | 13/16" | 10-15/16" |
| 6262 | 18,500 | 11,100 | 2-7/16" | 1-1/2" | 1" | 1-9/16" | 1-11/16" | 1-1/8" | 15-1/4" |
| 6275 | 31,500 | 18,900 | 2-7/8" | 5/16" | 1-9/32" | 2-1/8" | 2-1/4" | 1-1/4" | 18-7/8" |
| 6281 | 31,500 | 18,900 | 2-7/8" | 3/8" | 1-9/16" | 2-1/8" | 2-1/4" | 1-1/4" | 18-7/8" |
| 6287 | 33,333 | 20,000 | 3-5/8" | 7/16" | 1-3/4" | 3-1/2" | 3" | 1-3/4" | 24-15/16" |
| 6299 | 50,000 | 30,000 | 3-5/8" | 5/8" | 1-3/4" | 3-1/2" | 3" | 1-3/4" | 25-11/16" |
| 62125 | 83,333 | 50,000 | 4-1/2" | 1-7/8" | 2" | 3-11/16" | 4" | 2-3/8" | 34" |
| 62150 | 116,667 | 70,000 | 5-3/8" | 2" | 2" | 3-11/16" | 4-1/4" | 2-3/8" | 40" |
