Clevis & Hook Roller Bearing Swivel – Model 32

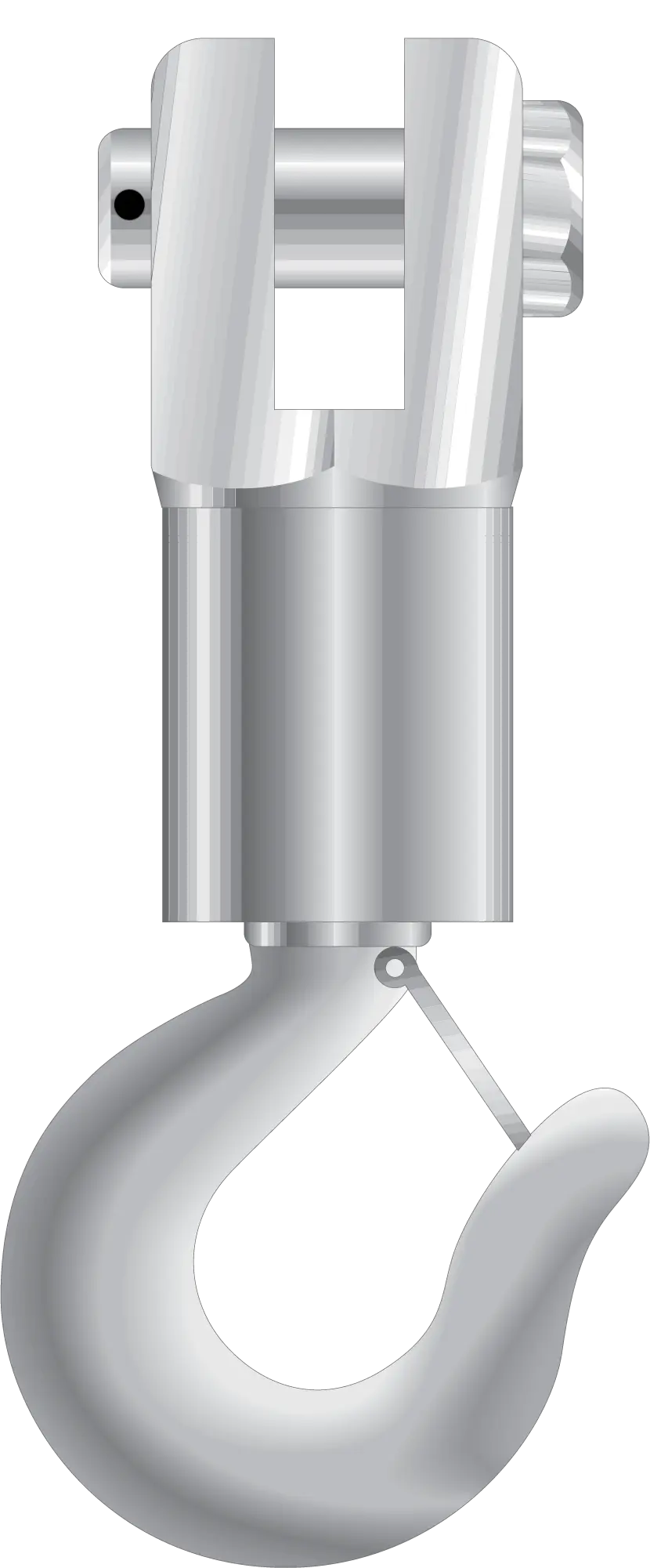

Electroline's Model 32 industrial swivel features a clevis (fork/jaw) and hook fittings.
Utilizing a single roller bearing, this economical swivel enables smooth, higher-torque rotation for the shorter rope lengths used in lifting equipment and similar applications.
Clevis fitting and included pin allow for an additional single axis of rotation with the wire.
Made from alloy steel and zinc-plated for corrosion resistance.
Proof-tested and certified to twice the Working Load Limit (WLL).
Available Products
| Part No. | ble Produc WLL 3:1 (Pounds) | cts WLL 5:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | .) L | Length to Inside of Hook | Overall Length | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | F | G | I | ||||||||
| 3231 | 5,000 | 3,000 | 1-7/8" | 3/4" | 13/16" | 1-3/8" | 1" | 1" | 2" | 7-13/16" | 7-13/16" |
| 3237 | 6,666 | 4,000 | 1-7/8" | 3/4" | 13/16" | 1-3/8" | 1-1/16" | 1" | 2" | 8-3/8" | 8-3/8" |
| 3243 | 10,000 | 6,000 | 2-1/4" | 3/4" | 1" | 1-3/8" | 1-11/32" | 1-1/8" | 2-1/4" | 10-3/8" | 10-3/8" |
| 3250 | 10,000 | 6,000 | 2-1/4" | 3/4" | 1" | 1-3/8" | 1-11/32" | 1-1/8" | 2-1/4" | 10-3/8" | 10-3/8" |
| 3256 | 16,666 | 10,000 | 3" | 1" | 1-1/8" | 1-3/4" | 1-11/16" | 1-1/4" | 3" | 12-13/16" | 12-13/16" |
| 3262 | 16,666 | 10,000 | 3" | 1" | 1-1/8" | 1-3/4" | 1-11/16" | 1-1/4" | 3" | 12-13/16" | 12-13/16" |
| 3275 | 28,333 | 17,000 | 3-1/4" | 1-1/8" | 1-9/16" | 2-1/8" | 2-1/16" | 1-1/2" | 3-1/4" | 14-11/16" | 14-11/16" |
| 3287 | 33,333 | 20,000 | 3-1/2" | 1-1/4" | 1-3/4" | 3-1/8" | 2-1/4" | 1-7/8" | 3-1/2" | 16-5/16" | 16-5/16" |
| 3299 | 50,000 | 30,000 | 4" | 1-3/8" | 1-3/4" | 3-1/8" | 3" | 1-7/8" | 4" | 18-1/2" | 18-1/2" |
