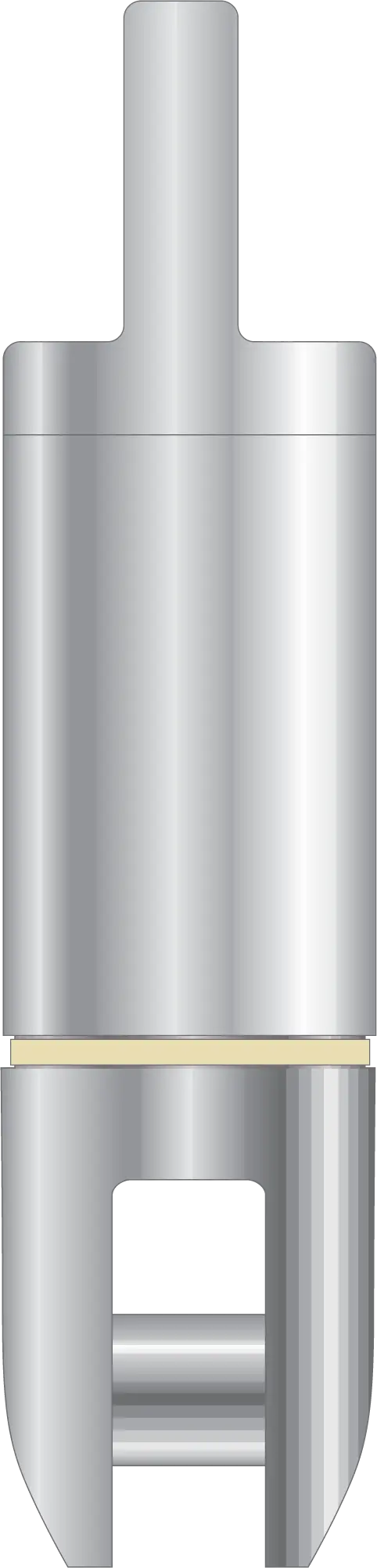

Eye & Clevis Pressure Compensated Swivel – Model SSP-65
Electroline's Model SSP-65 industrial swivel is designed for sub-surface (below water) marine applications.
It features an eye-end fitting and a clevis (fork/jaw) fitting.
Constructed from stainless steel, the oil-filled housing is sealed and pressure compensated to prevent water entry.
Angular contact bearings support higher rotational speeds and longer rope lengths.
Tapered ends are designed to prevent snags on other equipment or cables.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Note: Model SSP-65 is a reversed design of the Model SSP-68 Clevis/Eye Swivel.
Available Products
| Part No. | e Produc WLL 5:1 (Pounds) | cts WLL 3:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | J - Hole Dia. | K | Overall Length | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | E | F | H | I | ||||||||
| SSP-6525 | 3,000 | 5,000 | 1-1/4" | 3/8" | 19/32" | 5/16" | 11/16" | 1/2" | 7/16" | 3/8" | 7/16" | 5" |
| SSP-6537 | 4,800 | 8,000 | 1-1/2" | 7/16" | 19/32" | 1/2" | 13/16" | 23/32" | 9/16" | 5/8" | 5/8" | 5-5/8" |
| SSP-6550 | 6,900 | 11,500 | 1-7/8" | 5/8" | 3/4" | 3/4" | 15/16" | 15/16" | 13/16" | 7/8" | 15/16" | 7-3/4" |
| SSP-6562 | 11,100 | 18,500 | 2-7/16" | 7/8" | 1" | 1" | 1-9/16" | 1-5/16" | 1-1/8" | 1-1/4" | 1-3/16" | 11-3/8" |
| SSP-6575 | 18,900 | 31,500 | 3-1/4" | 1-1/8" | 1-9/16" | 1-1/4" | 2-1/8" | 1-5/8" | 1-1/4" | 1-3/8" | 1-1/2" | 13-7/16" |
| SSP-6587 | 20,000 | 33,333 | 3-5/8" | 1-1/2" | 1-3/4" | 1-1/2" | 3-1/2" | 2-27/32" | 1-3/4" | 1-1/2" | 1-13/16" | 17-1/2" |
| SSP-6599 | 30,000 | 50,000 | 3-5/8" | 1-1/2" | 1-3/4" | 2" | 3-1/2" | 2-25/32" | 1-3/4" | 2" | 2-1/8" | 18-7/8" |
