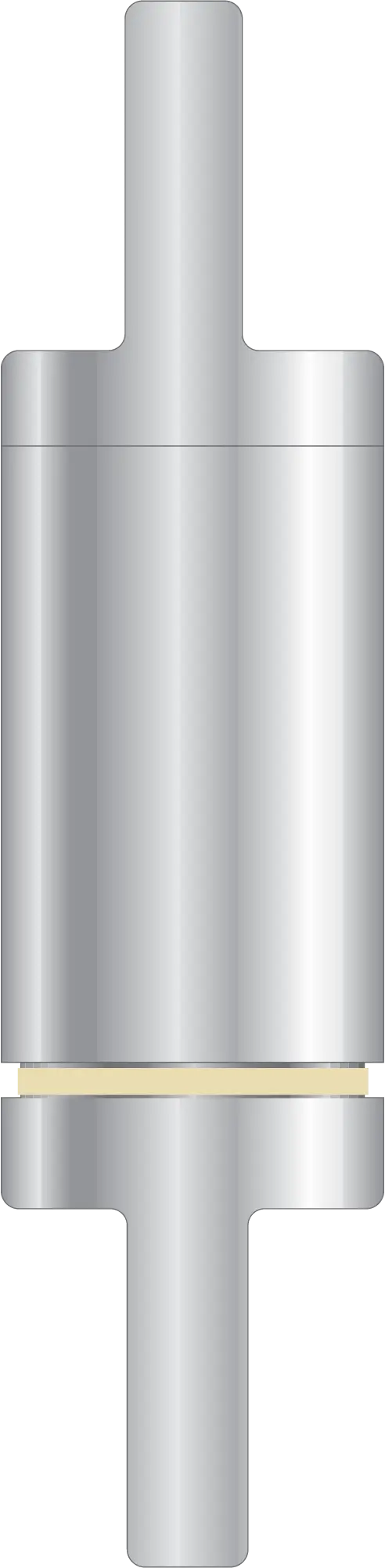

Eye & Eye Pressure Compensated Swivel – Model SSP-66
Electroline's Model SSP-66 industrial sub-surface swivel is designed for underwater marine applications and features two eye-end fittings.
Constructed from stainless steel, the oil-filled housing is sealed and pressure compensated to prevent water entry.
Angular contact bearings support higher rotational speeds and longer rope lengths.
Tapered ends are designed to prevent snags on other equipment or cables.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Available Products
| Part No. | e WLL 3:1 (Pounds) | WLL 5:1 (Pounds) | Dimensions (In.) | Dimensions (In J - Hole Dia. | K | Overall Length | ||
|---|---|---|---|---|---|---|---|---|
| A | E | H | ||||||
| SSP-6625 | 5,000 | 3,000 | 1-1/4" | 5/16" | 1/2" | 3/8" | 7/16" | 5" |
| SSP-6637 | 8,000 | 4,800 | 1-1/2" | 1/2" | 23/32" | 5/8" | 5/8" | 5-5/8" |
| SSP-6650 | 11,500 | 6,900 | 1-7/8" | 3/4" | 15/16" | 7/8" | 15/16" | 7-3/4" |
| SSP-6662 | 18,500 | 11,100 | 2-7/16" | 1" | 1-5/16" | 1-1/4" | 1-3/16" | 11-3/8" |
| SSP-6675 | 31,500 | 18,900 | 3-1/4" | 1-1/4" | 1-5/8" | 1-3/8" | 1-1/2" | 13-7/16" |
| SSP-6687 | 33,333 | 20,000 | 3-5/8" | 1-1/2" | 2-27/32" | 1-1/2" | 1-13/16" | 17-1/2" |
| SSP-6699 | 50,000 | 30,000 | 3-5/8" | 2" | 2-25/32" | 2" | 2-1/8" | 18-7/8" |
