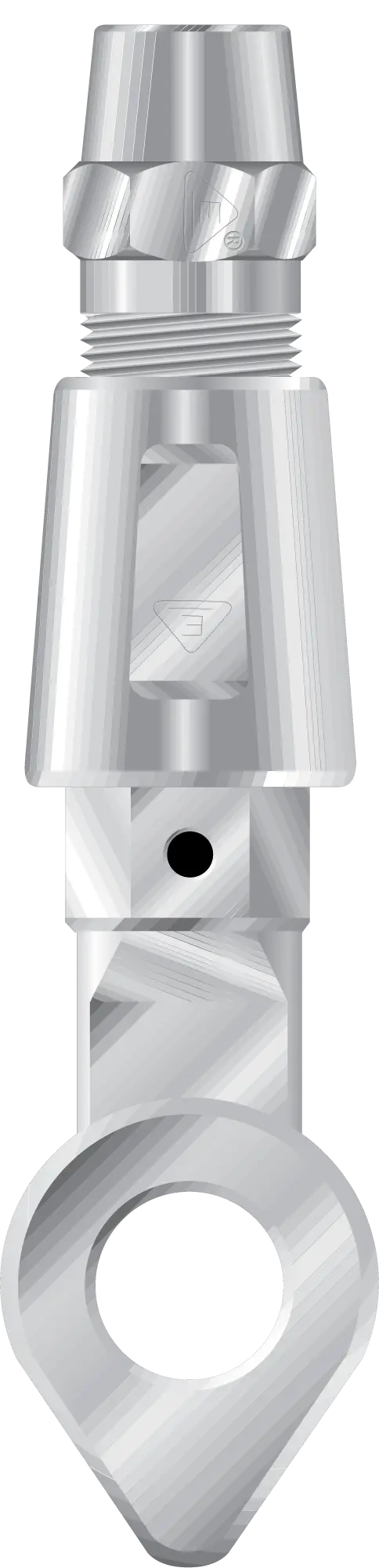

Eye Socket Fitting GD Series
EYE / FORGED SERIES Eye Socket Fitting Electroline's eye end wire rope fitting features a swageless termination, allowing it to be quickly installed in the field without special tools or processes.
Available for ropes from 1/16 to 1 inch in diameter.
Fitting strength exceeds the rated breaking strength of most ropes.
Forged from solid steel, except fittings for ropes 3/8" and smaller are machined.
Galvanized and zinc-plated options are available for increased corrosion resistance.
Available Products
| Rope Size (In. ) | Part No. | Zinc Plated Steel | Dimensions (In.) | EIPS Breakin g Strengt h (lbs.) | Note | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel | Self-Colored Steel | A | B | C | D | E | F | ||||
| 1/4 | IGD-225-X | IGD-225-N | 1-1/16" | 1-3/8" | 5-5/32" | 1-5/16" | 1/2" | 17/32" | 6,800 | Machined Part | |
| 5/16 | IGD-231-X | IGD-231-N | 1-1/16" | 1-3/8" | 5-1/2" | 1-5/16" | 9/16" | 21/32" | 10,540 | Machined Part | |
| 3/8 | IGD-237-X | IGD-237-N | 1-1/16" | 1-3/8" | 5-1/2" | 1-5/16" | 9/16" | 21/32" | 15,100 | Machined Part | |
| 7/16 | GD-243-X | GD-243-N | 1-5/16" | 1-11/16" | 6-7/8" | 1-3/4" | 3/4" | 29/32" | 20,400 | ||
| 1/2 | GD-250-X | GD-250-N | 1-5/16" | 1-11/16" | 6-7/8" | 1-3/4" | 3/4" | 29/32" | 26,600 | ||
| 9/16 | GD-256-X | GD-256-N | 1-1/2" | 2-9/16" | 9-3/16" | 2-1/4" | 7/8" | 1-1/32" | 33,600 | ||
| 5/8 | GD-262-X | GD-262-N | 1-1/2" | 2-9/16" | 9-3/16" | 2-1/4" | 7/8" | 1-1/32" | 41,200 | ||
| 3/4 | GD-275-X | GD-275-N | 1-11/16" | 2-3/8" | 9-1/2" | 2-1/4" | 1-1/16" | 1-5/32" | 58,800 | ||
| 7/8 | IGD-287-X | IGD-287-N | IGD-287-V | 1-7/8" | 2-13/16" | 11-1/8" | 2-5/8" | 1-5/16" | 1-9/32" | 79,600 | Machined Part |
| 1 | IGD-299-X | IGD-299-N | IGD-299-V | 2-1/4" | 3-1/4" | 13-7/16" | 3" | 1-9/16" | 1-17/32" | 103,400 | Machined Part |
