Esmet Electroline | SKU:
ELU-LD-733A

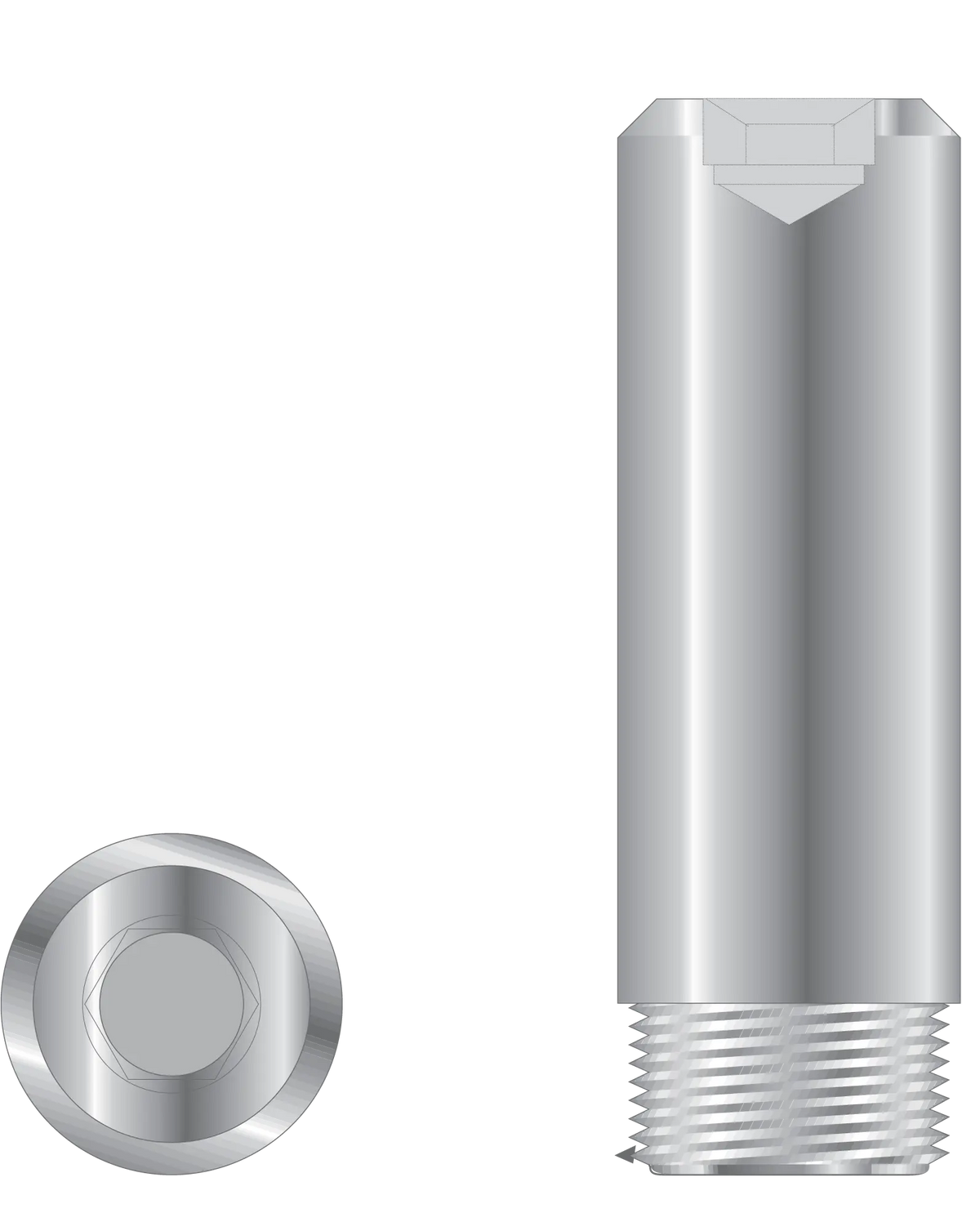

Replacement Clevis Pin with Broached Hex (6000 Series Swivels)
$10.36
Unit price
/
Unavailable
Replacement Clevis Pin with Broached Hex (6000 Series Swivels) - 6X12 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Replacement Clevis Pin with Broached Hex (6000 Series Swivels)
From
$10.36
Unit price
/
Unavailable
This is a replacement pin for 6000 Series Gold Band™ Swivels with a clevis fitting.
To select the correct pin, match the last two digits of the swivel's product ID number with the swivel model number for the pin.
For example, a Model 64 Swivel with product ID 6425 would use the pin for 6x25 swivels.
Available Products
| Part No. | Thread | Dimensions (In.) | |||
|---|---|---|---|---|---|
| Part No. | s Swivel Model | B | C | F | |
| LD-733A | 6X12 | 5/16-24 | 5/16" | 25/32" | 5/32" |
| LD-733B | 6X25 | 3/8-24 | 3/8" | 1-1/8" | 3/16" |
| LD-733C | 6X37 | 7/16-20 | 7/16" | 1-13/32" | 1/4" |
| LD-733D | 6X50 | 5/8-18 | 5/8" | 1-23/32" | 3/8" |
| LD-733E | 6X62 | 7/8-14 | 7/8" | 2-1/8" | 1/2" |
| LD-733G | 6X75 | 1-12 | 1" | 2-19/32" | 1/2" |
| LD-733H | 6X81 | 1-1/8-12 | 1-1/8" | 2-5/8" | 1/2" |
| LD-733F | 6X87 | 1-1/2-12 | 1-1/2" | 3-5/16" | 1/2" |
| LD-733F | 6X89 | 1-1/2-12 | 1-1/2" | 3-5/16" | 1/2" |
| LD-733K | 6X125 | 1-7/8-12 | 1-7/8" | 4-1/4" | 1/2" |
| LD-733J | 6X150 | 2-12 | 2" | 5" | 1/2" |
