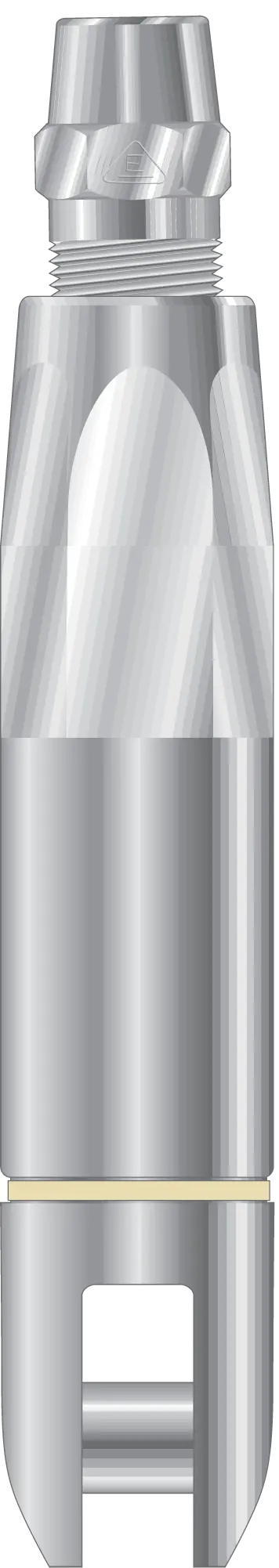

Swageless & Clevis Angular Contact Bearing Swivel – Model 64
Electroline's Model 64 industrial swivel features a swageless rope termination and a clevis (fork/jaw) fitting with a pin.
Utilizing permanently lubricated angular contact bearings, the swivel provides higher-speed, low- torque rotation for longer rope lengths used in multiple applications.
The tapered ends are designed to help prevent snagging on other equipment or cables.
Swageless rope termination allows the swivel to be field-installed without expensive tools or complicated processes.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Built with high-strength alloy steel and zinc-plated for corrosion resistance.
Available Products
| Rope Size (In.) | Part No. | ts WLL 3:1 (Pounds) | WLL 5:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | Overall Length | ||
|---|---|---|---|---|---|---|---|---|---|
| D | F | I | |||||||
| 1/8 | 6412 | 2,300 | 1,380 | 7/8" | 5/16" | 5/16" | 15/32" | 3/8" | 3-7/8" |
| 1/4 | 6425 | 5,000 | 3,000 | 1-1/4" | 3/8" | 19/32" | 11/16" | 7/16" | 5-7/8" |
| 3/8 | 6437 | 8,000 | 4,800 | 1-1/2" | 7/16" | 19/32" | 13/16" | 9/16" | 6-13/16" |
| 1/2 | 6450 | 11,500 | 6,900 | 1-7/8" | 5/8" | 3/4" | 15/16" | 13/16" | 9-1/8" |
| 5/8 | 6462 | 18,500 | 11,100 | 2-7/16" | 7/8" | 1" | 1-9/16" | 1-1/8" | 12-3/4" |
| 3/4 | 6481 | 31,500 | 18,900 | 2-7/8" | 1-1/8" | 1-9/16" | 2-1/8" | 1-1/4" | 14-11/16" |
| 3/4 | 6475 | 31,500 | 18,900 | 2-7/8" | 1" | 1-9/32" | 2-1/8" | 1-1/4" | 14-11/16" |
| 7/8 | 6487 | 33,333 | 20,000 | 3-5/8" | 1-1/2" | 1-3/4" | 3-1/2" | 1-3/4" | 18" |
| 1 | 6499 | 50,000 | 30,000 | 3-5/8" | 1-1/2" | 1-3/4" | 3-1/2" | 1-3/4" | 19-7/8" |
| 1-1/4 | 64125 | 83,333 | 50,000 | 4-1/2" | 1-7/8" | 2" | 3-11/16" | 2-3/8" | 27-1/2" |
| 1-1/2 | 64150 | 116,667 | 70,000 | 5-3/8" | 2" | 2" | 3-11/16" | 2-3/8" | 31" |
