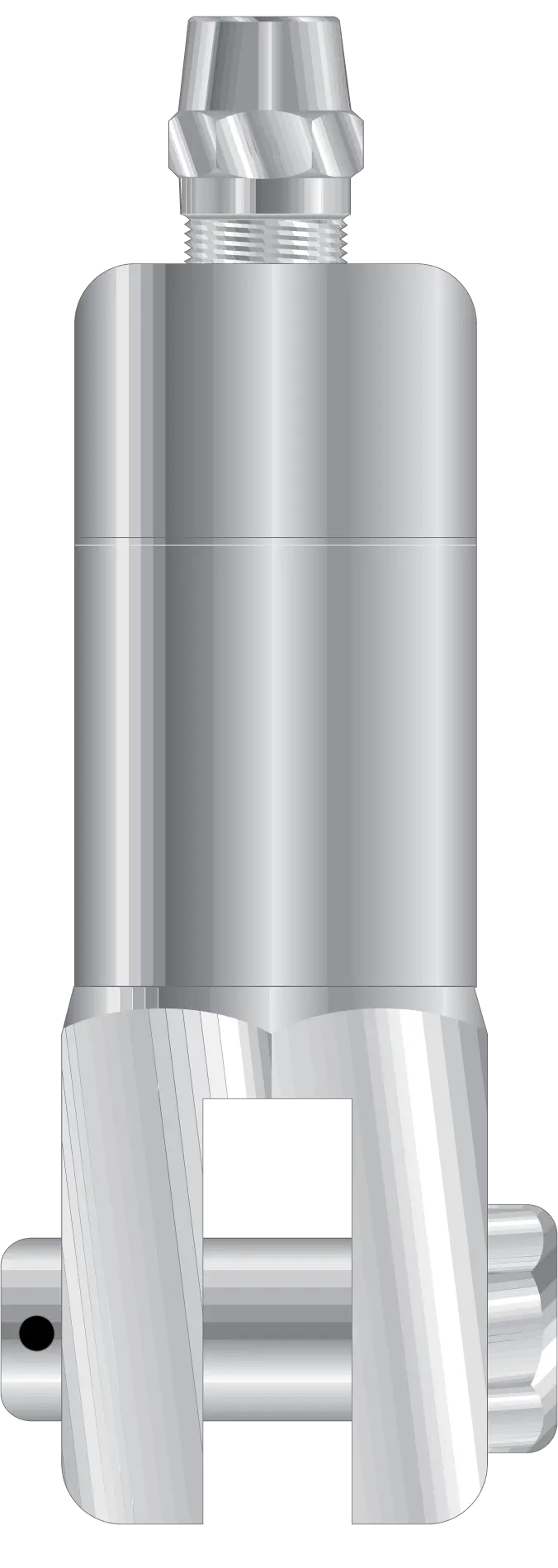

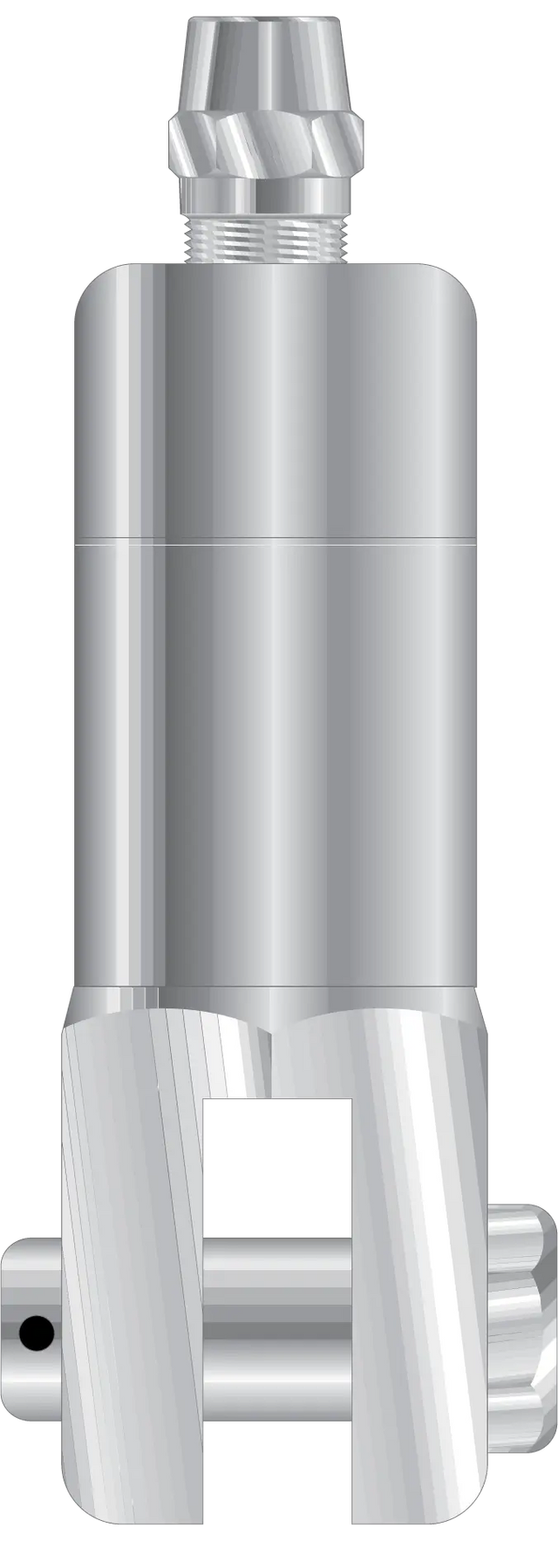

Swageless & Clevis Roller Bearing Swivel – Model 34
Electroline's Model 33 industrial swivel features a swageless rope termination and a clevis (fork/jaw) fitting with a pin.
Utilizing a single roller bearing, this economical swivel enables smooth, higher-torque rotation for the shorter rope lengths used in lifting equipment and similar applications.
Swageless rope termination allows the swivel to be field-installed without expensive tools or complicated processes.
Made from alloy steel and zinc-plated for corrosion resistance.
Ultimate strength exceeds the rated Working Load Limit (WLL).
Available Products
| Rope Size (In.) | Part No. | cts WLL 3:1 (Pounds) | WLL 5:1 (Pounds) | A | C - Pin Dia. | Dimensions (In.) | L | Overall Length | ||
|---|---|---|---|---|---|---|---|---|---|---|
| D | F | I | ||||||||
| 1/8 | 3412 | 1,666 | 1,000 | 7/8" | 1/4" | 1/4" | 1/2" | 7/16" | -" | 3-15/16" |
| 3/16 | 3418 | 2,066 | 1,240 | 1" | 5/16" | 5/16" | 5/8" | 1/2" | -" | 4-9/16" |
| 1/4 | 3425 | 2,500 | 1,500 | 1-1/8" | 3/8" | 3/8" | 3/4" | 9/16" | -" | 5-3/16" |
| 5/16 | 3431 | 5,000 | 3,000 | 1-7/8" | 3/4" | 13/16" | 1-3/8" | 1" | 2" | 7-7/16" |
| 3/8 | 3437 | 6,666 | 4,000 | 1-7/8" | 3/4" | 13/16" | 1-3/8" | 1" | 2" | 7-15/16" |
| 7/16 | 3443 | 10,000 | 6,000 | 2-3/8" | 3/4" | 1" | 1-3/8" | 1-1/8" | 2-1/4" | 9-1/2" |
| 1/2 | 3450 | 10,000 | 6,000 | 2-3/8" | 3/4" | 1" | 1-3/8" | 1-1/8" | 2-1/4" | 9-1/2" |
| 9/16 | 3456 | 16,666 | 10,000 | 3-1/4" | 1" | 1-1/8" | 1-3/4" | 1-1/4" | 3" | 11-11/16" |
| 5/8 | 3462 | 16,666 | 10,000 | 3-1/4" | 1" | 1-1/8" | 1-3/4" | 1-1/4" | 3" | 11-11/16" |
| 3/4 | 3475 | 28,333 | 17,000 | 3-5/8" | 1-1/8" | 1-9/16" | 2-1/8" | 1-1/2" | 3-1/4" | 13-5/8" |
| 7/8 | 3487 | 33,333 | 20,000 | 3-3/4" | 1-1/4" | 1-3/4" | 3-1/8" | 1-7/8" | 3-1/2" | 16-1/2" |
| 1 | 3499 | 50,000 | 30,000 | 4-1/8" | 1-3/8" | 1-3/4" | 3-1/8" | 1-7/8" | 4" | 17-15/16" |
