Caldwell | SKU:
Caldwell-MFL-12-4

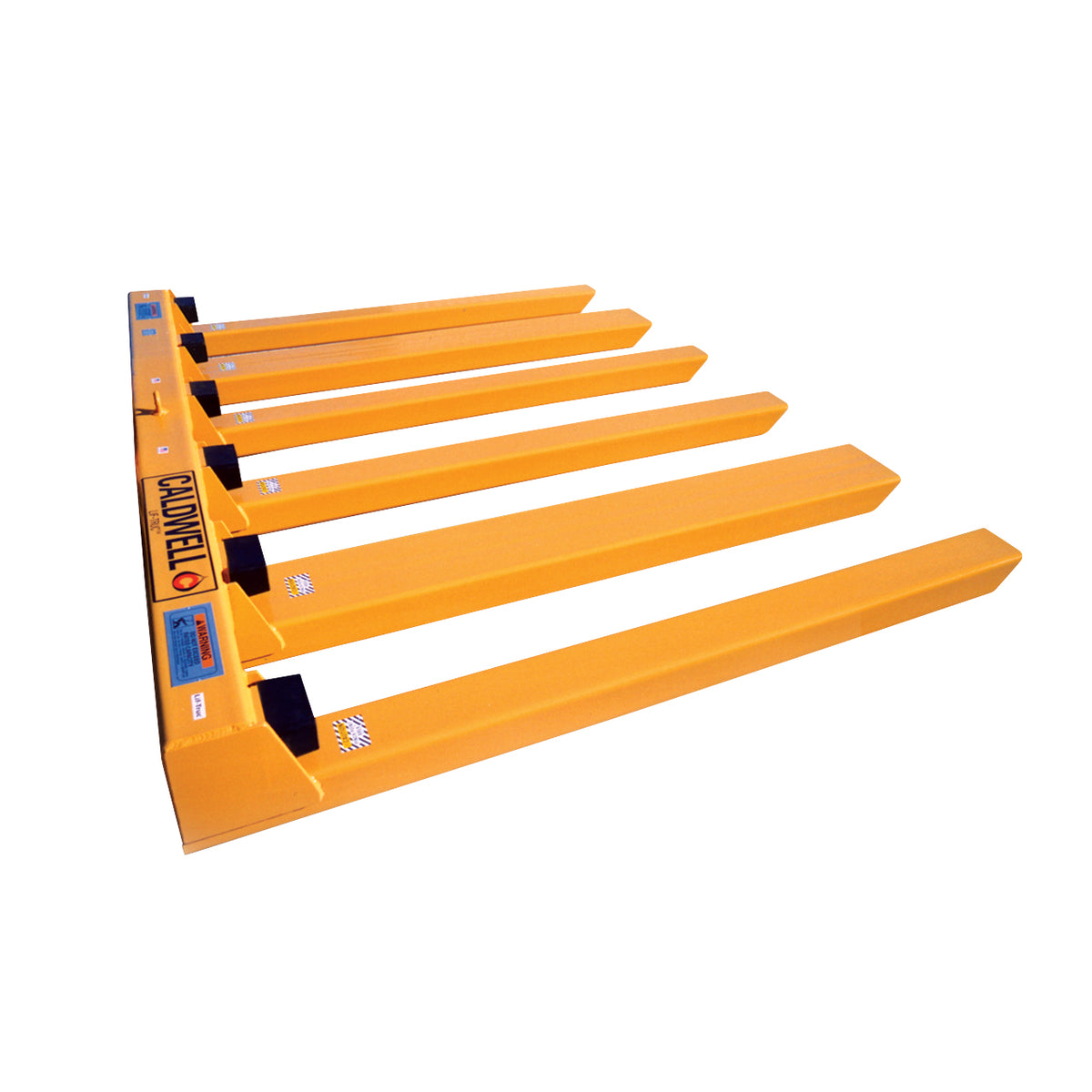

Caldwell Multiple Pipe Lifter
$10,767.00
Unit price
/
Unavailable
Caldwell Multiple Pipe Lifter - 12 / 4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Multiple Pipe Lifter
From
$10,767.00
Unit price
/
Unavailable
Can help you move your concrete pipe up to 3 times faster than with a standard fork truck. Quickly and easily loads up to 6 pipes at a time* onto a flat bed truck. Increased efficiency saves both time and money moving and loading concrete pipe.
Features
- Lifter can pick up 4, 5, or 6 pipes at a time*
- Save time and money moving and loading concrete pipe
- Rubber bumpers help protect pipe from damage
- Heavy duty design
- Pockets are open for easy cleaning and water drainage
- Restraining chain with grab hook standard
- Complies with OSHA requirements
- Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance
- *Quantity of lifting arms is the maximum number of pipes that can be handled in a single lift
Specifications
| Fork Pockets Height | 3.5 |
Available Models
| Part No. | Pole Diameter | Lifting Arms Spacing | Lift Capacity Round | Fork Pockets Width | Fork Pocket Width | Center of Gravity from Bumper | Fork Pockets Centers | Max Load Per Fork | Minimum Load Basket | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| MFL-12-4 | 12 | 4 | 4800 | 7.5 | 7.5 | 30.5 | 20 | 1200 | 20 | 650 |
| MFL-12-6 | 12 | 6 | 7200 | 9.5 | 9.5 | 31 | 60 | 1200 | 20 | 980 |
| MFL-15-5 | 15 | 5 | 7500 | 9.5 | — | 30.5 | 48 | 1500 | 24 | 860 |
| MFL-18-5 | 18 | 5 | 10000 | 9.5 | — | 29 | 54 | 2000 | 27 | 860 |
| MFL-21-5 | 21 | 5 | 11500 | 9.5 | — | 29 | 60 | 2300 | 30 | 910 |
