Caldwell  |  SKU: Caldwell-C-3

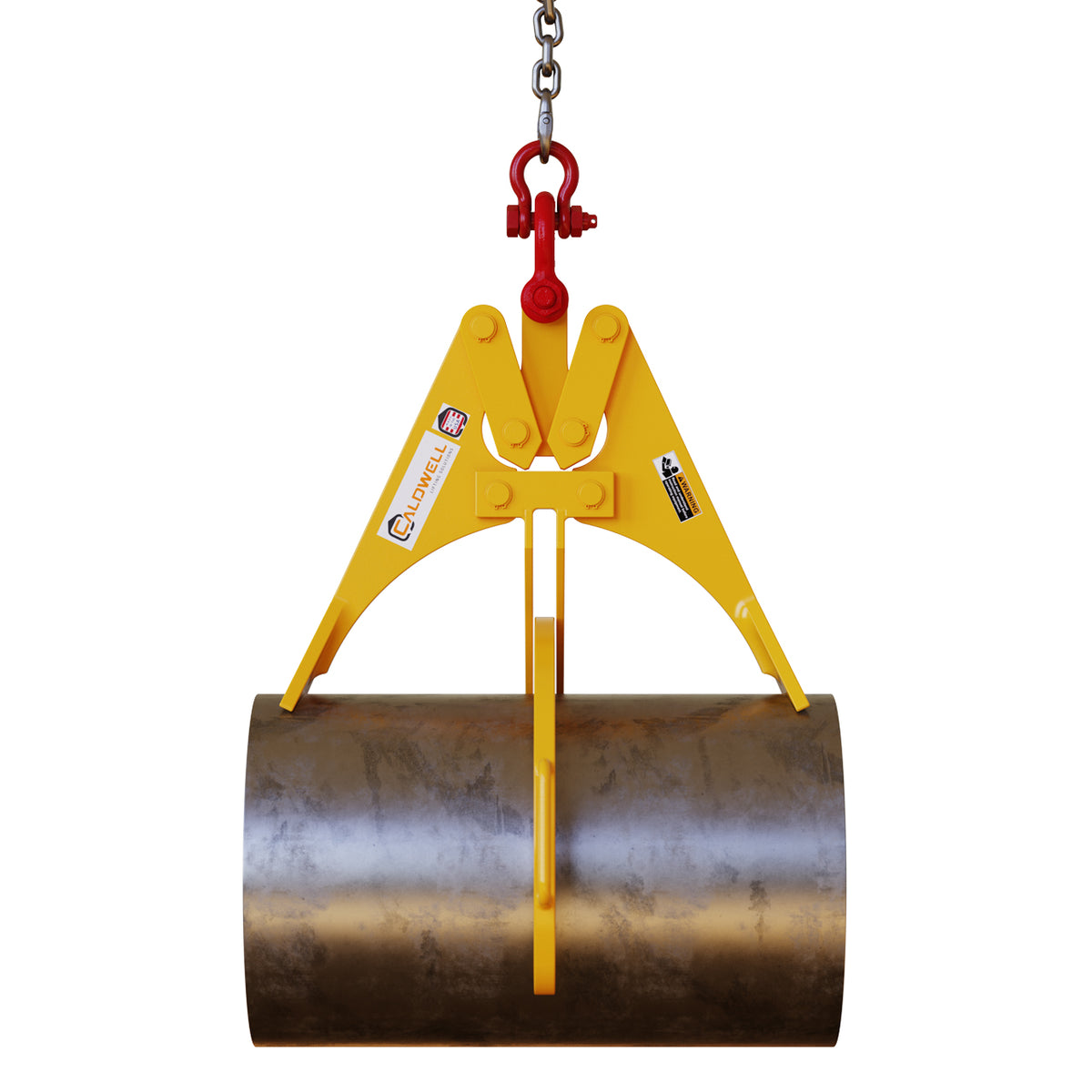

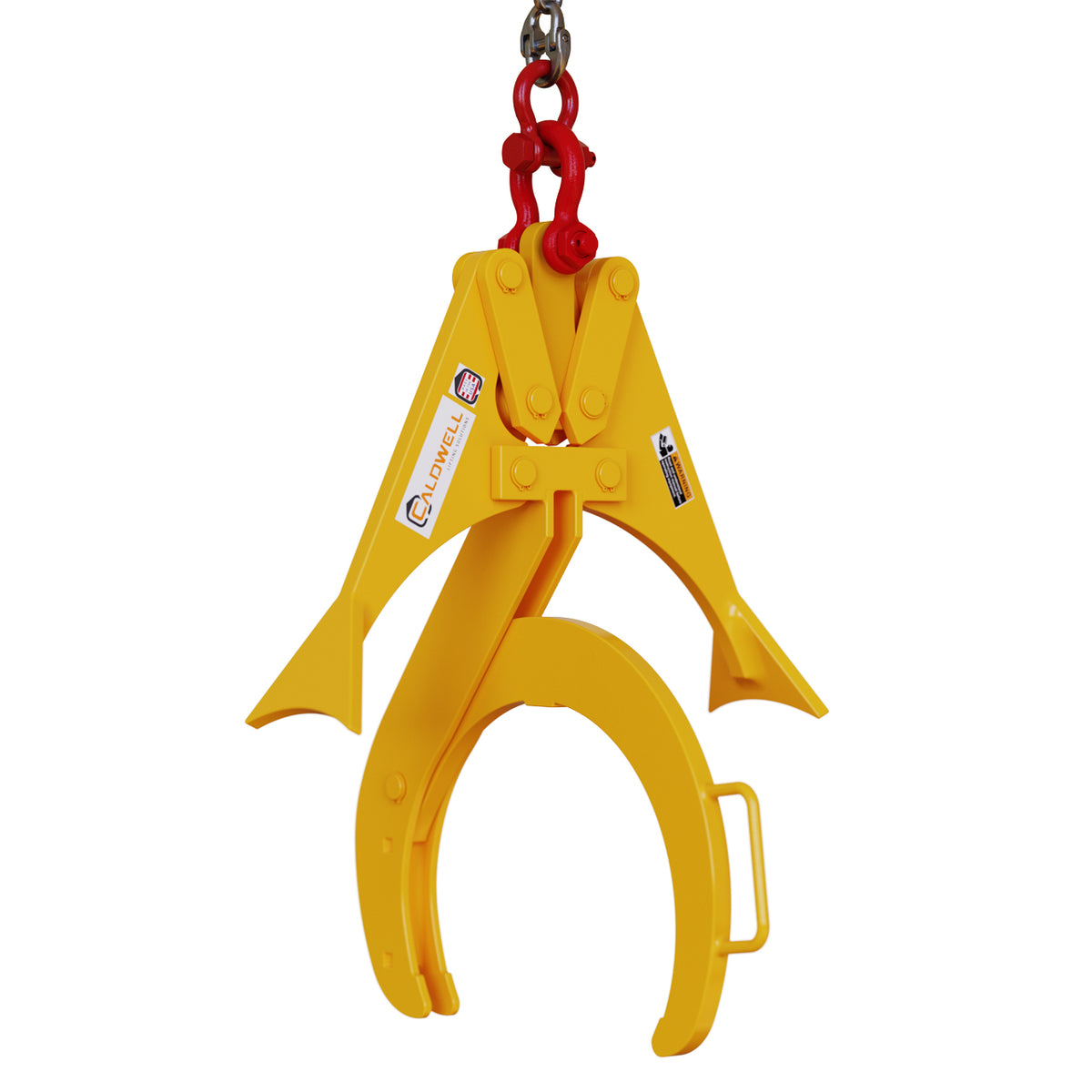

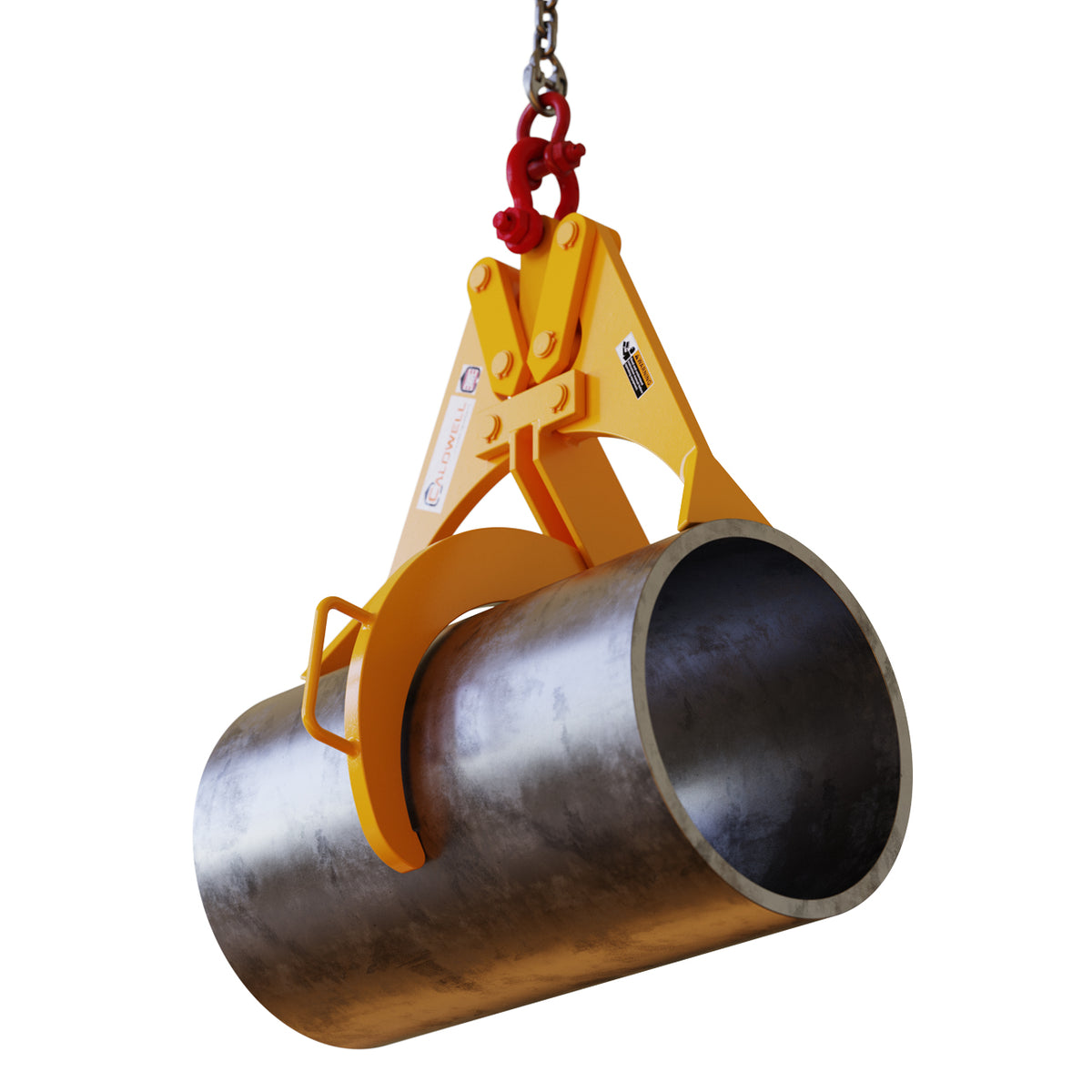

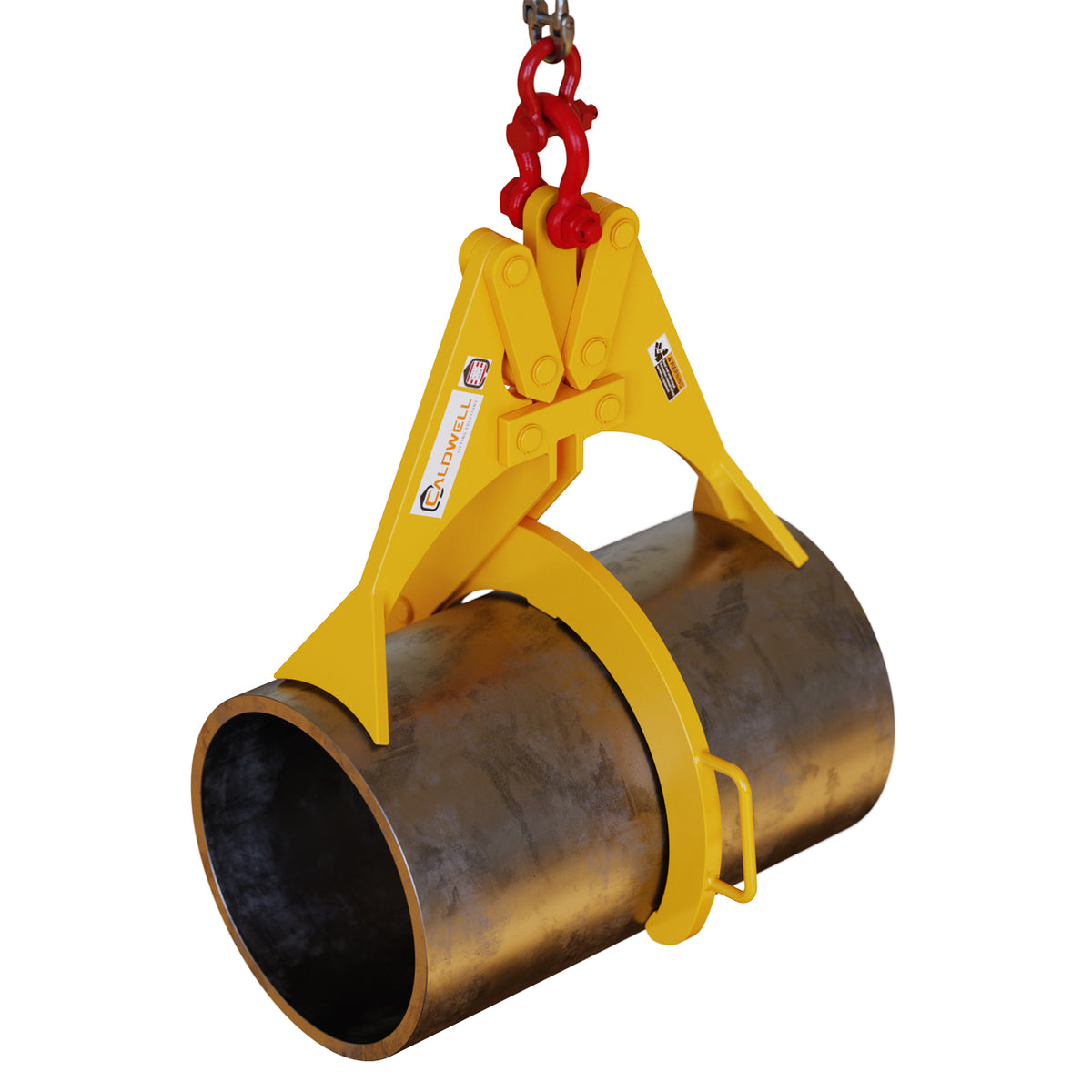

Caldwell Pipe Grabs

$858.00
Request a Quote

Specially designed for use with cast iron cylindrical objects. If you are lifting steel pipe, choose Model S.

Features

  • Heavy-duty automatic clamping design
  • Outriggers stabilize the pipe during lift
  • No blocking is required
  • The operator only has to guide the clamp into place
  • Pipes are handled quickly and efficiently when properly balanced
  • Excellent for cast iron, steel pipe, tubing, and other cylindrical objects
  • Pipe grab sizes listed handle ASA cast iron pipe - standard, extra strong, and double strong
  • Complies with ASME standards

Available Models

Part No. Rated Capacity Capacity Pipe Size Inner Diameter Shackle Height Shackle Inner Width Shackle Thickness Unit Length Unit Width Headroom Temp Weight
C-3 450 0.22 4 1.44 1.03 0.38 6 5 10 7
C-4 600 0.3 4.8 1.69 1.16 0.44 7 8 14 9
C-6 1000 0.5 6.9 1.88 1.31 0.5 11 11 17 15
C-8 1400 0.7 9.05 1.88 1.31 0.5 14 13 22 25
C-10 2000 1 11.1 2.38 1.69 0.63 17 15 27 47
C-12 2500 1.25 13.2 2.38 1.69 0.63 20 18 32 72
