Caldwell | SKU:
Caldwell-PC.3/4
Caldwell "Tea Cup" Pipe Carrier
$255.00
Unit price
/
Unavailable
Caldwell "Tea Cup" Pipe Carrier - 13200 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell "Tea Cup" Pipe Carrier
From
$255.00
Unit price
/
Unavailable

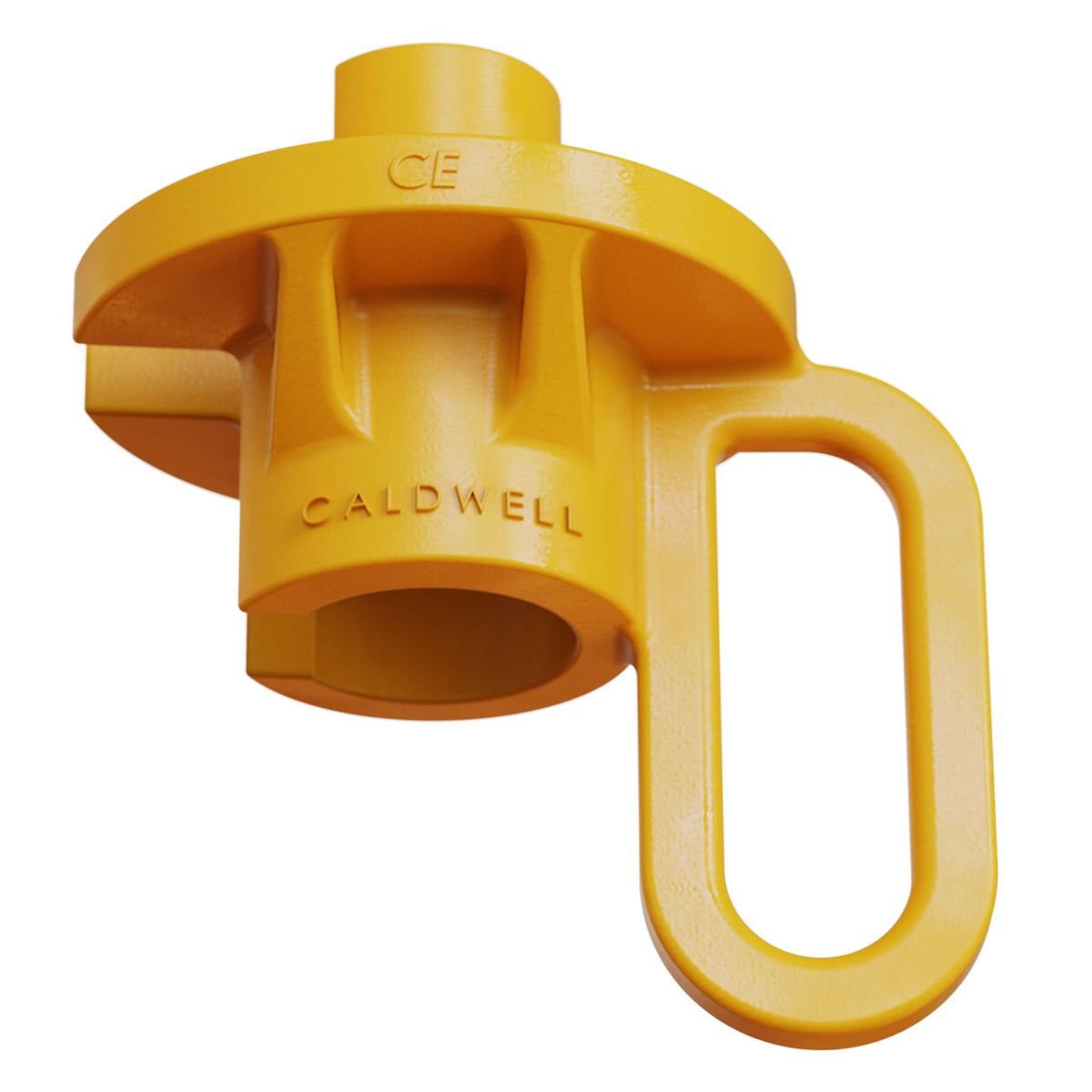

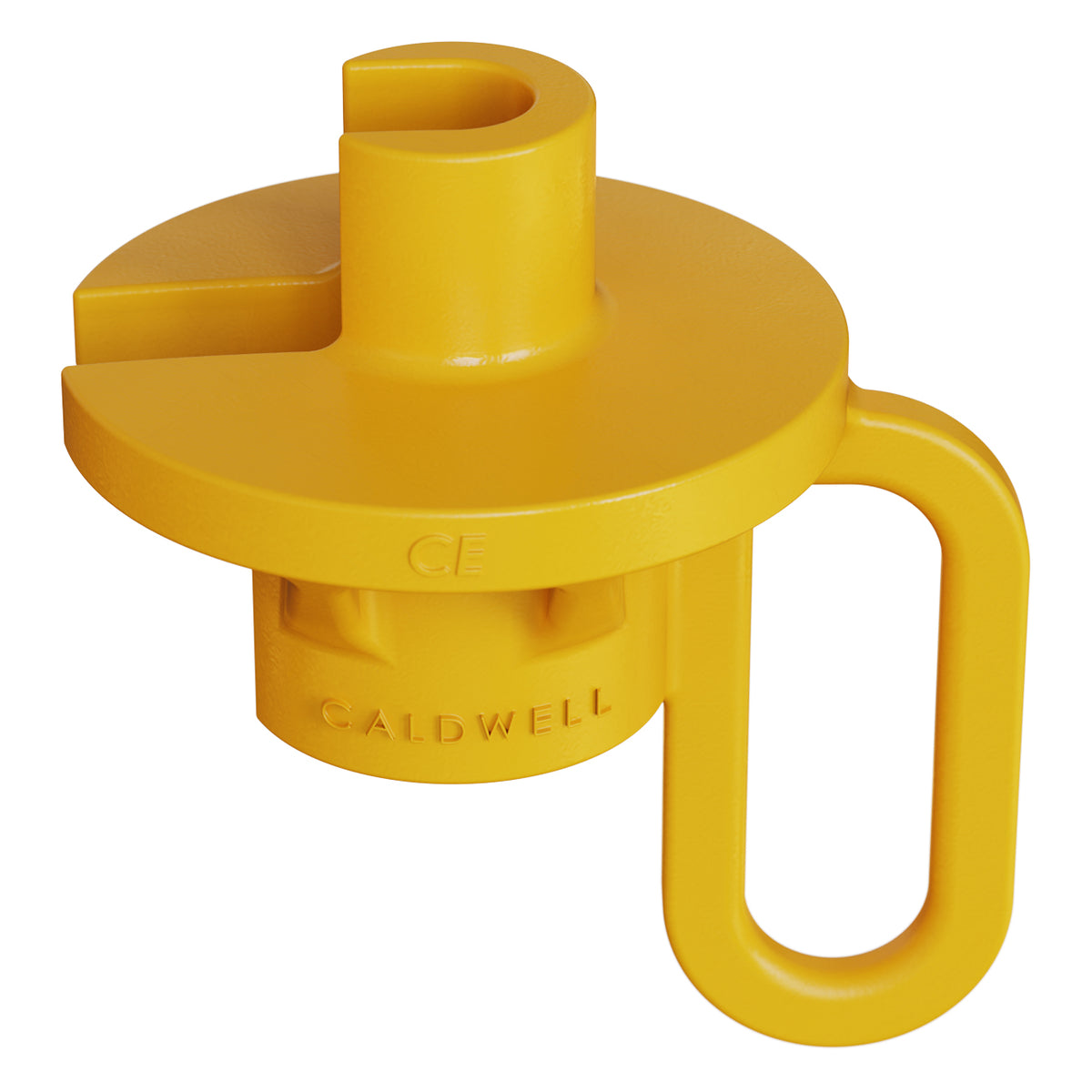

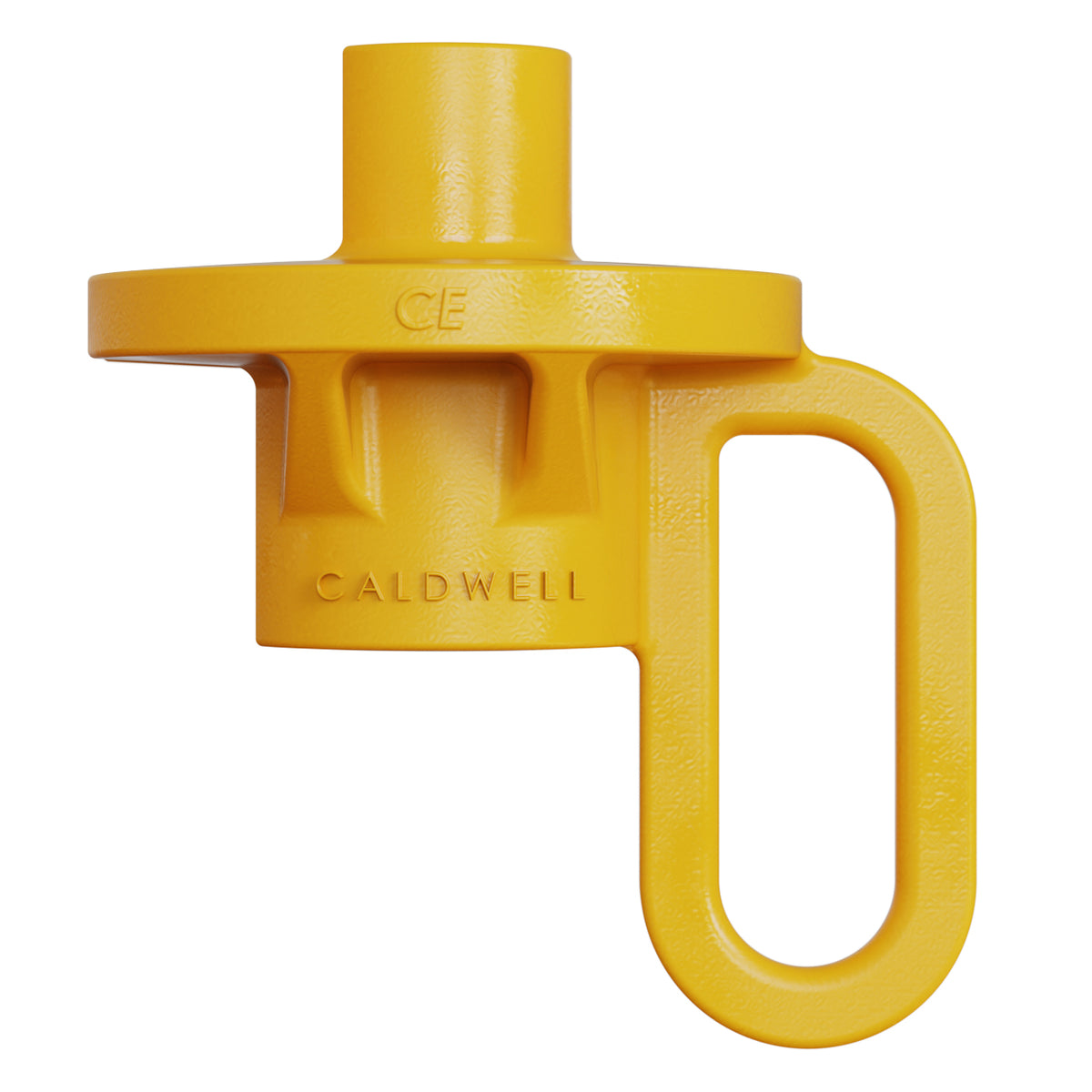

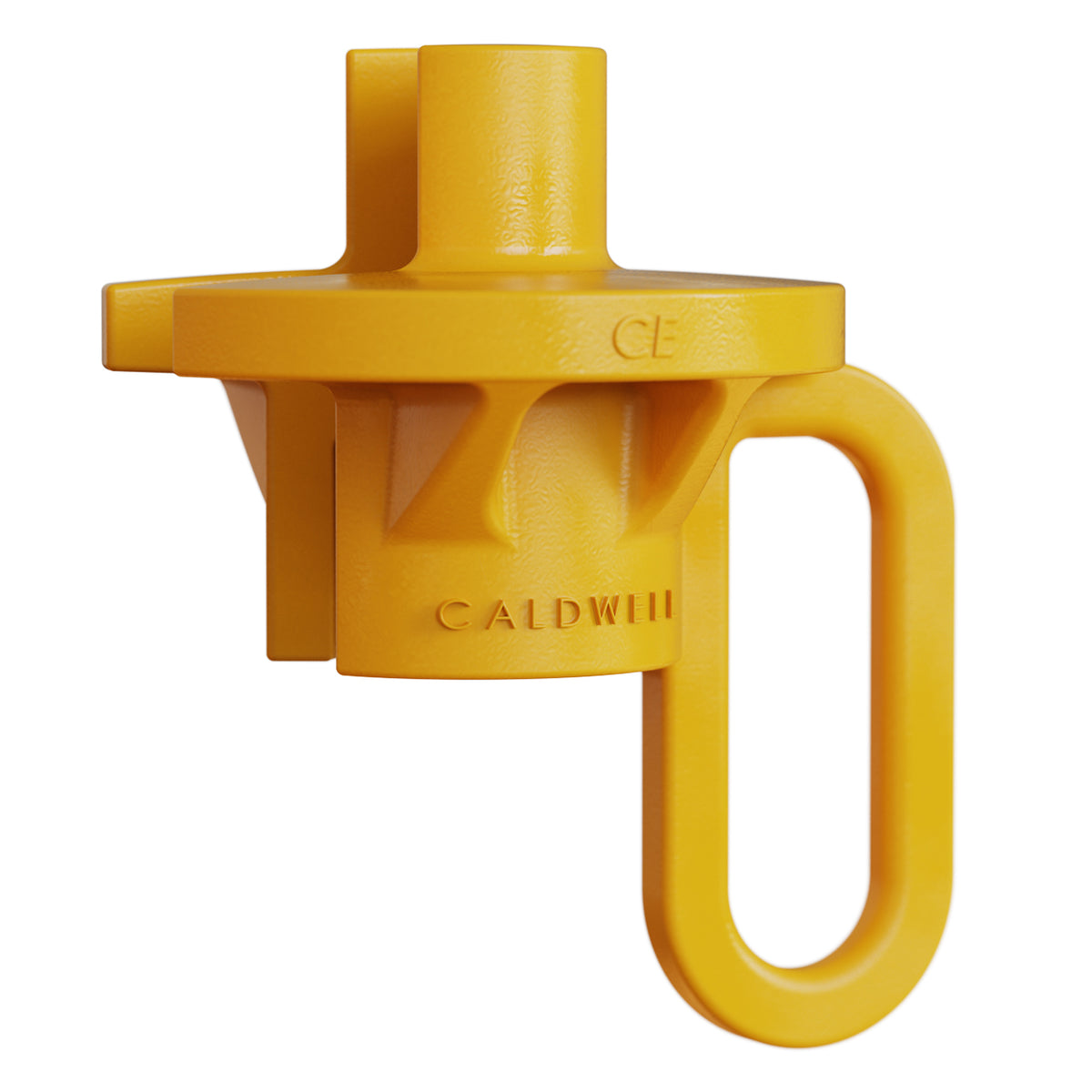

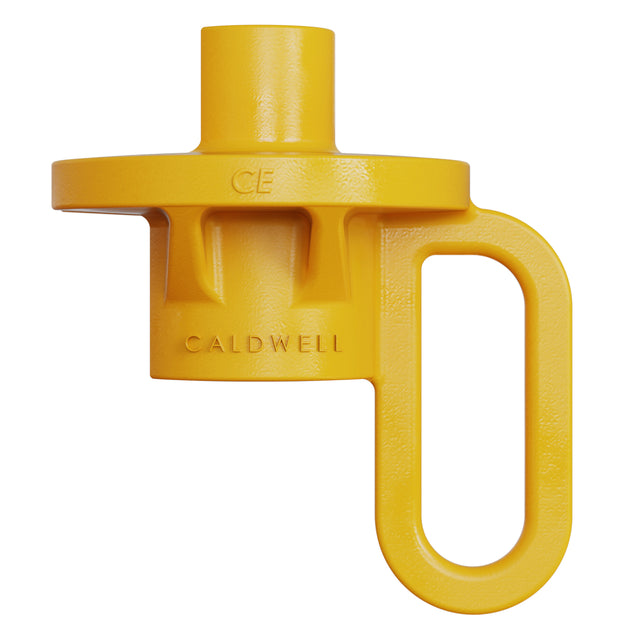

"Tea Cup" Pipe Carrier
Features
- An efficient way to handle concrete water and sewer pipes
- The Caldwell "Tea Cup" Pipe Carrier will save you time and money
- Three sizes available, to handle from 3/4" to 1-1/2" cable, and lift up to 18 tons
- Optional Spoon Handle allows PC-3/4 Tea Cup to be guided into small diameter pipe
- Complies with ASME standards
- Option SH Spoon Handle: 61.1"L with slight bend for ease of use; only for PC-3/4; to order, use Model Number SH-34
- Use only for vertical lifting

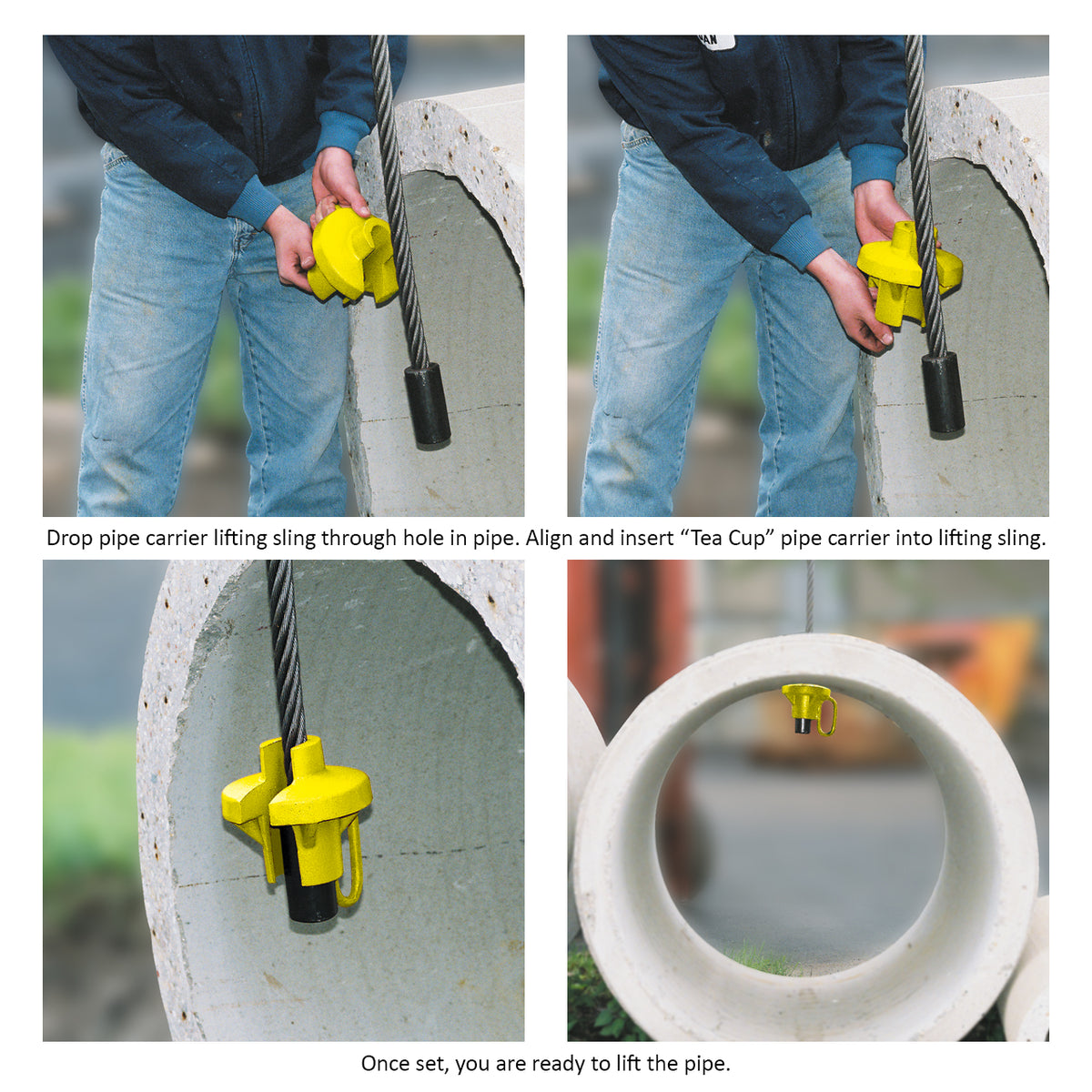

- Optional Tea Cup Lifting Sling also available – just drop the sling through the hole in the pipe, align and insert the Tea Cup and you are ready to lift the pipe
Available Models
| Part No. | Rated Capacity | Capacity | Max Diameter | Sleeve Diameter | Wire Rope Diameter | Flange Height | Height | Wire Rope Opening | Wire Rope Cavity | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| PC.3/4 | 13200 | 6.6 | 5.56 | 2 | 0.75 | 1.75 | 4.75 | 1.13 | 2.13 | 9 |
| PC.1 | 26000 | 13 | 6 | 2.5 | 1 | 1.75 | 5.75 | 1.38 | 2.63 | 12 |
| PC.1.1/2 | 36000 | 18 | 8 | 3 | 1.5 | 2.75 | 7.63 | 1.63 | 3.25 | 22 |
