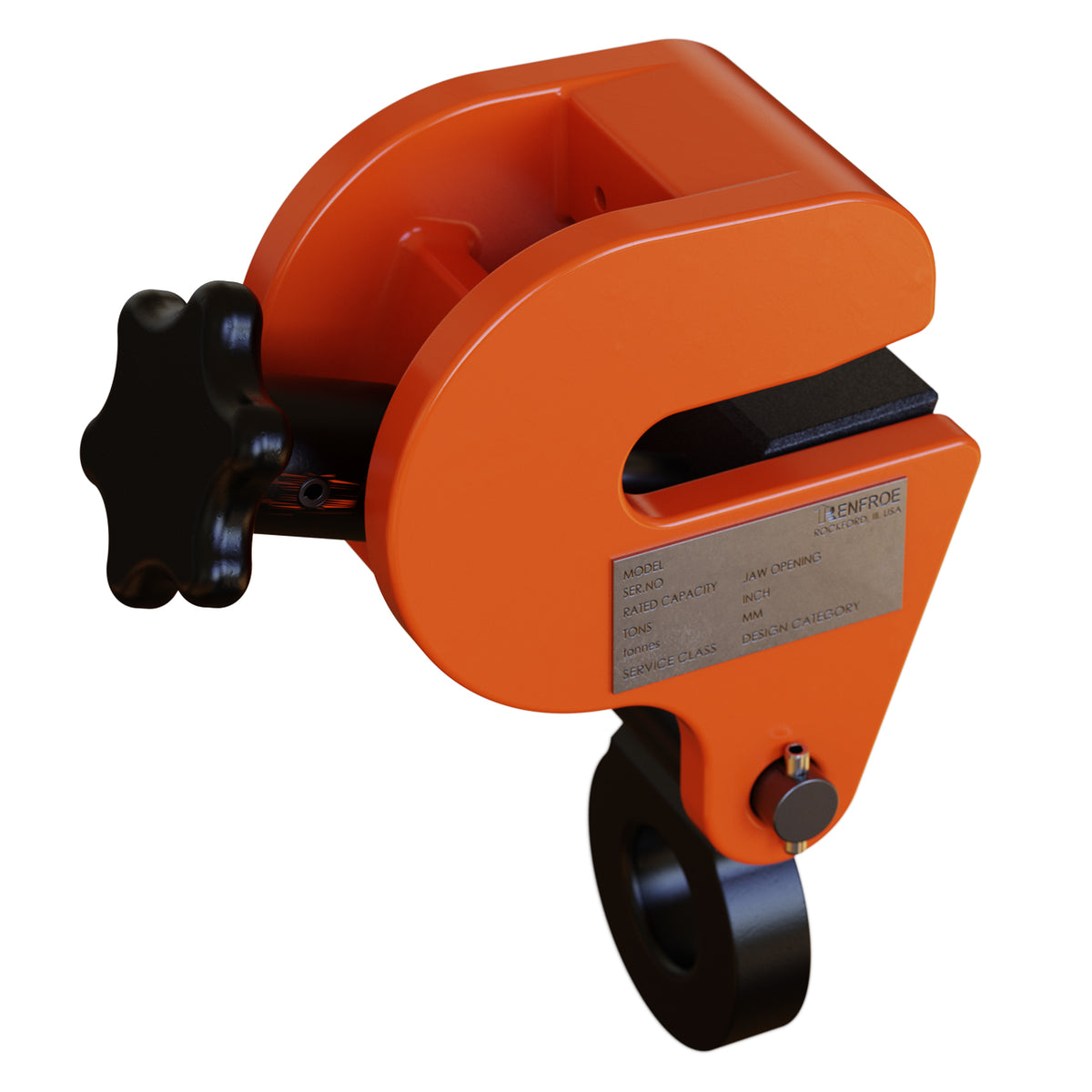

Caldwell Model ACP Locking Screw Type
These clamps may be used for Drifting Loads when used in pairs or multiples. The Models AC and ACP are light weight, portable clamps that provide quick easy attachment to structural members for the use of chain falls, hoists and wire rope pullers. These clamps are of single unit construction with a quick acting hand screw to secure the clamp. The Model ACP has a Pivoting Shackle Eye. These clamps are especially useful in construction and maintenance for shipbuilding and other industries.
Features
- Designed for drifting loads when used in pairs
- Ergonomic light weight design provides quick attachment to structural members
- Single unit construction with easy hand screw adjustment
- Pivoting shackle eye makes it useful for construction & maintenance in shipbuilding
Specifications
| Rated Capacity | 4000 |
Available Models
| Part No. | Plate Thickness Range Code | Clamp Length | Clamp Width | Jaw Length | Overall Clamp Length | Max Jaw Opening | Min Jaw Opening | Overall Clamp Height | Min Flange Width | Top of Jaw to Shackle Eye | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ACP-02.00-A | A | 5.25 | 3.75 | 3.25 | 6.75 | 0.62 | 0.25 | 8.31 | — | 5.5 | 12.5 |
| ACP-02.00-B | B | 5.25 | 3.66 | 3.25 | 6.94 | 0.75 | 0.38 | 8.91 | 0.38 | 5.56 | 12.5 |
| ACP-02.00-C | C | 4.75 | 3.66 | 5.25 | 6.94 | 0.88 | 0.5 | 9.16 | 0.5 | 5.56 | 12.55 |
| ACP-02.00-D | D | — | — | — | — | — | — | — | — | — | — |
| ACP-02.00-E | E | — | — | — | — | — | — | — | — | — | — |
