Miller | SKU:
Miller-1VD1

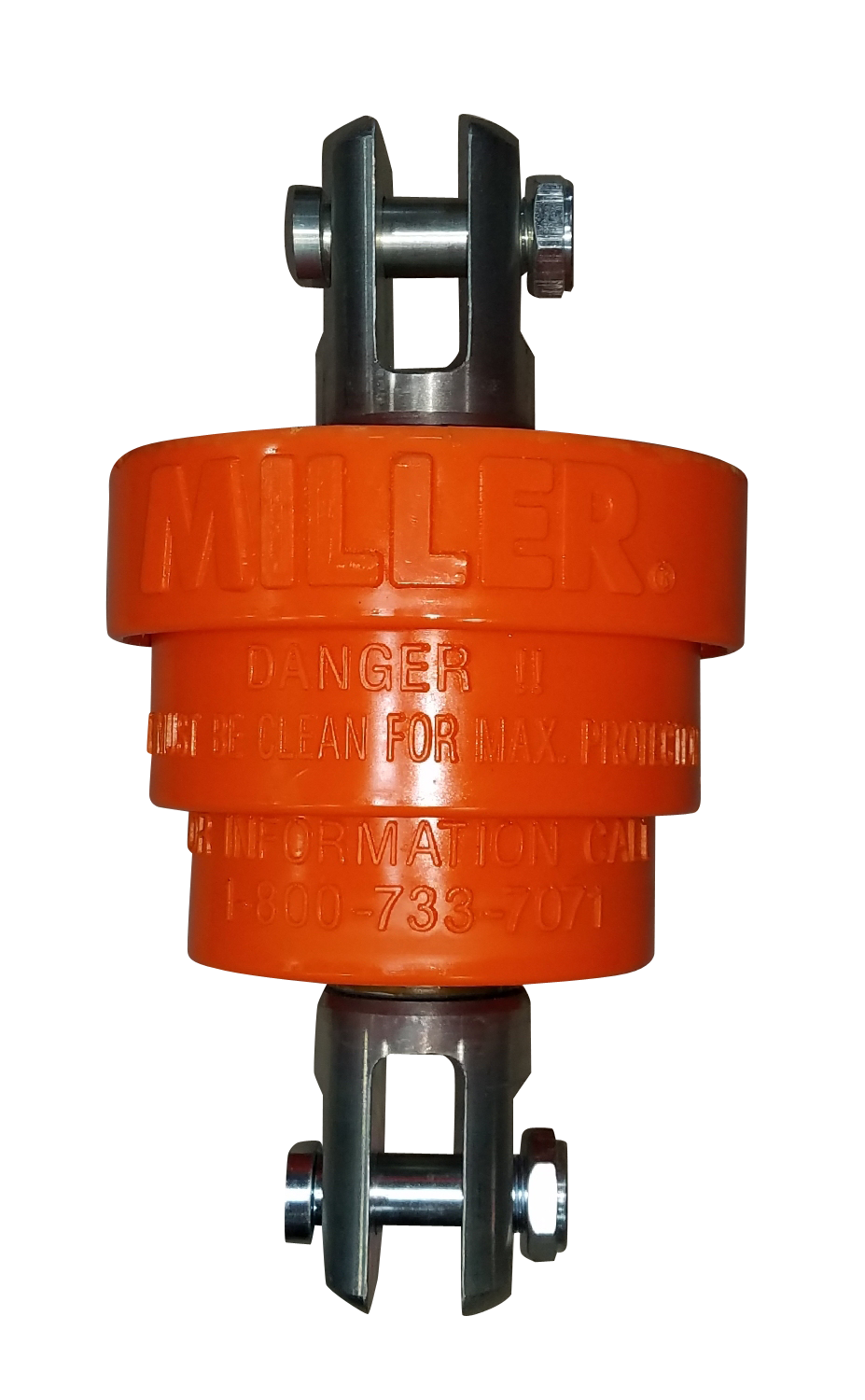

Miller® ISO/Link-AC
$5,438.00
Unit price
/
Unavailable
Miller® ISO/Link-AC - Jaw to Jaw is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Miller® ISO/Link-AC
From
$5,184.00
Unit price
/
Unavailable
Dimensions:
| SKU | Type | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| 1VD1 | Jaw to Jaw | 13.2 | 7.4 | 7.4 | 21 |
| 1VD2 | Jaw to Eye | 13.1 | 7.4 | 7.4 | 20 |
| 1VD5 | Jaw to Hook | 18 | 7.4 | 7.4 | 26 |
| 2VD1 | Eye to Jaw | 13.1 | 7.4 | 7.4 | 20 |
| 2VD2 | Eye to Eye | 13 | 7.4 | 7.4 | 19 |
| 2VD5 | Eye to Hook | 18 | 7.4 | 7.4 | 25 |
Specifications:
| SKU | Type | Overall Length | Clevis Pin Dia. | Eye Hole Dia. | Clevis Inside Width | Eye Tang Thickness |
|---|---|---|---|---|---|---|
| 1VD1 | Jaw to Jaw | 13.13" | 0.88" | 1.00" | ||
| 1VD2 | Jaw to Eye | 13.06" | 0.88" | 1.28" | 1.00" | 0.88" |
| 1VD5 | Jaw to Hook | 18.00" | 0.88" | 1.00" | ||
| 2VD1 | Eye to Jaw | 13.06" | 0.88" | 1.28" | 1.00" | 0.88" |
| 2VD2 | Eye to Eye | 13.00" | 1.28" | 0.88" | ||
| 2VD5 | Eye to Hook | 18.00" | 1.28" | 0.88" |
Features
- 25000 VAC
- WLL 5 tons
- 5:1 design factor
- Non-swiveling
- Meets ASTM F 2973
- Insulator Body Diameter: 7.38"
- Made in USA
