Miller | SKU:
Miller-A-414

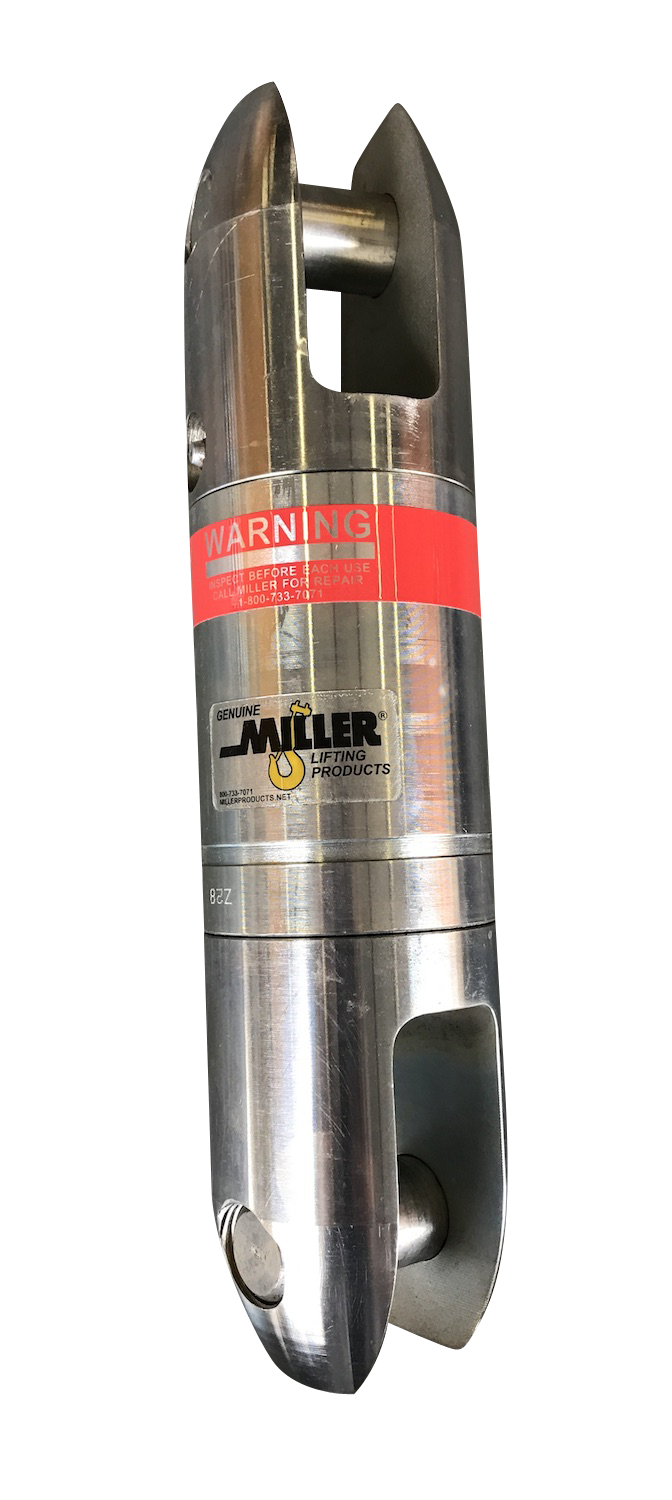

Miller Angular Contact Ball Bearing Swivel (Bullet to Bullet)
$460.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Bullet to Bullet) - WLL 0.45 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Bullet to Bullet)
From
$460.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| A-414 | 0.45 tons | 3.13 | 0.88 | 0.88 | 0.37 |
| BB-414 | 0.75 tons | 4.44 | 1.31 | 1.31 | 1.12 |
| B-414 | 1.5 tons | 5.19 | 1.63 | 1.63 | 1.81 |
| C-414 | 3 tons | 7.06 | 2 | 2 | 3.87 |
| D-414 | 5 tons | 10.19 | 2.5 | 2.5 | 8.06 |
| EE-414 | 8.5 tons | 12.31 | 2.88 | 2.88 | 14.5 |
| G-414 | 10 tons | 16.75 | 4 | 4 | 40 |
| GG-414 | 15 tons | 16.75 | 4 | 4 | 40 |
| H-414 | 25 tons | 20.66 | 5 | 5 | 84 |
| HH-414 | 35 tons | 20.66 | 5 | 5 | 84 |
| I-414 | 45 tons | 26.08 | 6 | 6 | 134 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Clevis Inside Width | Pin to Pin Center Distance |
|---|---|---|---|---|---|---|
| A-414 | 0.45 | 1/8" | 3.13" | 0.31" | 0.25" | 2.38" |
| BB-414 | 0.75 | 1/4" | 4.44" | 0.38" | 0.31" | 3.56" |
| B-414 | 1.5 | 3/8" | 5.19" | 0.44" | 0.5" | 4.06" |
| C-414 | 3 | 1/2" | 7.06" | 0.63" | 0.75" | 5.44" |
| D-414 | 5 | 5/8" | 10.19" | 0.88" | 1" | 7.88" |
| EE-414 | 8.5 | 3/4" | 12.31" | 1" | 1.28" | 9.81" |
| G-414 | 10 | 7/8" | 16.75" | 1.5" | 1.75" | 13.25" |
| GG-414 | 15 | 1" | 16.75" | 1.5" | 1.75" | 13.25" |
| H-414 | 25 | 1 1/4" | 20.66" | 2" | 2" | 15.91" |
| HH-414 | 35 | 1 1/2" | 20.66" | 2" | 2" | 15.91" |
| I-414 | 45 | - | 26.08" | 2.25" | 2.5" | 20.08" |
Features
- Bullet to Bullet
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- A, B, BB, C - Factory-lubricated, no grease fitting
- D, EE, G, GG, H, HH - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
