Miller | SKU:
Miller-B-612

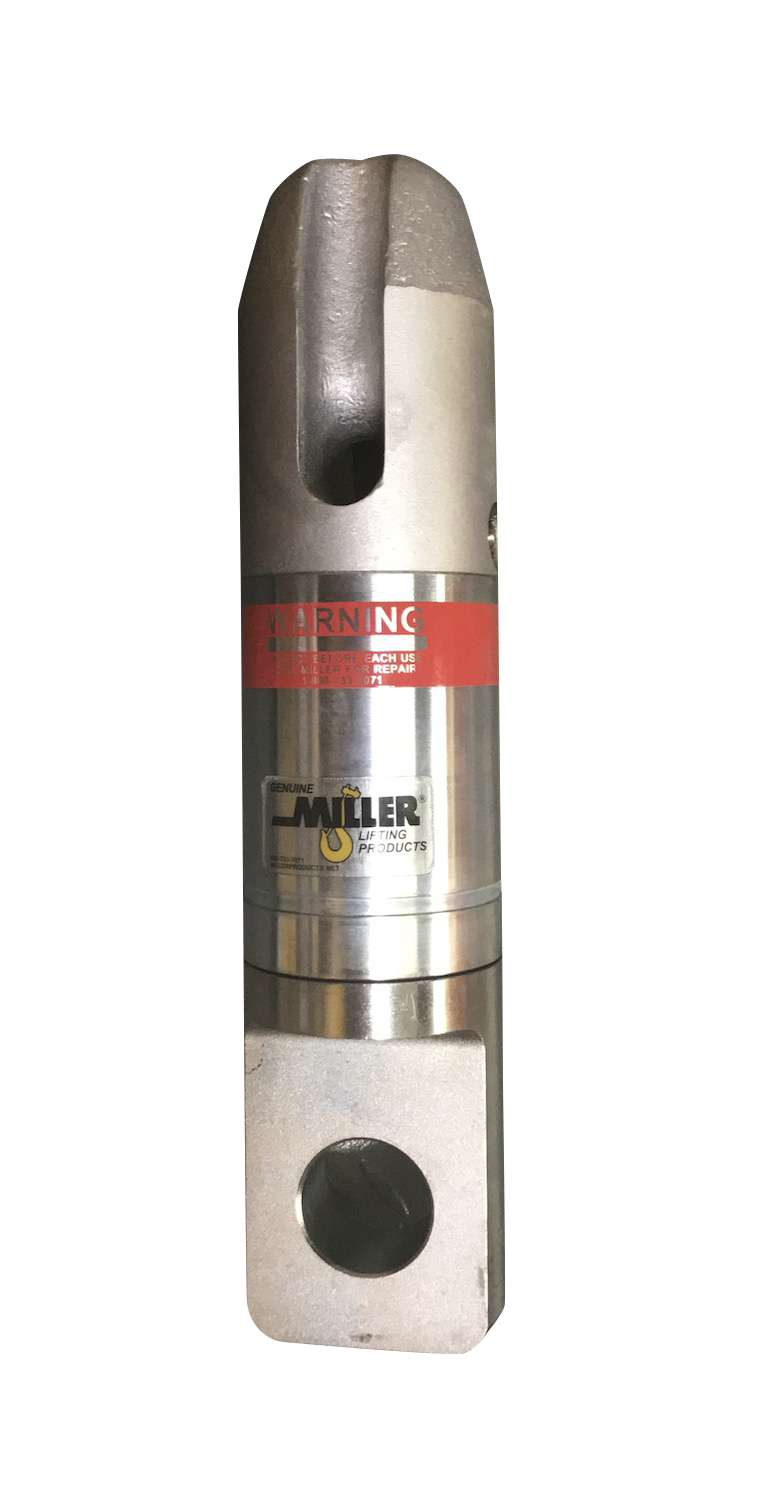

Miller Angular Contact Ball Bearing Swivel (Thimble to Eye)
$980.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Thimble to Eye) - WLL 1.5 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Thimble to Eye)
From
$980.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| B-612 | 1.5 tons | 6.79 | 1.63 | 1.63 | 2.43 |
| C-612 | 3 tons | 8.91 | 2 | 2 | 6 |
| D-612 | 5 tons | 10.53 | 2.5 | 2.5 | 9.43 |
| EE-612 | 8.5 tons | 12.72 | 2.88 | 2.88 | 16.5 |
| G-612 | 10 tons | 17.1 | 4 | 4 | 41 |
| GG-612 | 15 tons | 17.47 | 4 | 4 | 42 |
| H-612 | 25 tons | 20.62 | 5 | 5 | 75 |
| HH-612 | 35 tons | 20.62 | 5 | 5 | 75 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Eye Hole Dia. | Eye Tang Thickness |
|---|---|---|---|---|---|
| B-612 | 1.5 | 3/8" | 6.79" | 0.66" | 0.5" |
| C-612 | 3 | 1/2" | 8.91" | 0.91" | 0.75" |
| D-612 | 5 | 5/8" | 10.53" | 1.28" | 1" |
| EE-612 | 8.5 | 3/4" | 12.72" | 1.41" | 1.25" |
| G-612 | 10 | 7/8" | 17.1" | 1.66" | 1.72" |
| GG-612 | 15 | 1" | 17.47" | 2.03" | 1.94" |
| H-612 | 25 | 1 1/4" | 20.62" | 2.31" | 2.25" |
| HH-612 | 35 | 1 1/2" | 20.62" | 2.31" | 2.25" |
Features
- Thimble to Eye
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- B, C - Factory-lubricated, no grease fitting
- D, EE, G, GG - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
