Miller | SKU:
Miller-B-611

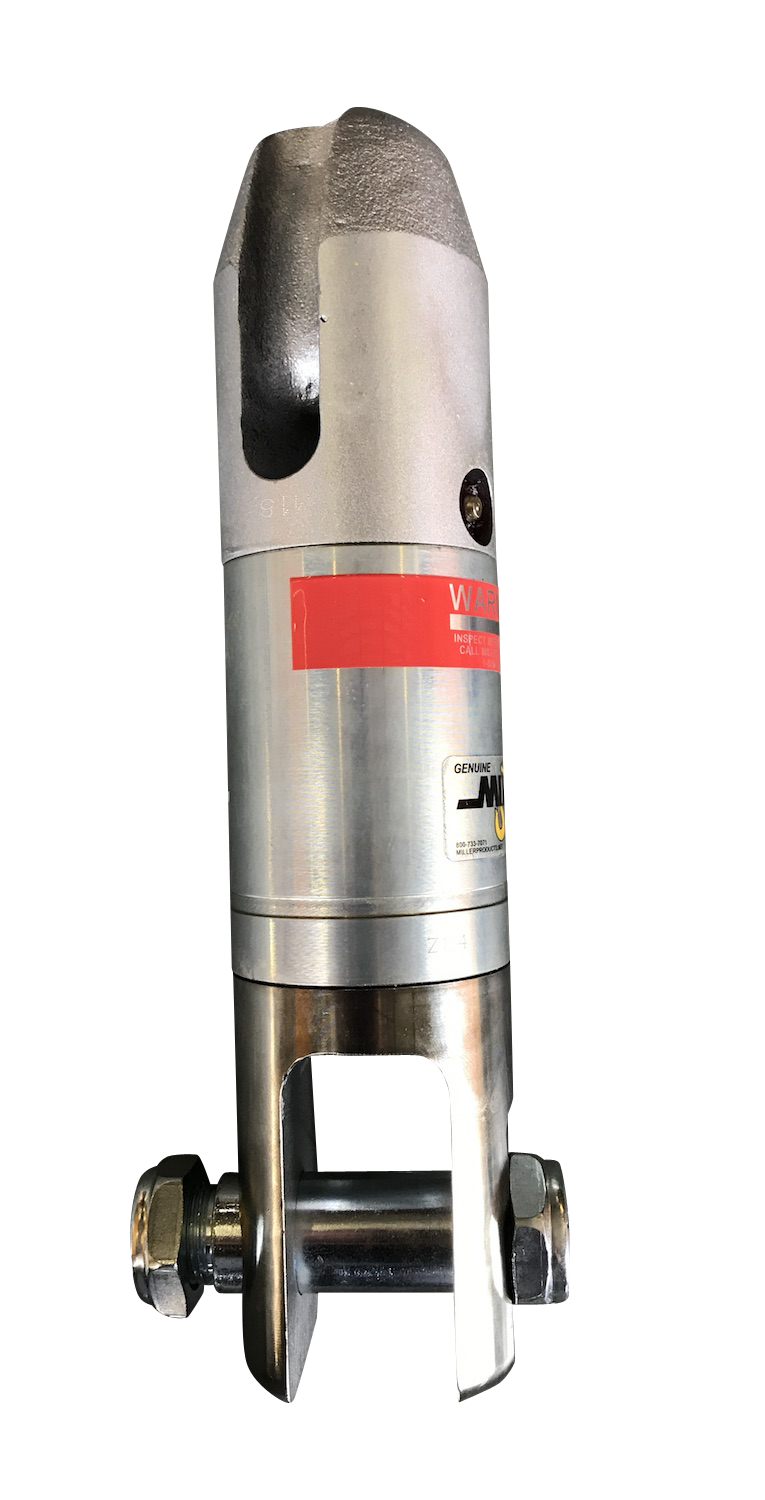

Miller Angular Contact Ball Bearing Swivel (Thimble to Jaw)
$980.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Thimble to Jaw) - WLL 1.5 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Thimble to Jaw)
From
$980.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| B-611 | 1.5 tons | 6.69 | 1.63 | 1.63 | 2.5 |
| C-611 | 3 tons | 9 | 2 | 2 | 5.25 |
| D-611 | 5 tons | 10.44 | 2.5 | 2.5 | 10 |
| EE-611 | 8.5 tons | 12.72 | 2.88 | 2.88 | 16.5 |
| G-611 | 10 tons | 17.13 | 4 | 4 | 42 |
| GG-611 | 15 tons | 17.13 | 4 | 4 | 42 |
| H-611 | 25 tons | 20.69 | 5 | 5 | 80 |
| HH-611 | 35 tons | 20.69 | 5 | 5 | 80 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Clevis Inside Width |
|---|---|---|---|---|---|
| B-611 | 1.5 | 3/8" | 6.69" | 0.5" | 0.5" |
| C-611 | 3 | 1/2" | 9.0" | 0.75" | 0.75" |
| D-611 | 5 | 5/8" | 10.44" | 0.88" | 1" |
| EE-611 | 8.5 | 3/4" | 12.72" | 1.19" | 1.56" |
| G-611 | 10 | 7/8" | 17.13" | 1.5" | 1.75" |
| GG-611 | 15 | 1" | 17.13" | 1.5" | 1.75" |
| H-611 | 25 | 1 1/4" | 20.69" | 2" | 2" |
| HH-611 | 35 | 1 1/2" | 20.69" | 2" | 2" |
Features
- Thimble to Jaw
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- B, C - Factory-lubricated, no grease fitting
- D, EE, G, GG - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
