Miller | SKU:
Miller-C-714

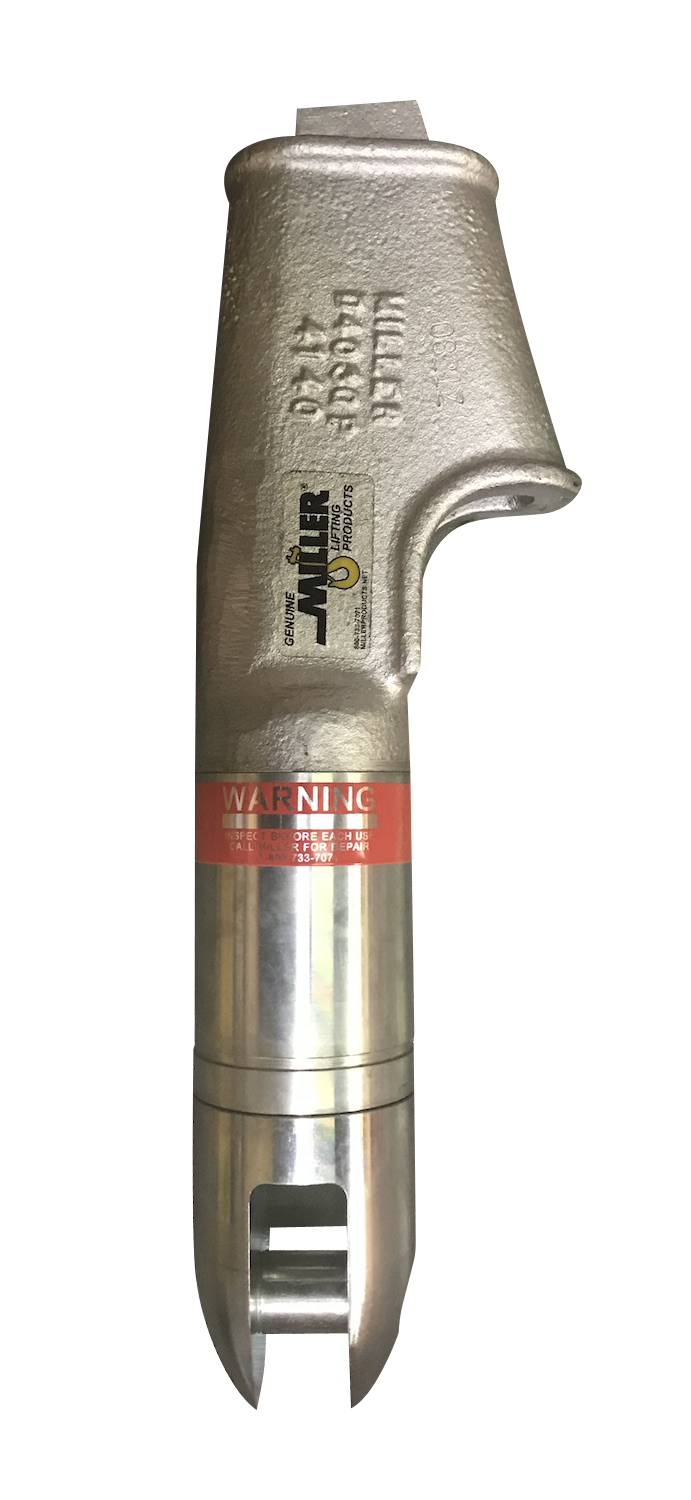

Miller Angular Contact Ball Bearing Swivel (Wedge to Bullet)
$1,120.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Wedge to Bullet) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Wedge to Bullet)
From
$1,120.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| C-714 | 3 tons | 9.92 | 2 | 2 | 3.87 |
| D-714 | 5 tons | 12.42 | 2.5 | 2.5 | 8.06 |
| EE-714 | 8.5 tons | 14.47 | 2.88 | 2.88 | 14.5 |
| G-714 | 10 tons | 19.75 | 4 | 4 | 40 |
| GG-714 | 15 tons | 19.75 | 4 | 4 | 40 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Clevis Inside Width |
|---|---|---|---|---|---|
| C-714 | 3 | 1/2" | 9.92" | 0.63" | 0.75" |
| D-714 | 5 | 1/2, 5/8" | 12.42" | 0.88" | 1" |
| EE-714 | 8.5 | 1/2, 5/8, 3/4" | 14.47" | 1" | 1.28" |
| G-714 | 10 | 3/4, 7/8, 1" | 19.75" | 1.5" | 1.75" |
| GG-714 | 15 | 3/4, 7/8, 1" | 19.75" | 1.5" | 1.75" |
Features
- Wedge to Bullet
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- C - Factory-lubricated, no grease fitting
- D, EE, G, GG - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
