Miller | SKU:
Miller-3E285

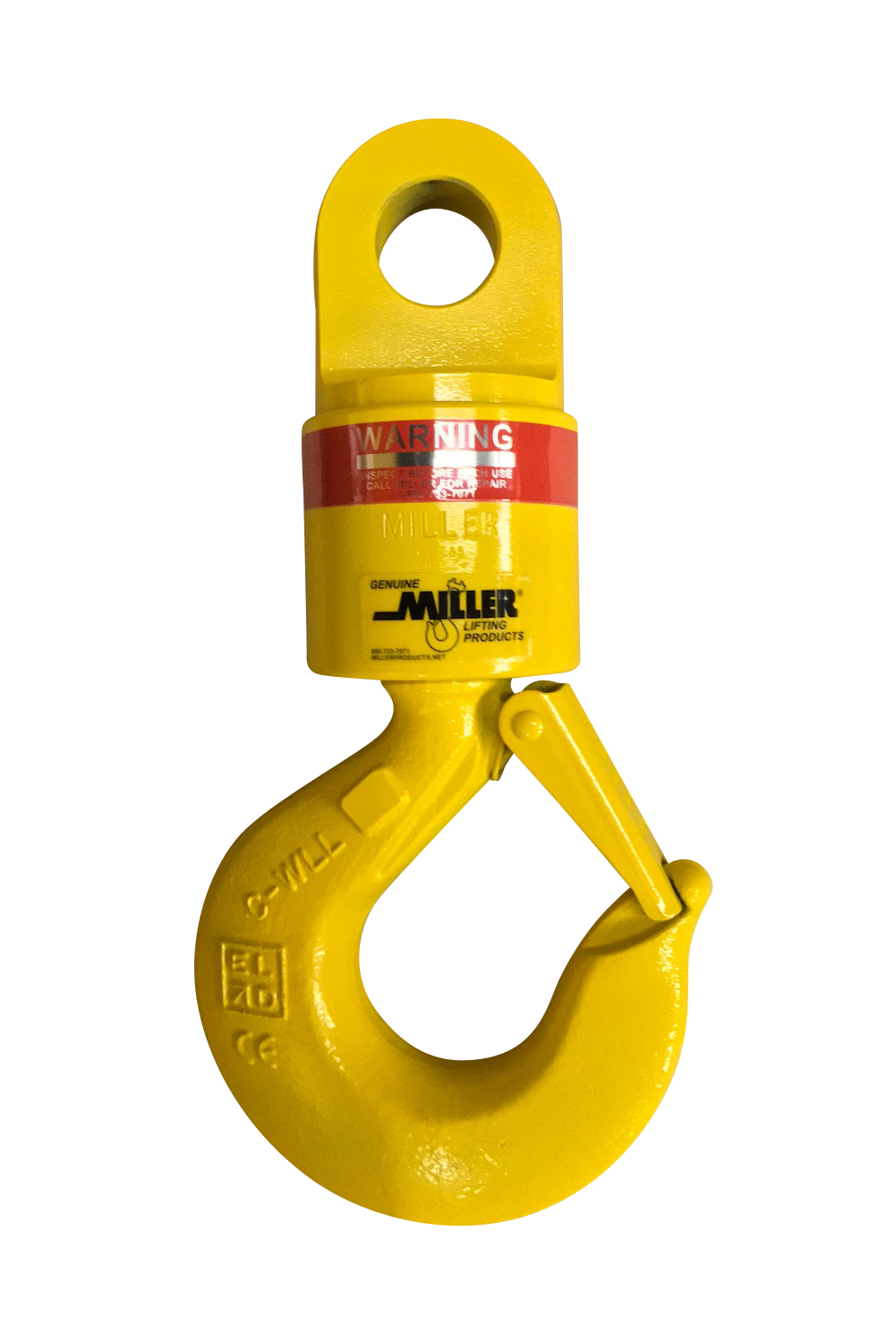

Miller Econo-Link Thrust Bearing Swivel (Eye to Hook)
$610.00
Unit price
/
Unavailable
Miller Econo-Link Thrust Bearing Swivel (Eye to Hook) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Econo-Link Thrust Bearing Swivel (Eye to Hook)
From
$610.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| 3E285 | 3 tons | 10.5 | 4.84 | 2.63 | 8.1 |
| 6E285 | 6 tons | 13.09 | 6.28 | 3.34 | 16.7 |
| 10E285 | 10 tons | 16.78 | 8.34 | 3.75 | 33.8 |
| 15E285 | 15 tons | 20.08 | 10.34 | 4.13 | 55.8 |
Specifications:

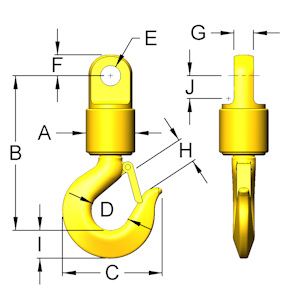

| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Eye Hole Dia. | Eye Tang Thickness | Hook Opening | Eye Center to Hook Seat |
|---|---|---|---|---|---|---|---|
| 3E285 | 3 | 1/2" | 10.5" | 1.06" | 1.00" | 1.36" | 7.87" |
| 6E285 | 6 | 5/8" | 13.09" | 1.41" | 1.19" | 1.61" | 9.75" |
| 10E285 | 10 | 3/4" | 16.78" | 1.66" | 1.44" | 2.27" | 13.03" |
| 15E285 | 15 | 1" | 20.08" | 2.06" | 1.94" | 3.02" | 15.95" |
Features
- Eye to Hook
- Economical Miller thrust bearing swivel
- 4:1 design factor
- Sealed, maintenance-free
- Forged hook with safety latch
- Made in USA
