Miller | SKU:
Miller-PL1/4

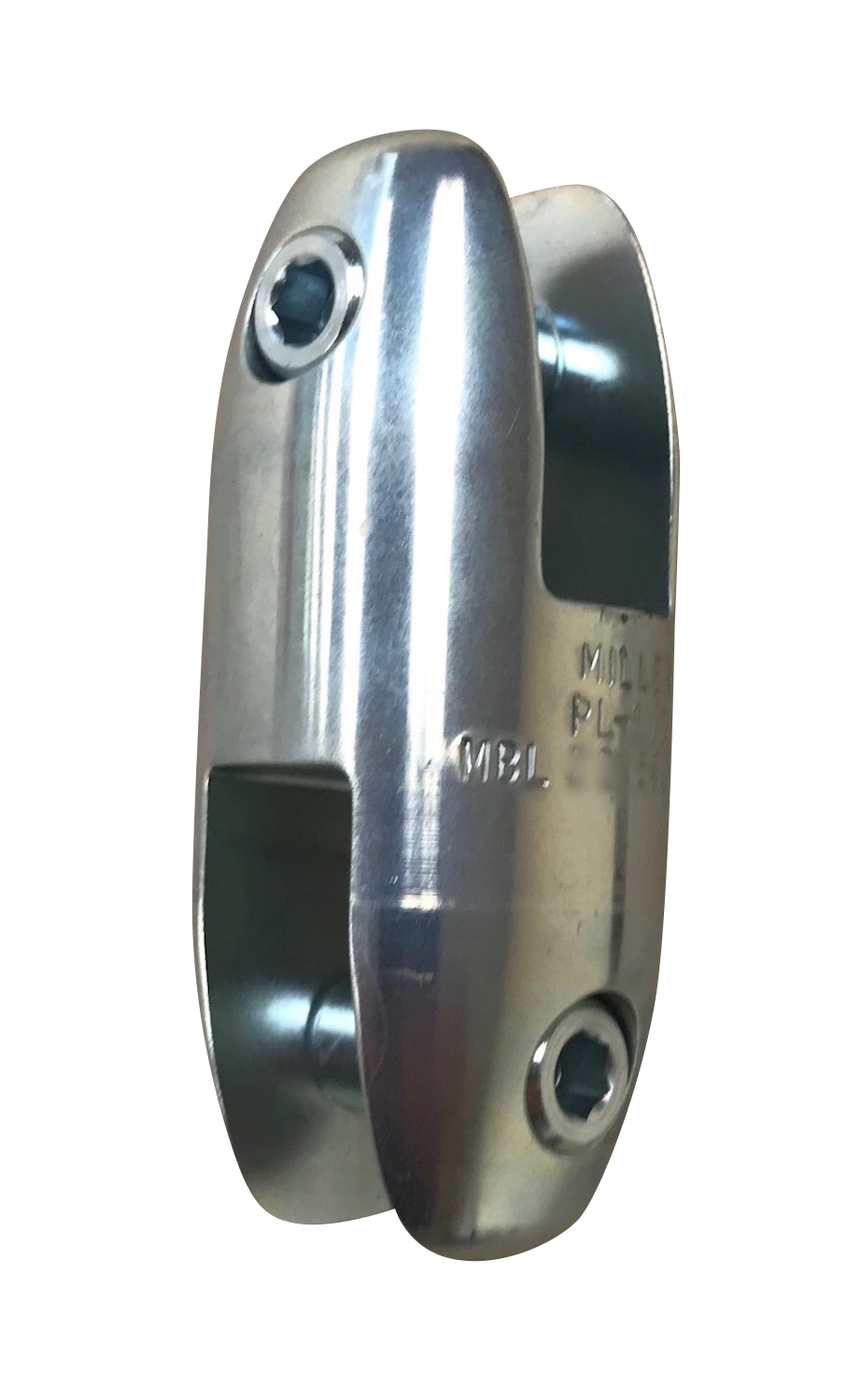

Pengo-Miller 90 Connector
$180.00
Unit price
/
Unavailable
Pengo-Miller 90 Connector - MBL 5400 lbs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Pengo-Miller 90 Connector
From
$180.00
Unit price
/
Unavailable
Dimensions:
| SKU | MBL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| PL1/4 | 5400 lbs | 2.1 | 0.9 | 0.9 | 0.2 |
| PL3/8 | 12000 lbs | 2.6 | 1.3 | 1.3 | 0.4 |
| PL1/2 | 22500 lbs | 3.3 | 1.5 | 1.5 | 0.7 |
| PL5/8 | 30000 lbs | 4.1 | 1.9 | 1.9 | 1.7 |
| PL3/4 | 60000 lbs | 5.6 | 2.5 | 2.5 | 3.7 |
| PL7/8 | 75000 lbs | 6.4 | 2.6 | 2.6 | 6.5 |
| PL1 | 150000 lbs | 11.5 | 3.9 | 3.9 | 18.5 |

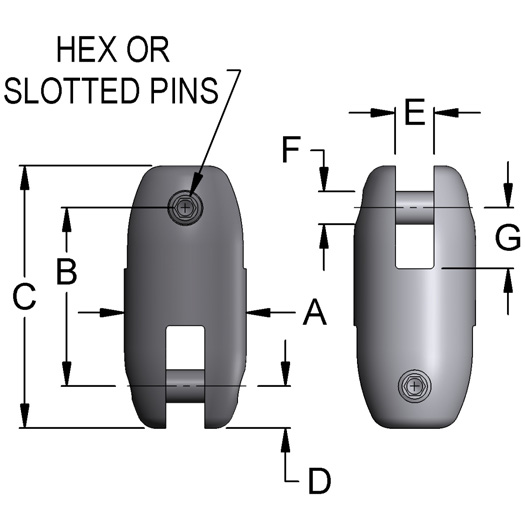

Specifications:
| SKU | MBL (lbs) | Body dia. | Pin Dia. | Clevis inside Width | Pin to Pin Center Distance | Overall Length |
|---|---|---|---|---|---|---|
| PL1/4 | 5400 | 0.88" | 0.31" | 0.31" | 1.31" | 2.06" |
| PL3/8 | 12000 | 1.25" | 0.38" | 0.59" | 1.75" | 2.63" |
| PL1/2 | 22500 | 1.44" | 0.44" | 0.59" | 2.13" | 3.25" |
| PL5/8 | 30000 | 1.88" | 0.62" | 0.75" | 2.50" | 4.13" |
| PL3/4 | 60000 | 2.44" | 0.88" | 1.00" | 3.38" | 5.53" |
| PL7/8 | 75000 | 2.63" | 1.00" | 1.00" | 3.88" | 6.38" |
| PL1 | 100000 | 3.88" | 1.50" | 1.75" | 8.00" | 11.5" |
Features
- Pengo-Miller 90° connector for line pulling
- Alloy steel, zinc-coated, hex drive pins
- Not for overhead lifting
- For conductor pulling only
- Made in USA
