Miller | SKU:
Miller-A13L

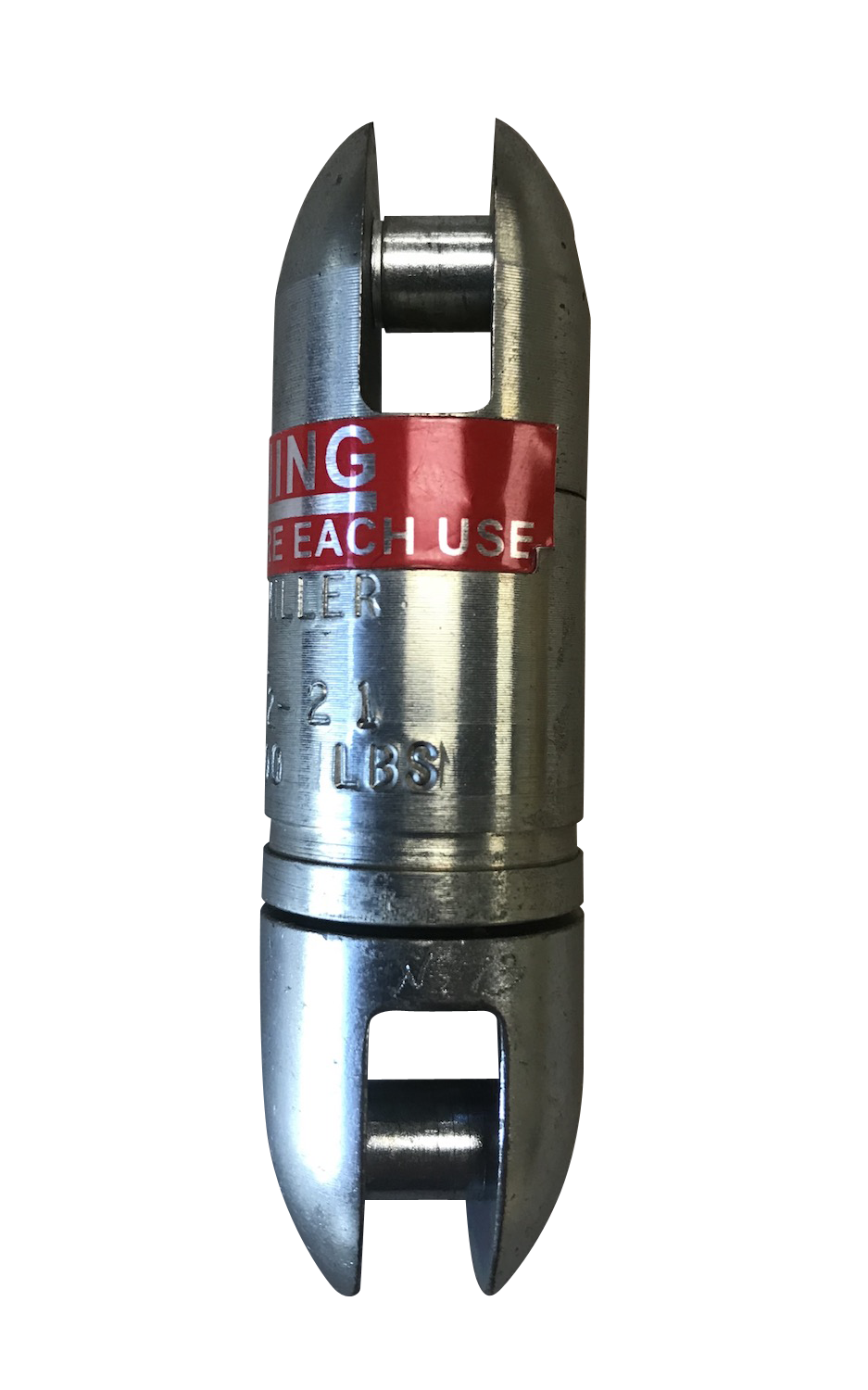

Pengo-Miller Line Pulling Swivel
$240.00
Unit price
/
Unavailable
Pengo-Miller Line Pulling Swivel - WLL 1800 lbs hex pins is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Pengo-Miller Line Pulling Swivel
From
$240.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| A13L | 1800 lbs hex pins | 3.1 | 0.9 | 0.9 | 0.4 |
| BB13L | 4000 lbs hex pins | 4.5 | 1.3 | 1.3 | 1 |
| B13L | 7500 lbs hex pins | 5.1 | 1.5 | 1.5 | 1.4 |
| C13L | 10000 lbs hex pins | 7.1 | 1.9 | 1.9 | 3.6 |
| D13L | 16000 lbs hex pins | 10.2 | 2.5 | 2.5 | 11.6 |
Specifications:

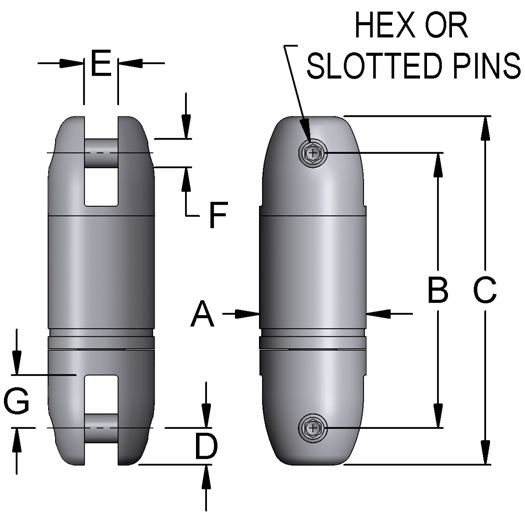

| SKU | Working Load limit (lbs) | Body dia. | Pin Dia. | Clevis inside Width | Pin to Pin Center Distance | Overall Length |
|---|---|---|---|---|---|---|
| A13L | 1800 | 0.88" | 0.31" | 0.31" | 2.34" | 3.09" |
| BB13L | 4000 | 1.25" | 0.38" | 0.59" | 3.66" | 4.51" |
| B13L | 7500 | 1.44" | 0.44" | 0.59" | 4.00" | 5.13" |
| C13L | 10000 | 1.88" | 0.62" | 0.75" | 5.44" | 7.06" |
| D13L | 16000 | 2.44" | 0.88" | 1.00" | 7.88" | 10.19" |
Features
- Pengo-Miller swivel for line pulling
- 3:1 design factor
- Alloy steel, zinc-coated, hex drive pins
- Not for overhead lifting
- Proof load tested
- Made in USA
