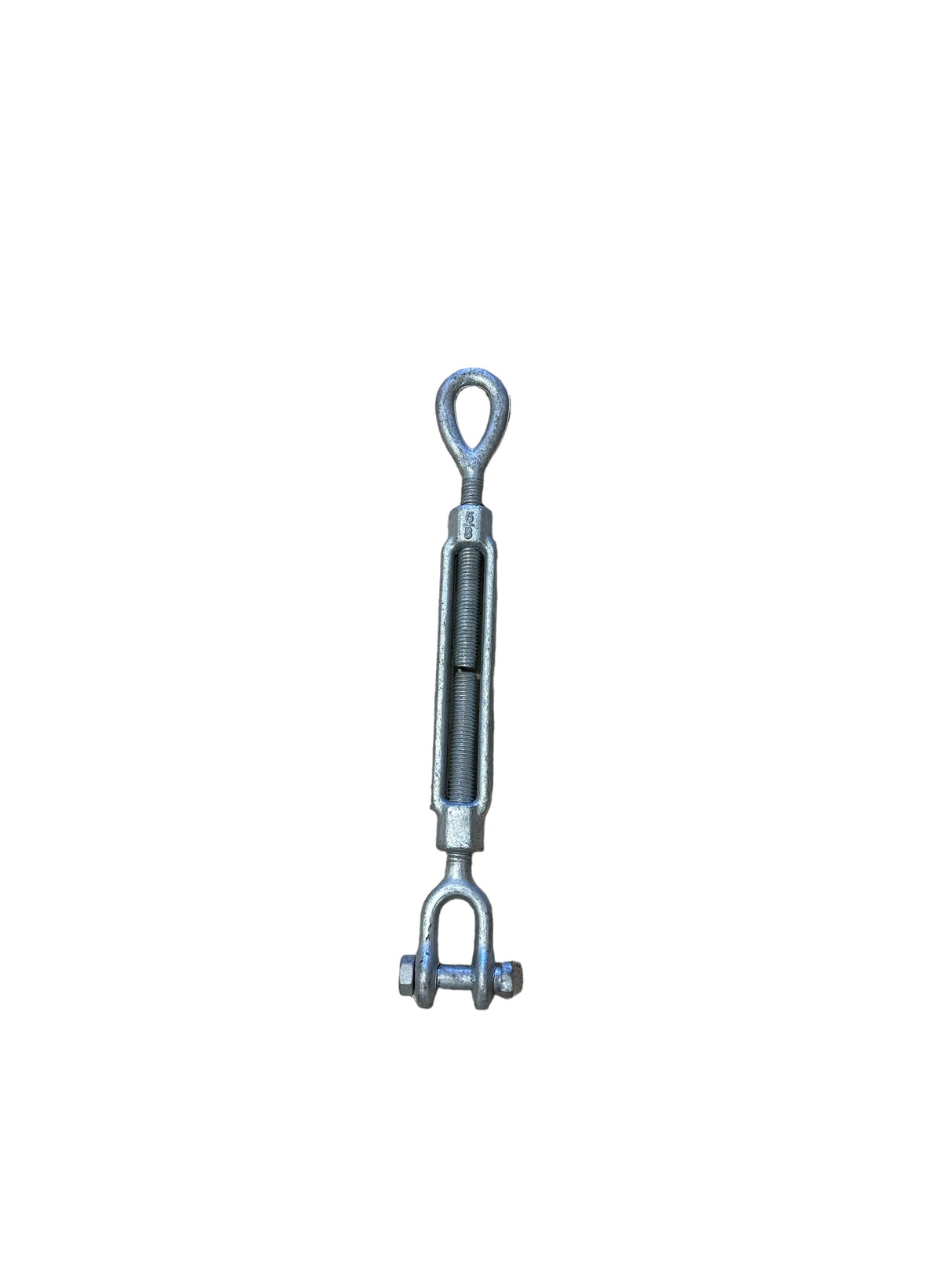

Jaw & Eye Turnbuckles Hot Dipped Galvanized
Jaw & Eye Turnbuckles Hot Dipped Galvanized - 1/4"x4" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Jaw & Eye Turnbuckles Hot Dipped Galvanized

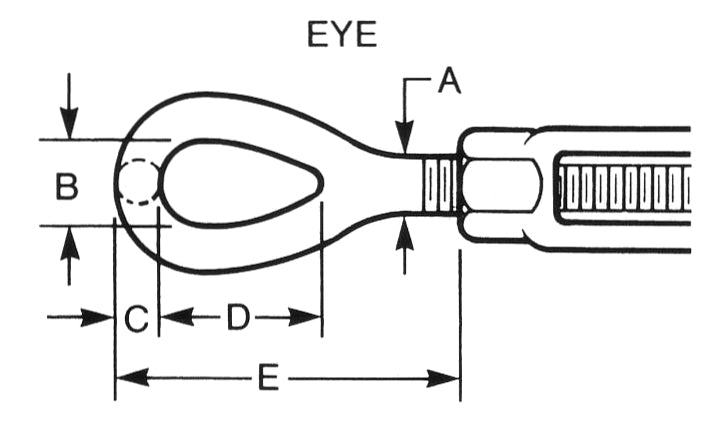

| Eye Dimensions In Inches | ||||
| A | B | C | D | E |
| 1/4" | 0.34 | 0.22 | 0.78 | 1.78 |
| 5/16" | 0.44 | 0.28 | 0.94 | 2.19 |
| 3/8" | 0.53 | 0.34 | 1.13 | 2.56 |
| 1/2" | 0.72 | 0.44 | 1.44 | 3.22 |
| 5/8" | 0.88 | 0.5 | 1.75 | 3.88 |
| 3/4" | 1 | 0.63 | 2.13 | 4.69 |
| 7/8" | 1.25 | 0.75 | 2.38 | 5.25 |
| 1" | 1.44 | 0.88 | 3 | 6.38 |
| 1 1/4" | 1.81 | 1.13 | 3.56 | 7.75 |

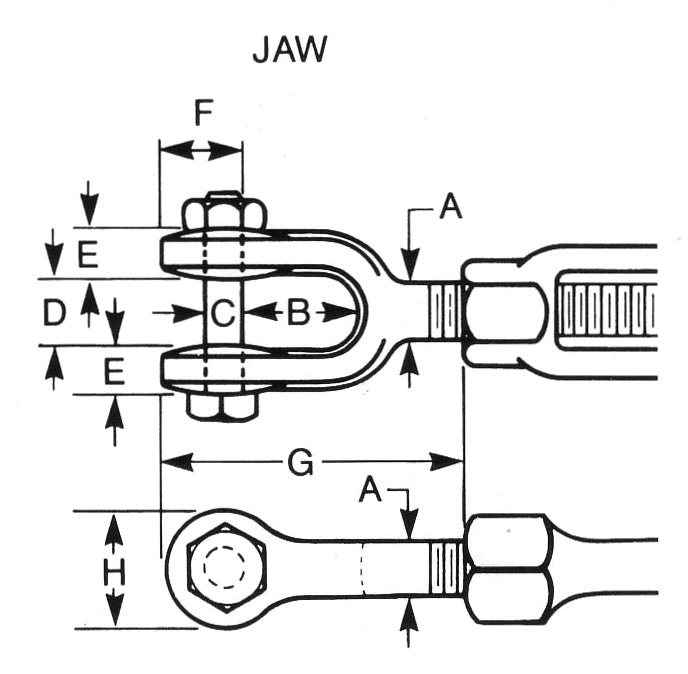

| Jaw Dimensions In Inches | |||||||
| A | B | C | D | E | F | G | H |
| 1/4" | 0.63 | 0.25 | 0.41 | 0.28 | 0.5 | 1.63 | 0.63 |
| 5/16" | 0.88 | 0.25 | 0.47 | 0.28 | 0.5 | 2 | 0.69 |
| 3/8" | 0.88 | 0.31 | 0.5 | 0.31 | 0.59 | 2.19 | 0.81 |
| 1/2" | 1.06 | 0.38 | 0.63 | 0.41 | 0.75 | 2.75 | 1 |
| 5/8" | 1.31 | 0.5 | 0.75 | 0.5 | 1.03 | 3.5 | 1.31 |
| 3/4" | 1.5 | 0.63 | 0.94 | 0.56 | 1.28 | 4.13 | 1.63 |
| 7/8" | 1.75 | 0.75 | 1.13 | 0.69 | 1.47 | 4.84 | 1.88 |
| 1" | 2.06 | 0.88 | 1.19 | 0.78 | 1.66 | 5.53 | 2.13 |
| 1 1/4" | 2.81 | 1.13 | 1.75 | 1 | 2.09 | 7.19 | 2.63 |
Turnbuckles are used for adjusting the tension of lengths of ropes, cables, tie rods and other tensioning systems. It comes in a variety of ends that could be the same or a combination of different ends. Those ends thread into a body which is left hand and right hand. The tension can be adjusted by rotating the body which will draw the ends into the body.
According to A.S.T.M. F 1145. Hot galvanized, drop forged. Bodies normalized; end fittings quenched and tempered.
**Sizes up to 2 3/4 in diameter and 24" in length**
