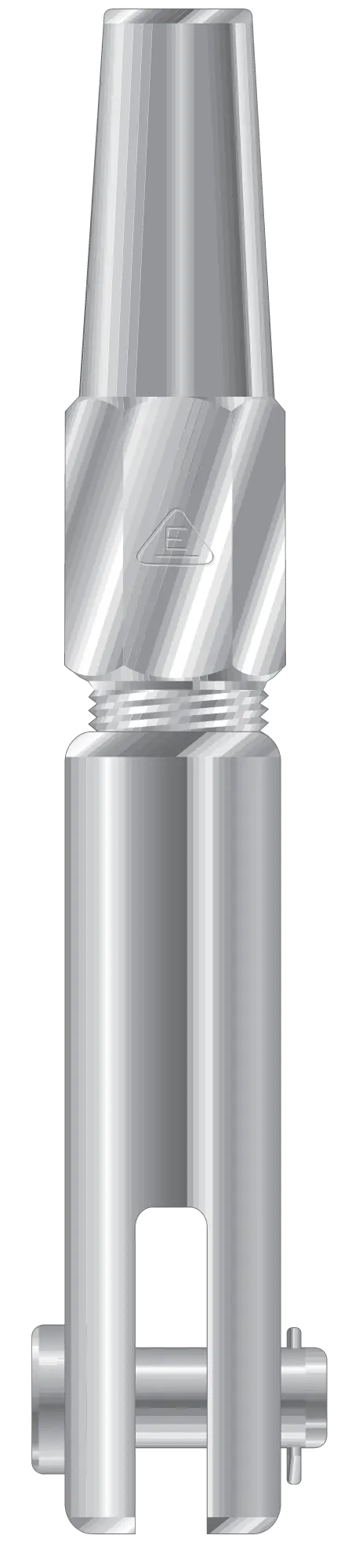

Clevis Socket Fitting for Braided Jacket Kevlar Rope
Electroline synthetic rope fittings for Kevlar rope with braided jackets excel in meeting the need for a quick, reliable end termination.
These fittings use a swagless design with an internal taper pin that allows them to be installed in the field without special tools or complicated processes.
They are selected for both the rope size and rated rope strength.
Available for ropes 3/16 to 3/4" in size.
Machined from aluminum to provide lightweight strength.
Available Products
| Rope Size (In.) | Part No. | Breaking Strength (lbs.) | Dimensions (In.) | |||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||
| 3/16 | IKA-118 | 2400 to 4400 | 1/2" | 57/64" | 5-11/16" | 1" | 3/8" | 3/8" |
| 1/4 | IKA-125 | 4400 to 6000 | 19/32" | 59/64" | 6-3/4" | 1-1/8" | 3/8" | 7/16" |
| 5/16 | IKA-131 | 6000 to 9000 | 21/32" | 1-5/64" | 7-9/16" | 1-1/2" | 7/16" | 1/2" |
| 3/8 | IKA-137 | 9000 to 13000 | 21/32" | 1-5/64" | 8-9/16" | 1-1/2" | 7/16" | 1/2" |
| 1/2 | IKA-150 | 16000 to 22000 | 27/32" | 1-1/4" | 11-1/2" | 1-3/4" | 5/8" | 11/16" |
| 5/8 | IKA-162 | 28000 to 37000 | 1-15/64" | 1-27/32" | 14-11/32" | 2-1/2" | 3/4" | 1-1/8" |
| 3/4 | IKA-175 | 35000 to 63000 | 1-3/4" | 2-1/4" | 16-3/4" | 3" | 15/16" | 1-3/8" |
