Edwards Wire Rope  |  SKU: TH02HDSS

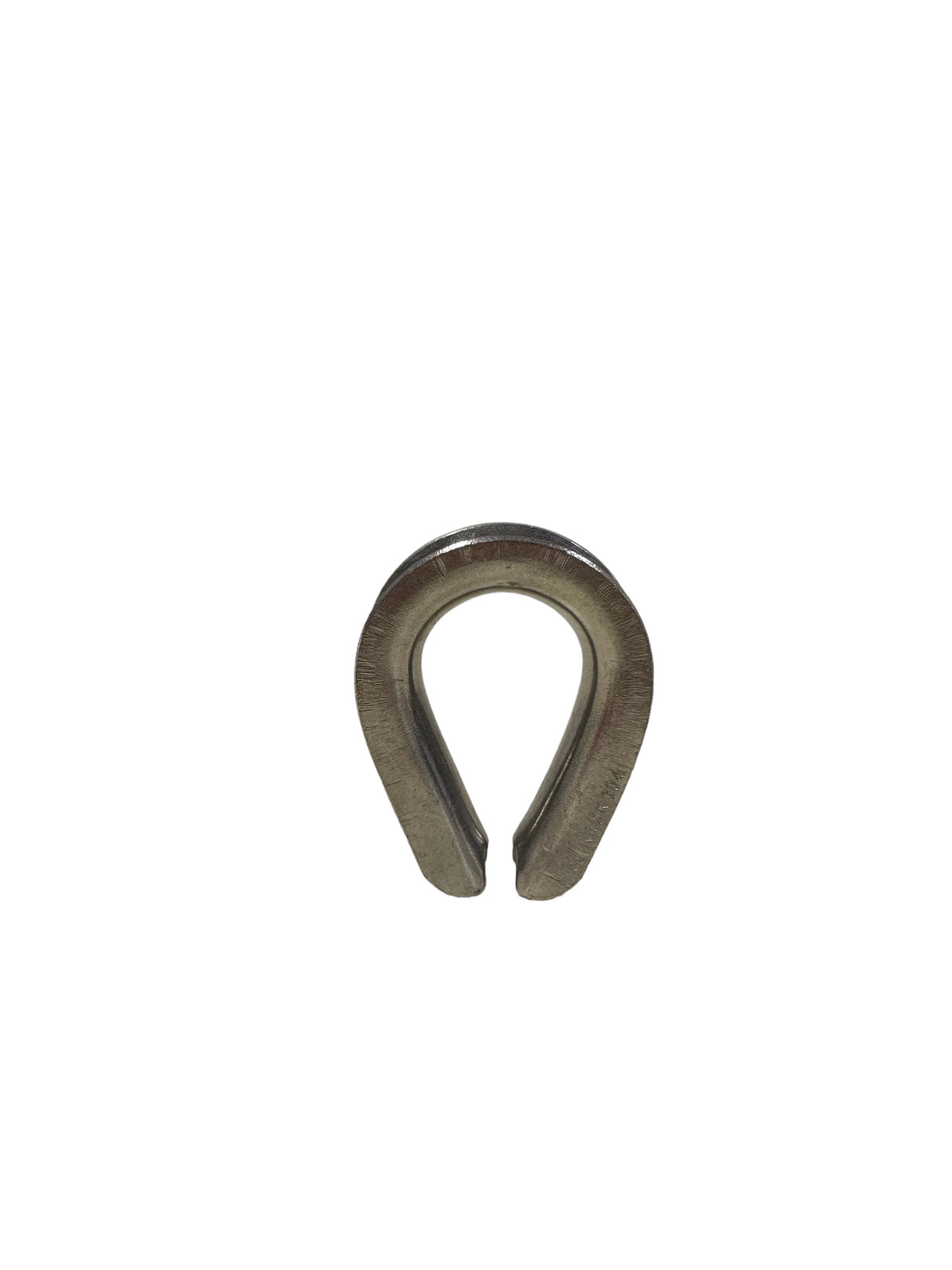

Thimbles Heavy Duty Stainless Steel 304

$2.10

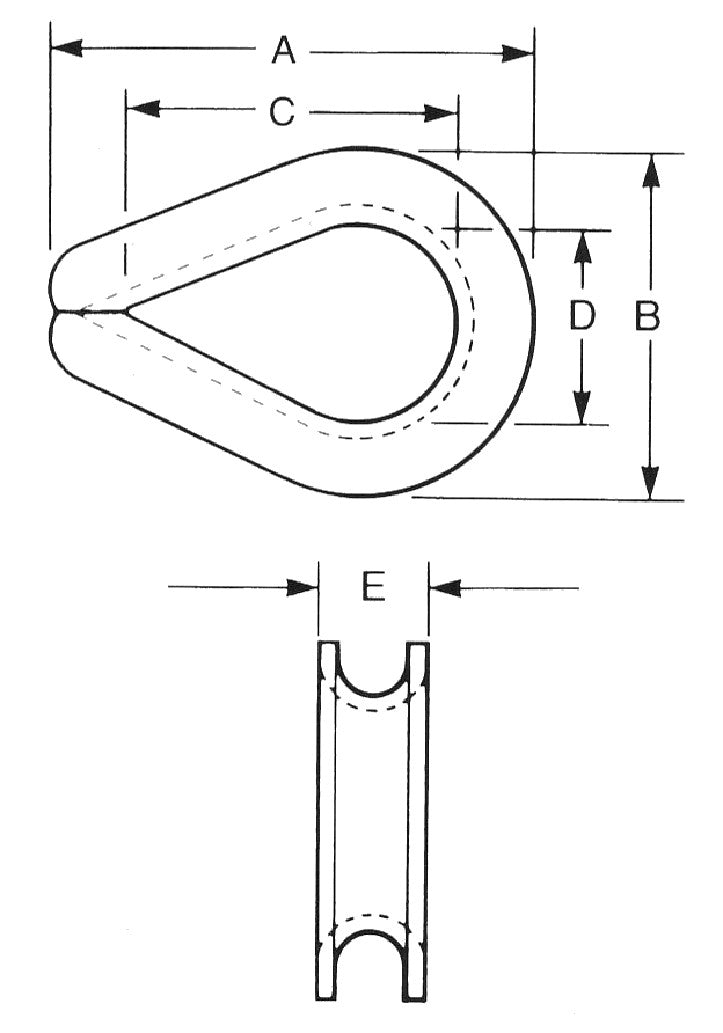

Size A B C D E
1/8 1.88 1.06 1.25 .69 .16
3/16 1.79 1.30 1.30 .76 .21
1/4" 2.19 1.5 1.63 0.88 0.41
5/16" 2.5 1.81 1.88 1.06 0.5
3/8" 2.88 2.13 2.13 1.13 0.66
1/2"-9/16" 3.63 2.56 2.75 1.5 0.84
5/8" 4.25 3 3.25 1.75 1
3/4" 5 3.5 3.75 2 1.25
7/8" 5.5 4 4.25 2.25 1.38
1" 6.13 4.38 4.5 2.5 1.56
Edwards Wire Rope

Thimbles Heavy Duty Stainless Steel 304

From $0.39
Size A B C D E
1/8 1.88 1.06 1.25 .69 .16
3/16 1.79 1.30 1.30 .76 .21
1/4" 2.19 1.5 1.63 0.88 0.41
5/16" 2.5 1.81 1.88 1.06 0.5
3/8" 2.88 2.13 2.13 1.13 0.66
1/2"-9/16" 3.63 2.56 2.75 1.5 0.84
5/8" 4.25 3 3.25 1.75 1
3/4" 5 3.5 3.75 2 1.25
7/8" 5.5 4 4.25 2.25 1.38
1" 6.13 4.38 4.5 2.5 1.56

Size

  • 1/8"
  • 3/16"
  • 1/4"
  • 5/16"
  • 3/8"
  • 1/2"
  • 5/8"
  • 3/4"
  • 7/8"
  • 1"
View product
