Caldwell | SKU:
Caldwell-17-1 1/4-6

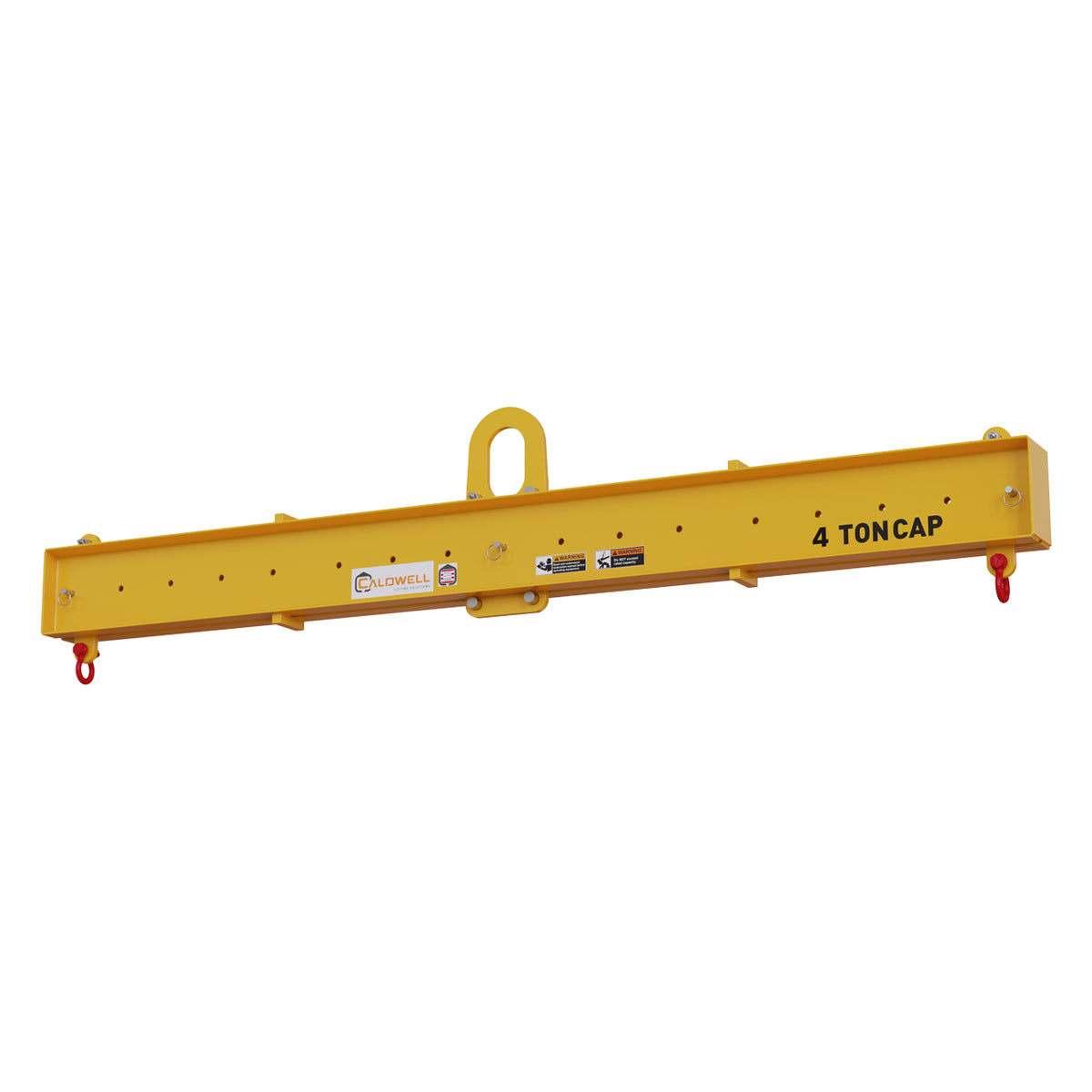

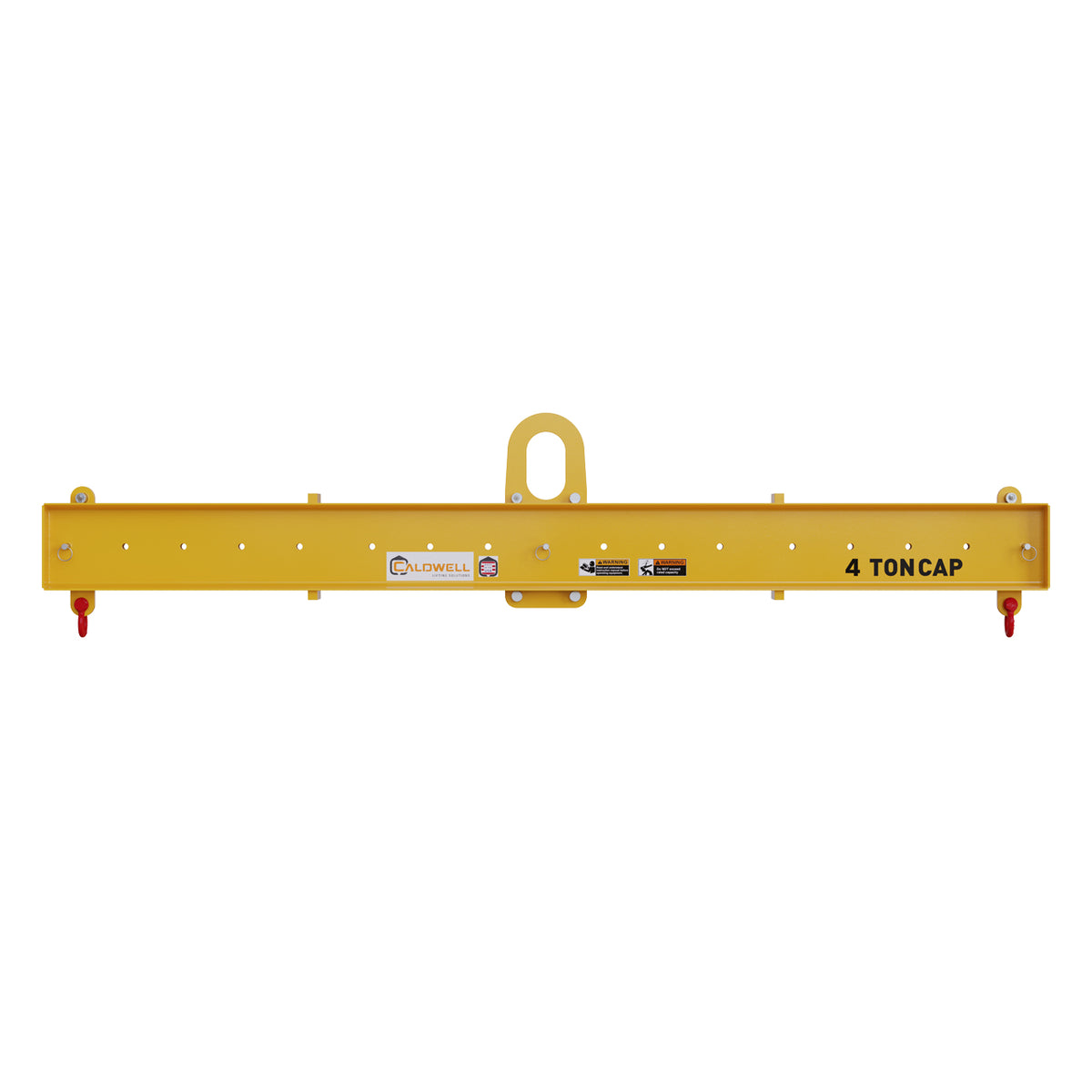

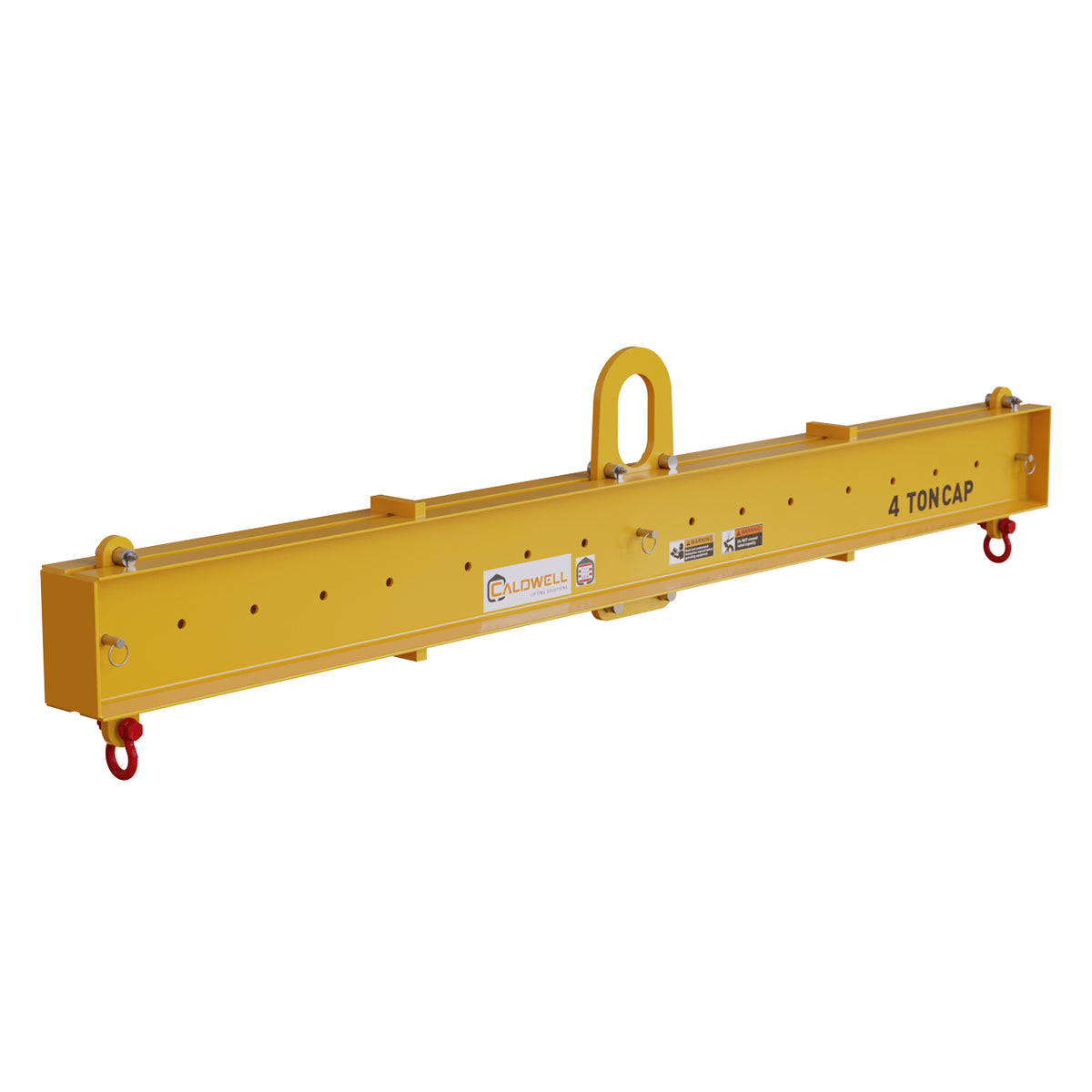

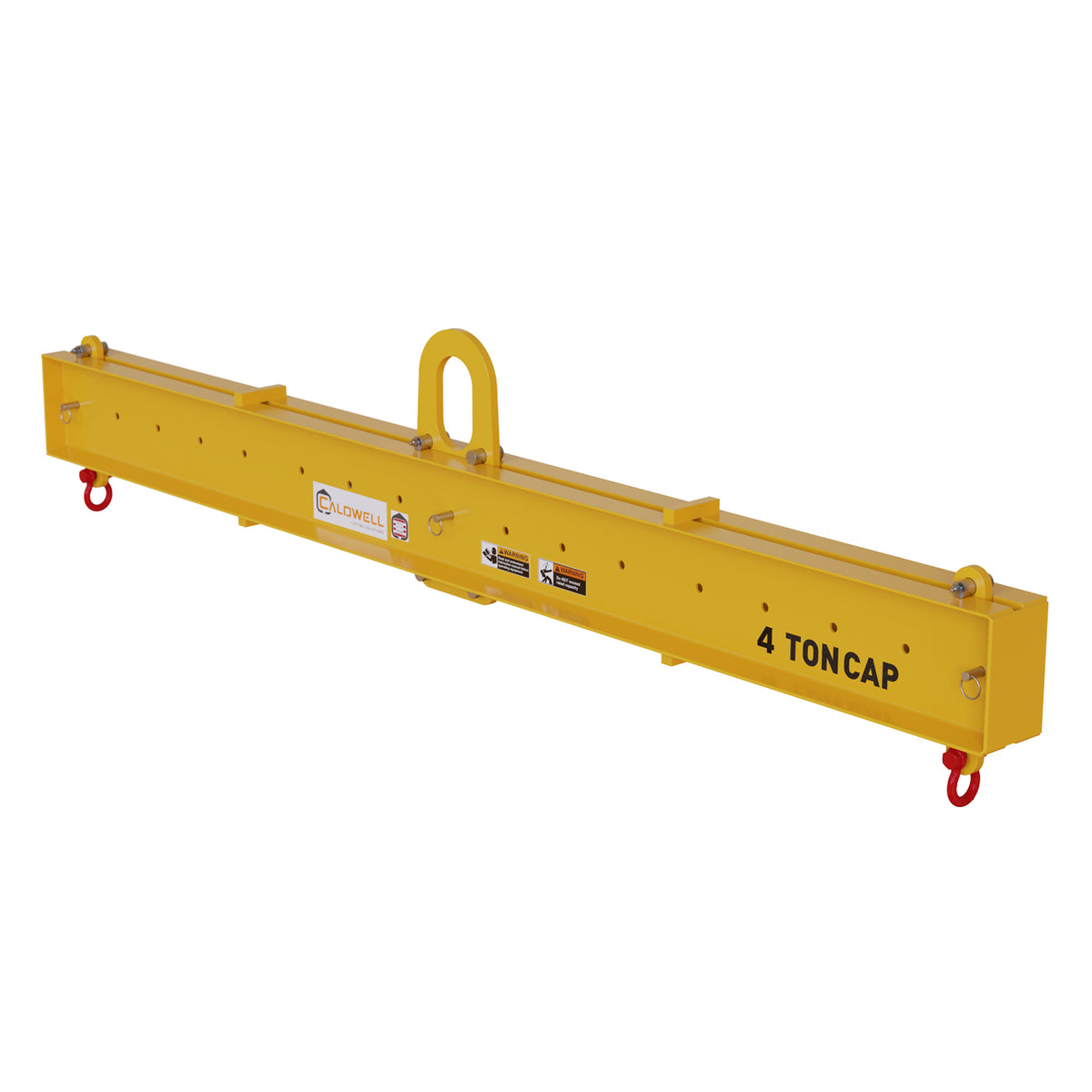

Caldwell Adjustable Lifting Beam (Economy)
$2,083.00
Precio unitario
/
Agotado
Caldwell Adjustable Lifting Beam (Economy) - 2500 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Adjustable Lifting Beam (Economy)
Desde
$2,083.00
Precio unitario
/
Agotado
Model 17 Adjustable Lifting beam features an adjustable bail and lifting points in 6" incerments to handle standard and unbalanced loads. Get the set-up you need with a few quick motions.
Features
- Bail adjusts horizontally for lifting unbalanced loads
- Provides clearance in low headroom applications
- Spread adjusts in 6" increments along lifting beam
- Shackles included
- Optional swivel hooks available
- Complies with ASME standards
Specifications
| Bail Adjustment D | 6 |
Available Models
| Part No. | Rated Capacity | Shackle Capacity | Capacity | Bail Oblong Diameter | Bail Adjustment Range | Bail Opening Height | Bail Opening Width | Bail Thickness | Max Bottom Spread | Min Bottom Spread | Headroom | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17-1 1/4-6 | 2500 | 2 | 1.25 | 1.5 | 24 | 5 | 3 | 0.62 | 72 | 36 | 14.7 | 150 |
| 17-2-6 | 4000 | 2 | 2 | 1.5 | 24 | 5 | 3 | 0.62 | 72 | 36 | 14.7 | 155 |
| 17-4-8 | 8000 | 3.25 | 4 | 2 | 36 | 7 | 4 | 0.75 | 96 | 54 | 19.8 | 285 |
| 17-5-10 | 10000 | 4.75 | 5 | 2 | 36 | 7 | 4 | 1 | 120 | 60 | 22.4 | 475 |
