Caldwell | SKU:
Caldwell-90ACL-2-42

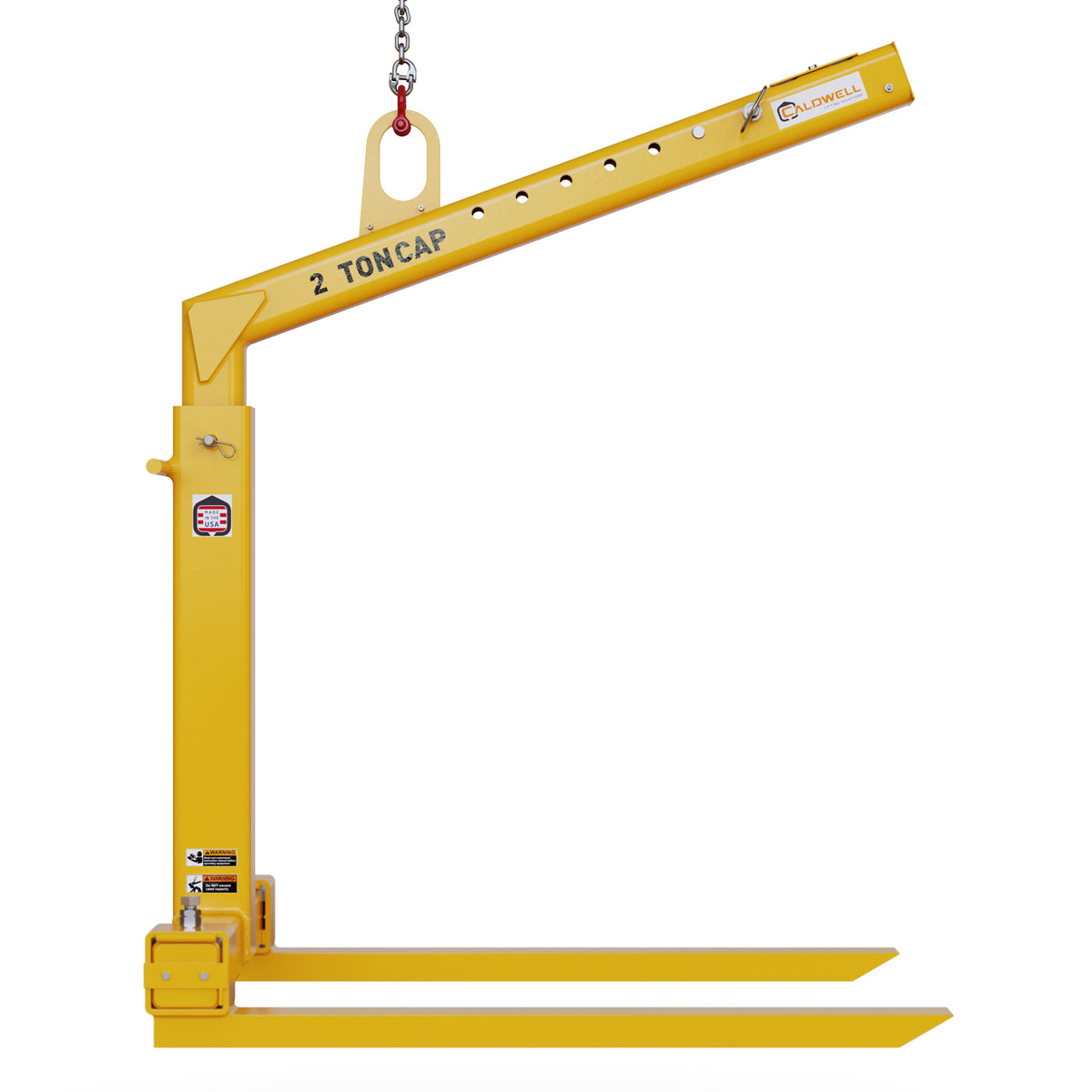

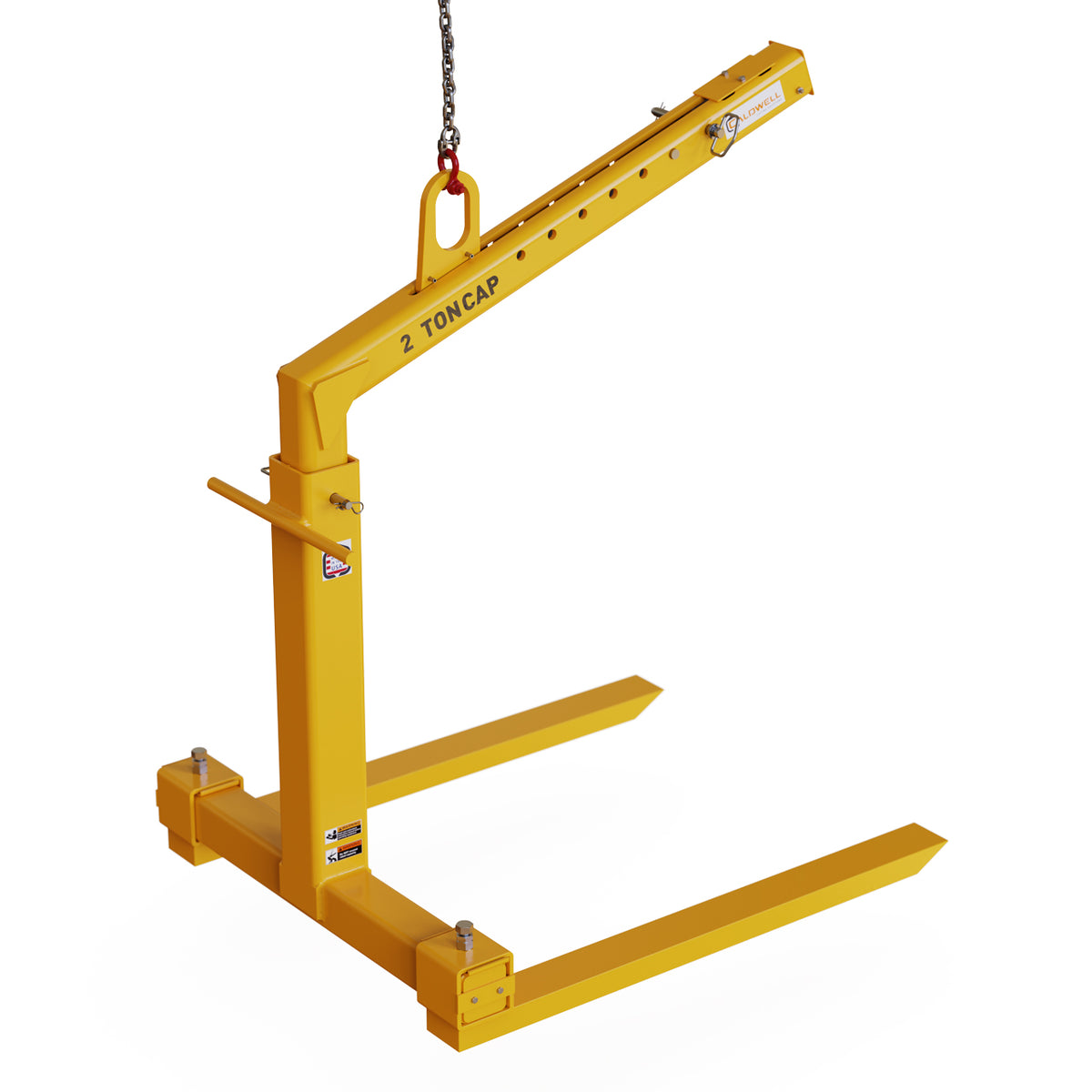

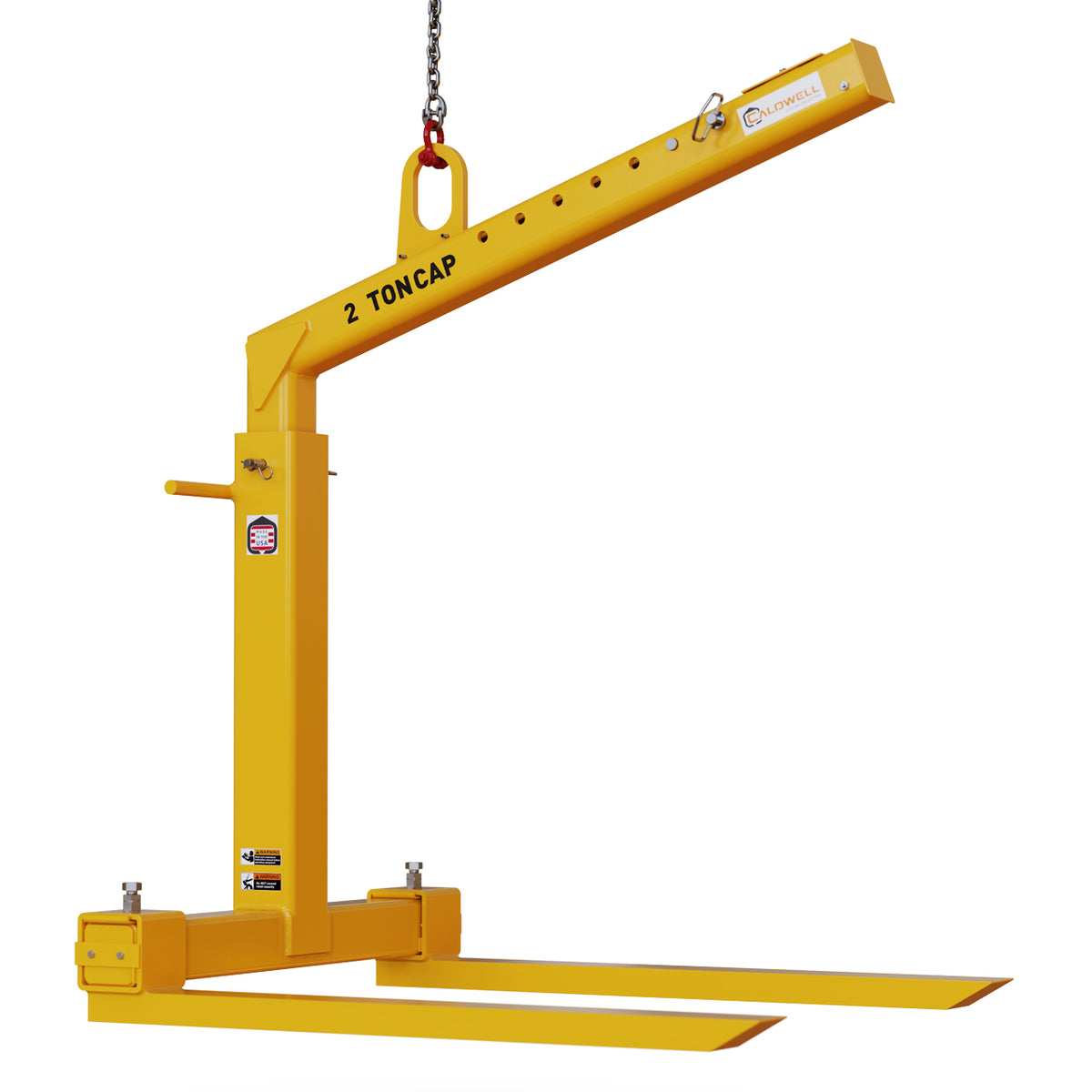

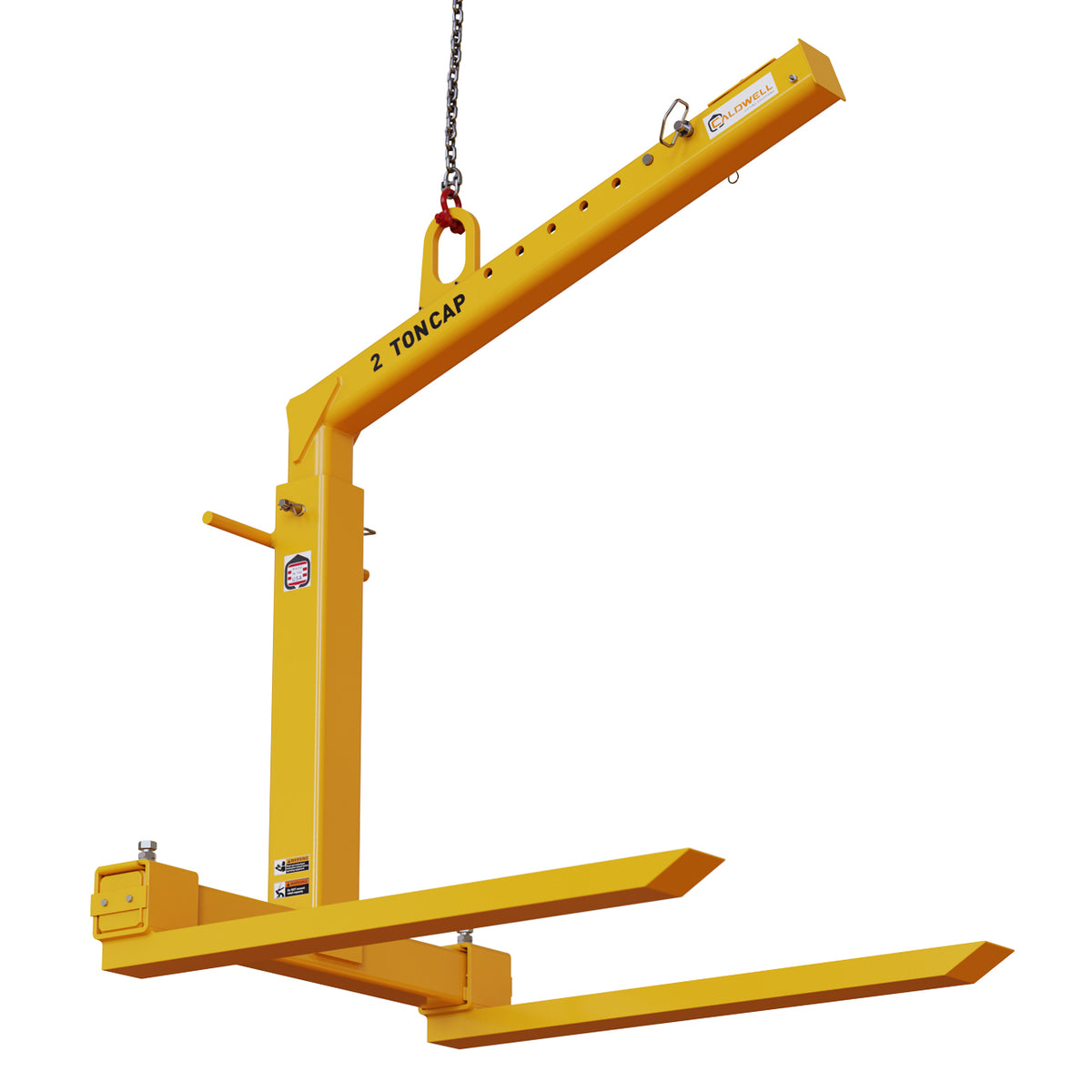

Caldwell Adjustable Load Lifter
$6,720.00
Precio unitario
/
Agotado
Caldwell Adjustable Load Lifter está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Adjustable Load Lifter
$6,720.00
Precio unitario
/
Agotado
Adjustable bail provides for balanced handling of items with different load centers.
Features
- Once the bail pin is set, the pallet lifter reamins balanced whether full or empty to make the job safe and easy

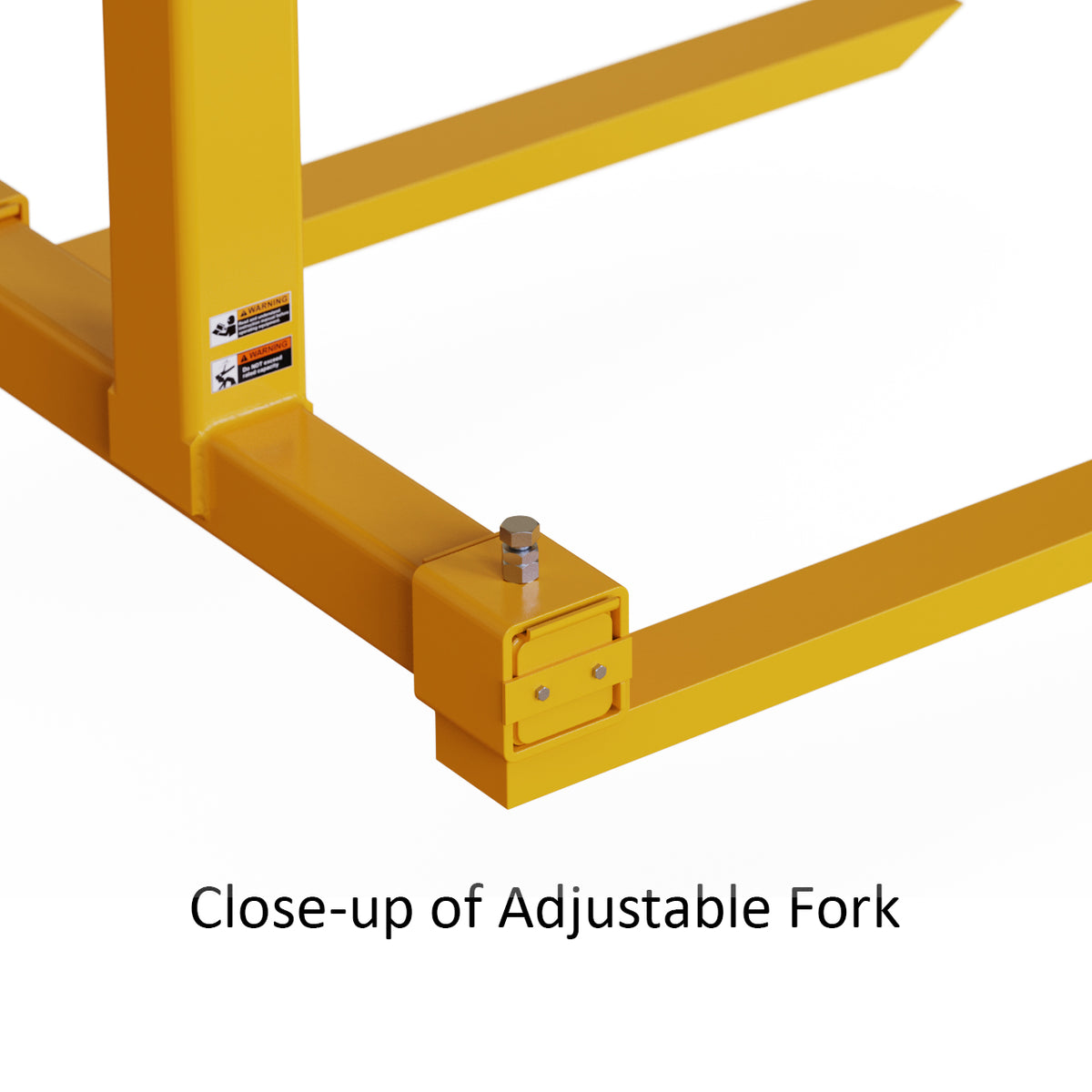

- Adjustable throat allows for the correct handling of higher stacked loads
- Adjustable forks allow for proper placement of the forks spread
- The auto return bail automatically levels empty pallet lifter saving time and effort
- Heavy duty construction for years of trouble free service
- Complies with ASME standards
Specifications
| Weight | 510.4 |
| Rated Capacity | 4000 |
| Capacity | 2 |
| Bail Depth | 0.88 |
| Bail Opening Width | 3 |
| Bail Opening Height | 5 |
| Bail Thickness | 0.75 |
| Fork Length | 43 |
| Fork Thickness | 2 |
| Fork Width | 4 |
| Fork Inside To Inside Min Width | 36 |
| Fork Inside To Inside Max Width | 17.5 |
| Headroom | 84.18 |
| Throat Opening Max | 65 |
| Throat Opening Mid | 53 |
| Throat Opening Min | 41 |
| Temp Weight | 511.2 |
