Caldwell  |  SKU: Caldwell-32-2-4/6

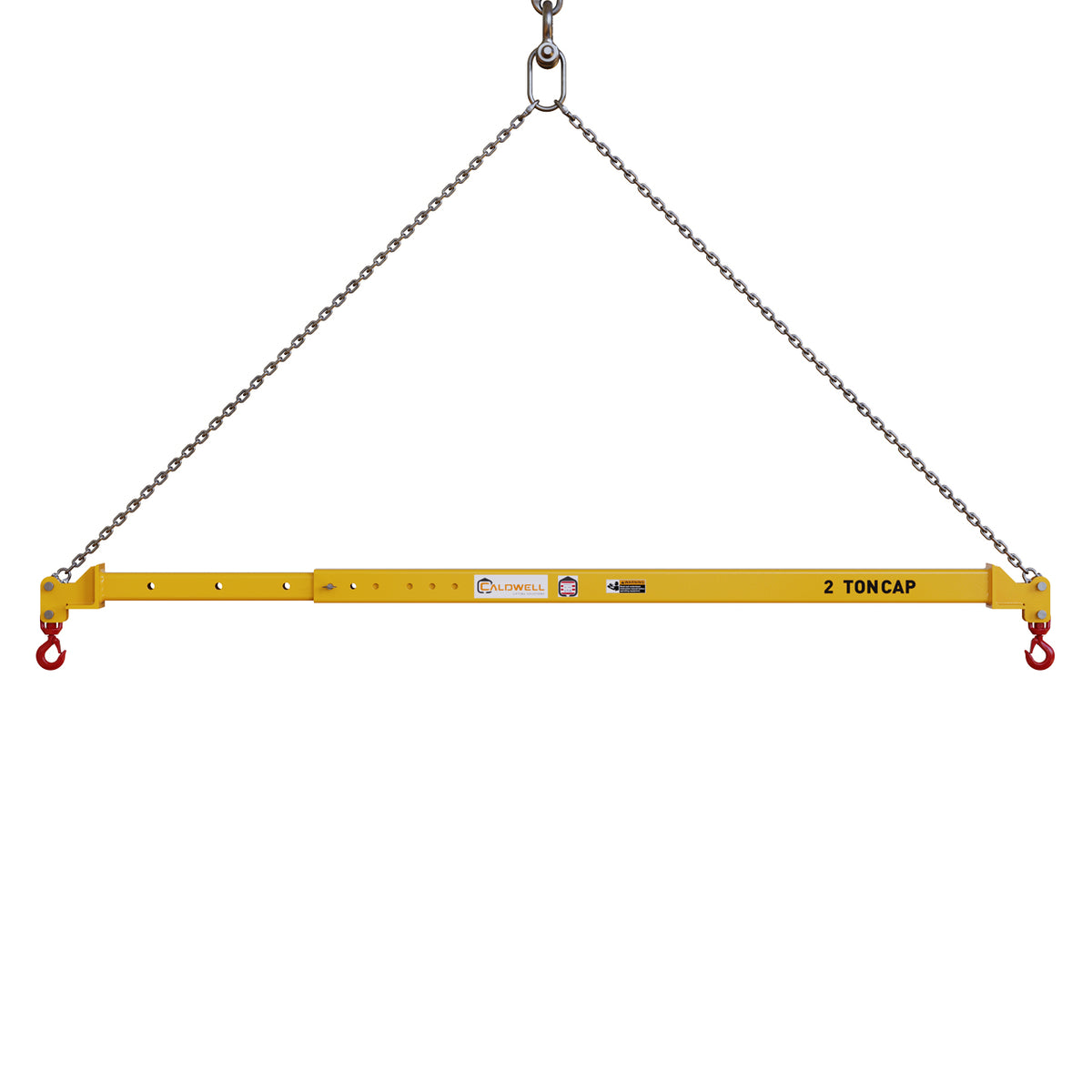

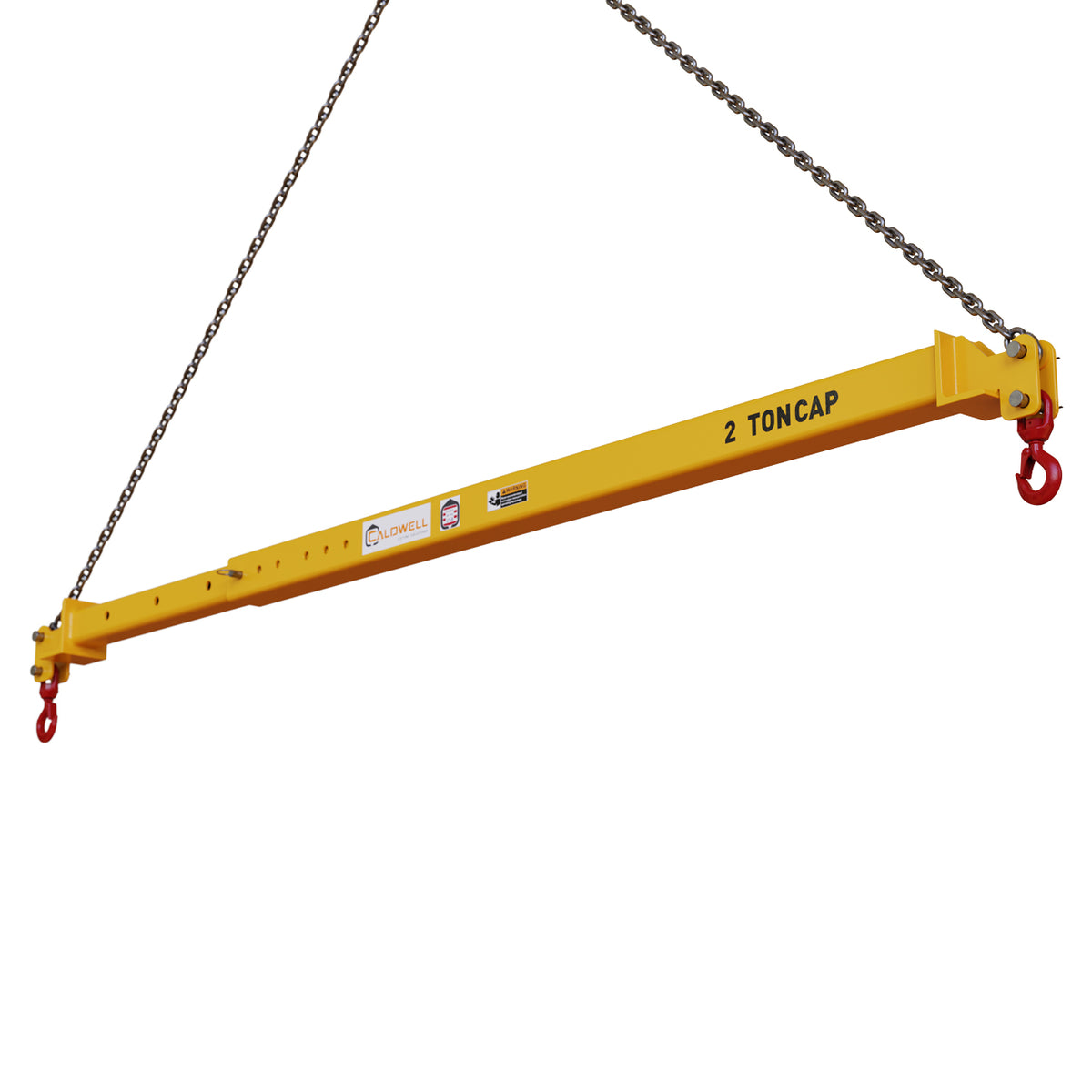

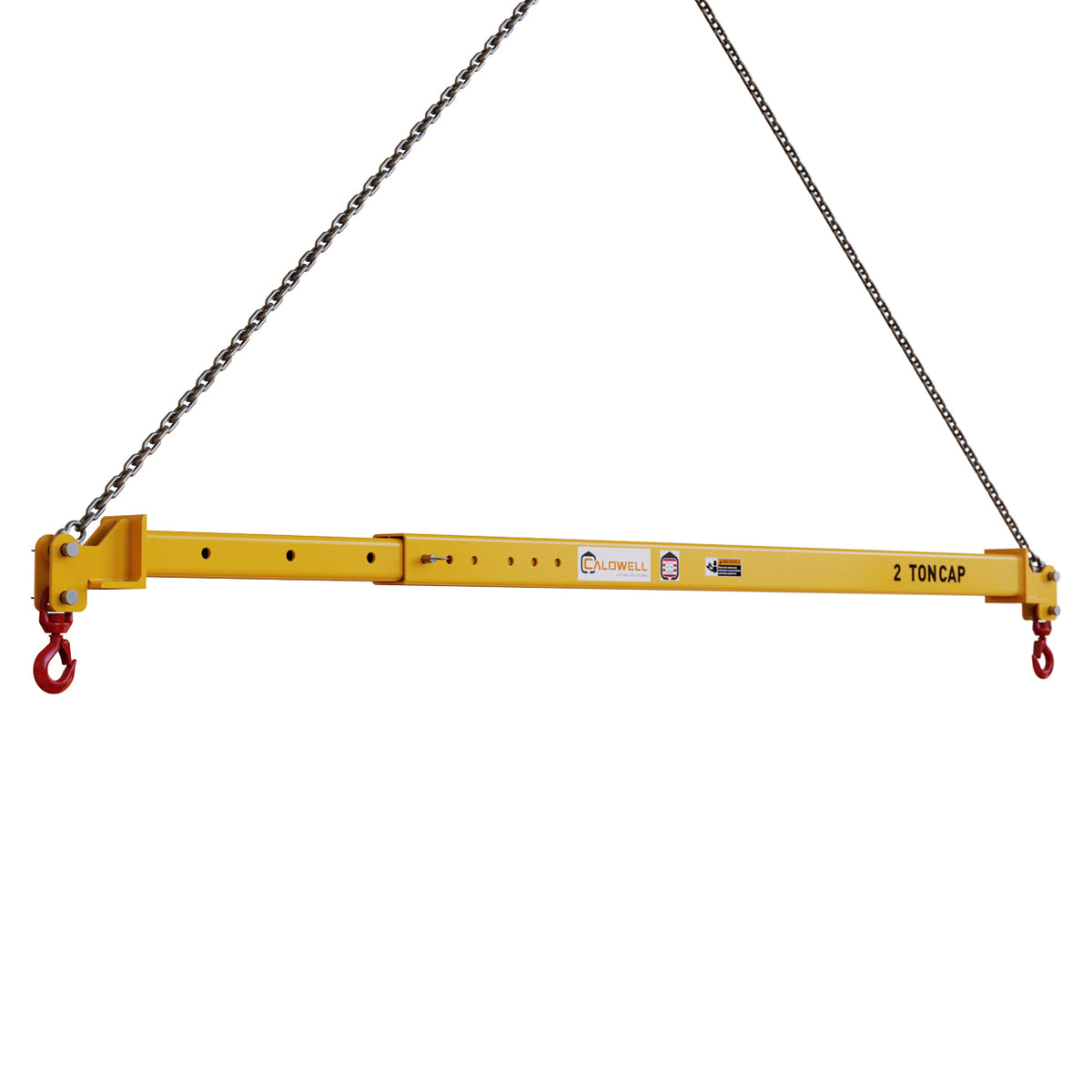

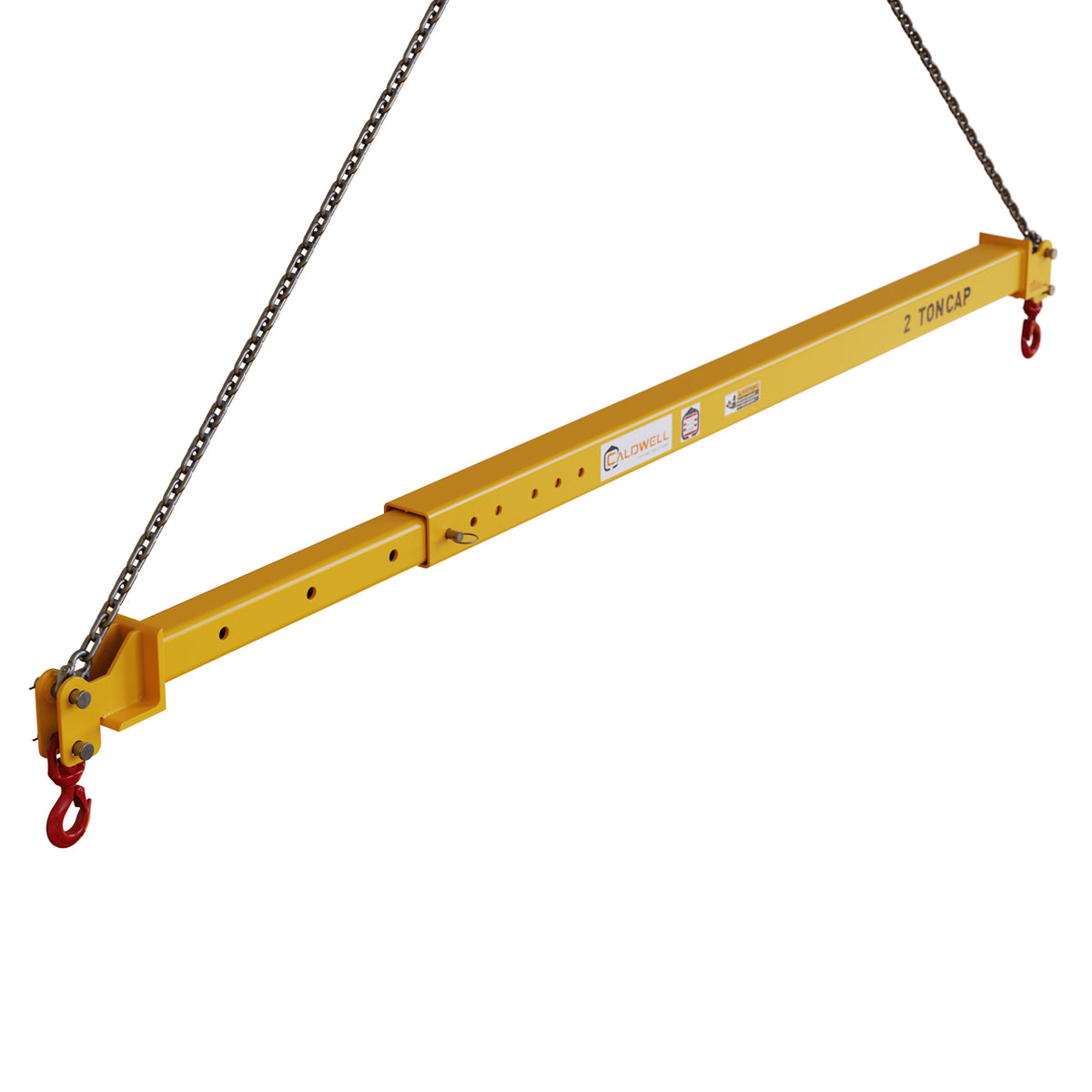

Caldwell Adjustable Spreader Beam

$1,771.00
Request a Quote

Adjustable Spreader Beam

Features

  • Ideal where headroom is not limited
  • Adds stability to lift
  • Telescopic spread standard
  • For 2- to 15-ton capacity units, spread adjusts in 1" increments
  • For 20- to 40-ton capacity units, spread adjusts in 12" increments
  • Available with standard chain or wire rope rigging
  • Complies with ASME standards
  • Choose from a wide range of sizes and capacities
  • Custom designs available

Available Models

Part No. Rated Capacity Max Spread Capacity Bail Oblong Diameter Hook Opening With Latch Min Spread Bail Opening Height Bail Opening Width Hook Clearance Headroom Max Headroom Min Weight Beam Only
32-2-4/6 4000 72 2 0.5 0.97 48 3.94 2.36 5.5 57 48 70
32-2-6/10 4000 120 2 0.5 0.97 72 3.94 2.36 5.5 88 72 85
32-2-8/14 4000 168 2 0.5 0.97 96 3.94 2.36 5.5 113 96 175
32-2-12/20 4000 240 2 0.5 0.97 144 3.94 2.36 5.5 166 132 245
32-5-4/6 10000 72 5 1 1.41 48 7.09 5.38 8.4 64 55 105
32-5-6/10 10000 120 5 1 1.41 72 7.09 5.38 8.4 95 79 160
32-5-8/14 10000 168 5 1 1.41 96 7.09 5.38 8.4 126 102 205
32-5-12/20 10000 240 5 1 1.41 144 7.09 5.38 8.4 172 138 670
32-10-4/6 20000 72 10 1.25 1.78 48 10.83 5.71 10.6 69 60 130
32-10-6/10 20000 120 10 1.25 1.78 72 10.83 5.71 10.6 74 74 175
32-10-8/14 20000 168 10 1.25 1.78 96 10.83 5.71 10.6 132 108 460
32-10-12/20 20000 240 10 1.25 1.78 144 10.83 5.71 10.6 163 144 680
32-15-4/6 30000 72 15 1.25 2.22 48 10.5 5.9 13.6 72 64 165
32-15-6/10 30000 120 15 1.25 2.22 72 10.5 5.9 13.6 104 87 365
32-15-8/14 30000 168 15 1.25 2.22 96 10.5 5.9 13.6 135 111 478
32-15-12/20 30000 240 15 1.25 2.22 144 10.5 5.9 13.6 180 147 700
32-20-7/11 40000 132 20 1.75 2.27 84 12 6 14.2 107 93 430
32-20-9/15 40000 180 20 1.75 2.27 108 12 6 14.2 144 123 540
32-20-12/20 40000 240 20 1.75 2.27 144 12 6 14.2 180 151 822
32-25-7/11 50000 132 25 2 2.27 84 14 7 14.2 107 98 430
32-25-9/15 50000 180 25 2 2.27 108 14 7 14.2 141 119 540
32-25-12/20 50000 240 25 2 2.27 144 14 7 14.2 179 149 825
32-30-7/11 60000 132 30 2 3.02 84 14 7 18.3 115 102 615
32-30-9/15 60000 180 30 2 3.02 108 14 7 18.3 145 124 750
32-30-12/20 60000 240 30 2 3.02 144 14 7 18.3 183 154 1065
32-40-7/11 80000 132 40 2.25 3.02 84 16 8 18.3 118 105 620
32-40-9/15 80000 180 40 2.25 3.02 108 16 8 18.3 148 127 840
32-40-12/20 80000 240 40 2.25 3.02 144 16 8 18.3 184 154 1500
