Caldwell  |  SKU: Caldwell-16-1/4-4

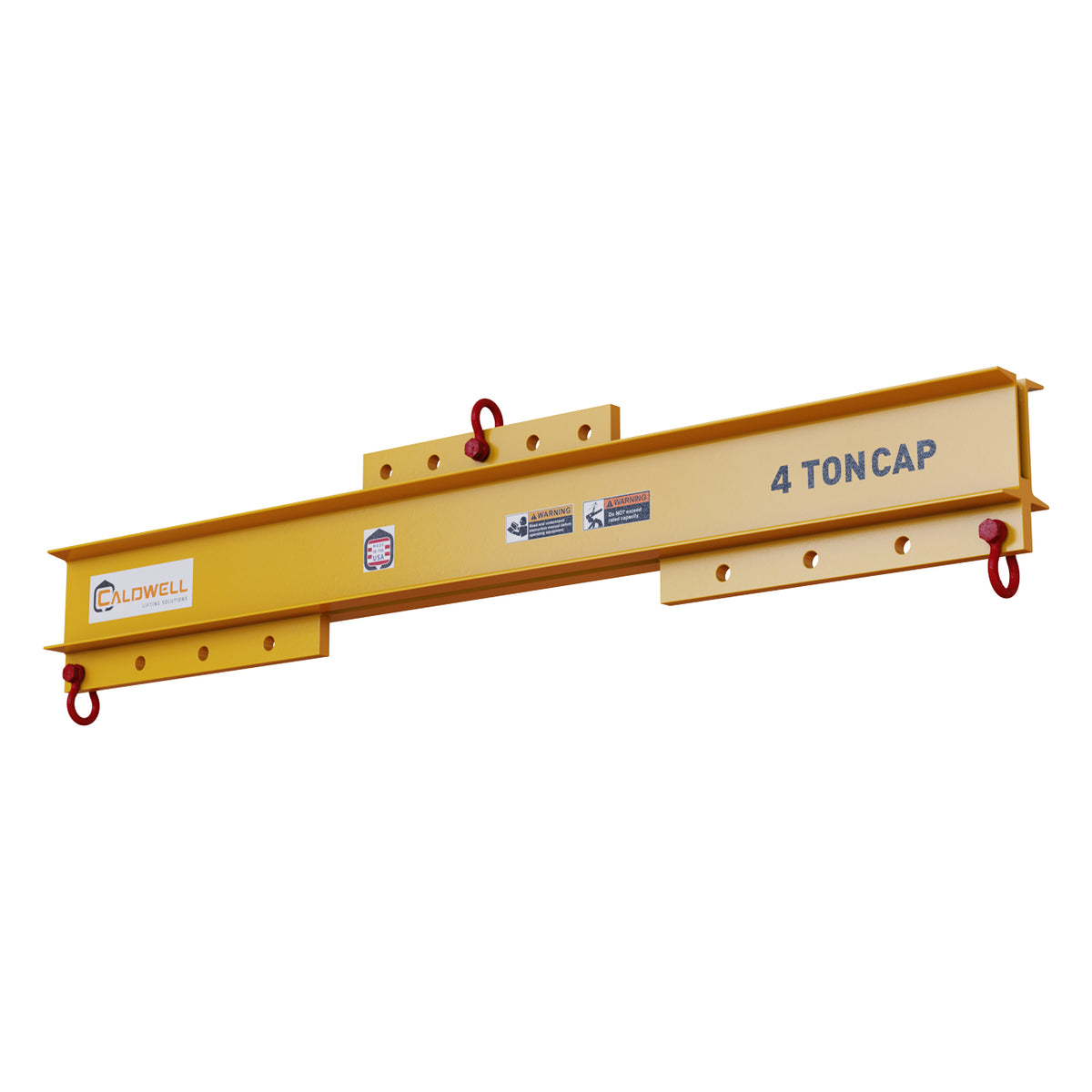

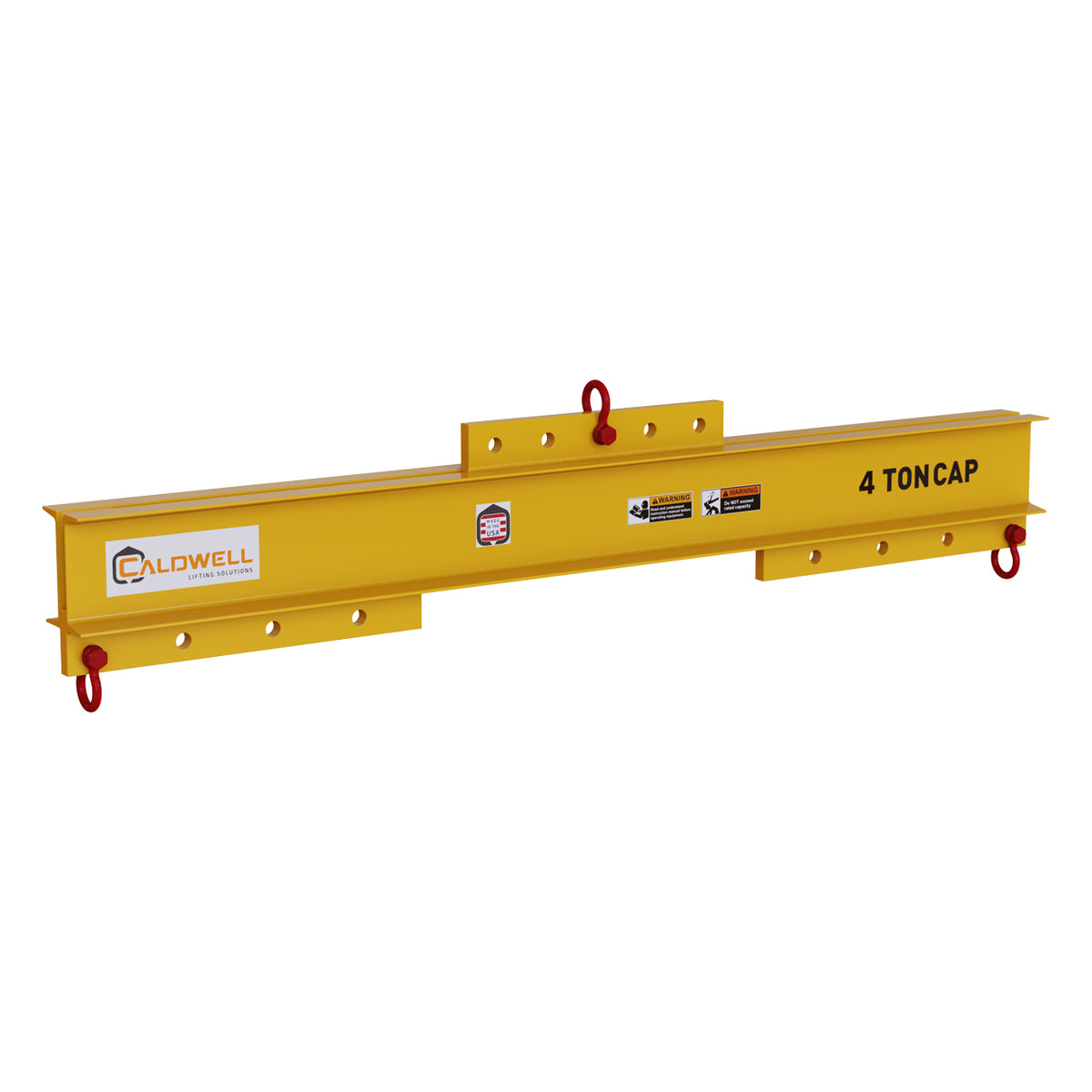

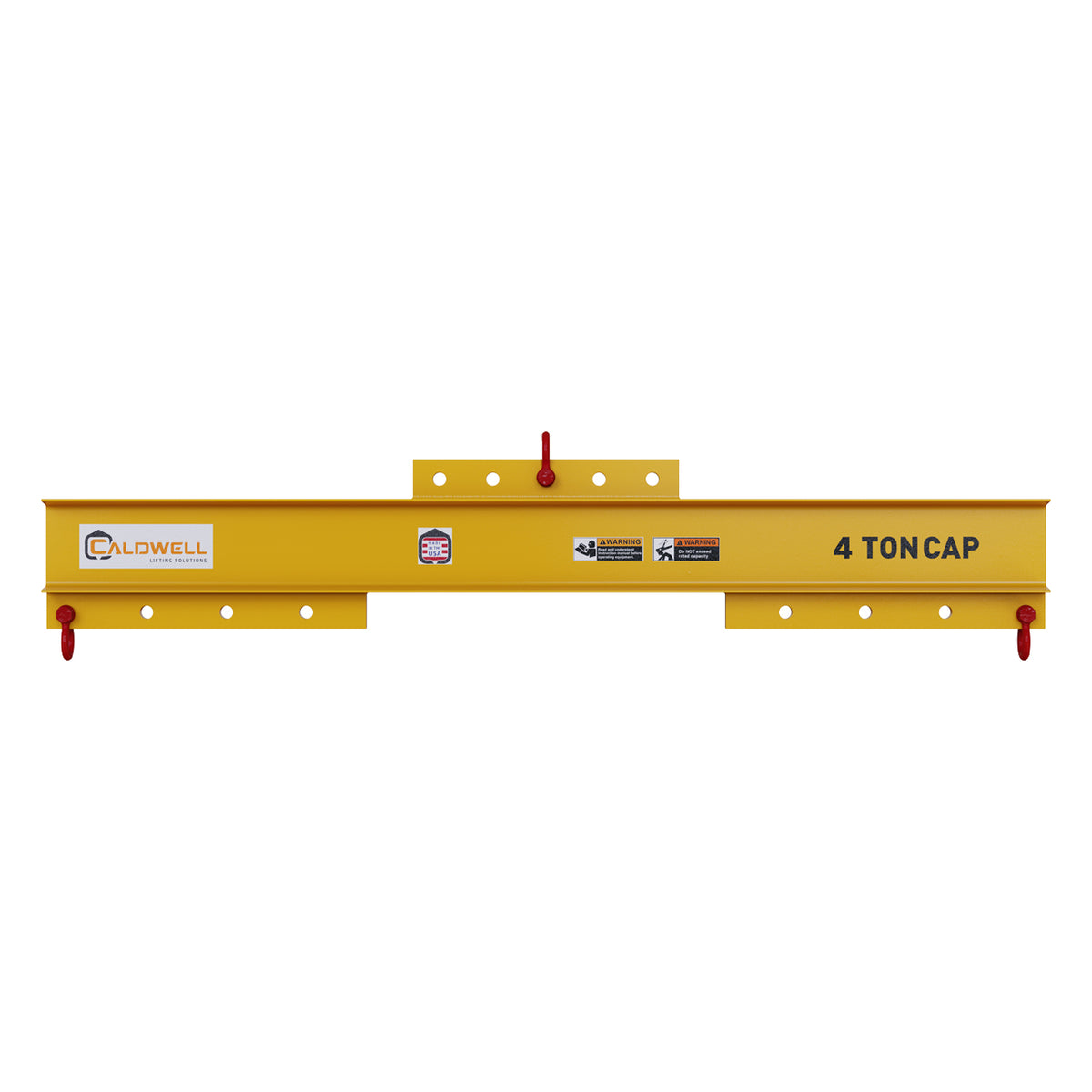

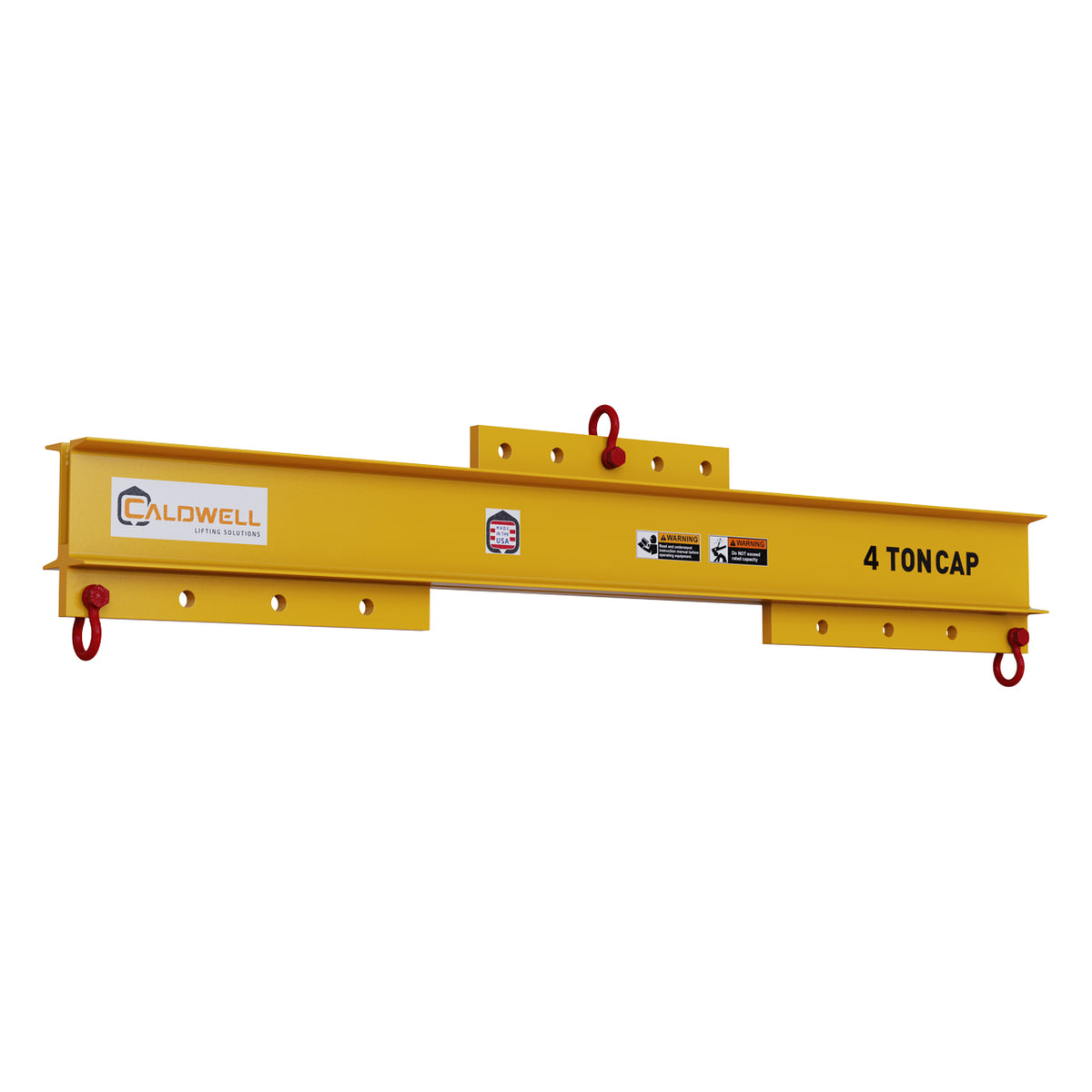

Caldwell Adjustable Spreader/Lifting Beam (Economy)

$804.00
Request a Quote

Model 16 Adjustable Spreader/Lifting Beam provides versatility and power. This best-selling workhorse gives crane operators and riggers options with adjustable lifting points for dozens of load scenarios.

Features

  • Adjustable lifting points
  • Handles both wide and unbalanced loads
  • Low-headroom capability
  • Shackles included
  • Add chain top rigging for added stability
  • Optional swivel hooks available
  • Optional chain top rigging available
  • Complies with ASME standards

Available Models

Part No. Rated Capacity Max Bottom Spread Bottom Shackle Capacity Top Shackle Capacity Capacity Min Bottom Spread Bail Adjustment Headroom Temp Weight Weight
16-1/4-4 500 48 1.5 1.5 0.25 12 16 7.13 40 40
16-1/2-6 1000 72 1.5 1.5 0.5 36 24 10 100 96.382
16-1-6 2000 72 1.5 1.5 1 36 24 10 100 96.382
16-2-6 4000 72 2 3.25 2 36 24 12 130 130
16-4-8 8000 96 4.75 4.75 4 48 32 16.75 290 290
16-5-10 10000 120 4.75 6.5 5 60 40 20.25 465 457.152
16-7-12 14000 144 6.5 8.5 7 72 48 23.75 790 790
16-1/2-4 1000 48 1.5 1.5 0.5 12 16 7.13 40 38
16-1/2-8 1000 96 1.5 1.5 0.5 48 32 10 135 —
16-1/2-10 1000 120 1.5 1.5 0.5 60 40 10 145 —
16-1-8 2000 96 1.5 1.5 1 48 32 11 140 —
16-1-10 2000 120 1.5 1.5 1 60 40 11 175 —
16-2-8 4000 96 2 3.25 2 48 32 13.5 200 200
16-2-10 4000 120 2 3.25 2 60 40 14.5 280 280
16-4-10 8000 120 4.75 4.75 4 60 40 18.75 420 —
16-4-12 8000 144 4.75 4.75 4 72 48 18.75 500 —
16-5-8 10000 96 4.75 6.5 5 48 32 18.75 320 320
16-5-12 10000 144 4.75 6.5 5 72 48 20.25 550 —
