Caldwell  |  SKU: Caldwell-82RC-5-36

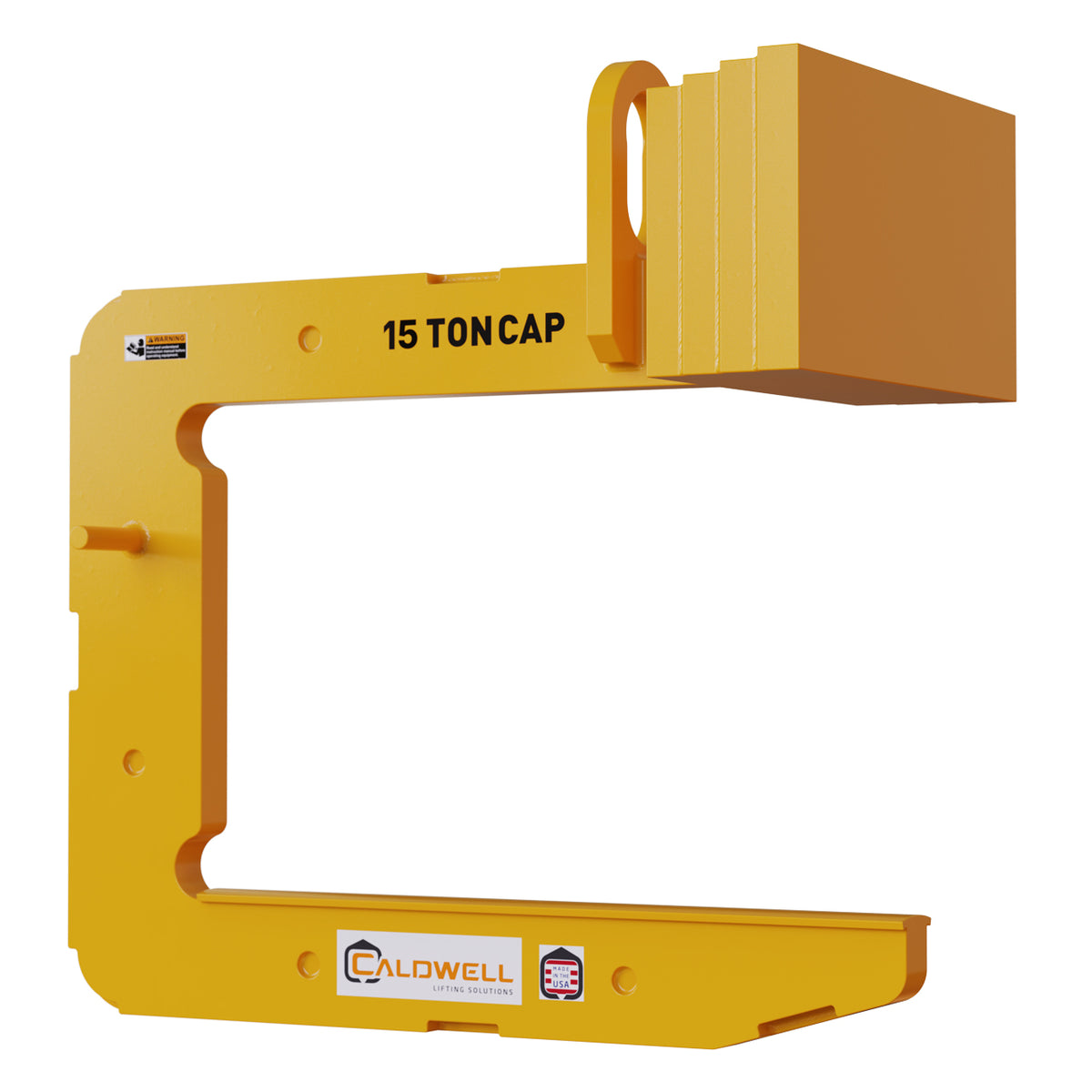

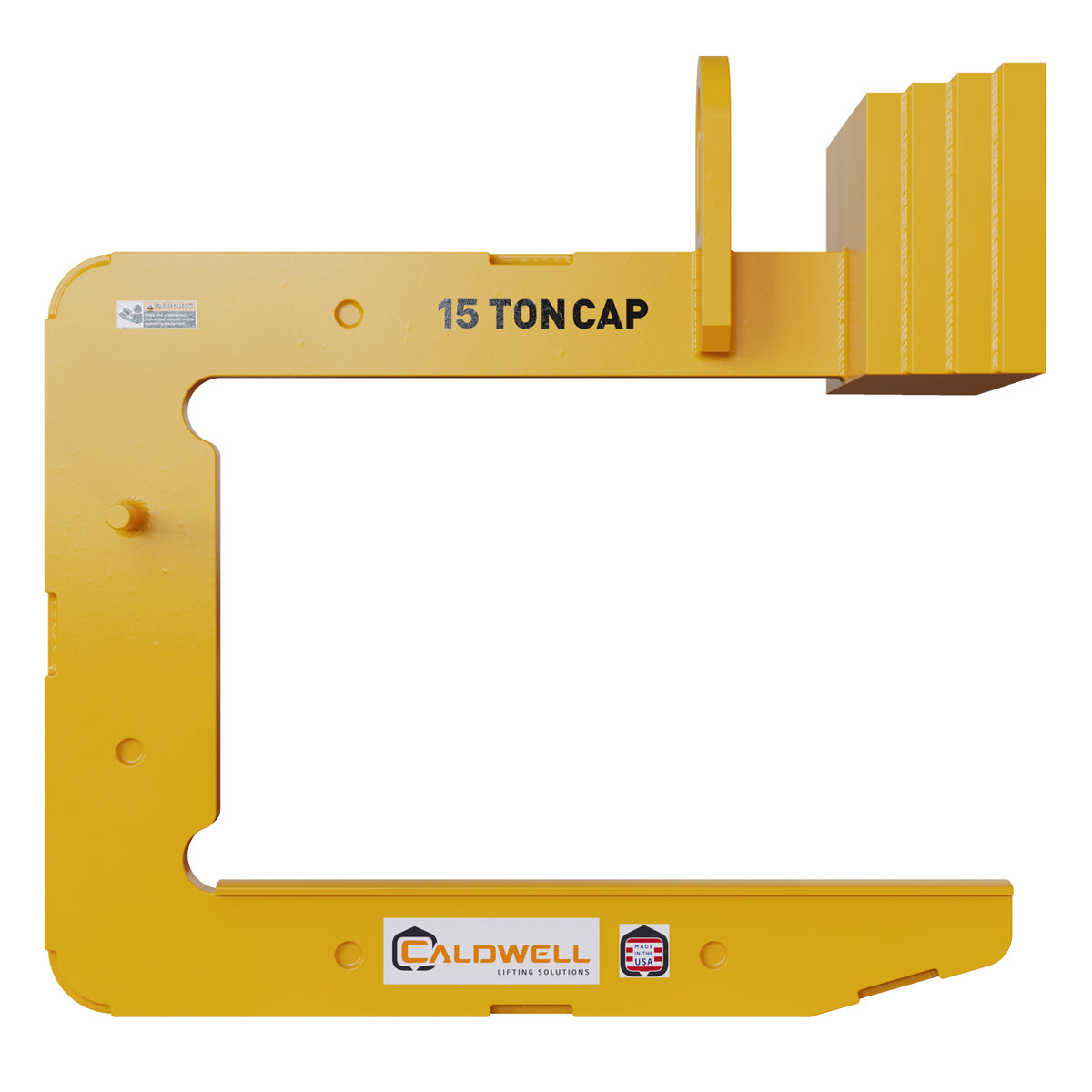

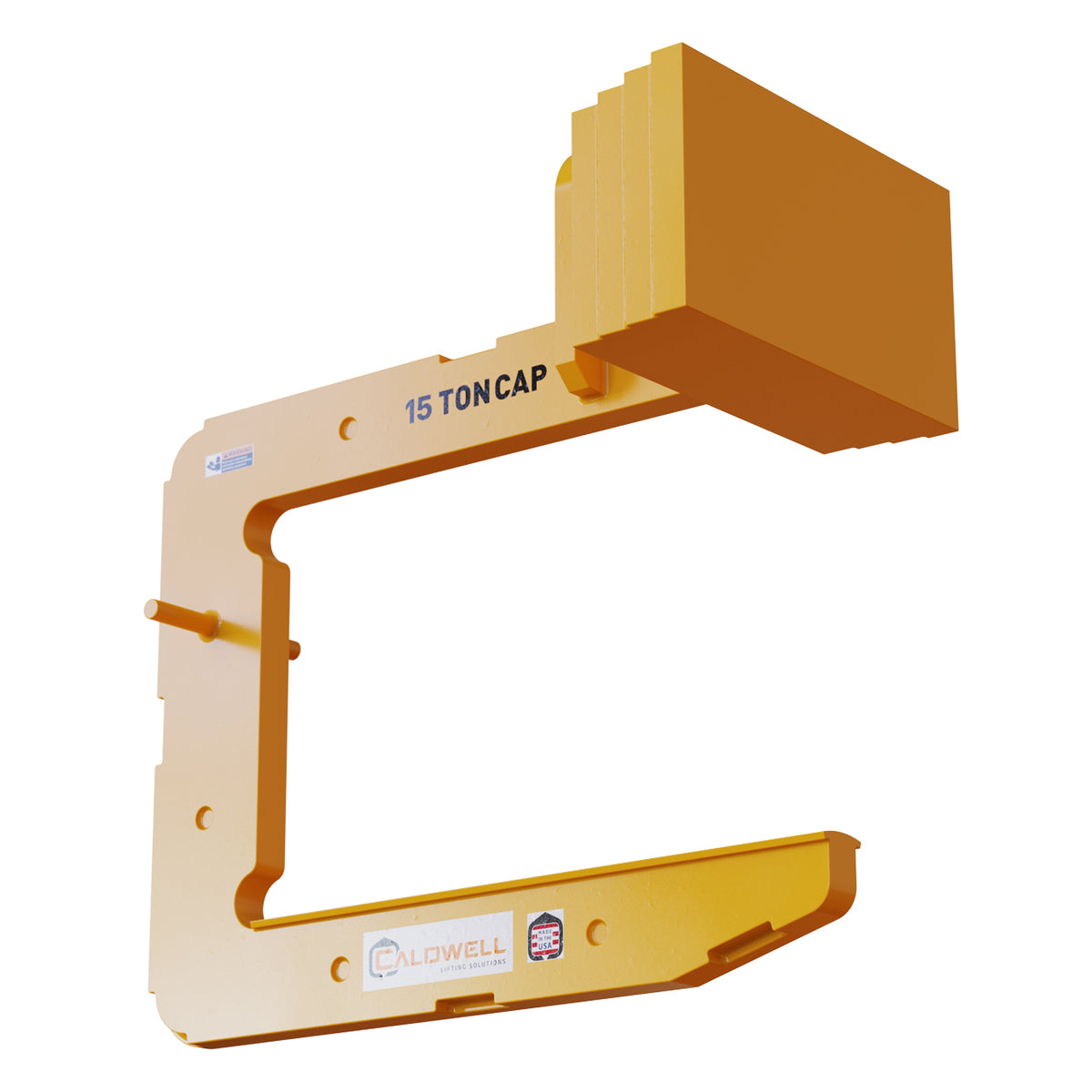

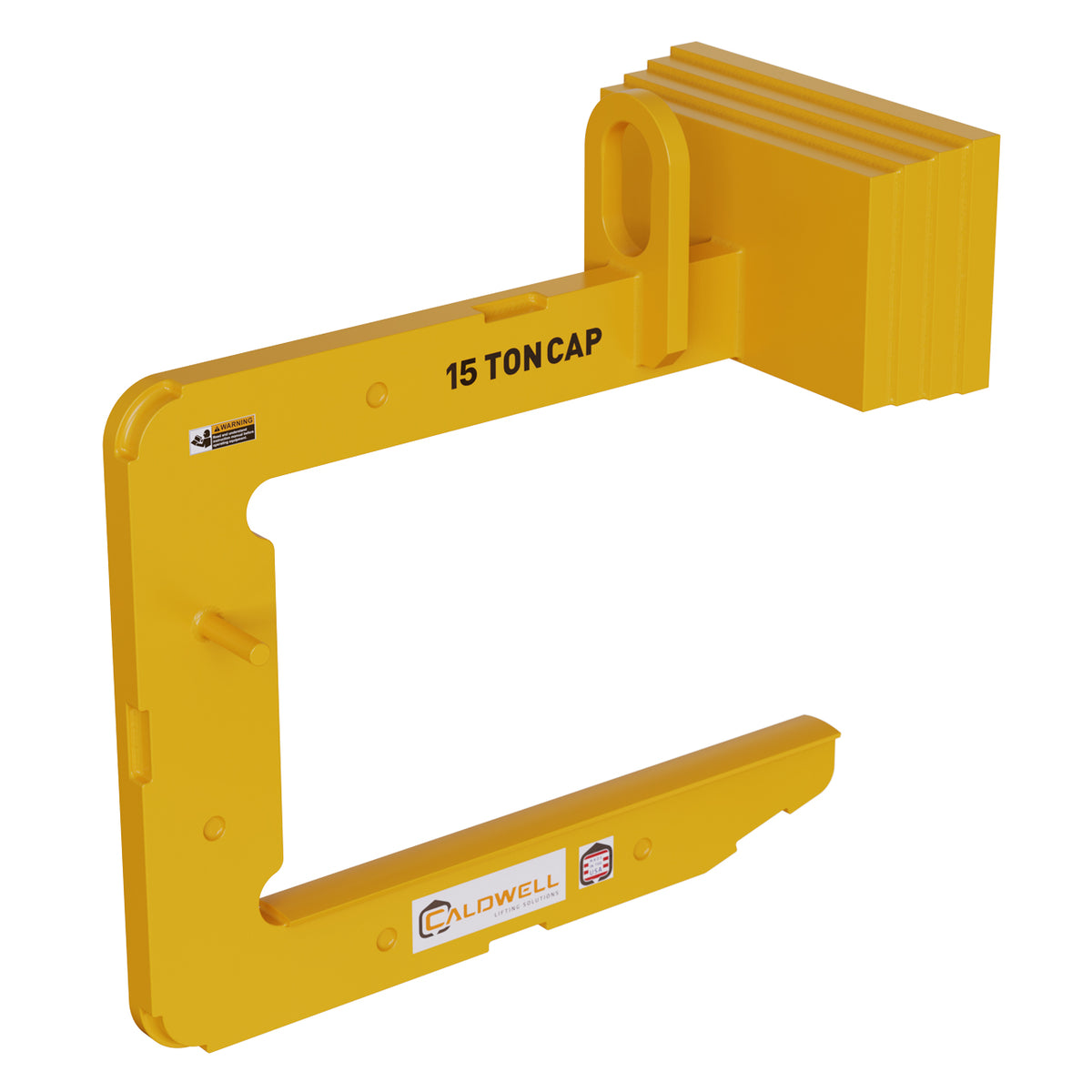

Caldwell Close Stacking C-Hook

$5,538.00
Request a Quote

When space is tight and the loads are heavy, this is the hook for the job. Based off Caldwell's best-selling Model 82, the Model 82RC features a recessed counterweight that allows you to stack coils closer together, making the most of the space you have available.

Features

  • Recessed counterwight allows for close stacking of coils which maximizes floor space
  • Handles a wide range of coil widths
  • Designed for heavy duty application
  • High tensile alloy steel plate reduces size and weight
  • Counter balanced to hang level when empty
  • Inside radius on hooks avoid coil edge contact
  • Curved coil saddle is standard
  • Guide handle for ease of hook positioning
  • Available with optional padding for additional coil protection
  • Complies with ASME standards

Available Models

Part No. Capacity (ton) Max Coil Width Capacity Rated Capacity Lifting Arm Width With Saddle Bail Opening Width Lifting Arm Length Min Coil Width Throat Opening Bail Opening Height Bail Thickness Bail Depth
82RC-5-36 5 36 5 10000 4 4 30 24 24 7 1.25 1.5
82RC-5-48 5 48 5 10000 4 4 39 30 24 7 1.25 1.5
82RC-5-60 5 60 5 10000 4 4 48 36 24 7 1.25 1.5
82RC-7.5-36 7.5 36 7.5 15000 4 4 30 24 24 7 1.5 1.5
82RC-7.5-48 7.5 48 7.5 15000 4 4 39 30 24 7 1.5 1.5
82RC-7.5-60 7.5 60 7.5 15000 4 4 48 36 24 7 1.5 1.5
82RC-10-48 10 48 10 20000 4 5 39 30 24 9 1.75 2
82RC-10-60 10 60 10 20000 4 5 48 36 24 9 1.75 2
82RC-10-72 10 72 10 20000 4 5 57 42 24 9 1.75 2
82RC-15-48 15 48 15 30000 4 5 39 30 30 9 1.75 2
82RC-15-60 15 60 15 30000 4 5 48 36 30 9 1.75 2.25
82RC-15-72 15 72 15 30000 4 5 57 42 30 9 1.75 2
82RC-20-60 20 60 20 40000 4 6 48 36 30 12 2 2.25
82RC-20-72 20 72 20 40000 4 6 57 42 30 12 2 2.25
82RC-25-60 25 60 25 50000 4 6 48 36 34 14 2.25 2.5
82RC-25-72 25 72 25 50000 4 6 57 42 34 14 2.25 2.5
82RC-30-60 30 60 30 60000 4 6 48 36 34 14 2.5 2.75
82RC-30-72 30 72 30 60000 4 6 57 42 34 14 2.5 2.75
82RC-40-72 40 72 40 80000 5 7 57 42 38 18 3 3.25
