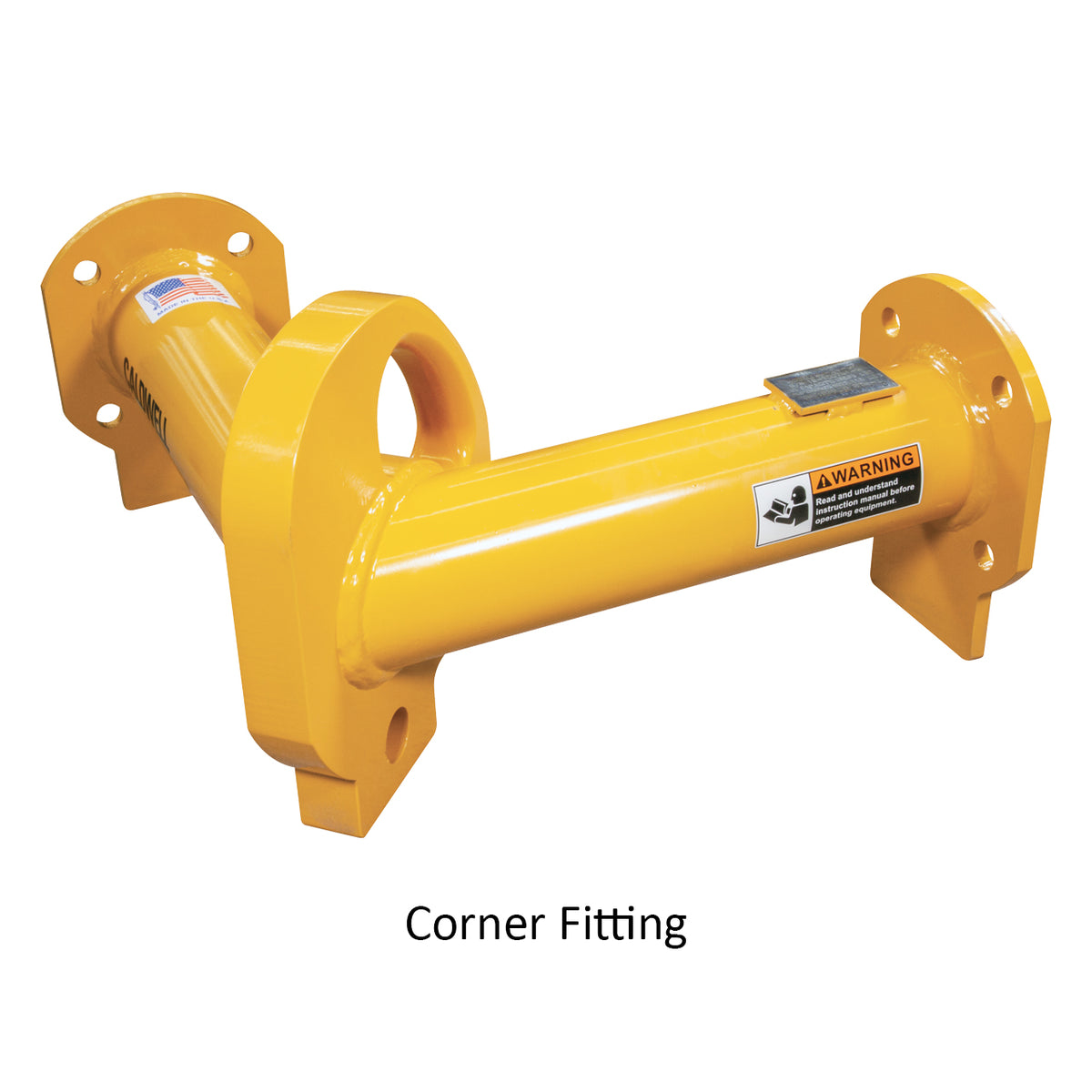

Caldwell Corner Fitting

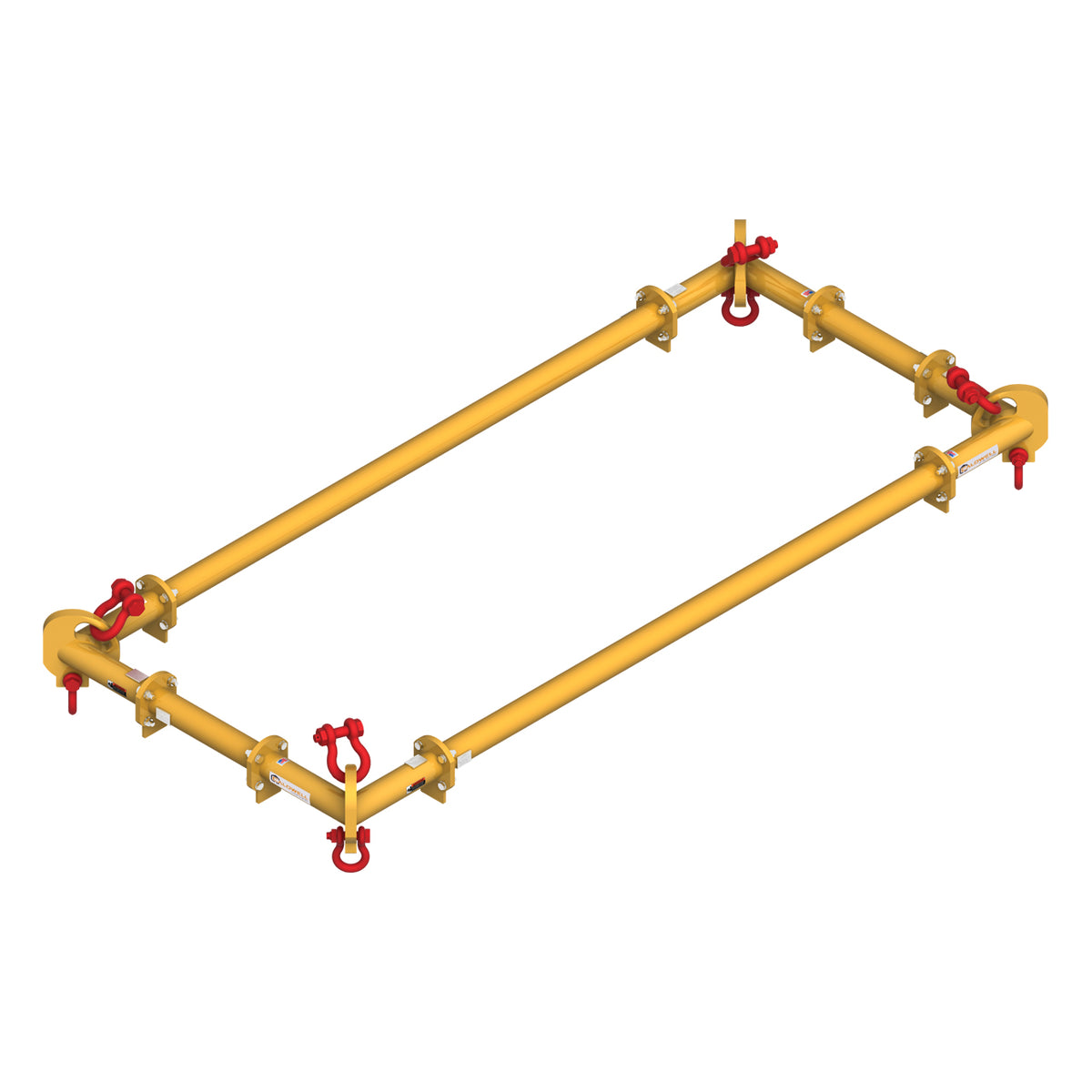

Modular DM60-4 Box Spreader Beam can be configured in spreads of 4' to 36' in square or rectagular configurations.

Features

• 60-Metric Ton System
• Assembly designed for a 35-ton, carbon, bolt-type top shackle and a 25-ton, carbon, bolt-type bottom shackle
• 4-point spreader beam provides added stability
• Capacity ratings can be provided that meet ASME B30.20, BTH-1, DESIGN CATEGORY B, CLASS 0 or ASME B30.20, BTH-1, DESIGN CATEGORY A, CLASS 0

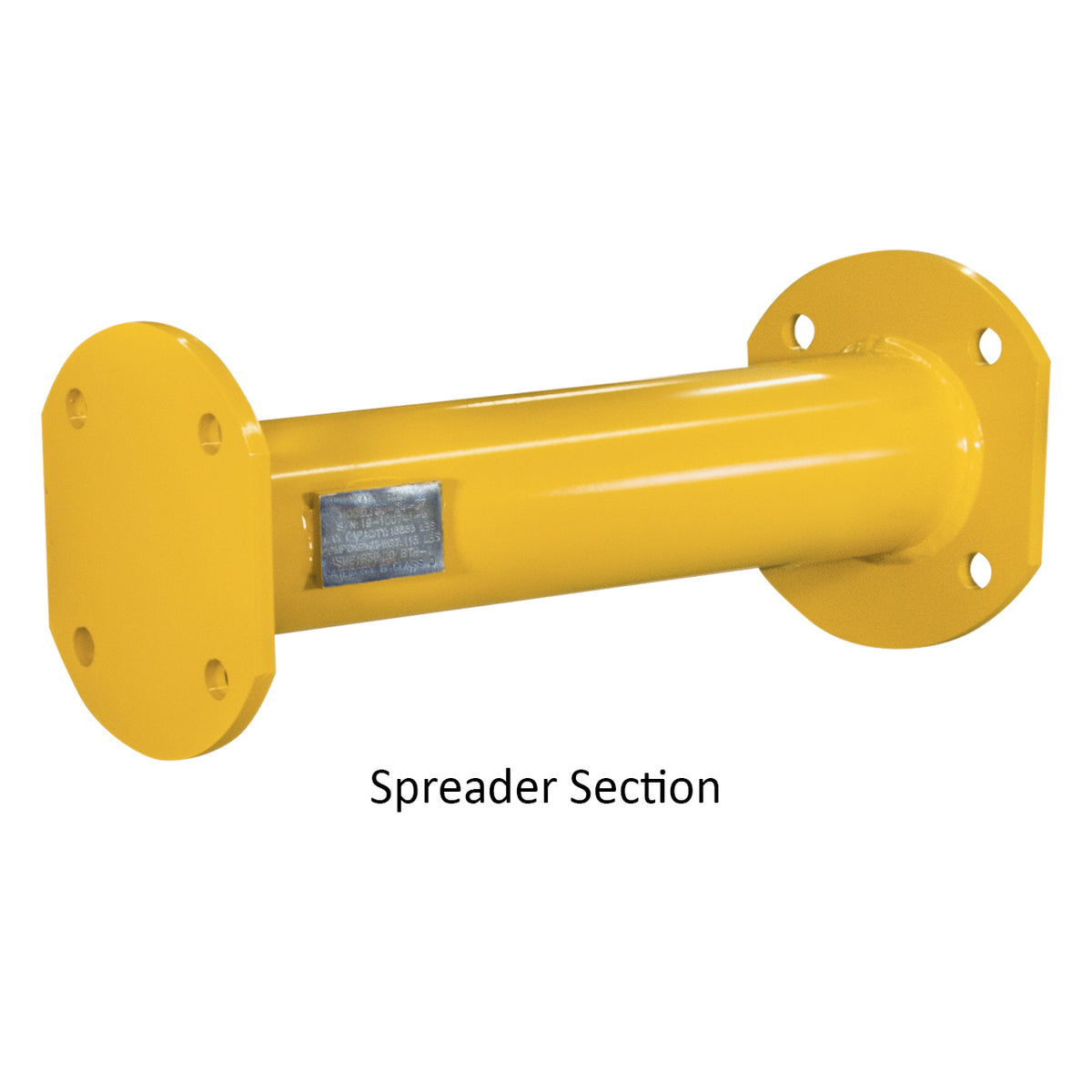

• Combinations of one to five spreader sections can be used to create custom square and rectangular configurations
• Corner Fittings and Spreader Sections include one bolt kit

Specifications
