Caldwell | SKU:
Caldwell-80H-1/2-6/13

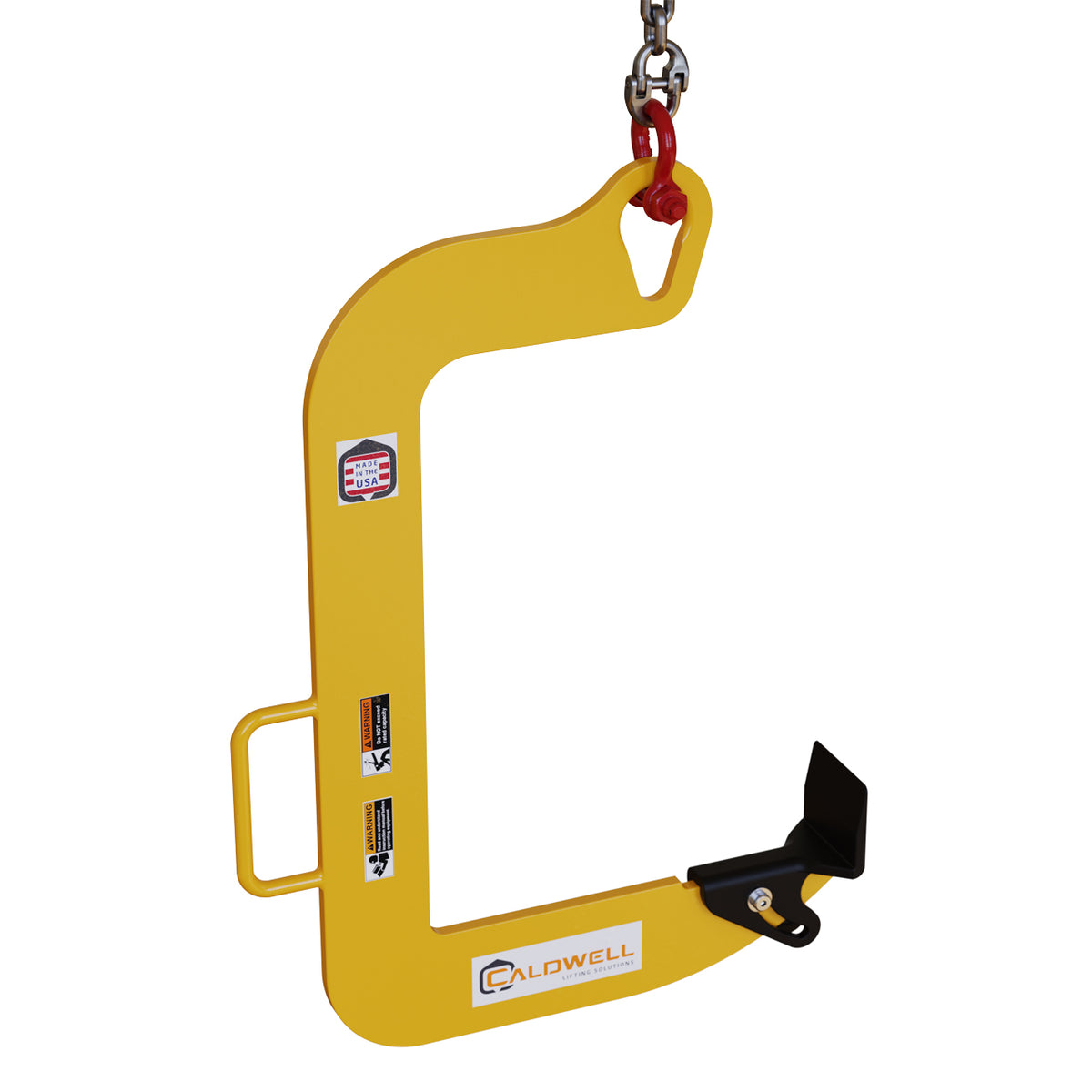

Caldwell Dixon Coil Hook with Pivoting Wedge
$1,078.00
Precio unitario
/
Agotado
Caldwell Dixon Coil Hook with Pivoting Wedge - 1000 / 6 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Dixon Coil Hook with Pivoting Wedge
Desde
$1,078.00
Precio unitario
/
Agotado
It's all about the pivoting wedge on this unit. By maneuvering that wedge in between two stacked coils, an operator can separate them and begin a tilt, allowing the rest of the hook to slide in and do its job.
Features
- Easy horizontal to vertical upending of coils
- Cannot be used for vertical to horizontal orientation
- Pivoting wedge for easy tilting of stacked coils
- Wedge acts as retainer
- Efficient and easy to use
- Popular for use with small, lightweight coils
- For use where overhead clearance is limited
- Specially designed heat treated pivoting wedge
- Complies with ASME standards
Available Models
| Part No. | Rated Capacity | Max Coil Width | Capacity | Max Radial Size | Bail Opening Height | Bail Opening Width | Max Arm Height With Shoe | Pivot Shoe Width | Plate Thickness | Bail Depth | Headroom | Min Coil Inner Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80H-1/2-6/13 | 1000 | 6 | 0.5 | 13 | 3.31 | 2 | 6 | 3.5 | 0.5 | 0.81 | 19.1 | 9 |
| 80H-1/2-12/13 | 1000 | 12 | 0.5 | 13 | 3.31 | 2 | 6 | 3.5 | 0.5 | 0.81 | 22 | 13 |
| 80H-1-8/16 | 2000 | 8 | 1 | 16 | 3.31 | 2 | 6 | 3.5 | 0.5 | 0.81 | 22.8 | 10 |
| 80H-2-10/18 | 4000 | 10 | 2 | 18 | 4 | 2.62 | 6.75 | 2 | 0.75 | 1 | 26 | 12.5 |
| 80H-3.5-12/20 | 7000 | 12 | 3.5 | 20 | 5.31 | 3.62 | 7.75 | 2.5 | 1 | 1.19 | 30.6 | 14.5 |
| 80H-5-12/24 | 10000 | 12 | 5 | 24 | 5.75 | 4 | 9.12 | 3 | 1.25 | 1.5 | 34.8 | 20.5 |
