Caldwell  |  SKU: Caldwell-DM110-DL

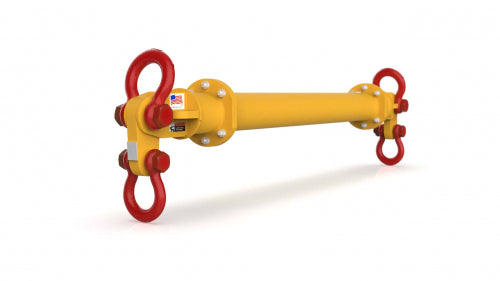

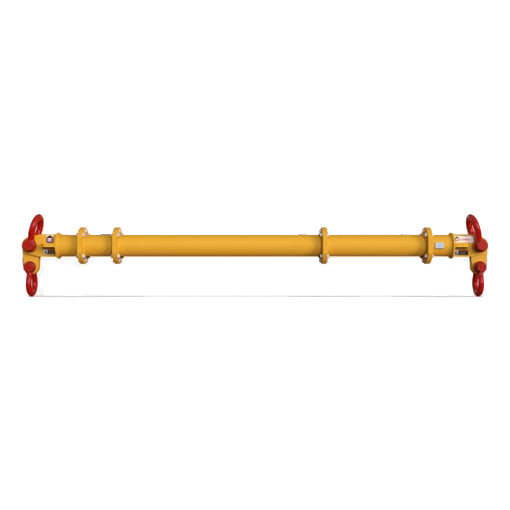

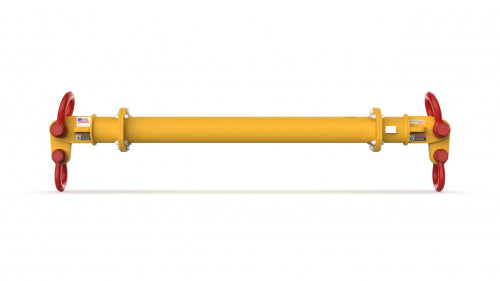

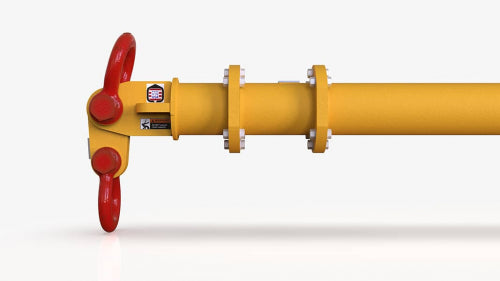

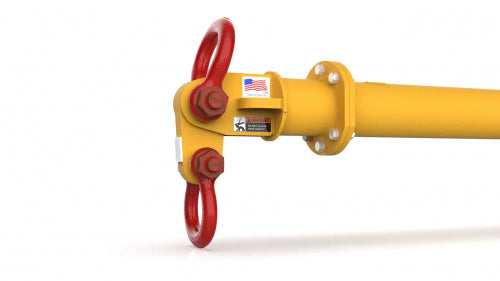

Caldwell Drop Link

$1,797.00
Request a Quote

Caldwell Drop Link is available in several model configurations. Compare the models below to select the appropriate design for the application.

Model Comparison

Model Features and Application
DM110DL

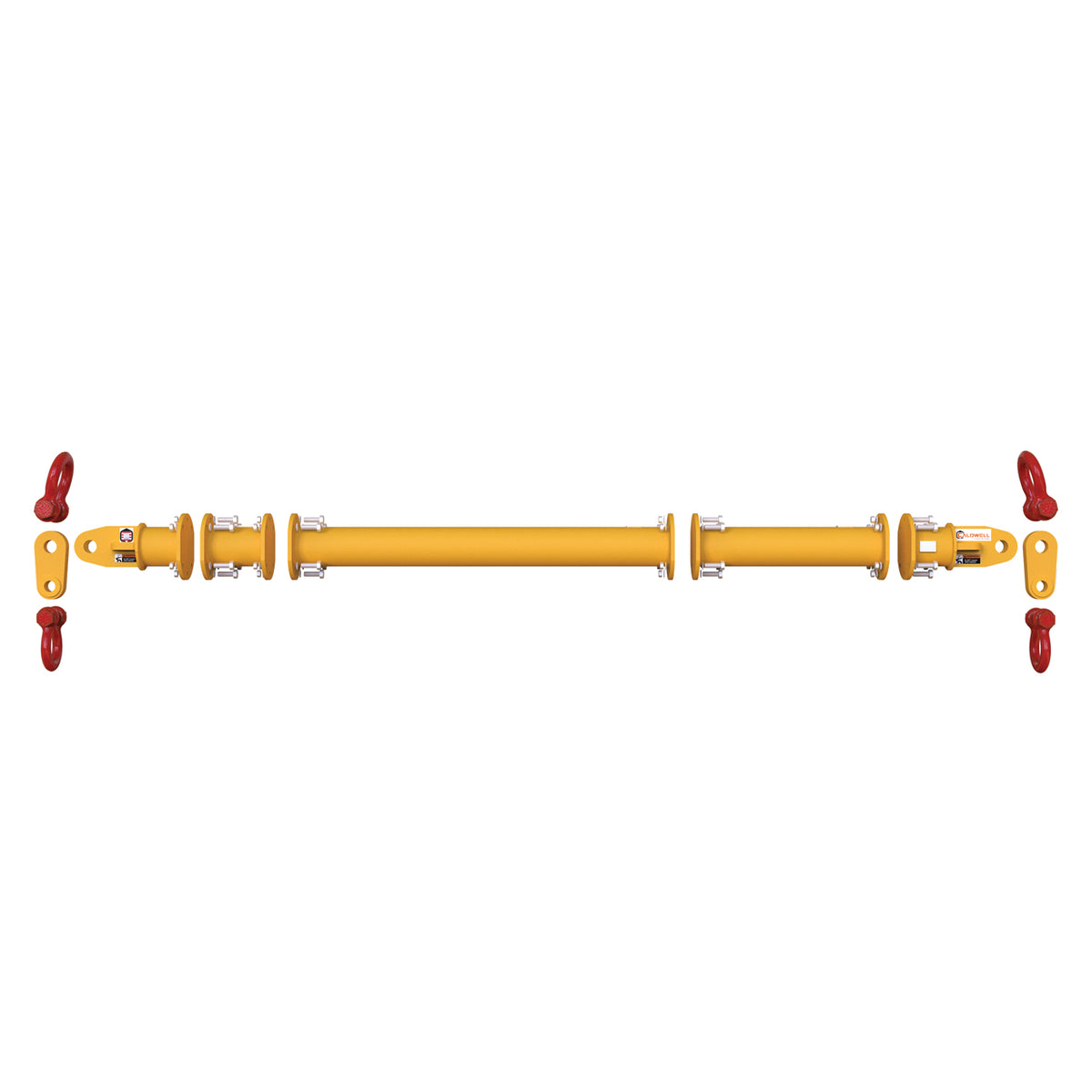

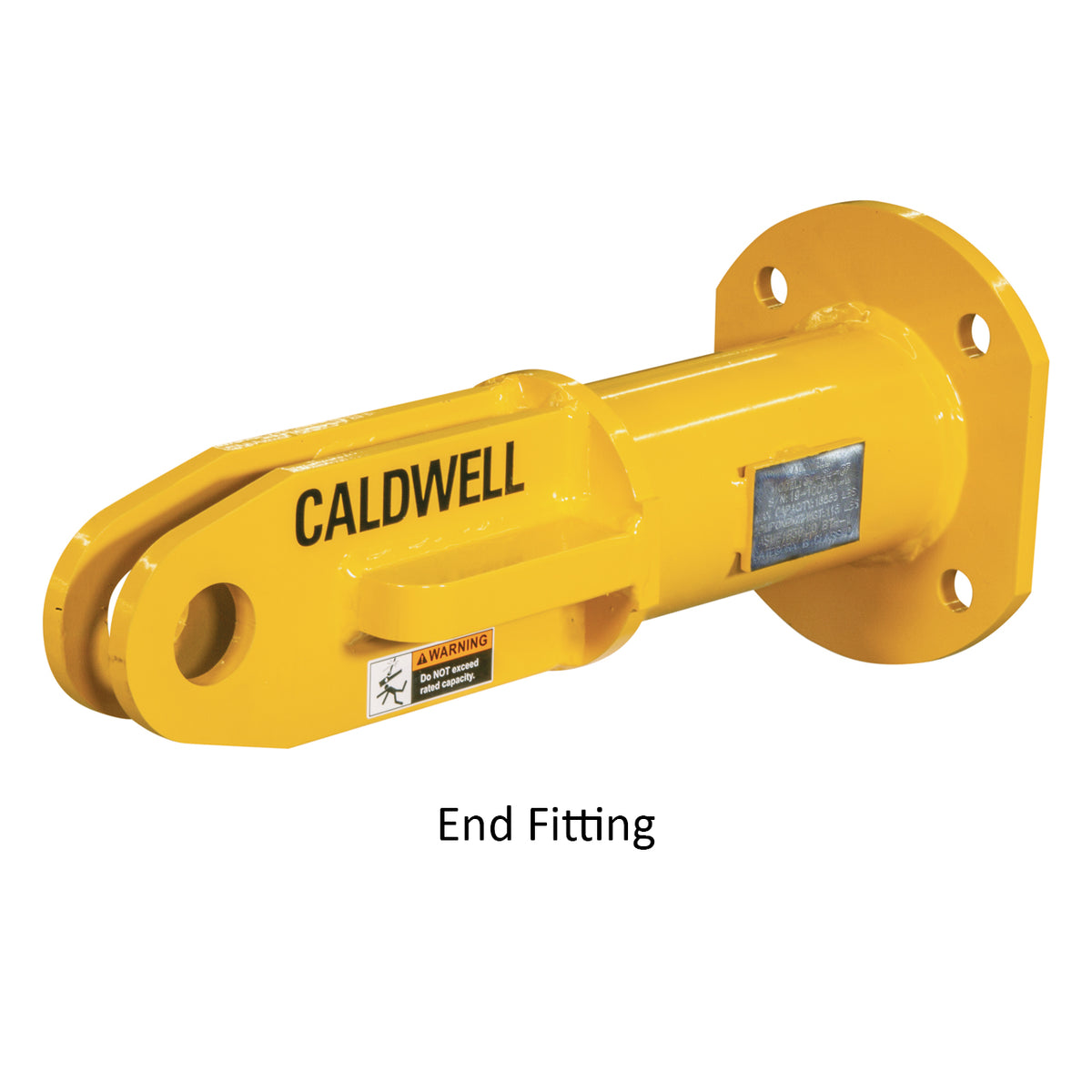

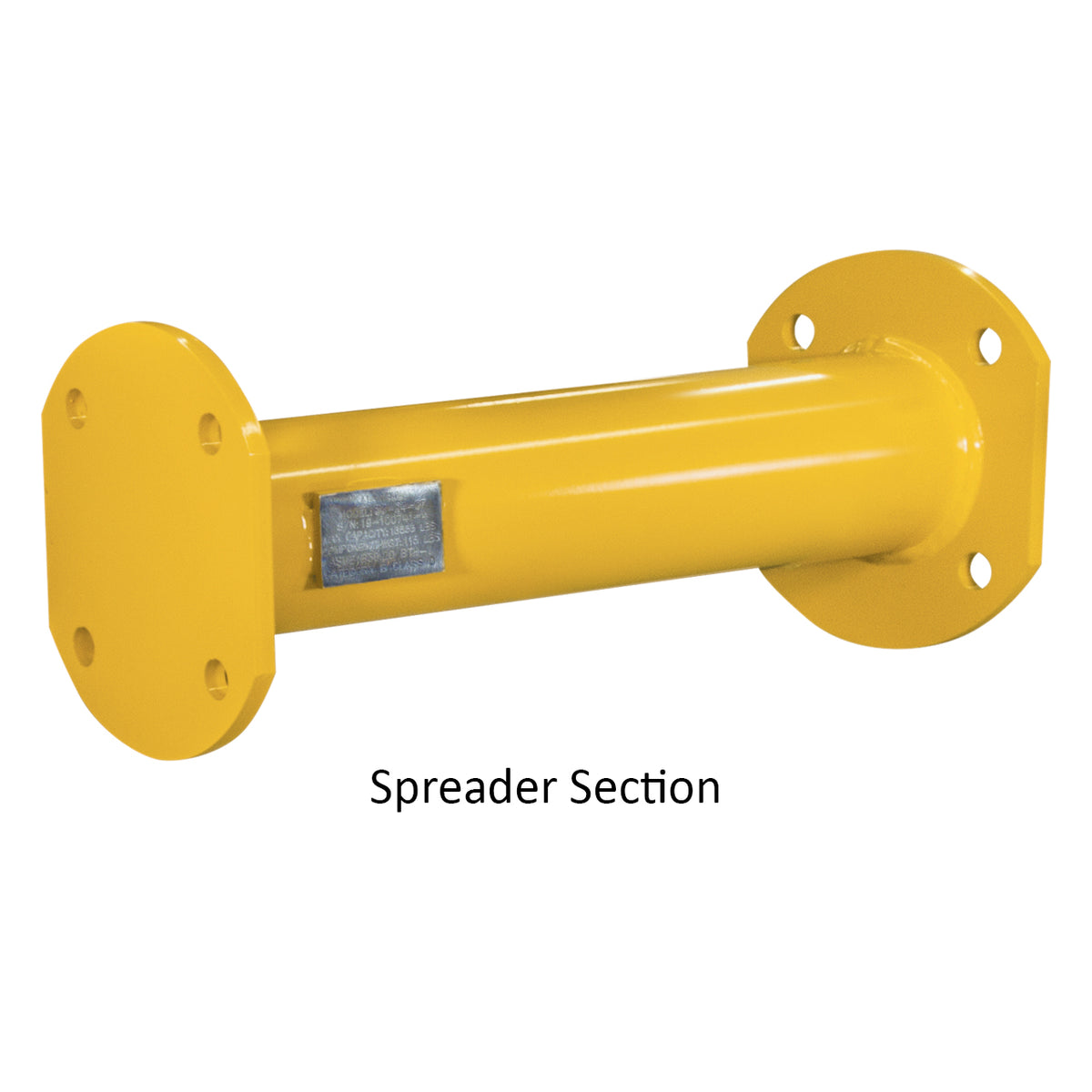

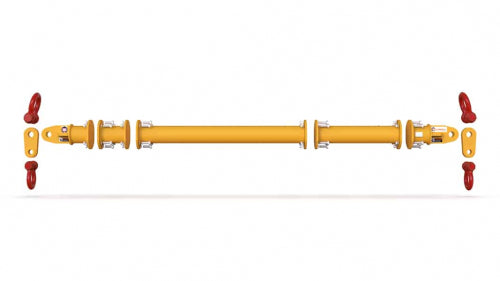

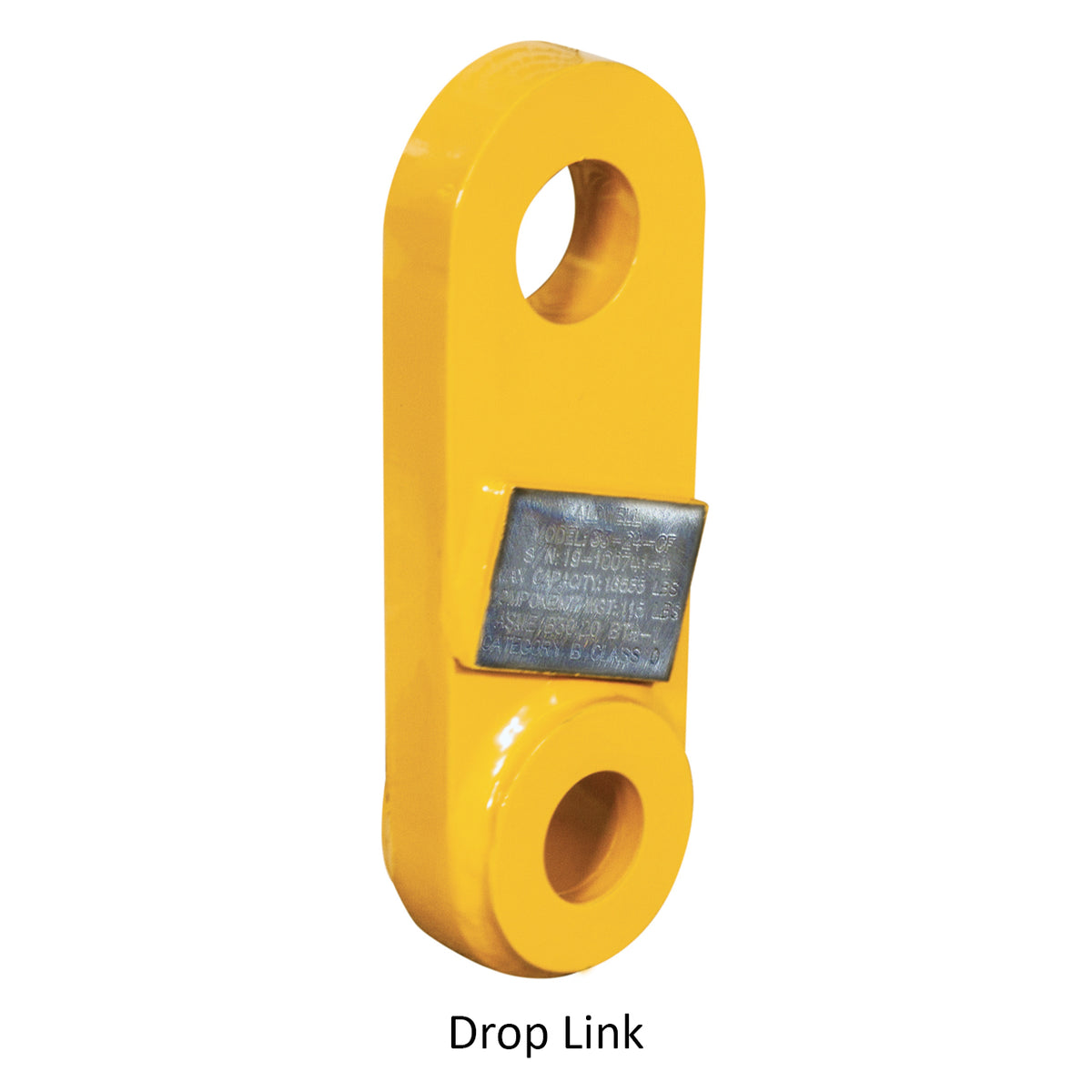

Configure in spreads of 6' to 59'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.

  • Handles loads up to 110 metric tons

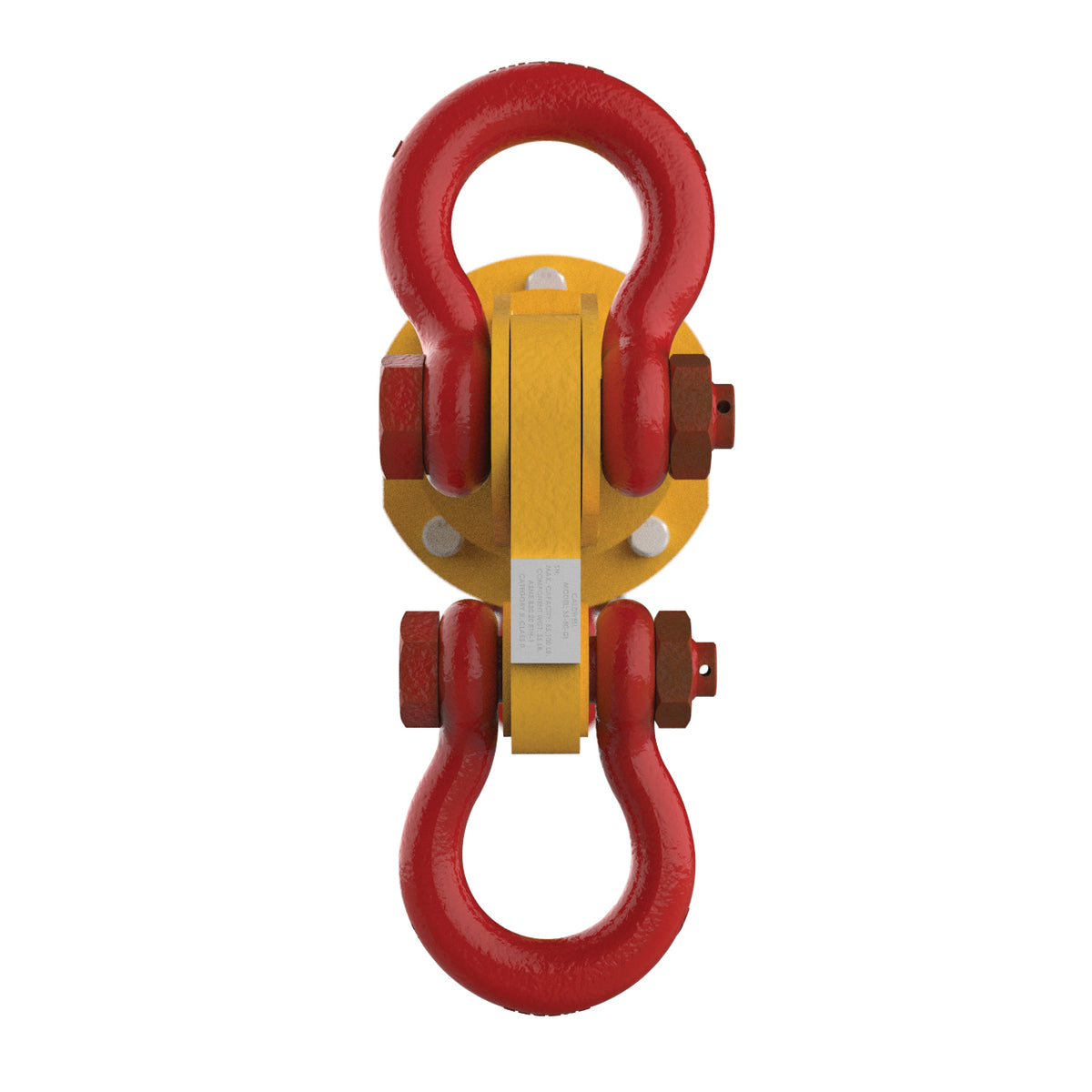

  • DM110 assembly designed for a 85-ton, carbon, bolt-type top shackle and a 55-ton, carbon, bolt-type bottom shackle
DM12DL

Configure in spreads of 2' to 18'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.

  • Handles loads up to 12 metric tons
  • DM12 assembly designed for a 8.5-ton, carbon, bolt-type top shackle and a 6.5-ton, carbon, bolt-type bottom shackle
DM24DL

Configure in spreads of 3' to 24'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.

  • Handles loads up to 24 metric tons
  • DM24 assembly designed for a 17-ton, carbon, bolt-type top shackle and a 12-ton, carbon, bolt-type bottom shackle
DM34DL

Configure in spreads of 3' to 32'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.

  • Handles loads up to 34 metric tons
  • DM34 assembly designed for a 25-ton, carbon, bolt-type top shackle and a 17-ton, carbon, bolt-type bottom shackle
DM50DL

Configure in spreads of 3' to 41'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.

  • Handles loads up to 50 metric tons
  • DM50 assembly designed for a 35-ton, carbon, bolt-type top shackle and a 25-ton, carbon, bolt-type bottom shackle
DM6DL

Configure in spreads of 16" to 152"L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately

  • Handles loads up to 6 metric tons
  • DM6 assembly designed for a 4.75-ton, carbon, bolt-type top shackle and a 3.25-ton, carbon, bolt-type bottom shackle
DM70DL

Configure in spreads of 3' to 45'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.

  • Handles loads up to 70 metric tons
  • DM70 assembly designed for a 55-ton, carbon, bolt-type top shackle and a 35-ton, carbon, bolt-type bottom shackle

Specifications

Number of Components Per Set 2

Available Models

Part No. Model Rated Capacity Temp Weight
DM110-DL DM110DL 121254 105
DM12-DL DM12DL 13228 5
DM24-DL DM24DL 26455 10
DM34-DL DM34DL — 19
DM50-DL DM50DL 55115 35
DM6-DL DM6DL 6609 2
DM-70-DL DM70DL — 47
