Caldwell | SKU:
Caldwell-83EW-1/2-24

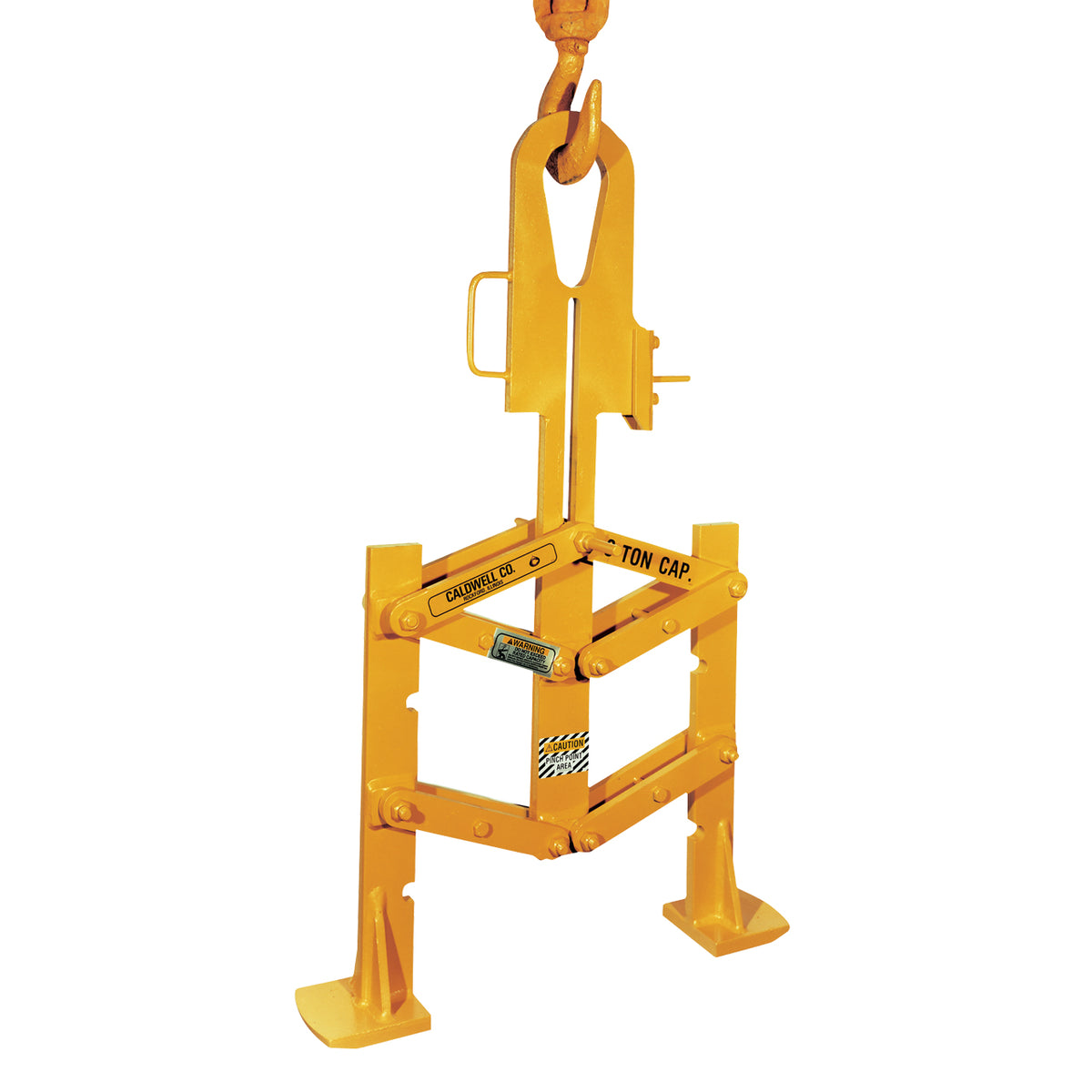

Caldwell Extended Width Coil Grab
$6,957.00
Precio unitario
/
Agotado
Caldwell Extended Width Coil Grab - 1000 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Extended Width Coil Grab
Desde
$6,957.00
Precio unitario
/
Agotado
Vertical coil lifting presents unique challenges, but the Caldwell Model 83EW is ready to conquer. Simply insert the unit in the I.D. of the coil {stored on spacers, of course), placing the feet under the coil itself. The lifter legs automatically adjust to the walls of the coil I.D. so a safe lift can proceed.
Features
- Handles any size coil ID from 16-24 inches
- Lifter legs automatically adjust to coil ID being lifted
- Has higher capacity range than standard lifter
- Unique design minimizes dunnage required between coils
- Complies with ASME standards
Specifications
| Min Coil Inner Dimension | 16 |
Available Models
| Part No. | Rated Capacity | Capacity | Bail Opening Width | Coil Width | Foot Width | Bail Cross Section Height | Bail Opening Height | Bail Thickness | Foot Thickness | Foot Clearance | Max Coil Inner Dimension | Headroom Closed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 83EW-1/2-24 | 1000 | 0.5 | 3 | 20 | 5 | 1.25 | 5 | 0.63 | 0.5 | 14.5 | 24 | 30.14 |
| 83EW-2.1/2-24 | 5000 | 2.5 | 3 | 20 | 5 | 1.5 | 5 | 0.75 | 0.75 | 15.5 | 24 | 37.5 |
| 83EW-5-24 | 10000 | 5 | 4 | 30 | 6 | 2 | 7 | 1 | 4 | 15.5 | 24 | 40.38 |
| 83EW-7 1/2-24 | 15000 | 7.5 | 4 | 30 | 6 | 2 | 8 | 1 | 1 | 15.5 | 2 | 40.38 |
