Caldwell | SKU:
Caldwell-36-2.4
Caldwell Fiberglass Battery Lifting Beams
$898.00
Precio unitario
/
Agotado
Caldwell Fiberglass Battery Lifting Beams - 4800 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:

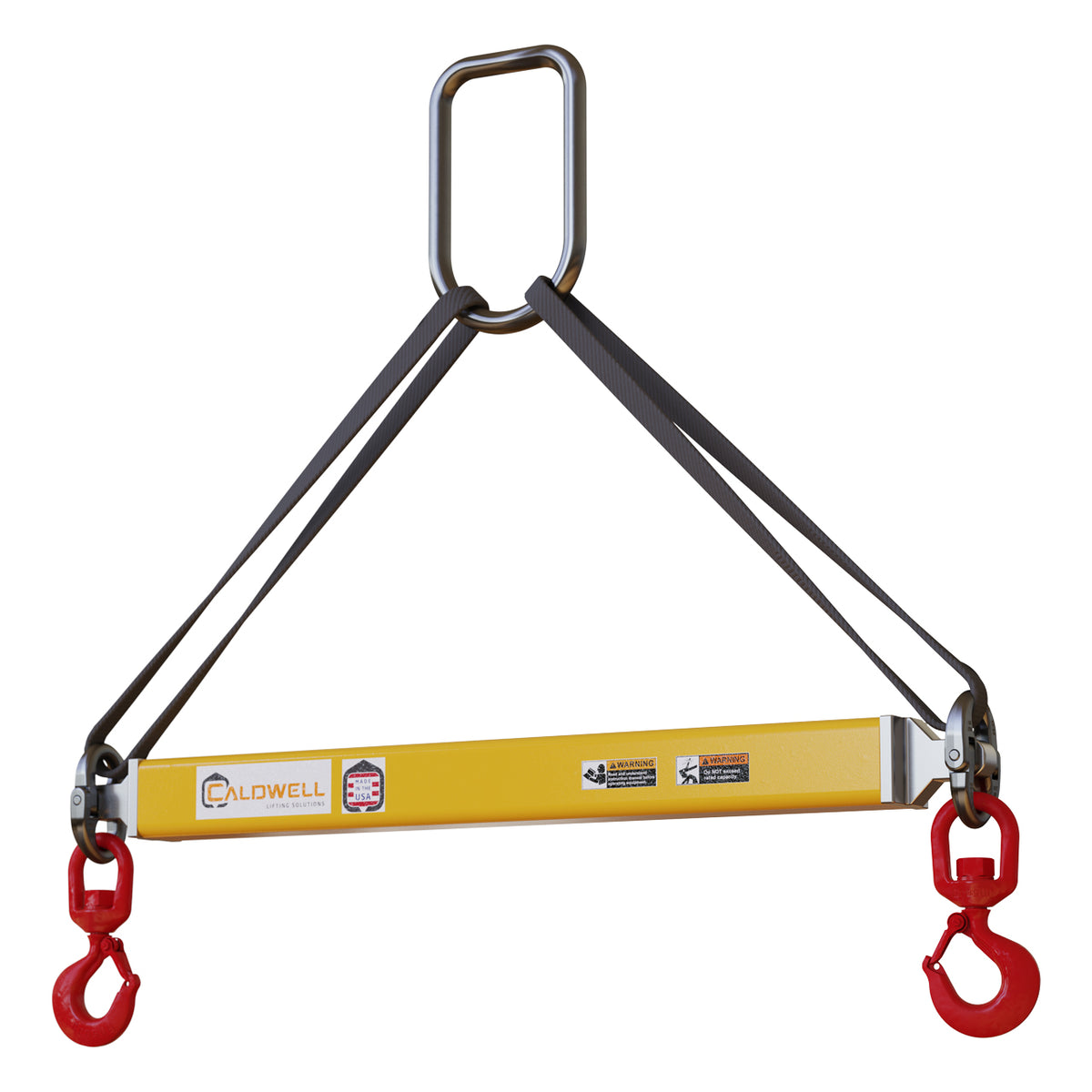

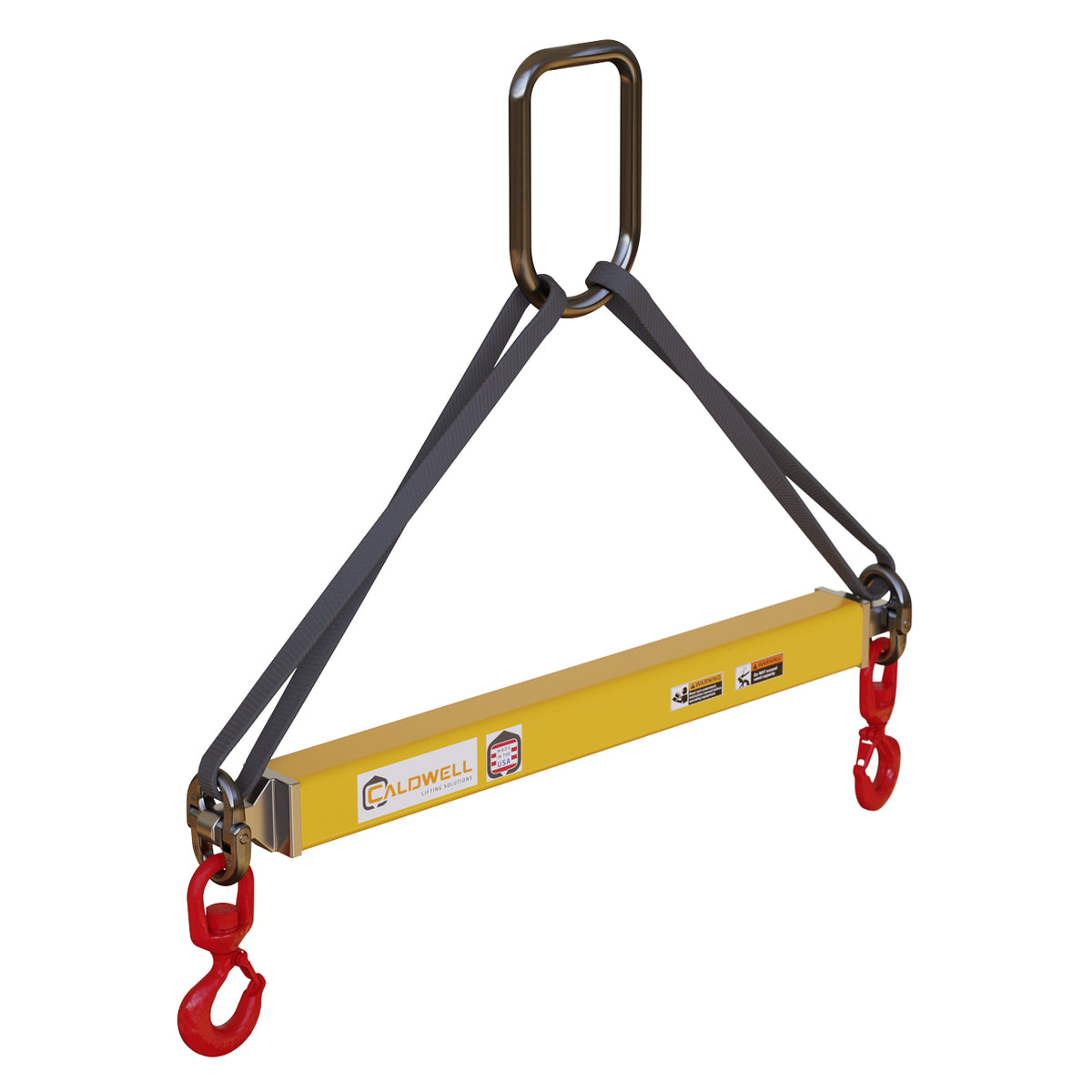

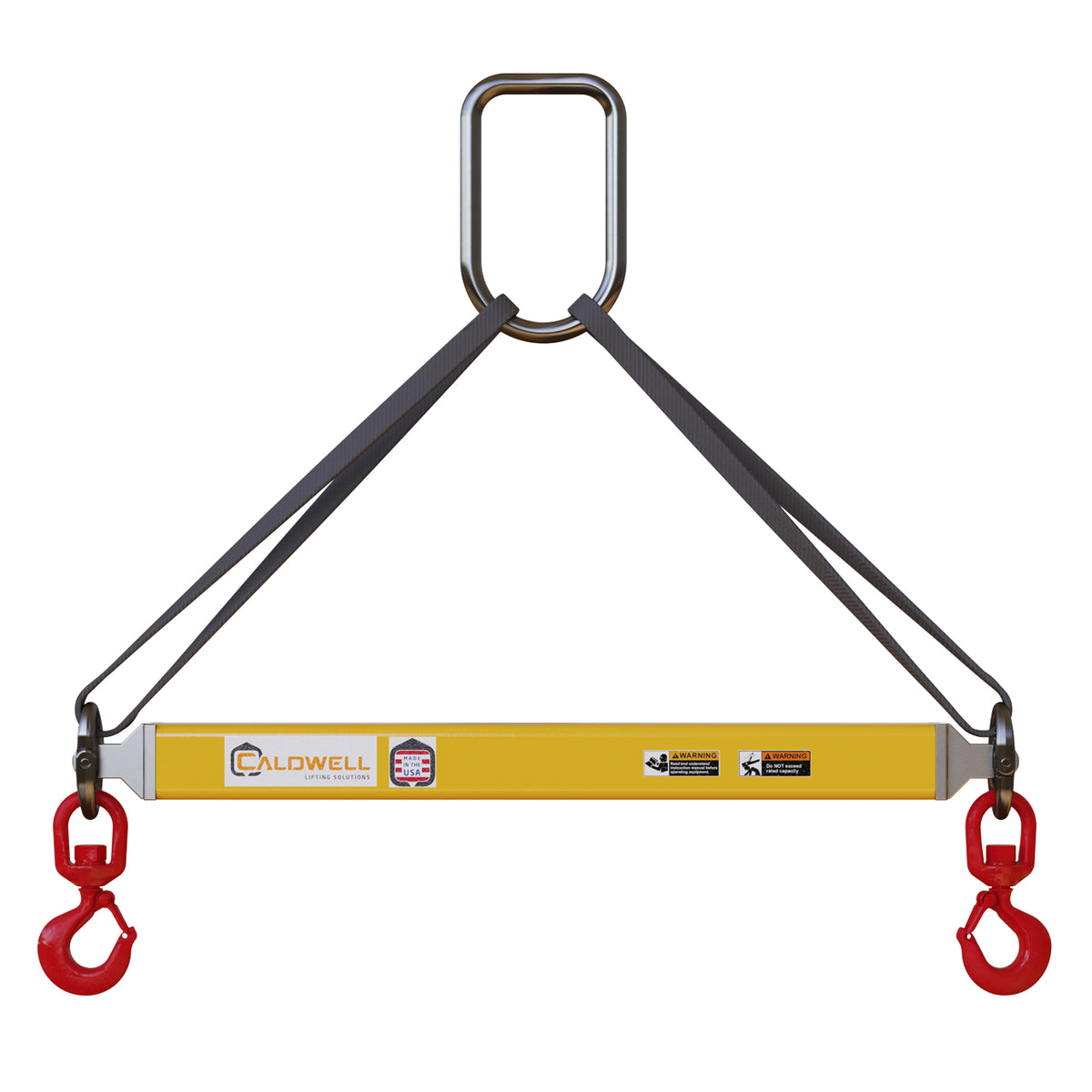

Caldwell Fiberglass Battery Lifting Beams
Desde
$898.00
Precio unitario
/
Agotado
Used for applications that require a non-conductive beam such as lifting industrial fork lift truck batteries.
Features
- Lightweight units - 70% lighter than other beams
- Models are available for handling batteries of equal length or different lengths
- Heavy-duty 4800- lb and 7000-lb capacities
- Non-conductive fiberglass beam construction
- Acid-resistance, coated polyester straps and hooks
- Standard drop sling length is 10", other lengths available upon request
Specifications
| Spread | 36 |
Available Models
| Part No. | Rated Capacity | Capacity | Bail Opening Height | Bail Opening Width | Hook Thickness | Bail Depth | Headroom | Hook Throat | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|
| 36-2.4 | 4800 | 2.4 | 6 | 3 | 0.84 | 0.62 | 11 | 0.65625 | 16 |
| 36-3.5 | 7000 | 3.6 | 5.5 | 2.75 | 1 | 0.75 | 12 | 1 | 20 |
