Caldwell  |  SKU: Caldwell-FE4-42

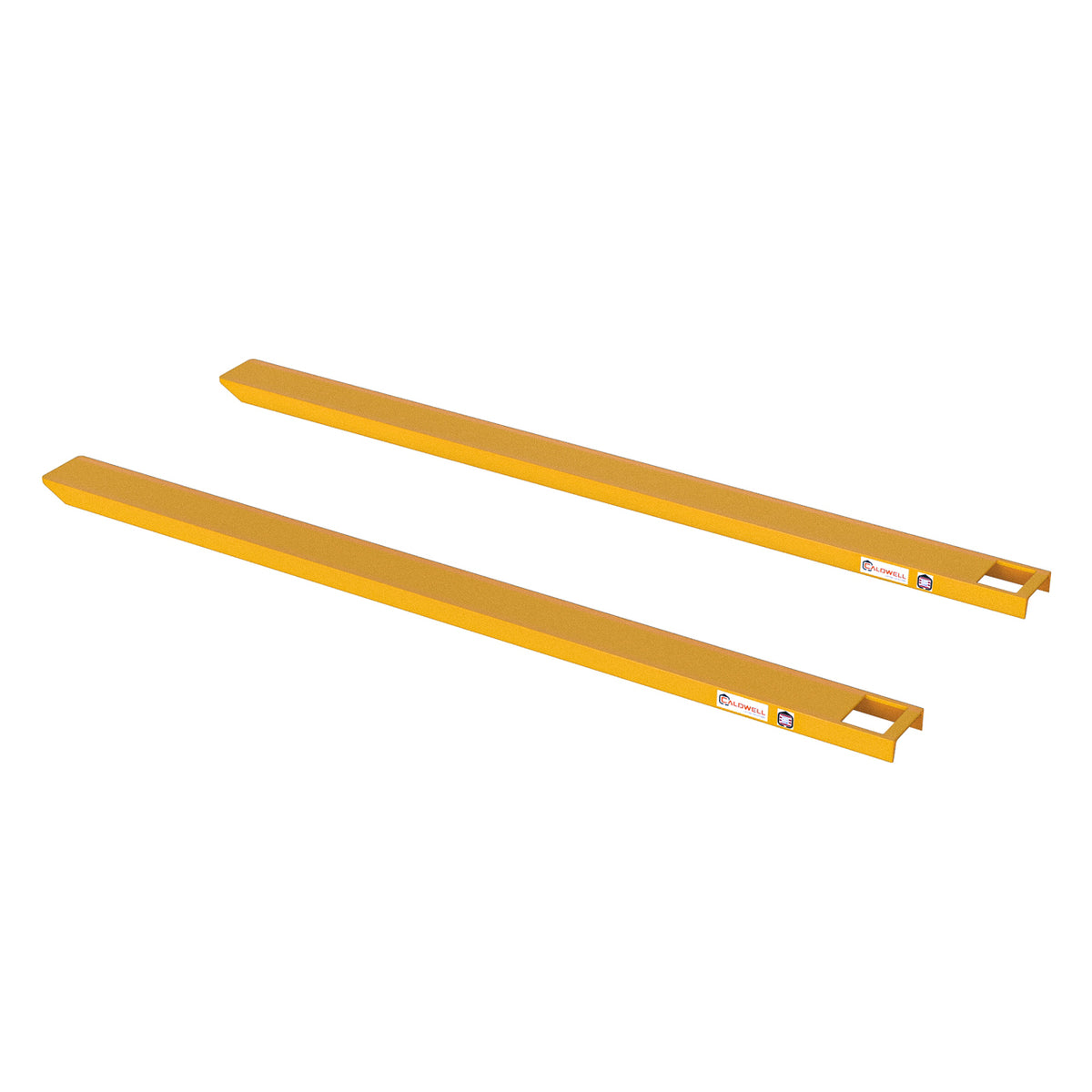

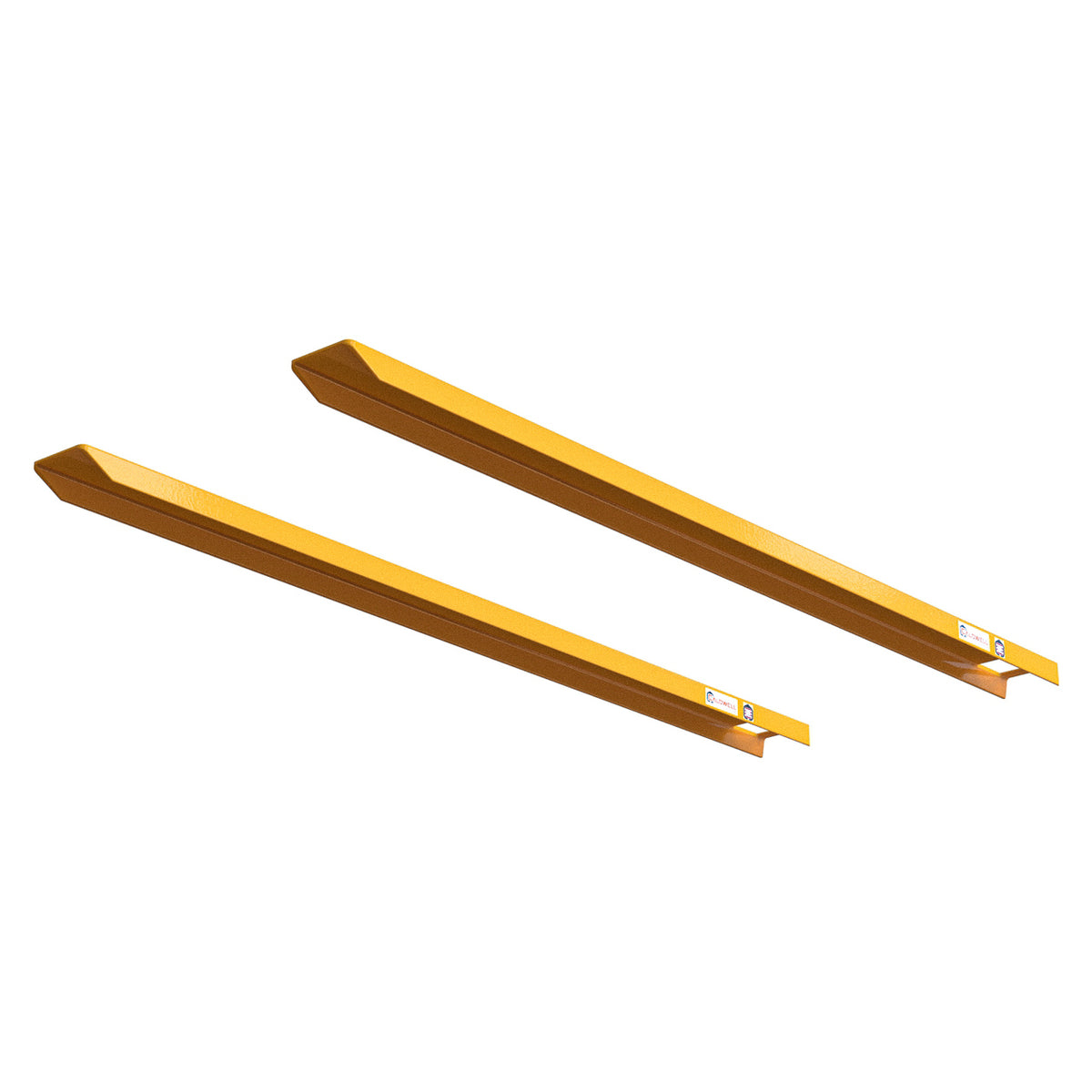

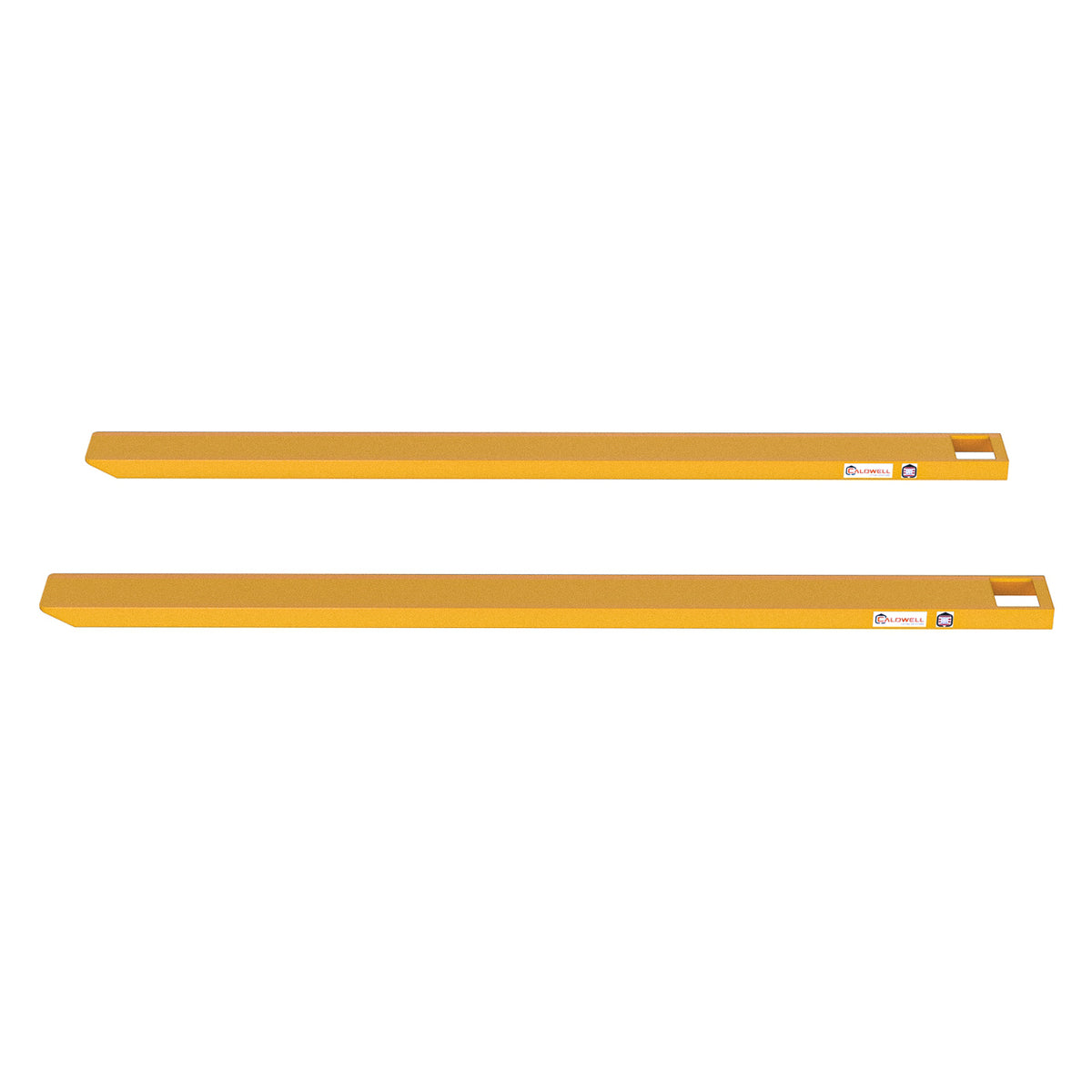

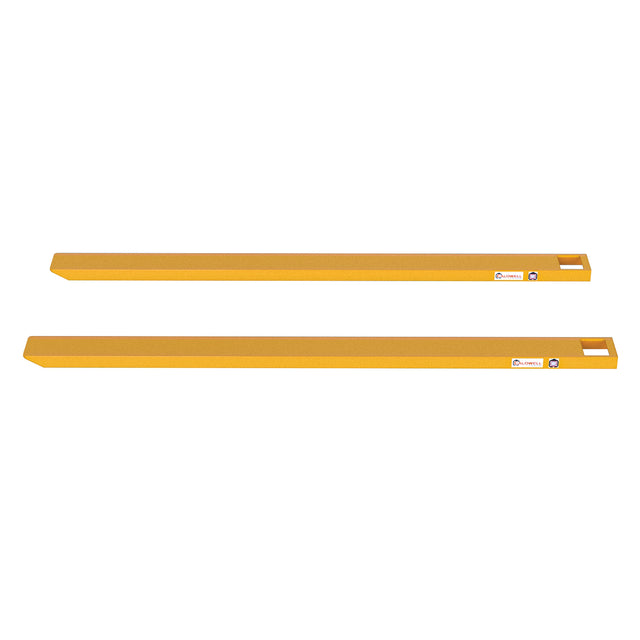

Caldwell Fork Extensions

$250.00
Request a Quote

Get more bang for your fork truck buck! When you need a bit more power, fork extensions can make oversized loads manageable.

Features

  • Ideal for oversized loads
  • Easy installation onto existing forks
  • Fits standard fork thicknesses
  • Standard fork extension widths 4" to 7"
  • Standard fork extension lengths 42" through 96"

Available Models

Part No. Fork Width (in.) Extension Length (in.) Capacity Rated Capacity Fork Pocket Opening Width Fork Width Extension Length Min Fork Length Overall Length Load Center Point Weight Each Weight
FE4-42 4 42 0.96 1925 4.5 4 42 28 46.63 21 30 25
FE4-48 4 48 0.85 1700 4.5 4 48 32 52.63 24 34 32
FE4-54 4 54 0.75 1500 4.5 4 54 36 58.63 27 39 32
FE4-60 4 60 0.68 1350 4.5 4 60 40 64.63 30 43 35
FE4-63 4 63 0.64 1275 4.5 4 63 42 67.63 32 45 37
FE4-66 4 66 0.61 1225 4.5 4 66 44 70.63 33 47 38
FE4-72 4 72 0.56 1125 4.5 4 72 48 76.63 36 51 35
FE5-42 5 42 1.26 2525 5.5 5 42 28 47 21 36 30
FE5-48 5 48 1.1 — 5.5 5 48 32 53 24 41 —
FE5-54 5 54 0.98 1950 5.5 5 54 36 59 27 46 38
FE5-60 5 60 0.88 1750 5.5 5 60 40 65 30 51 42
FE5-63 5 63 0.84 1675 5.5 5 63 42 68 32 53 45
FE5-66 5 66 0.8 1600 5.5 5 66 44 71 33 56 47
FE5-72 5 72 0.74 1475 5.5 5 72 48 77 36 61 51
FE5-96 5 96 0.55 1100 5.5 5 96 64 101 48 80 67
FE6-42 6 42 1.6 3200 6.5 6 42 28 47 21 43 36
FE6-48 6 48 1.4 2800 6.5 6 48 32 53 24 48 41
FE6-54 6 54 1.25 — 6.5 6 54 36 59 27 54 —
FE6-60 6 60 1.12 2250 6.5 6 60 40 65 30 60 51
FE6-63 6 63 1.06 2125 6.5 6 63 42 68 32 63 58
FE6-66 6 66 1.01 1875 6.5 6 66 44 71 33 66 60
FE6-72 6 72 0.94 1875 6.5 6 72 48 77 36 71 60
FE6-96 6 96 0.7 1400 6.5 6 96 64 101 48 94 80
FE7-42 7 42 2 — 7.11 7 42 28 42 21 42 —
FE7-48 7 48 1.75 — 7.11 7 48 32 48 24 48 —
FE7-54 7 54 1.55 3100 7.11 7 54 36 54 27 53 53
FE7-60 7 60 1.4 2800 7.11 7 60 40 60 30 60 59
FE7-63 7 63 1.34 2675 7.11 7 63 42 63 32 62 62
FE7-66 7 66 1.27 2325 7.11 7 66 44 66 33 65 71
FE7-72 7 72 1.16 2325 7.11 7 72 48 72 36 71 71
FE7-96 7 96 0.88 1750 7.11 7 96 64 96 48 94 94
Caldwell Fork Extensions
Caldwell

Caldwell Fork Extensions

Desde $250.00

Get more bang for your fork truck buck! When you need a bit more power, fork extensions can make oversized loads manageable.

Features

Available Models

Part No. Fork Width (in.) Extension Length (in.) Capacity Rated Capacity Fork Pocket Opening Width Fork Width Extension Length Min Fork Length Overall Length Load Center Point Weight Each Weight
FE4-42 4 42 0.96 1925 4.5 4 42 28 46.63 21 30 25
FE4-48 4 48 0.85 1700 4.5 4 48 32 52.63 24 34 32
FE4-54 4 54 0.75 1500 4.5 4 54 36 58.63 27 39 32
FE4-60 4 60 0.68 1350 4.5 4 60 40 64.63 30 43 35
FE4-63 4 63 0.64 1275 4.5 4 63 42 67.63 32 45 37
FE4-66 4 66 0.61 1225 4.5 4 66 44 70.63 33 47 38
FE4-72 4 72 0.56 1125 4.5 4 72 48 76.63 36 51 35
FE5-42 5 42 1.26 2525 5.5 5 42 28 47 21 36 30
FE5-48 5 48 1.1 — 5.5 5 48 32 53 24 41 —
FE5-54 5 54 0.98 1950 5.5 5 54 36 59 27 46 38
FE5-60 5 60 0.88 1750 5.5 5 60 40 65 30 51 42
FE5-63 5 63 0.84 1675 5.5 5 63 42 68 32 53 45
FE5-66 5 66 0.8 1600 5.5 5 66 44 71 33 56 47
FE5-72 5 72 0.74 1475 5.5 5 72 48 77 36 61 51
FE5-96 5 96 0.55 1100 5.5 5 96 64 101 48 80 67
FE6-42 6 42 1.6 3200 6.5 6 42 28 47 21 43 36
FE6-48 6 48 1.4 2800 6.5 6 48 32 53 24 48 41
FE6-54 6 54 1.25 — 6.5 6 54 36 59 27 54 —
FE6-60 6 60 1.12 2250 6.5 6 60 40 65 30 60 51
FE6-63 6 63 1.06 2125 6.5 6 63 42 68 32 63 58
FE6-66 6 66 1.01 1875 6.5 6 66 44 71 33 66 60
FE6-72 6 72 0.94 1875 6.5 6 72 48 77 36 71 60
FE6-96 6 96 0.7 1400 6.5 6 96 64 101 48 94 80
FE7-42 7 42 2 — 7.11 7 42 28 42 21 42 —
FE7-48 7 48 1.75 — 7.11 7 48 32 48 24 48 —
FE7-54 7 54 1.55 3100 7.11 7 54 36 54 27 53 53
FE7-60 7 60 1.4 2800 7.11 7 60 40 60 30 60 59
FE7-63 7 63 1.34 2675 7.11 7 63 42 63 32 62 62
FE7-66 7 66 1.27 2325 7.11 7 66 44 66 33 65 71
FE7-72 7 72 1.16 2325 7.11 7 72 48 72 36 71 71
FE7-96 7 96 0.88 1750 7.11 7 96 64 96 48 94 94

Fork Width (in.)

  • 4
  • 5
  • 6
  • 7

Extension Length (in.)

  • 42
  • 48
  • 54
  • 60
  • 63
  • 66
  • 72
  • 96
