Caldwell | SKU:
Caldwell-GL2
Caldwell G Link Coupler
$101.00
Precio unitario
/
Agotado
Caldwell G Link Coupler - 5000 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell G Link Coupler
Desde
$101.00
Precio unitario
/
Agotado

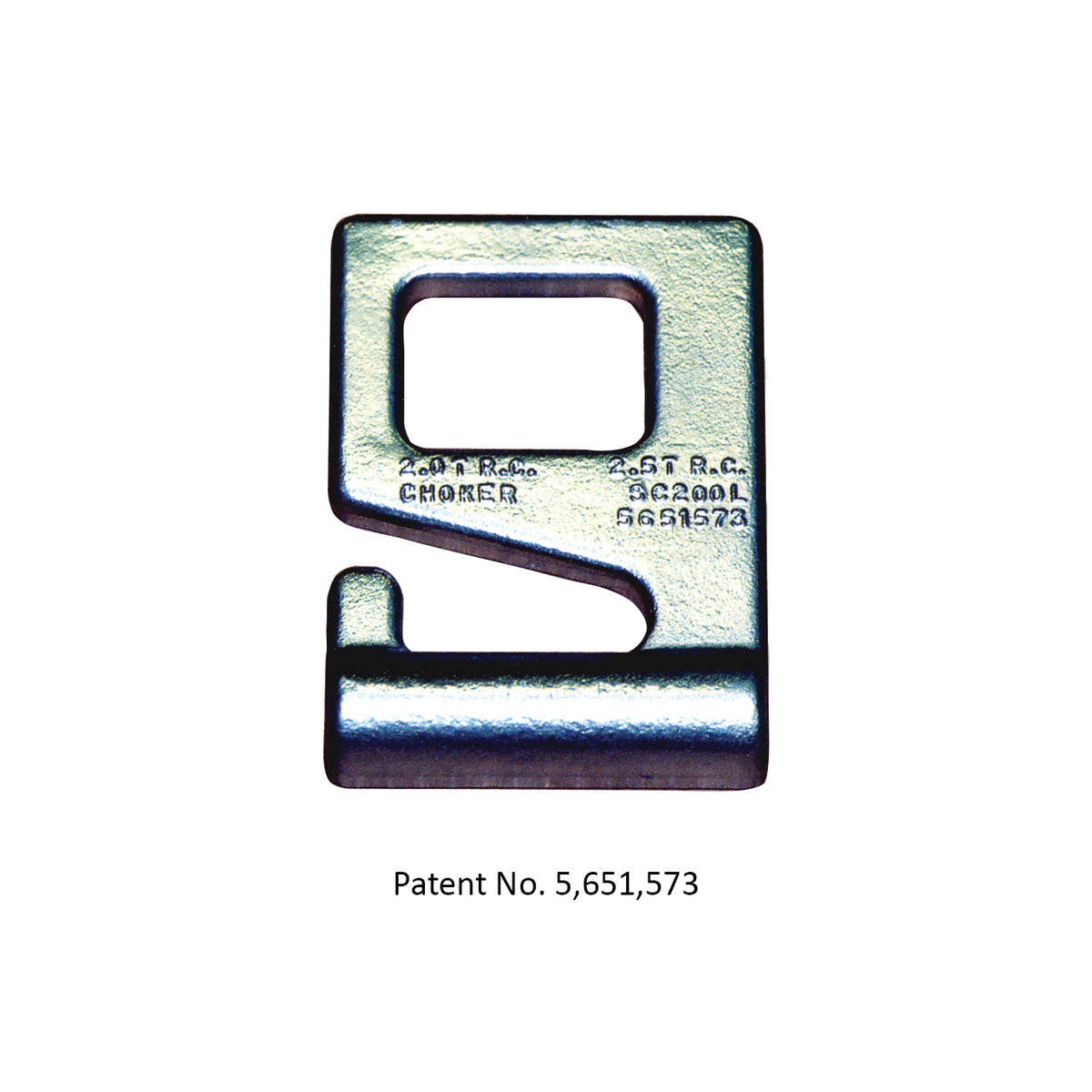

G-Link™ Coupler
Features
- Forged steel (unless noted)

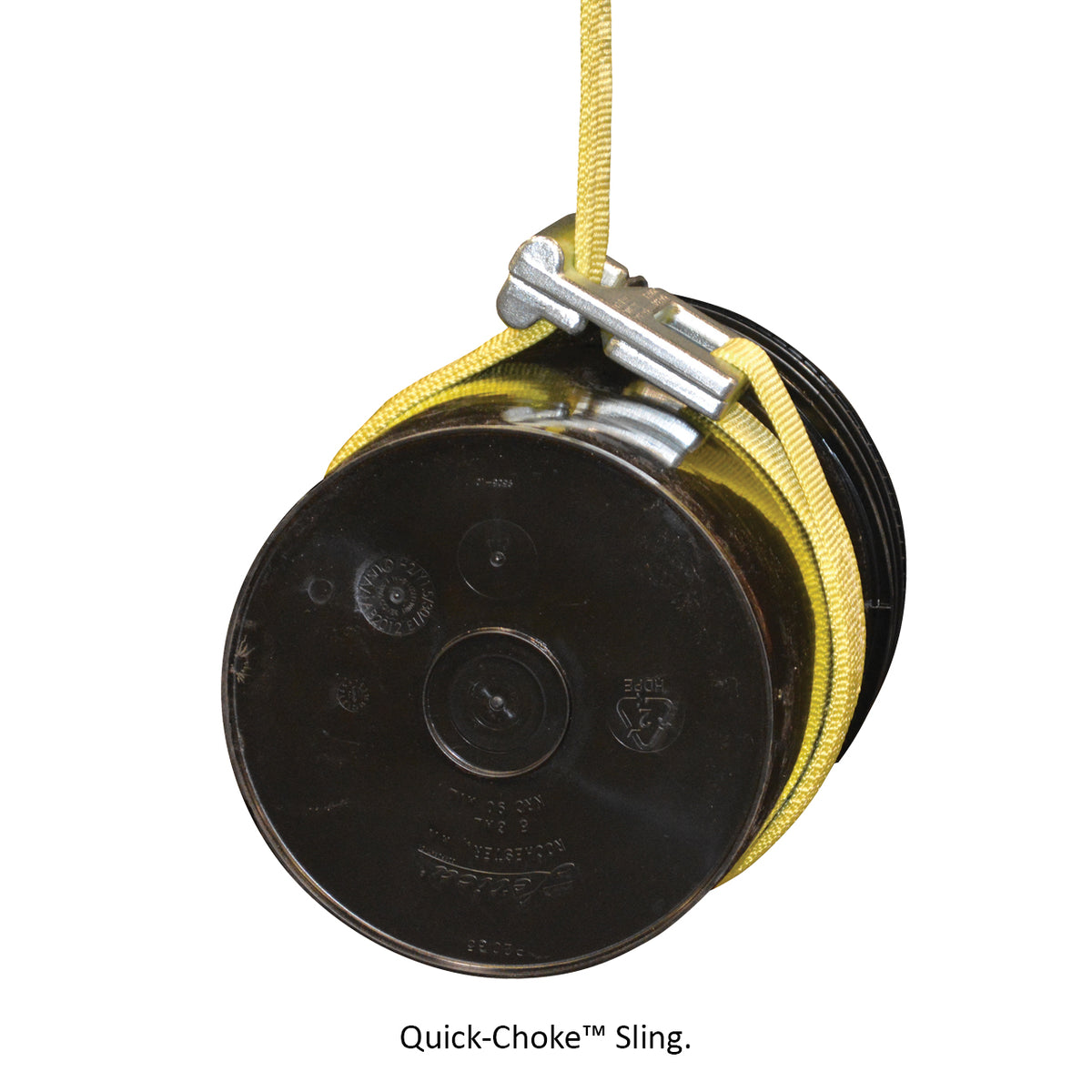

- Can be used to make a Quick-Choke™ Pipe Lifting Sling

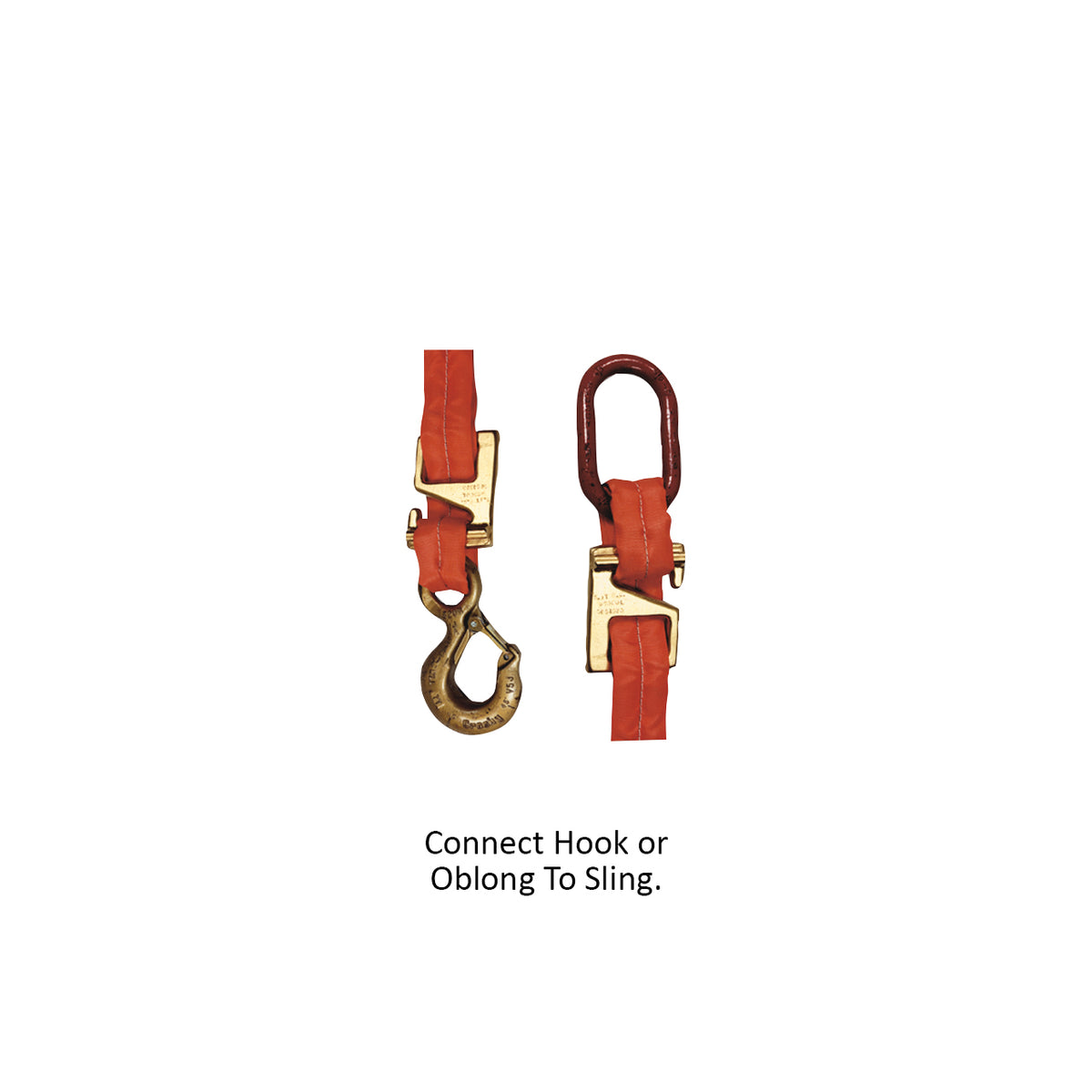

- Couples web or round sling with hardware (oblongs or hooks)

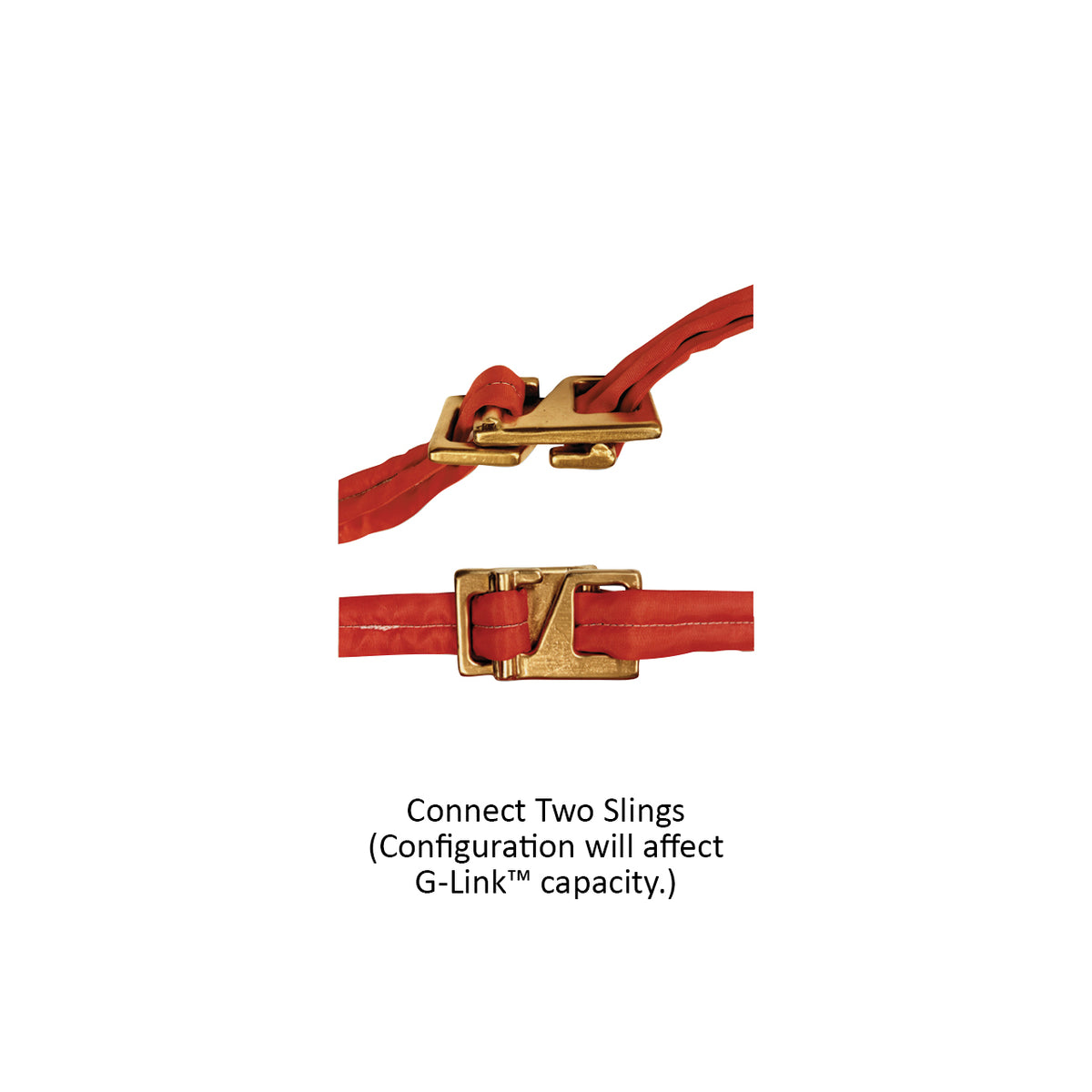

- Splices two slings into longer length
- Connects two slings with oblong and two hooks into bridle sling
- Plated for corrosion resistance
- Complies with ASME B30.9 sling capacities
Available Models
| Part No. | Rated Capacity | Capacity | Pad Diameter | Max Sling Span | Length | Width | Single or Double Roller | Thrust Plus Pull | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|
| GL2 | 5000 | 2.5 | 0.5 | 2 | 5 | 3.63 | 0.5 | 0.5 | 2.2 |
| GL3 | 10000 | 5 | 0.56 | 3 | 6.25 | 5 | 0.625 | 0.75 | 5.6 |
| GL4 | 15000 | 7.5 | 0.75 | 4 | 7.5 | 6 | 0.6875 | 1 | 9.5 |
| GL5 | 30000 | 15 | 0.5625 | 5 | — | — | 1 | 1.25 | 22.7 |
| GL6 | 50000 | 25 | 1.1875 | 6 | — | — | 1 | 1.5 | 37 |
